Logic Program

Description

PolyScope X applications can include a Logic Program that runs continuously in the background, independently of the main robot program. This is useful for tasks that must keep running when the arm is powered off, the main program is paused or stopped, or the operator has entered a safeguard area.

Typical uses include maintaining fieldbus communication (Modbus, Ethernet/IP, PROFINET, Socket, XmlRPC), reacting to external sensor inputs, reporting robot state to a production PLC, and controlling external equipment when the main program stops.

Logic Program cannot use functions that directly move the robot arm, change payload, or modify the TCP parameters.

Examples of applications with Logic Program

Active response to external sensor input while the robot is in a stop mode, such as Safeguard Stop, Protective Stop, or Emergency Stop, and the main program is paused or stopped, or before the robot arm is powered on.
Fieldbus communication (Modbus, Ethernet/IP, PROFINET, Socket, XmlRPC) is maintained even if the robot arm is powered off and the program is not running.
Continuous cell logic operation while the main program is interrupted by the operator.
Robot status report, which is conveyed to the production control software (production PLC).
Controlled stop of external equipment, such as welding machine, conveyor, glue dispenser, when the main program stops or pauses.
Input from operator is captured before the program is started.
Customized recovery due to fault conditions. The operator can decide what to do after resuming the main program.
Replacement of external PLC controller in small robot cells.

License

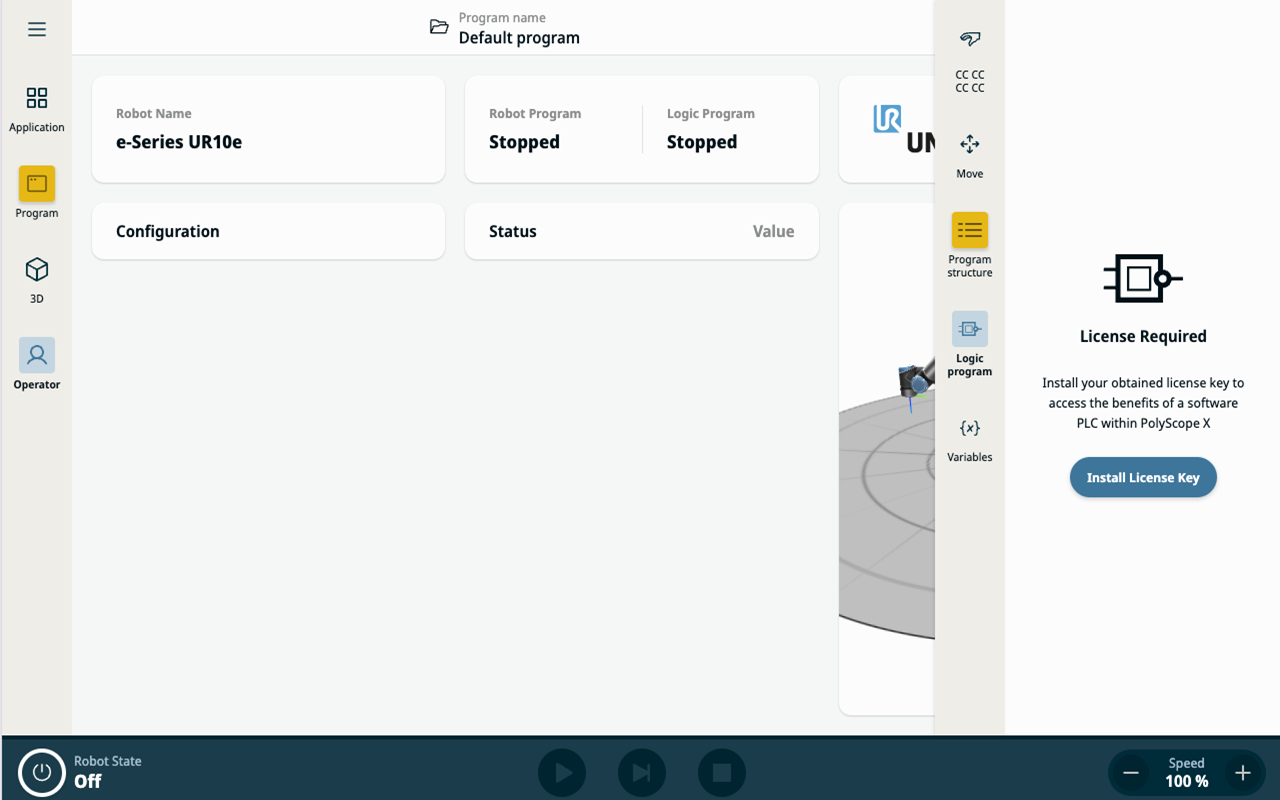

Logic Program requires a license, which can be purchased through the customer portal.

Controlling the Logic Program

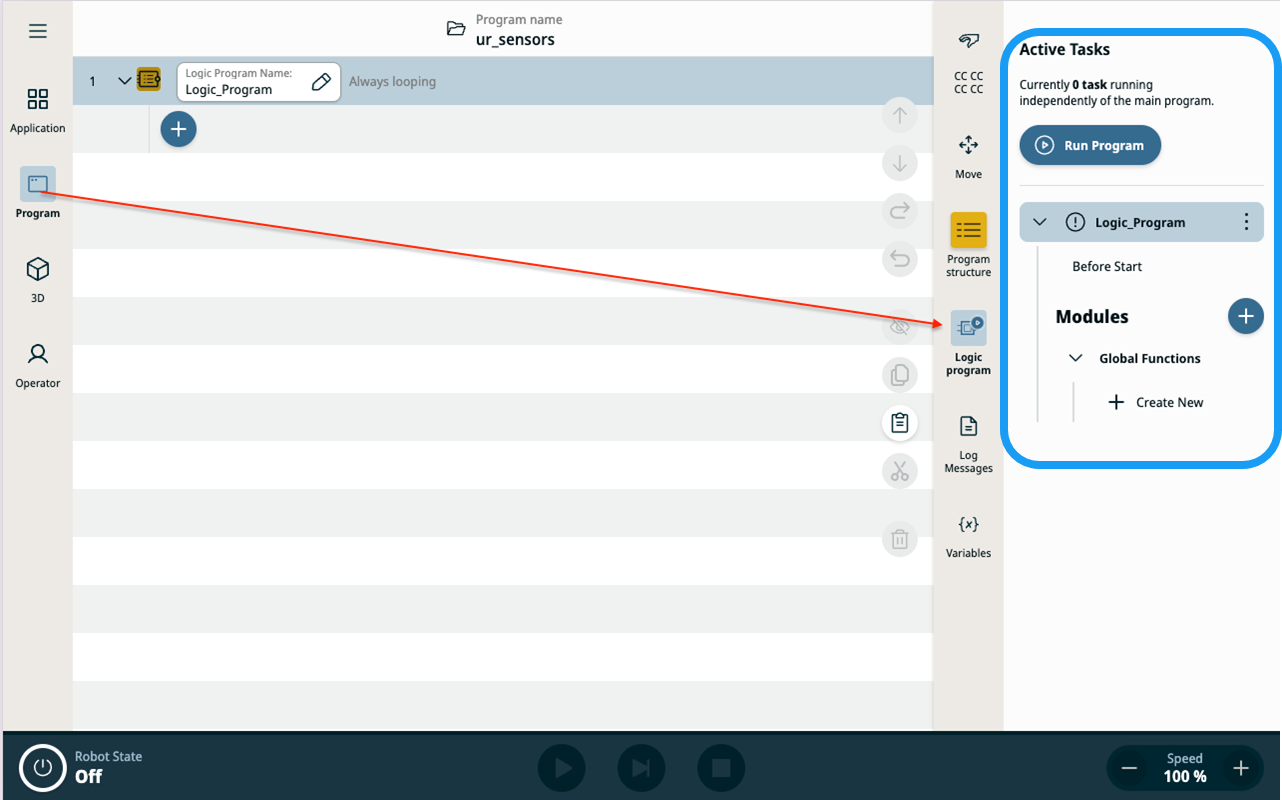

In the Program page, select Logic program on the sidebar. The expanded sidebar shows the controls for navigating the different parts of the Logic Program. It also allows you to start, pause, stop, and reset the program.

The run program button changes to either Run Program or Stop Program, depending on the state of the Logic Program. It acts as a shortcut for program control actions available in the Logic Program context menu.

The four Logic Program indicators show the current state of the program. They also indicate if the program is configured to start automatically when an application is loaded.

Logic Program structure

A Logic Program has the same structural sections as a main program:

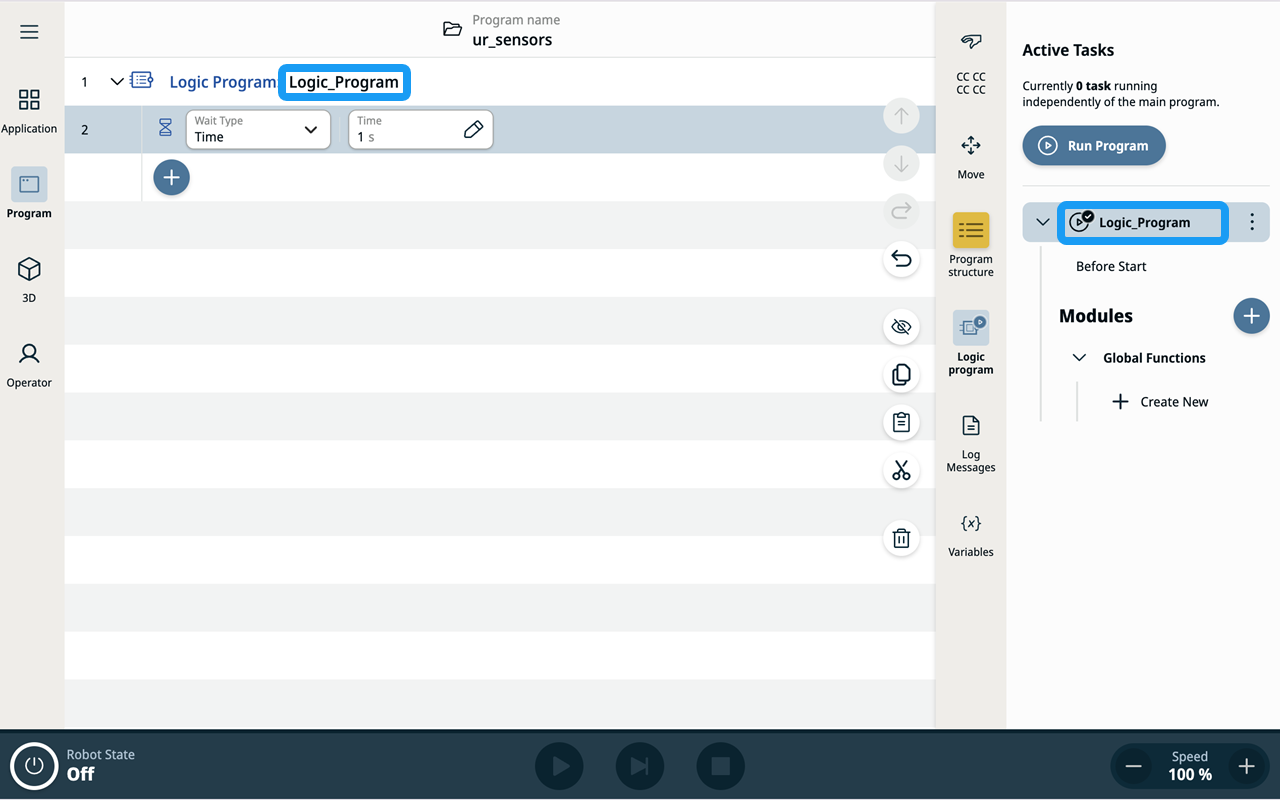

Main program body — runs continuously until stopped manually, with a halt instruction, or by a runtime error.
Before Start — runs once when the Logic Program starts.
Modules — functions and threads, organized the same way as in the main program. Thread functions only execute once by default; enable the loop option to run a thread continuously.

Robot program and Logic program each has its own set of global variables, independent thread pool, and independent execution lifecycle. Starting, stopping, or faulting one program does not stop the other. A halt or pause instruction affects only the program in which it is executed.

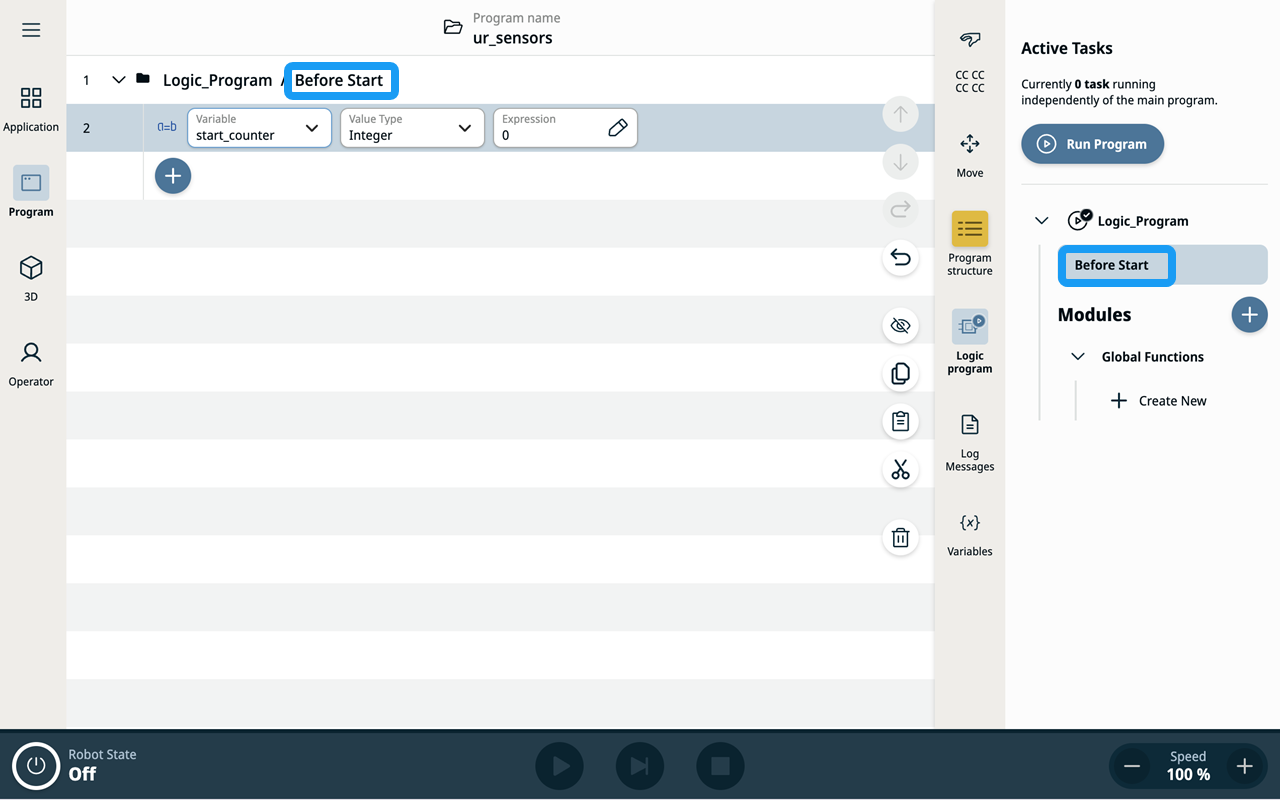

In the Before Start section, you can execute the program only once.

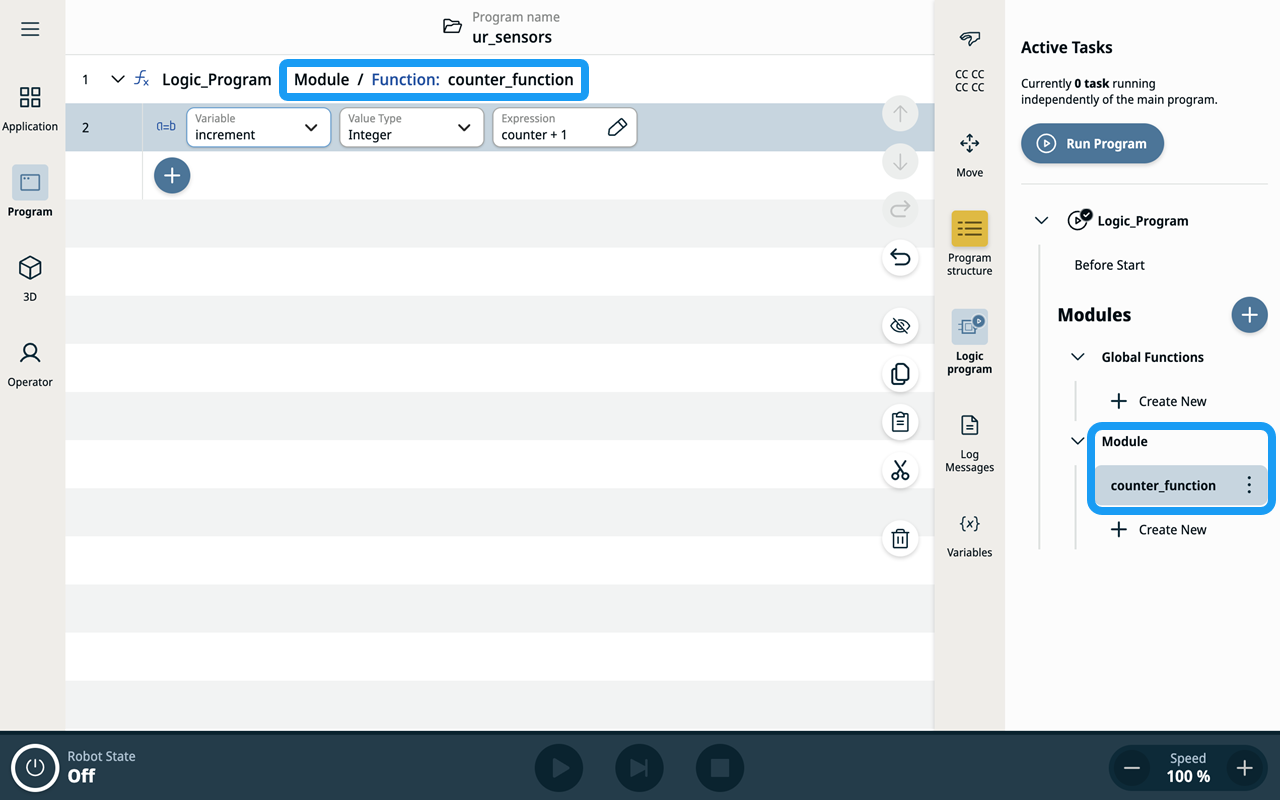

In the Modules section, you can see the list of functions and threads available for the program.

Exchanging data with the robot program

The primary way to communicate between the robot program and the Logic Program is through Application Variables. Variables can be both set and read from the robot and logic program.

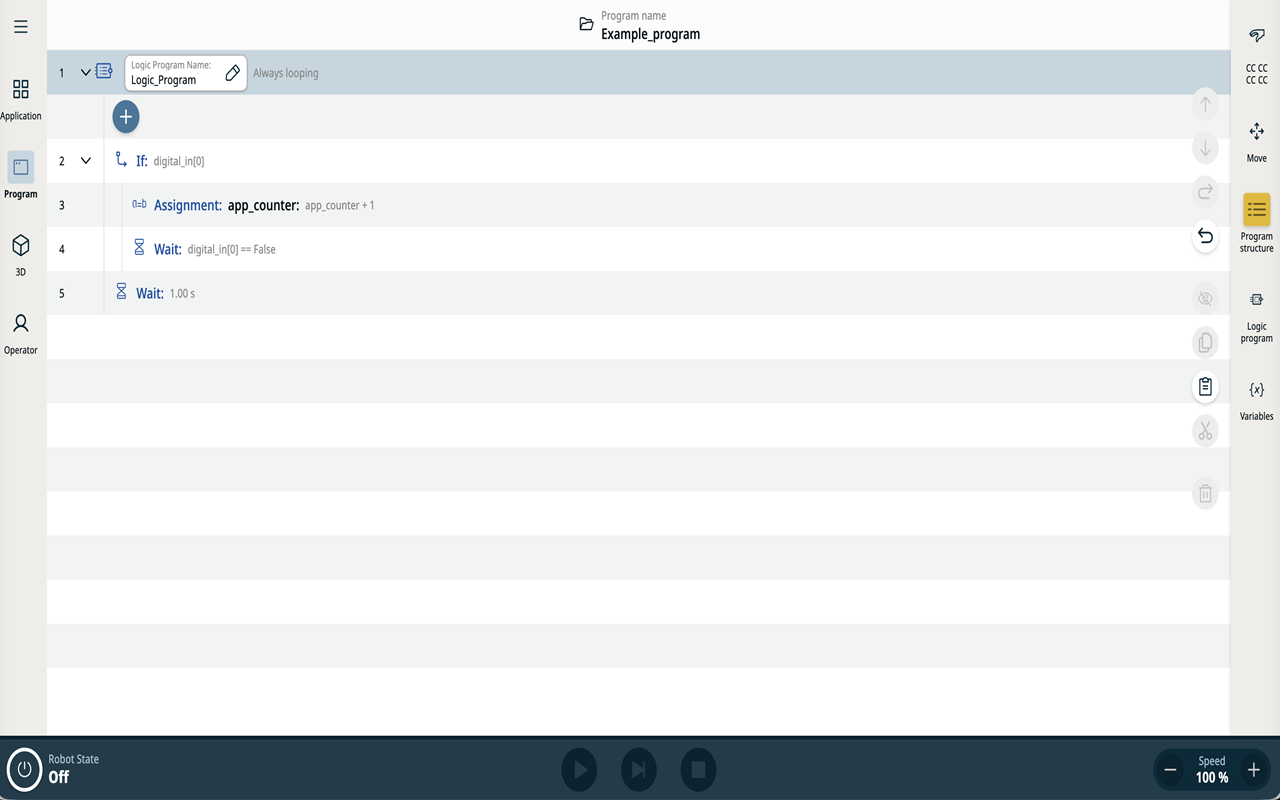

This example counts items entering the robot cell's input buffer and displays the count to the robot program. The counter continues to increment even while the robot arm is powered off.

Reading the robot state

The robot state is available through built-in RTDE variables. These variables can be read using the script function get_rtde_value(). For a full list of available RTDE fields, see the RTDE Guide.

The following example shows how to check if Safeguard Stop is active:


safety_status = get_rtde_value("safety_status")
# check for Safeguard Stop and Automatic Mode Safeguard Stop
is_safeguard_stop_active = (safety_status == 5 or safety_status == 12)

The following example checks if the robot program is paused:

is_program_paused = get_rtde_value("runtime_state") == 4

The URScript Control API also wraps this functionality.

Automatically starting logic program

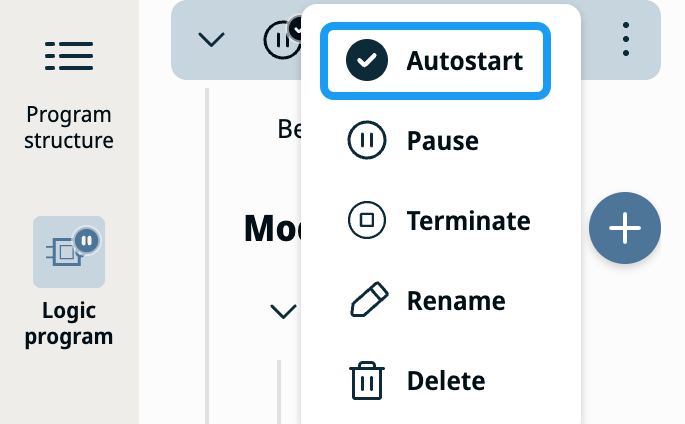

You can select a program to be started automatically when an application is loaded. When you select the Autostart option, the Logic Program starts immediately after the application is loaded.

You can also automatically start the Logic Program when the robot controller is powered on and the last application is loaded.

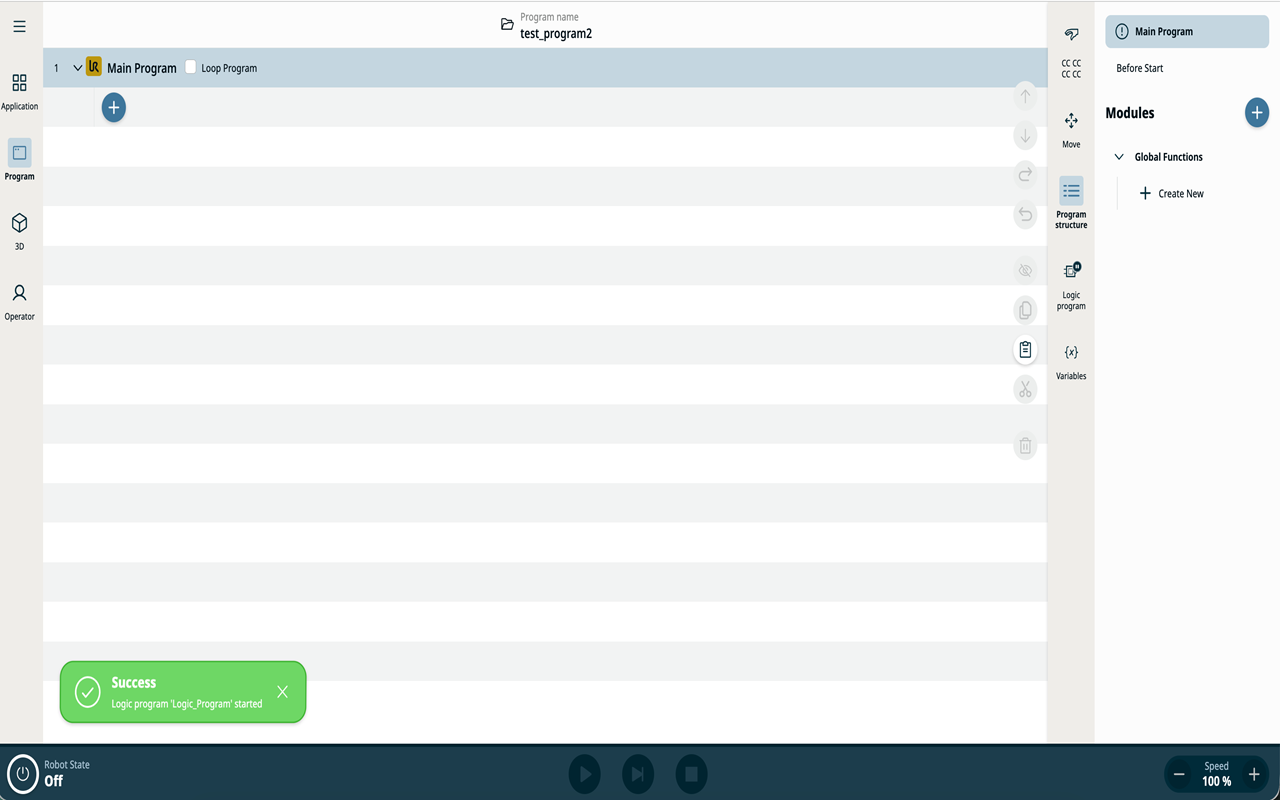

The Autostart function works regardless of the operational mode or robot arm status. When Autostart is triggered on load, a snackbar notification confirms that the Logic Program has started.

The sidebar badge on the Logic Program icon always indicates the program's current state, whether it is running or stopped.

It is your responsibility to ensure that the Logic Program is safe when the robot is powered on and when different applications are loaded.

Logic programs can activate and deactivate external equipment using wired or PLC connections (Modbus, PROFINET, Ethernet/IP, Socket, direct outputs, or other interfaces).

Modules and threads

Logic Program functionality can be organized in functions. This works in the same way as in the robot program.

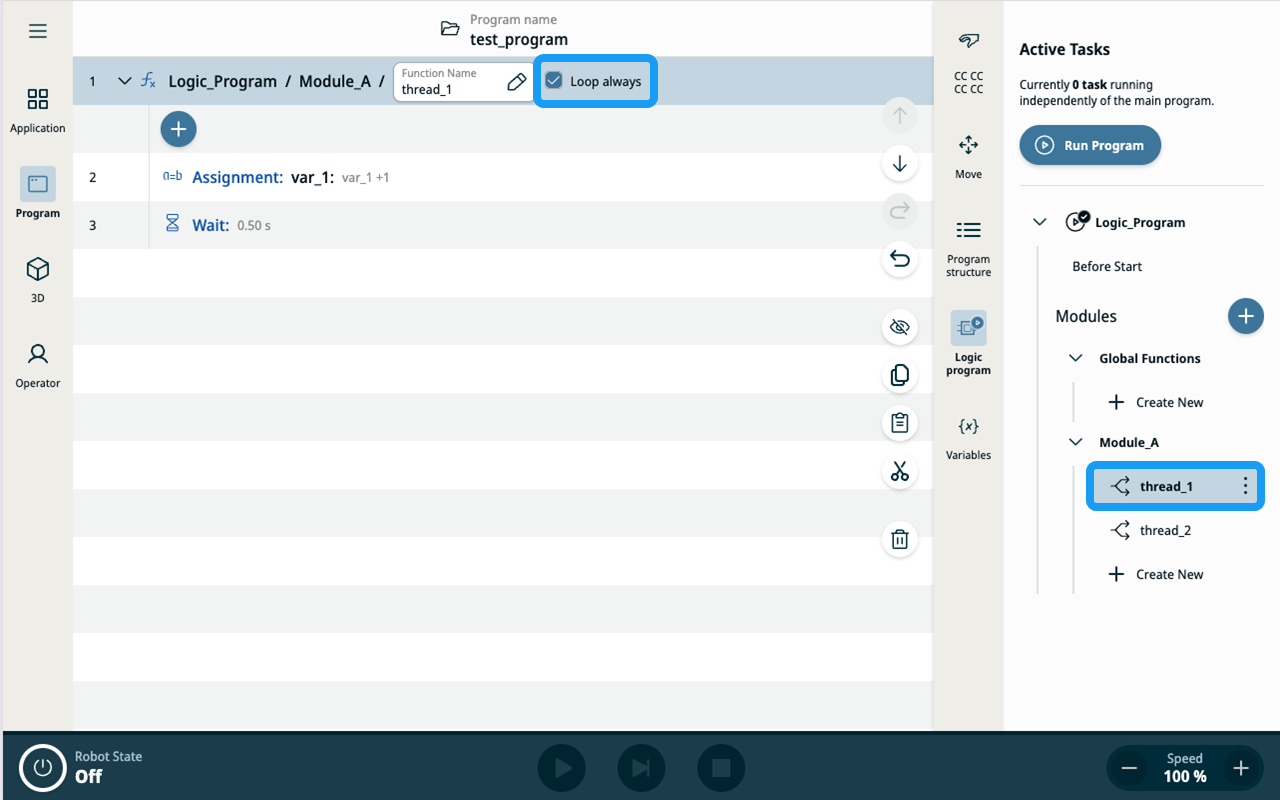

Each function can be marked as a Thread. By default the threads are executed only once. Select the Loop check box on the thread function to execute the thread continuously.

Sharing resources

While robot program and Logic program are executed independently, each with their own pool of threads and variables, they all share same hardware resources. This imposes few limitations that programmer should be aware of:

Logic program threads execute on the same CPU as the robot program. Execution time of all logic program threads will add to excution time of all robot program threads. This can lead to “Runtime too much behind” violation in extreme cases.
Some communication resources like Modbus signals or general purpose registers are shared resource. Writing to the same register at the same time will have unexpected results. Moreover currently observed behavior can change in the future when underlying implementation is optimized.
Modbus — One Modbus client is shared. Signals created in either program are visible in both.
Ethernet/IP flexible adapter — Each program opens its own reader or writer handle to the same instance. Handles must not write the same data fields.

Limitations

Only a subset of URScript instructions is available in the Logic Program.
Program execution indicators and breakpoint-based debugging are not supported for the Logic Program.
Interpreter mode is not supported in Logic Programs. However, interpreter mode can still be started in the robot program while the Logic Program is running.
