UR Series
UR8 Long
- PayloadUp to 10 kg / 22 lbs
- Reach1750 mm / 68.9 in
- FootprintØ204 mm
- Weight44.7 kg / 98.5 lbs
UR15
- Payload17.5 kg / 38.58 lbs
- Reach1300 mm / 51.2 in
- FootprintØ204 mm
- Weight40.7 kg / 89.73 lbs
UR18
- Payload18 kg / 39.7 lbs
- Reach950 mm / 37.4 in
- FootprintØ204 mm
- Weight39.2 kg / 86.42 lbs
UR20
- Payload25 kg / 55.1 lbs
- Reach1750 mm / 68.9 in
- FootprintØ 245 mm
- Weight64 kg / 141.1 lbs
UR30
- Payload35 kg / 77.1 lbs
- Reach1300 mm / 51.2 in
- FootprintØ245 mm
- Weight63.5 kg / 139.9 lbs
Main applications
The UR Series is engineered for reliable automation in a wide range of applications, bringing robust and efficient automation to various industries.

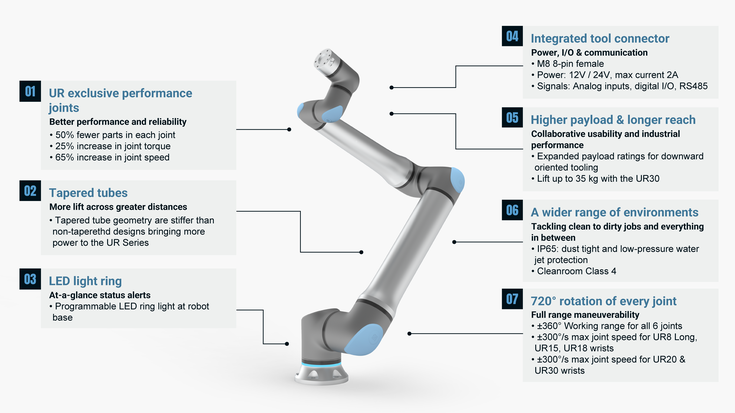

Key advantages
The UR Series delivers the speed and precision you need to breeze through the most demanding tasks. It handles heavier payloads, it reaches farther, all while maintaining collaborative capabilities.
Lift heavier payloads faster
The UR Series geometry combined with the updated joint architecture allows these robots to lift heavy payloads at speeds once reserved for traditional industrial robots.
Enhance your end-of-line operations, boost productivity, and free your skilled workforce from repetitive heavy lifting—so they can focus on higher-value, more impactful tasks.
More environments. Endless possibilities
With IP65 and Cleanroom certifications, the UR Series is built to thrive in more environments—including those with harsh conditions or strict cleanliness standards.
Whether it's a demanding industrial setting or a tightly controlled workspace, you can bring the power of automation anywhere, even in regulated environments.
Robust and reliable
The new joint design of the UR Series robot incorporates fewer components, each of the highest quality. This streamlined approach reduces complexity, enhances durability, and delivers a more robust, efficient joint with minimal risk of failure.
Built to withstand demanding, repetitive tasks for years on end, these high-performance joints are made to simply work reliably, effortlessly and consistently.
Collaborative-capable features
PolyScope, the intuitive software that powers the UR Series, has been enhanced with advanced algorithms to handle heavier payloads while maintaining the collaborative safety standards UR is known for.
With easy access to essential tools and features, UR robots remain straightforward to program, deploy, and manage, enabling the automation of even complex tasks.
Case studies
Raumland GmbH
Raumland GmbH is a family-owned company, analyzes, filters, labels, bottles and ships wines for multiple wine producers. With over five million bottles and 2,500 different wines processed annually, Raumland uses UR20 to palletize wine cartons at the end of the bottling line.
Bob’s Red Mill
The historic whole grain manufacturer looked for many years to use collaborative robots for palletizing tasks, but had not found a solution meeting the speed, payload, or reach requirements until the release of the UR20.
Raise Robotics
Raise Robotics uses two powerful UR20 arms from Universal Robots as a platform for innovative onsite construction robots. The Raise system takes on repetitive and dangerous tasks, such as installing fasteners for glass façade panels on high-rise buildings.
Live UR Industrial Robot Demo See the versatibity, power and precision of the UR Series
The UR Series delivers the speed and precision you need to breeze through the most demanding tasks. It handles heavier payloads, it reaches farther, all while maintaining collaborative capabilities.
Demonstrations are available both online and and live in-person based on your availability.
