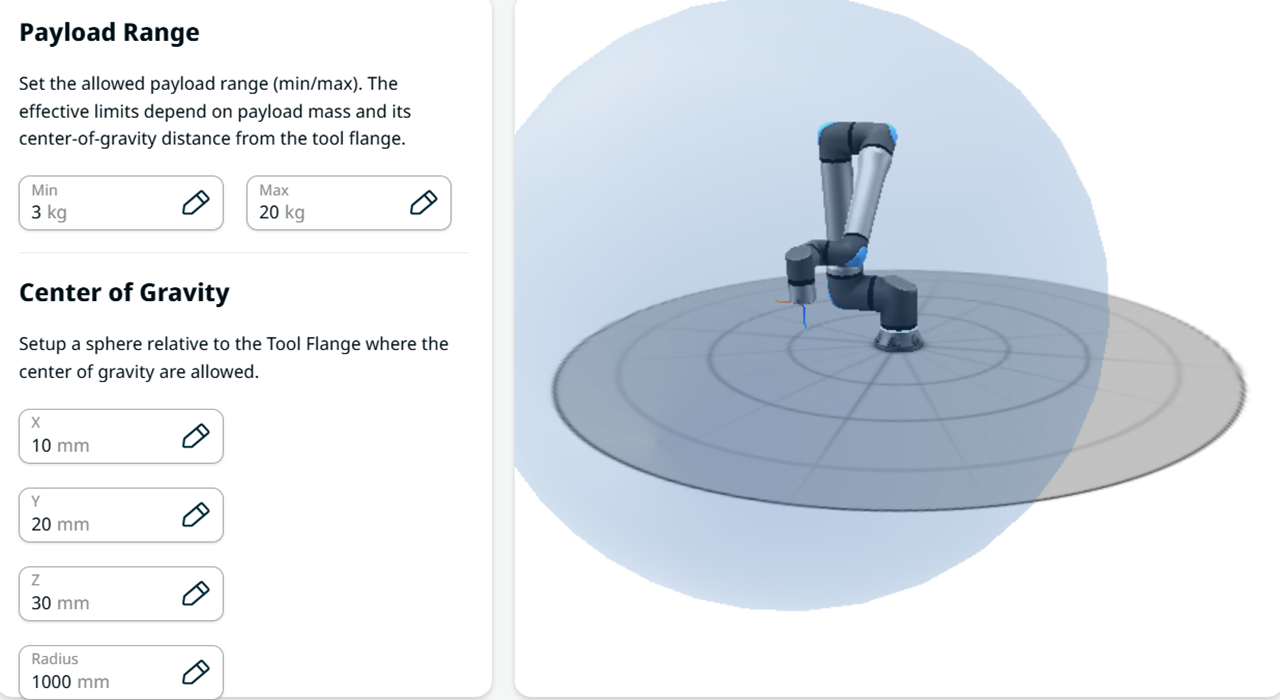

Payload Range
| Description |
Payload Range in the Safety Configuration defines the allowed payload configurations by weight and center of gravity. Use these limits to restrict the payloads permitted for a given application and ensure safe robot operation. By default, the applied payload range exceeds the robot model's rated capabilities, so normal operation does not trigger a safety violation.
|
||
|
|
When you use the default configuration, a warning appears in the Safety Overview dialog. It is recommended that you specify an allowed payload range to gain greater control over safe operation.
The default payload range exceeds the robot model's rated capabilities.
|
