TP7 Installation

To install TP7

  1. Place the TP7 plug and cable in through the bottom of the Control Box and fully close/tighten the plastic grommet.

  2. Push the TP7 plug into the Teach Pendant port to connect.

  3. Use two new cable ties to mount the TP7 cables.

  4. Connect the main power cable to the power source and power on the Control Box.

There is always a length of cable with the TP7 that can present a tripping hazard if it is not stored properly.

  • Always store the TP7 and the cable properly to avoid tripping hazards.
To mount a TP7 to a wall

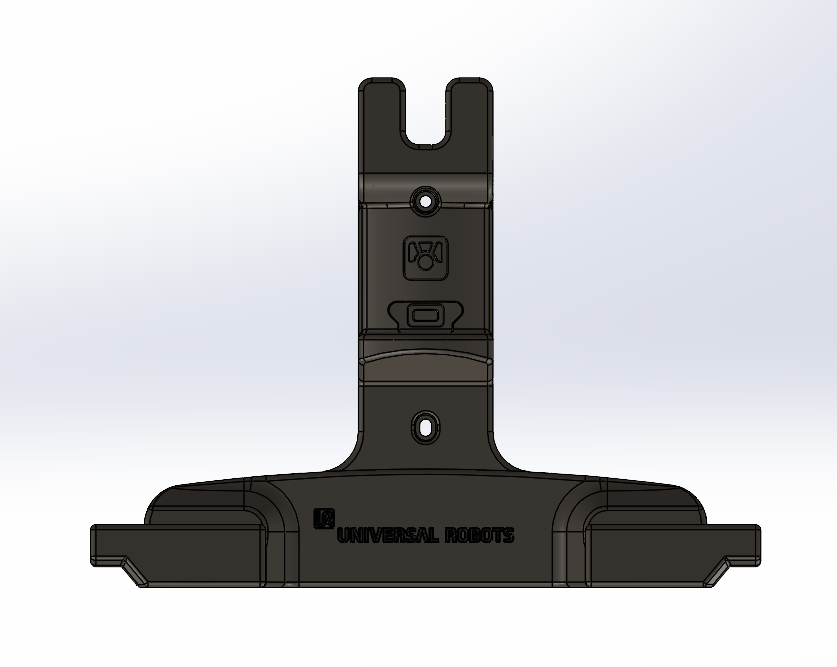

Use the bracket, shown below, included with the robot to mount the TP7.

Mount the bracket to a wall, then hang the TP7 on the space provided.
