UR Log Viewer - Release Notes

Release Notes for the UR Log Viewer

Last modified on May 20, 2025

Created: October 16th, 2023

Download the UR Log Viewer HERE



RELEASE NOTES FOR UR LOG VIEWER VERSION 1.3.5.0

NEW FUNCTIONALITY

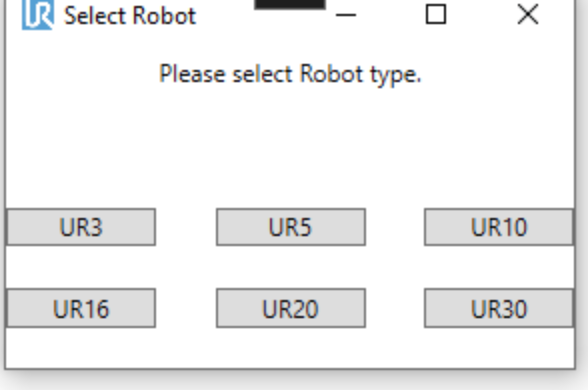

  • UR30 support

RELEASE NOTES FOR UR LOG VIEWER VERSION 1.3.4.0

NEW FUNCTIONALITY

  • Bug fix on RTDE Elbow values.

RELEASE NOTES FOR UR LOG VIEWER VERSION 1.3.3.0

NEW FUNCTIONALITY

  • Bug fix on data visualization for UR10e 12.5kg

RELEASE NOTES FOR UR LOG VIEWER VERSION 1.3.2.0

NEW FUNCTIONALITY

  • Torque Chart
  • Speed Scaling in velocity charts visible
  • Record value selection changed
  • Live View removed
  • Record default values aligned to ur_service file
  • Error codes updated
  • UR20 support
  • Polyscope 6 support

Release Notes for UR Log Viewer version 1.2.1.0

Release date: May 20th, 2021.

New functionality

  • Real-time data graphs
    • Y Axis in all charts zoom able
    • new chart for Payload/CoG
    • new chart Inertia
    • new chart FTSensor
  • Tool tip errort-imeline legend(error description)
  • Text search result now depending on filter check boxes
  • Default recording values changed: Checkboxes, time (5min max) and frequency (500)



Bugs

  • Wrong Current window (LA-41)
  • Better catching damaged files
    • flightrecords
    • zip files
    • logfiles
  • Text search field reset if you delete all character
  • Error Timeline remove double entries



Release Notes for UR Log Viewer version 1.2.0.0

Release date: January 13th, 2020.

New functionality

  • Real-time data graphs
    • Force Chart, Joint Temperature Chart, Joint Voltage Chart, GP IO Chart.
    • Improved general design of all charts.
    • RTDE Values GP INT and GP Float implemented.
  • Log Reader
    • Log data will be reloaded if language is changed.
    • Added option to "Open all Groups" in Log Reader Tab.
    • Option for an aggregate view in Error Timeline.
  • Improved performance, including when loading larger sets of data
  • MSI installation type.






Release Notes for UR Log Viewer version 1.1.0.0

New functionality

  • Real-time data graphs
    • In real-time data view, the script line number is shown on the Position graph.
      This enables easily to correlate real-time data with the relevant sections of the executed user program.
    • This is only available with robots w. PolyScope 5.9/3.14 and above. If a lower version is used where script line is not recorded, the index is shown.

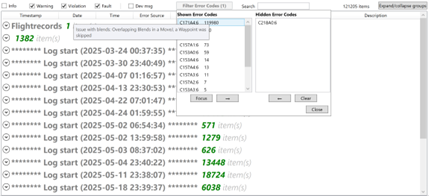

  • Log History overview

    • It is now possible to copy multiple lines of log messages
      Multiple lines can be selected while holding CTRL or SHIFT

    • Focus is kept on the selected error code, if view is changed (selecting Info, Warning, etc.)
  • New error code timeline view
    • A new view of a timeline of error occurrence over time can be shown by right-clicking selected error codes in the Log History view.
    • Users are able to select default error codes, or show only selected errors
    • Users are able to toggle between bar and graph charts
    • Users can select desired start-and end-dates for the timeline view
  • Log Analysis
    • If CB3 Polyscope version is older than 3.12, the version field is marked red and a message will be displayed.
  • Data Recording
    • Simplification of the RTDE values to record
    • Implemented tool-tips to describe RTDE fields
    • Ability to perform continuous recordings.
      This enables to record data over longer periods of time, eg. to track less-frequently occurring issues
      • Users can select the amount of time recorded per file
      • Log Viewer will create a new recording file for each increment of the selected recording time until recording is stopped
      • We recommend to configure 100Hz and 30min settings for longer periods.
  • Language support
    • Users can now select language in the Help-tab
    • Implemented the following user interface and error code description languages:
      EN DE DK FR ES PT RU ZH TR
    • The following languages are only available for error codes (with EN user interface).
      IT NL JP CS KO HU PL NO RO SK SL SV
    • Developer Messages are not translated.

Bug fixes

  • Fixed an issue where the backup log history (with .bak-extension) was not exported in "Export from robot"-tab
  • Fixed an issue where clicks caused wrong actions
  • General performance improvements
