Smart 3D Robot Vision with Gocator
Gocator 3D Snapshot Sensors. Add smart 3D vision to your UR device!
Gocator snapshot sensors use stereo structured light scanners that generate high-density 3D data with a single scan trigger. Each sensor offers onboard data processing, built-in 3D measurement tools, and decision-making logic to scan and inspect any part feature with stop/go motion at speeds up to 6 kHz.

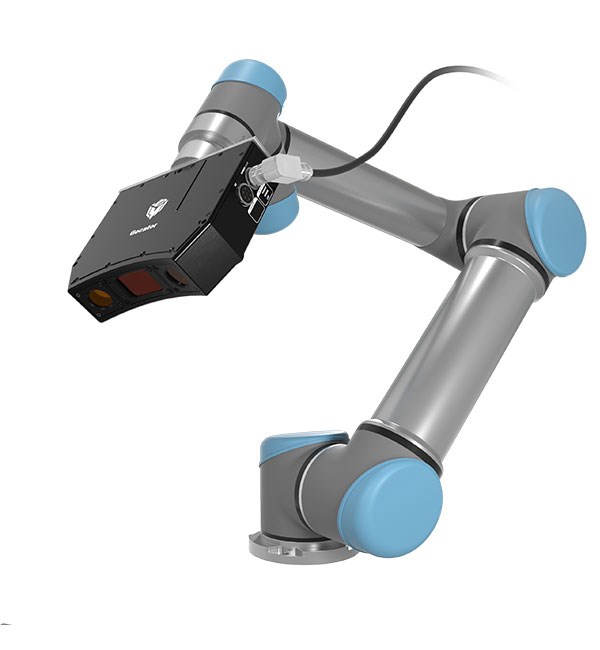

You can use snapshot sensors in a wide variety of factory automation applications. Pair these metrology-grade sensors with UR devices for a complete robotic solution that delivers high-performance 3D results in robot vision-guidance, quality control inspection, and automated assembly with smart pick and place.
Sensor-robot integration is easily achieved using the Gocator URcap plugin. Make your robot FactorySmart® with Gocator 3D snapshot sensors.
- 3D non-contact measurement device
- Generates high data density scans in a single snapshot
- Built-in 3D measurement tools
- Robot-friendly for flexible inspection and pick-and-place applications
- Stereo camera design minimizes occlusions

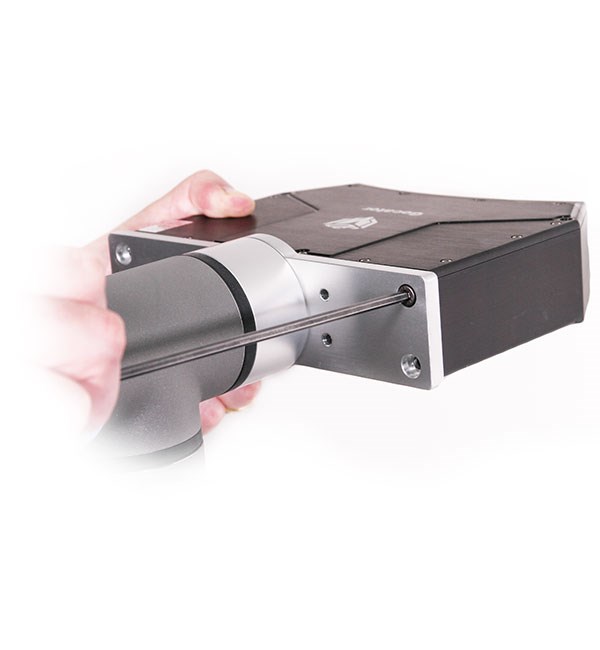

- Easy to mount and setup
- Eliminates need for expensive motion system and removes error caused by vibration
- Rugged industrial design for high reliability and long lifetime
How does it work?
Structured light (fringe projection) uses reflections of one or more light patterns projected onto the object to create a 3D point cloud of the object surface. Stereo cameras in the sensor are used to achieve the highest accuracy and sensor stability.
Blue LED produces high-contrast patterns that deliver high-resolution scan results with excellent ambient light immunity, even in challenging conditions. 3D snapshot sensors also produce highly reliable and repeatable results with rich 3D data visualization.
CertificationsCE, RoHS, LMI vibration standard
DimensionsGocator 3210: 49 x 146 x 190
Gocator 3504: 49 x 152 x 177.5
Gocator 3506: 49 x 136 x 170

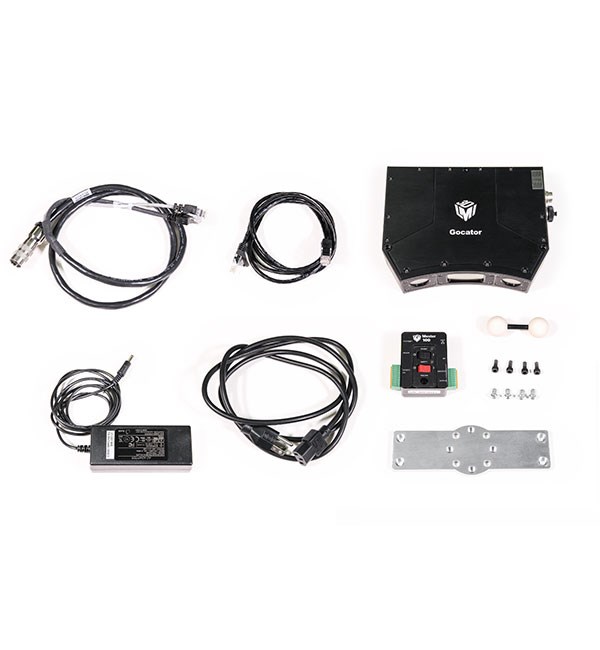

What’s in the box?Sensor, Quick Start Guide
License typeTerms and Conditions
