Robotiq Vacuum Grippers can handle a wide range of applications and are ideal for picking up uneven and even workpieces made of different materials, such as cardboard, glass, sheet metal (dry) and plastic.
Because of the customizable bracket and unique air nodes, Robotiq Vacuum Grippers provide manufacturers full control over their Gripper to make sure it’s a perfect fit for their applications.

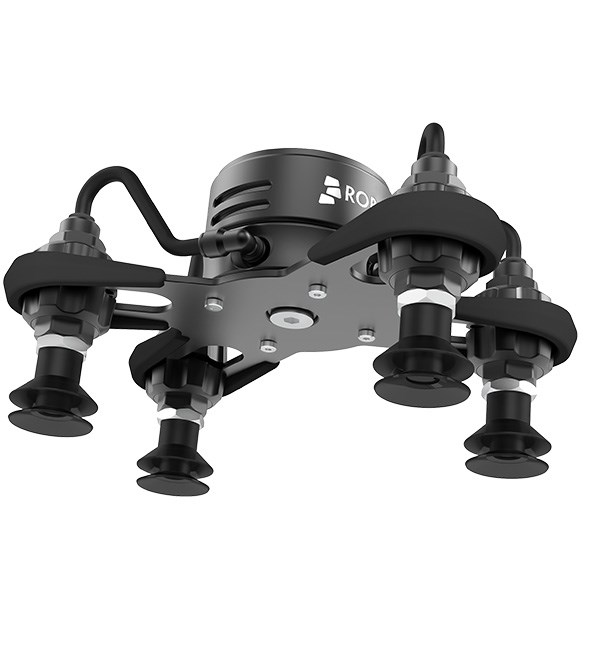

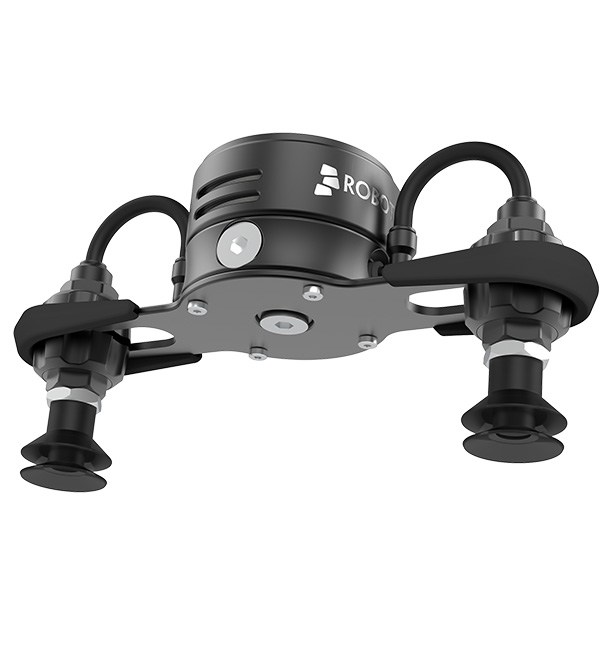

Easy to customize, Robotiq’s unique air nodes link the air tubes to the suction cups, therefore contributing to make this entire system customizable. You can use your favorite G1/4 thread suction cup to optimize your end-effector and get better results.
The LED status indicates whether the gripper is active or if minor/major fault occurs. Built with robust, factory-provent components as well as compact, AirPick is very easy to handle and is the perfect solution for your industrial application.
- Powerful vacuum flow
- Compact design
- Fully customizable
- Robust, factory-proven components
- Easy to program
- Fast to install
- No training required
- Seamlessly integrates with Robotiq Wrist Camera and FT 300 Force Torque Sensor
- Low maintenance

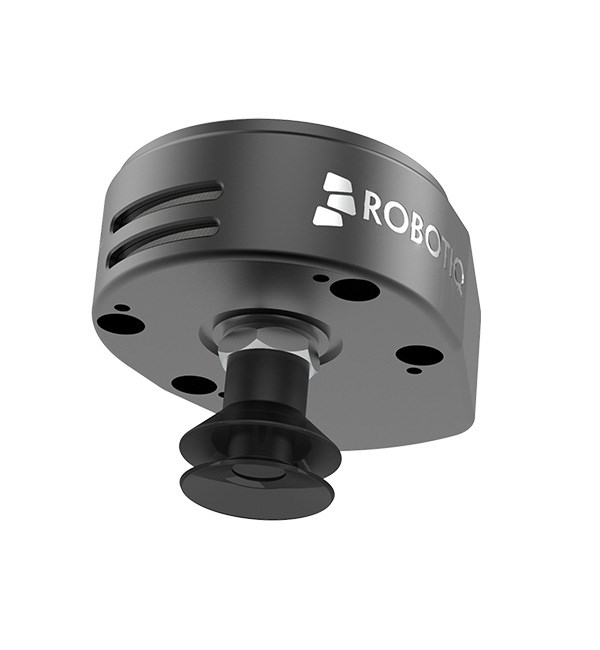

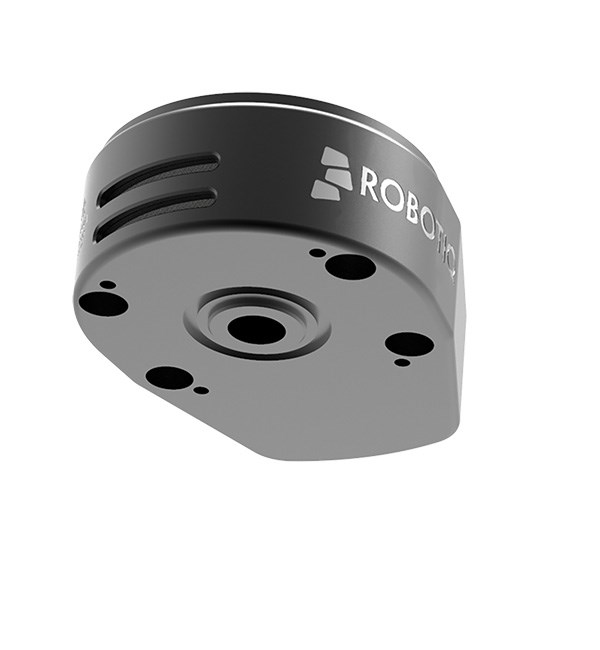

AirPick features a venturi vacuum generator that converts compressed air into a vacuum. The high-quality vacuum generator means the end effector can hold a variety of workpieces-no need for reconfiguration.

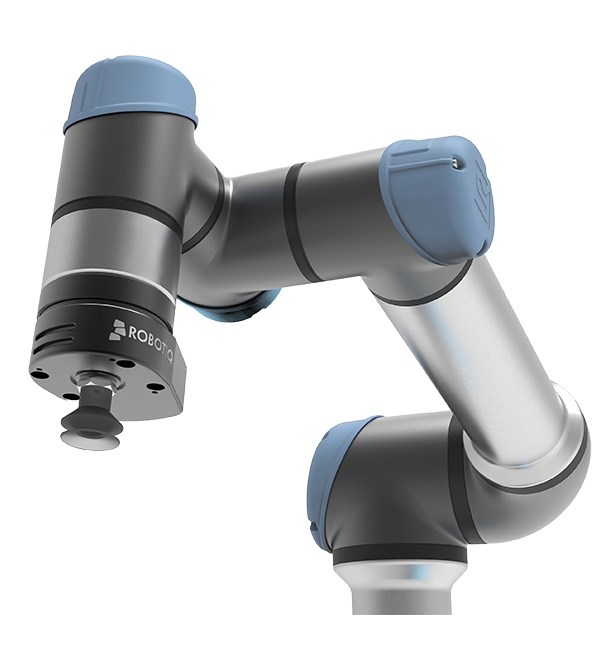

To install AirPick, simply mount the coupling on your robot arm and attach the Vacuum Gripper to the coupling. Plug the coupling cable into the robot wrist connector, and connect the compressed air tube to the vacuum generator. Then install the Vacuum Gripper URCap from the USB drive. You’re now ready to start production faster!
Software version required
- Universal Robots Software 3.7
- Universal Robots Software 5.1 (E-Series)
DEPENDENCIESCompressed air (90 psi)
Certifications and standardsMeets applicable basic requirements of Machinery Directive 2006/42/EC (CE). Also conforms to Directive 2011/65/EU on the restriction of the use of certain hazardous substances (EU RoHS 2), according to which the product is CE-marked.
The following standard was applied: NF EN ISO 12100 2012 (safety of machinery, general principles for design, and risk assessment and risk reduction).
- 75mm x 98.78mm x 33.7mm
What's in the box?
- Vacuum Generator
- Gripper Coupling
- Suction cup system
- USB drive with URcap
- Quick-Start Guide
License typeOne-time purchase
