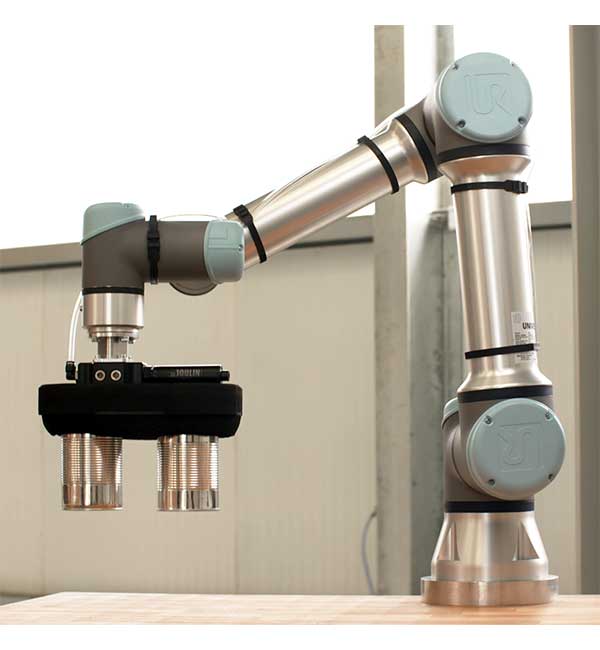

Safe&Light foam vacuum gripper

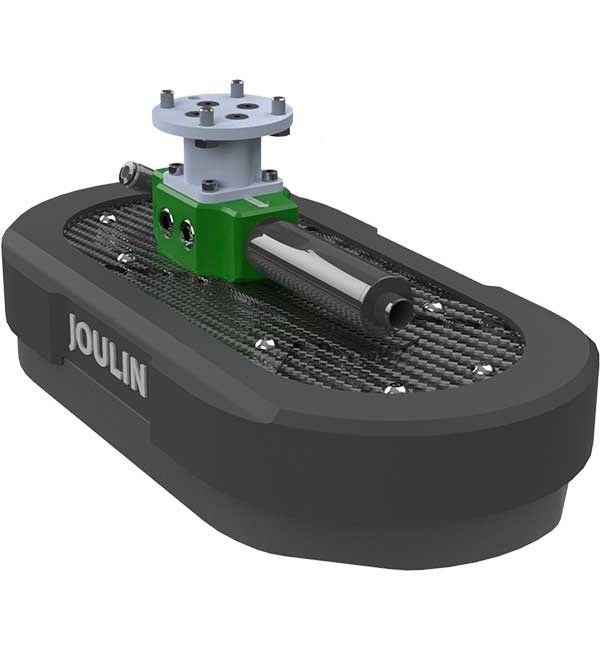

The Safe&Light is a foam vacuum gripper with integrated venturi generator. It is designed around a foam body which make it safe to work around people as well as very light thanks to a carbon fiber skeleton.
Two standard sizes are available and three types of technologies, to handle product that fully cover the gripper, product that are smaller than the gripper, multiple products or even open top containers.
All version of Safe&Light integrate the new EasyFoam technology, without the use of adhesive, for a faster maintenance and foam replacement.
- Foam body safe to work around
- Carbon fiber reinforcement for a lighter design

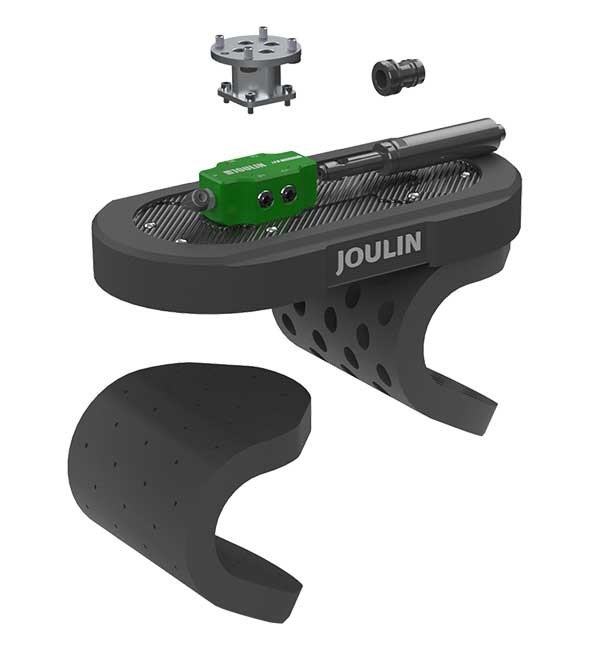

- Integrates Easyfoam technology for quick foam changing thanks to magnetic attraction
- Check valve version available for more versatility
- Foam valve version available to handle open top containers
- Blow-in for a faster release of light products in option
- Digital vacuum gauge available in option

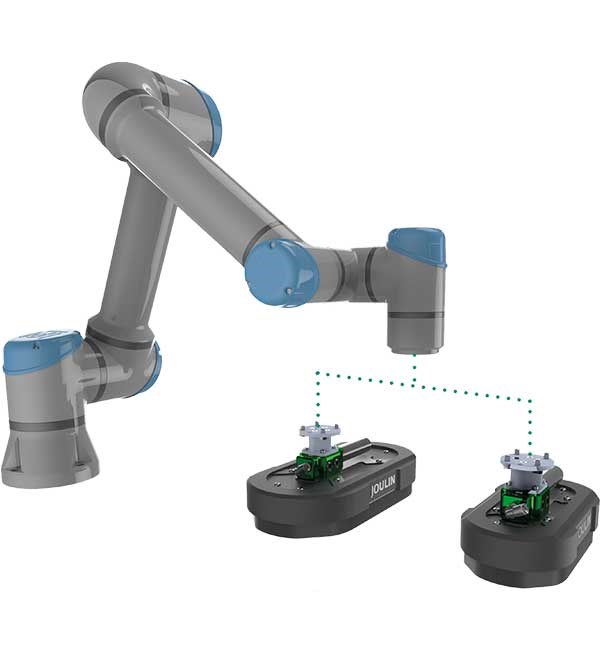

The Safe&Light comes with a fixture that can be difrectly installed on the UR wrist. A tubing must be installed from the valve to the gripper to feed compressed air and the valve needs to be conected to the UR electrical cabinet. After this few steps the Safe&Light gripper is ready to be used with the URCap.

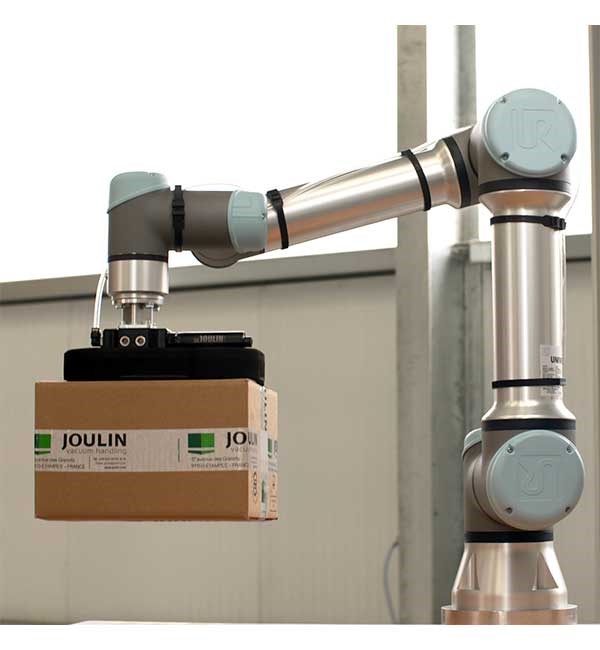

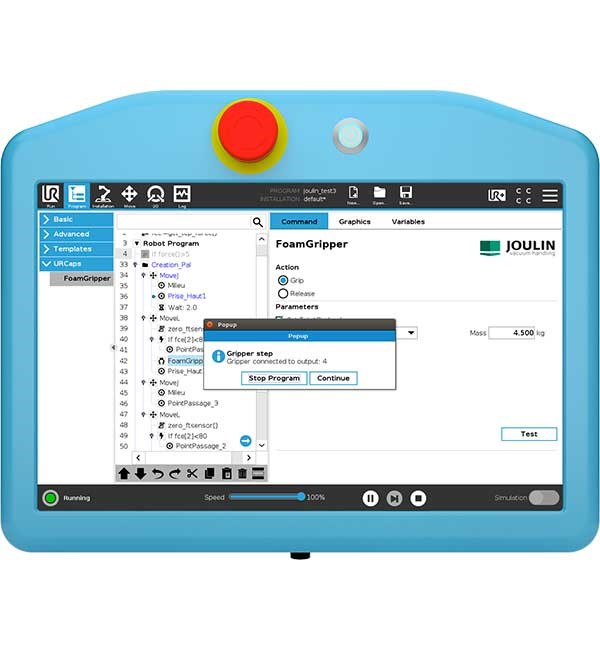

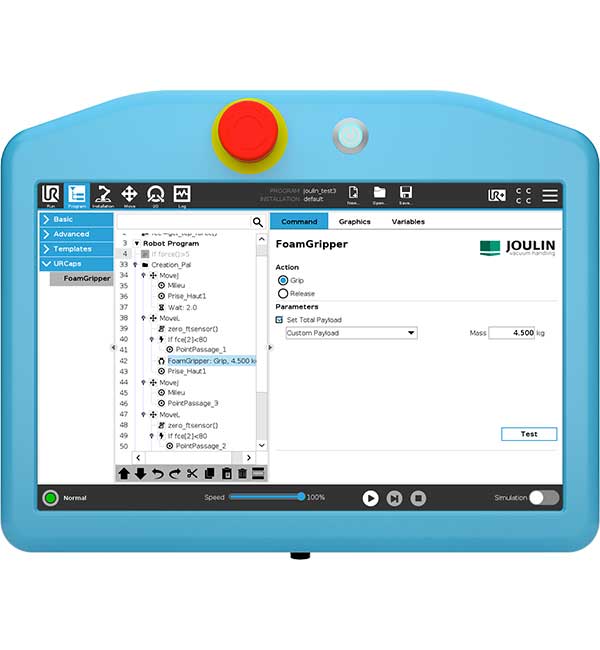

When the gripper is in contact with the product, the picking can be activated on the UR interface, this ativate the compressed air feed to the venturi on the gripper that creates vaccum on the product to handle.
Thanks to an array of holes in the interface foam many different shapes and sizes of product can be picked up with the same tool.

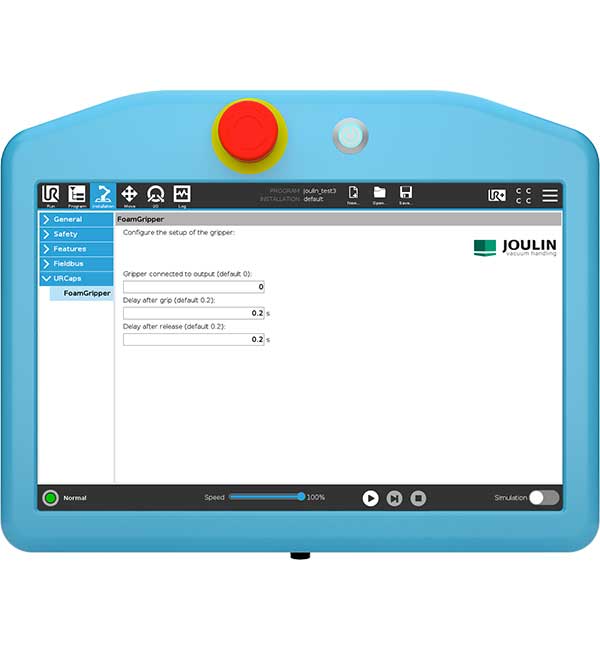

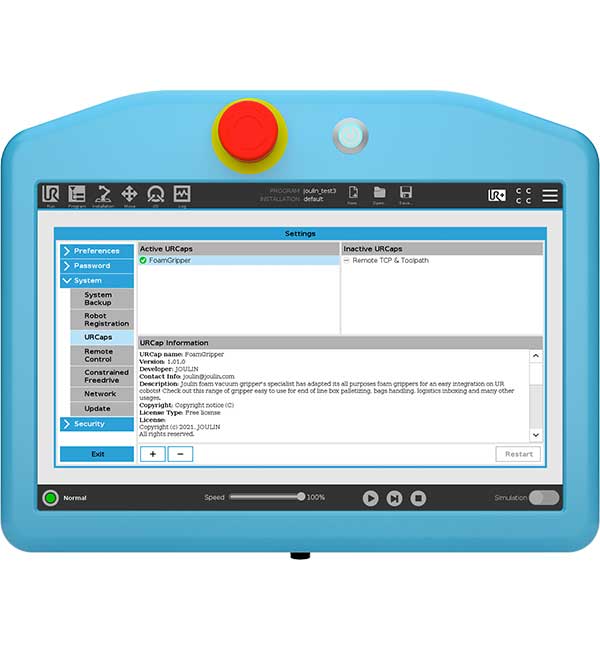

includes a urcap pluginYes - URCap name and version: FoamGripper-1.01
Software version requiredPolyscope version 3.15/5.11
Certifications and standardsEN ISO 9409-1 Industrial robots – mechanical interfaces
SL-VG-120x240-1STH ; 130x250x90mm ; 770g ; max payload: 30kg
SL-PG-120x240-1STH ; 130x250x82mm ; 720g ; max payload: 30kg
SL-VG-160x320-1STH ; 170x330x90mm ; 1080g ; max payload: 59kg
SL-PG-160x320-1STH ; 170x330x82mm ; 1015g ; max payload: 59kg
What's in the box?One Safe&Light foam vacuum gripper
One attachment interface with screws
One pneumatic valve with electrical connection, pneumatic fittings and tubing
License typeOne-time purchase
