- Seamless, cost-effective, end-effector integration
- Ease of use
- Incorporated MAC® valves and control board
- Common jaw mounting for application specific tooling
How does it work?The Pneu-Connect package includes the gripper, the gripper mounting plate, and a cuff that connects directly to the cobot arm. The cuff makes it easy to attach a PHD pneumatic gripper to a Universal Robot and incorporates a built-in MAC directional control valve for opening and closing the gripper, requiring only one air-line.
This system comes with “UR CAP” software—an application specific to the UR robot. The CAP runs inside of the UR control software, and provides a graphical interface, making the programming and set-up of the pneumatic gripper easy to use and integrate through the UR Teach Pendant.
Includes a URCap plugin:
- UR3, UR5, UR10
- UR3e, UR5e, UR10e
- CB2, CB3.0, CB3.1
Software version required:
CB 3.4 AND CB 3.5
Certifications and standards:
There are various sizes of grippers that can be used.
What's in the box?
- Pneu-Connect mounting plate and cuff with integrated valves
- USB with UR Cap
- Fasteners, and switches if applicable

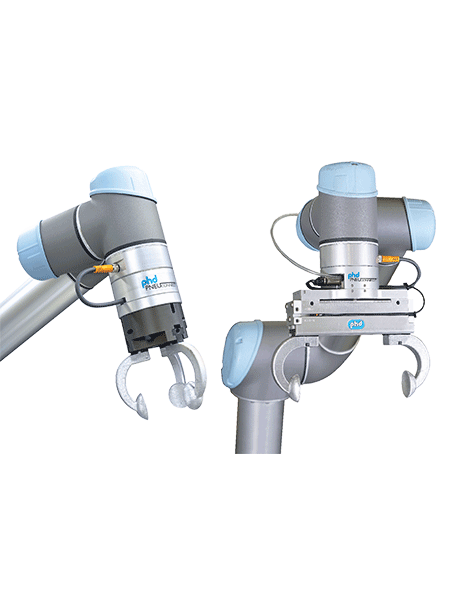

The PHD Pneu-Connect™, a cost-effective pneumatic end-effector system providing seamless integration for Universal Robots that utilizes standard PHD pneumatic grippers.
