Mounting of Control Box (CB7)

The flow of hot air in the Control Box can result in equipment malfunction. The recommended Control Box clearance is 200 mm on each side, 100 mm on the top for sufficient airflow and 100 mm at the front for opening the door.

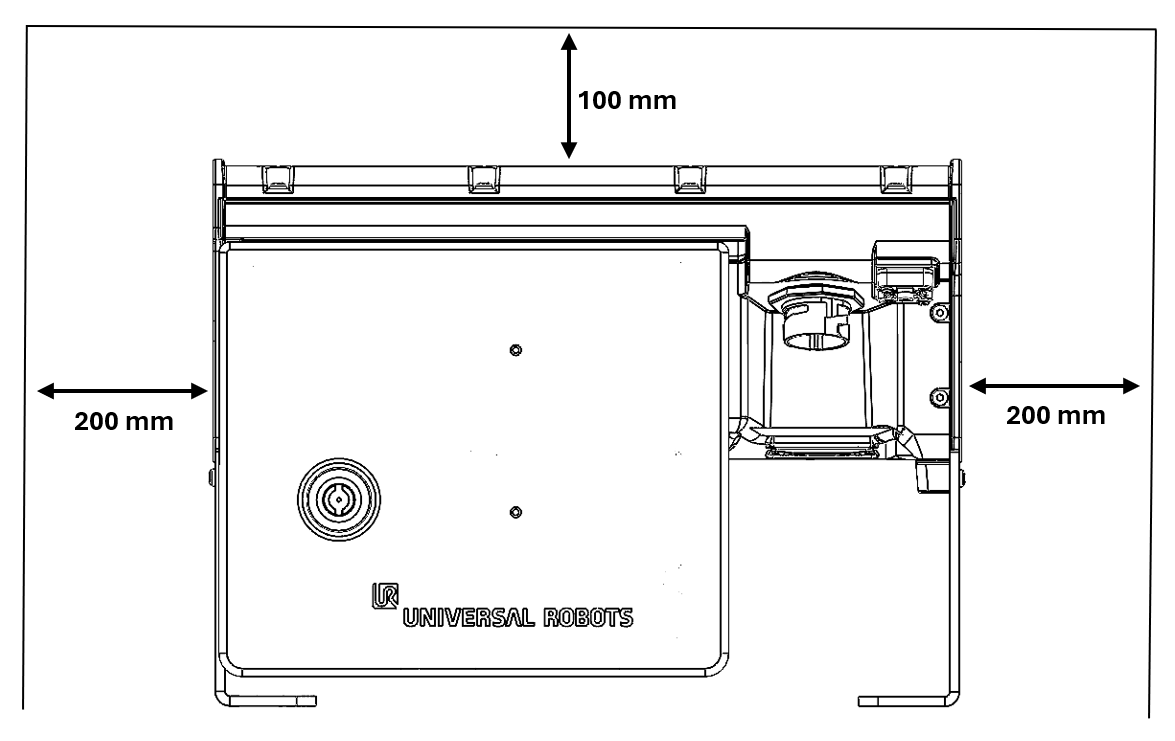

Control Box Mounting Clearances

• Place the Control Box in the standing position by setting it upright on a level, stable floor using the factory-mounted feet.

• Keep the recommended clearance around the unit so airflow and front door access are not obstructed.

1. Mount the bracket on a sturdy wall.

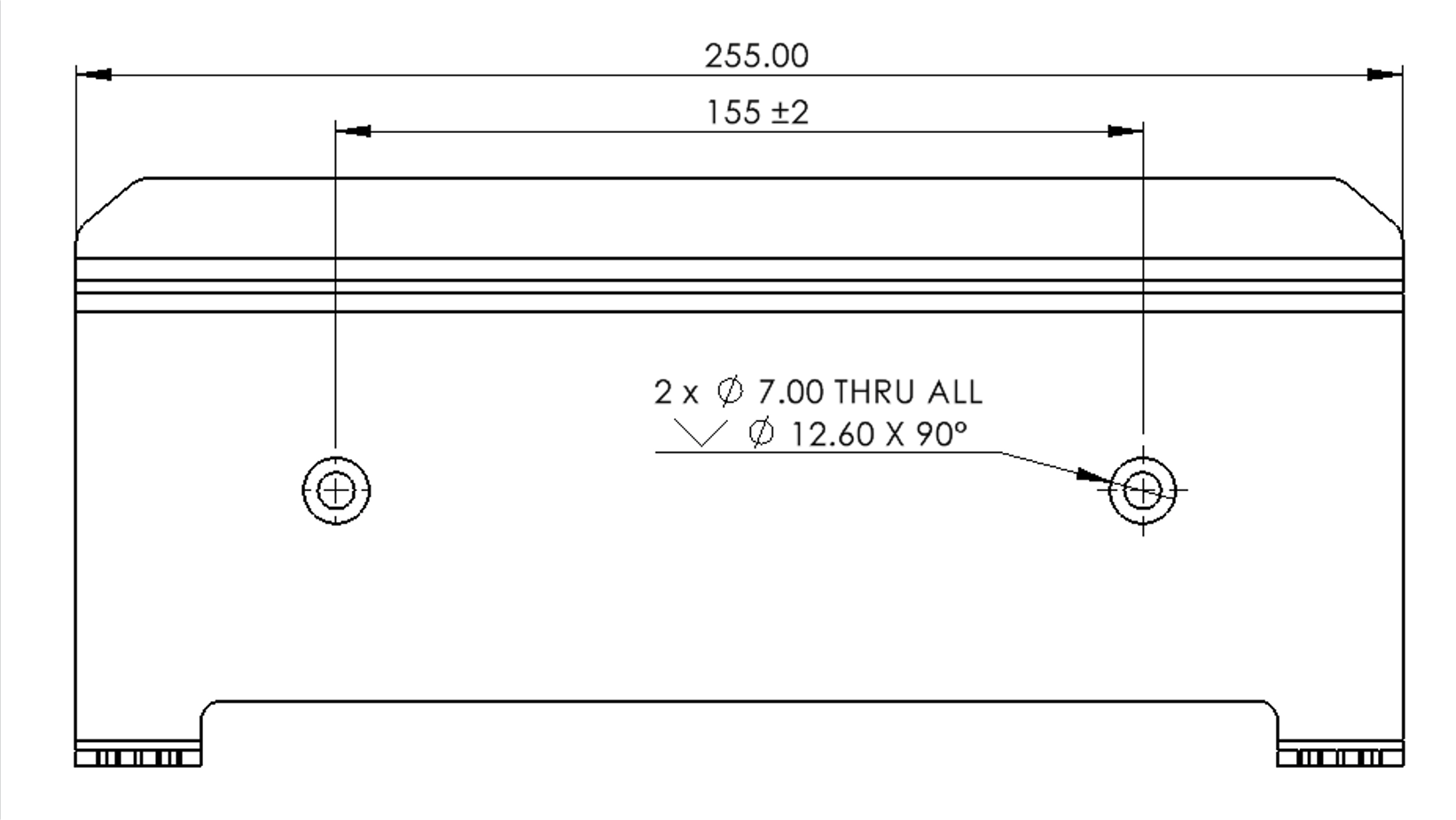

   Control Box bracket	Bracket wall mounting hole pattern



2. Hang the Control Box on the bracket using the mounting slit on the back. Secure the Control Box to the wall mounting bracket with two thumb screws.

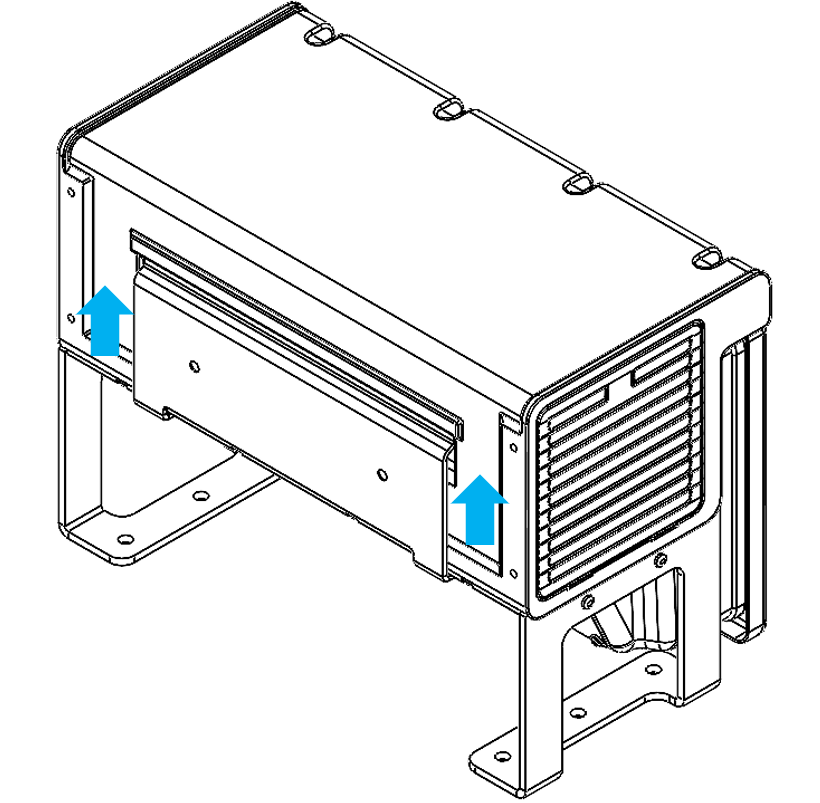

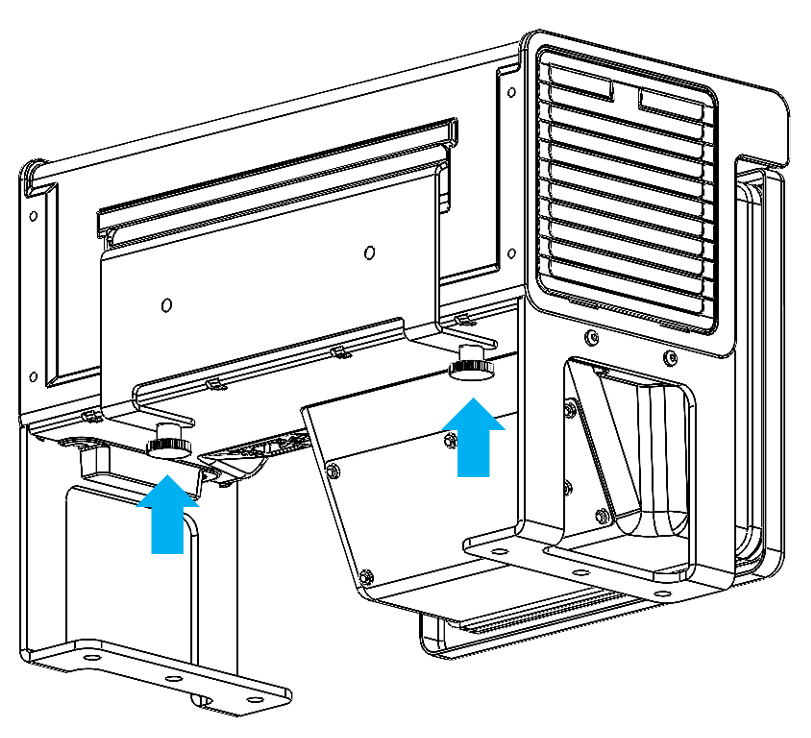

   Control Box mounted on bracket	Location of the two thumb screws

CB7 Core Compact is an AC-powered controller that mounts inside your electrical cabinet. It has no outer enclosure, so you install it directly in the cabinet.

CB7 Core Compact 0.55 m uses the same controller and includes a 550 mm longer robot-interface lead. The extra lead connects the robot interface from the internal controller board to the panel-mount connector on the exterior of the cabinet, allowing the robot arm cable to be connected and disconnected without opening the enclosure.

Both CB7 Core Compact variants support vertical and horizontal orientations. Use the mounting bracket the same way as for the CB7 Core. Access the Teach Pendant the same way on both Compact variants.
