Send a quotation mark via socket communication

Last modified on Sep 30, 2024

Examples are valid for:
CB3 Software version: 3.7.0
e-Series Software version: 5.1.0

How to send a quotation mark via socket communication

These examples can be used for both e-Series and for CB3.

In many other programming languages, a prefix \ is used to send a quotation mark for socket communication. However, it does not work in URScript.

If you need to send the quotation mark, you may have to send ASCII code by using:

socket_send_byte()

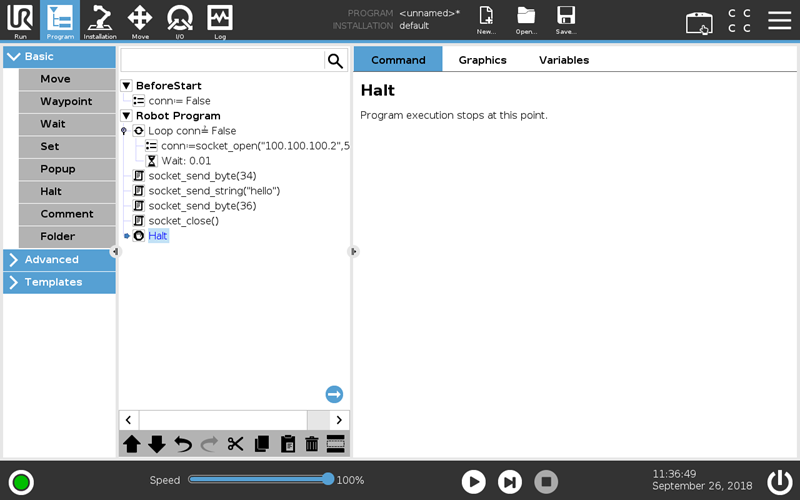

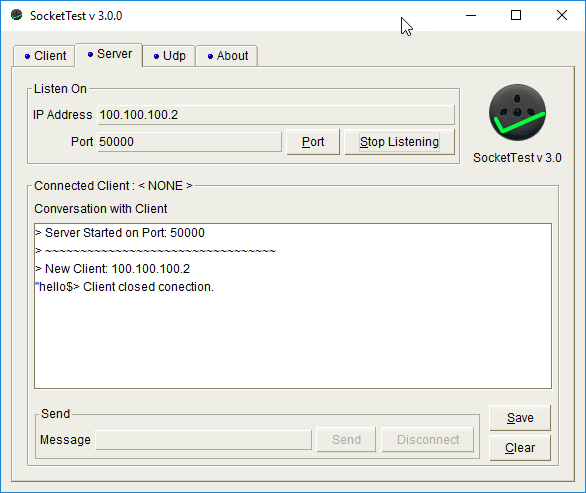

Example:





By using the ASCII code, we are able to send many other characters as well as the quotation mark. Please find the full ASCII table from the link below.

http://www.asciitable.com
