FQE Vacuum Area Gripping
The FQE is a flexible area gripper for handling products regardless of size and geometry. The gripper enables the handling of products from different pick-up positions.

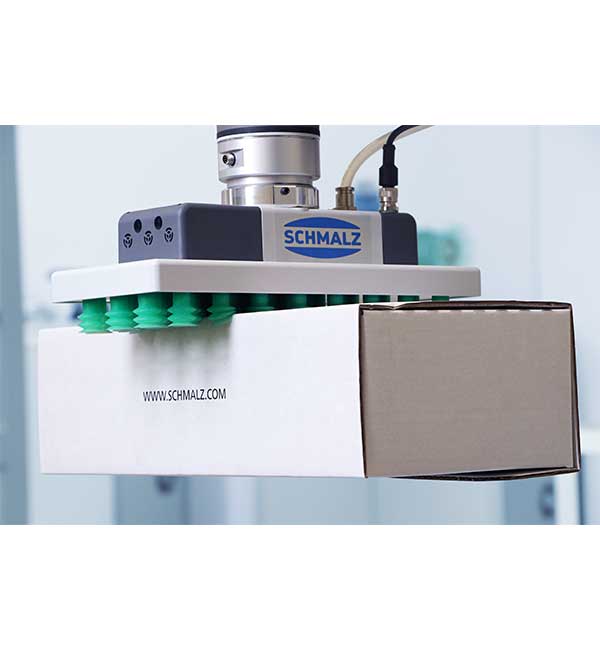

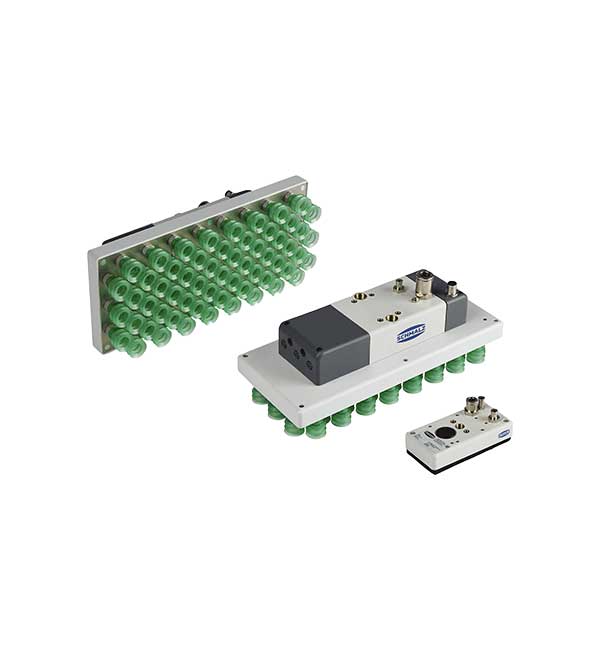

Thanks to its modular design and size variance, the gripper can be specially adapted to a wide range of workpiece and process characteristics. For example, a choice can be made between sealing elements made of foam or plug-in suction cups. The alternatives with internal or external vacuum generation offer further starting points for individualization.
With the energy-efficient internal vacuum generation, the operating costs of the overall system can be reduced. The optionally integrated control valves reduce cycle times and interference contours.
- Innovative product design according to ISO TS 15066
- Modular lightweight design
- Energy-efficient, integrated vacuum generation
- Integrated control valves
- Flexible gripper design

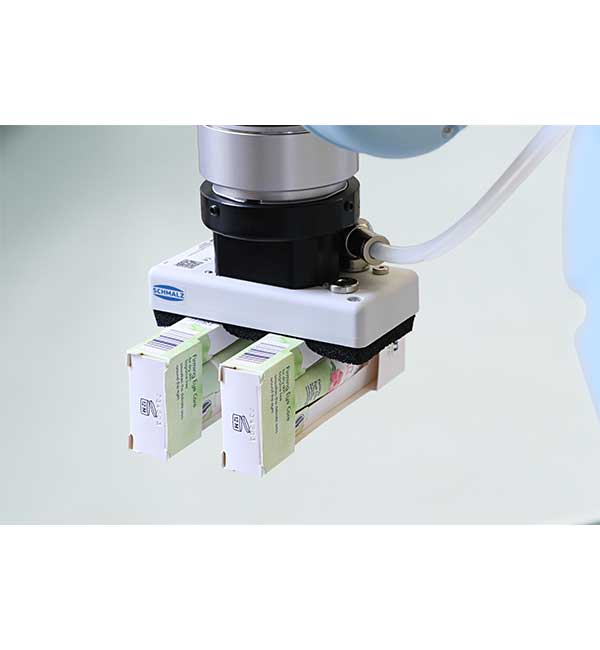

The FQE area gripper is ideal for use in stationary handling tasks with collaborative robots. The gripper is suitable for fully automated applications and is typically used in pick & place applications or end-of-line packaging in intralogistics. Depending on the sealing element and vacuum, payloads of up to 35 kg can be handled.

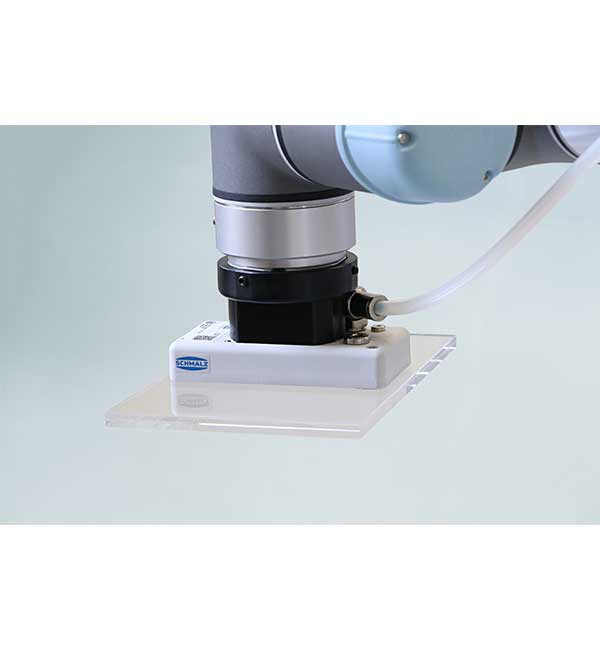

The grippers are particularly suitable for handling products in the automotive, glass or electronics sectors.
Includes a urcapYes
Certifications and standardsISO TS 15066
2006/42/EG Machinery Directive
2014/30/EU Electromagnetic Compatibility Directive (EMC)
2011/65/EU RoHS Directive
EN ISO 12100:2010 Safety of Machinery - Basic concepts, general principles for design - Risk assessment
EN ISO 13849-1:2015 Safety of Machinery - Safety related parts of control systems - Part 1: General principles for design
EN 1012-1:2010 Compressors and Vacuum Pumps - Safety requirements - Part 1: Air compressors
EN 61000-6-2:2005 + AC:2005 Electromagnetic compatibility (EMC) - Immunity
EN 61000-6-3:2007+A1:2011+AC:2012 / EN 61000-6-4:2007 + A1:2011 Electromagnetic Compatibility (EMC) - Emission
EN 50581:2012 Technical documentation for the assessment of electrical and electronic products with respect to the restriction of hazardous substances
Depending on customers configuration
Weight of workpiece max.: 35 kg
What's in the box?Depending on customers configuration
License typeOne-time purchase
