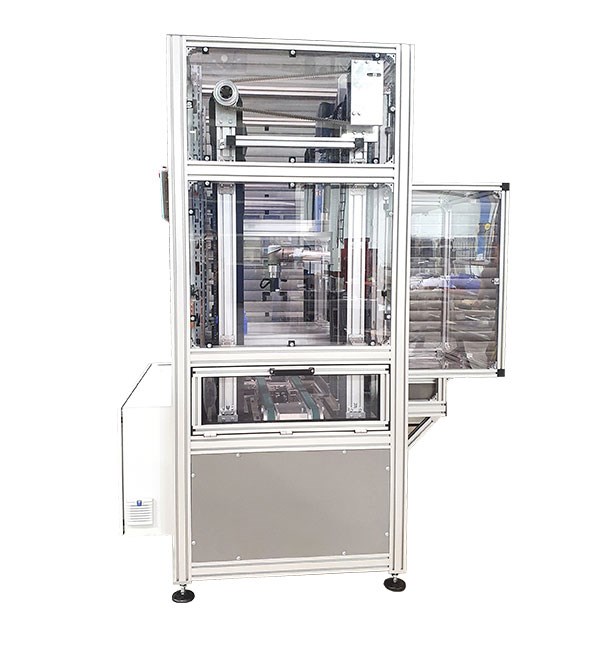

LiFo storage system

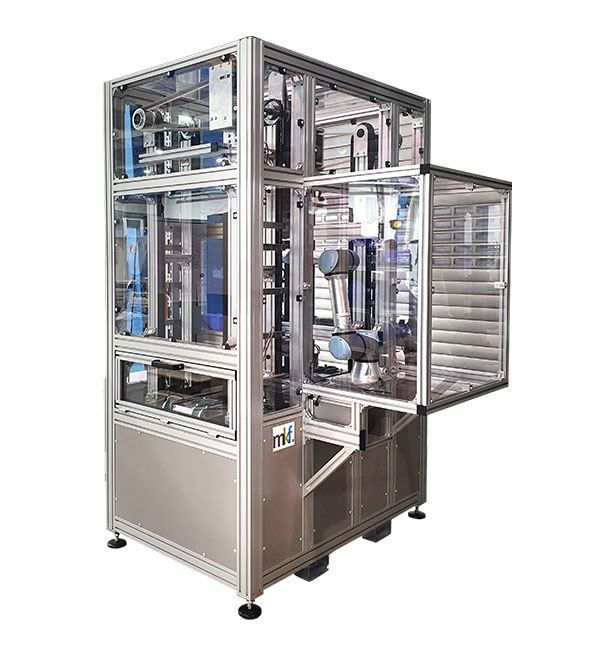

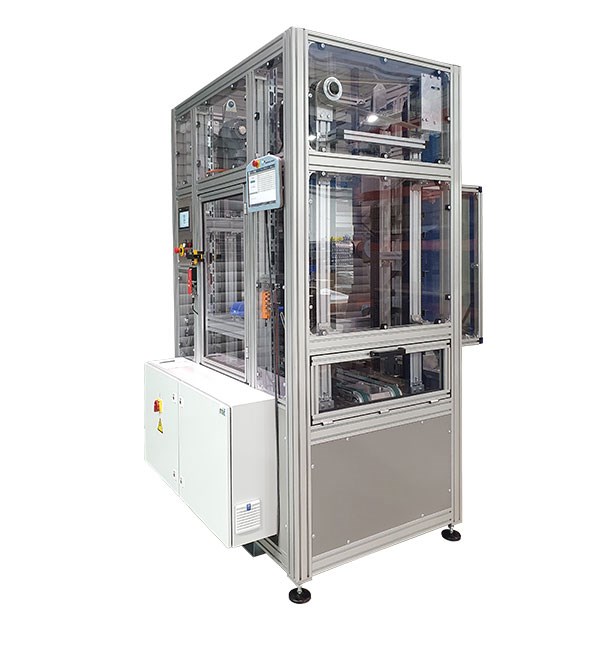

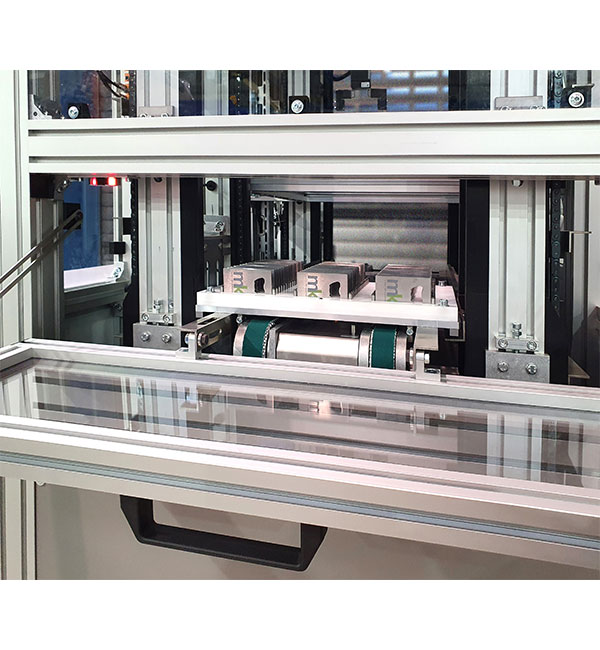

With the LiFo storage system (feeder with storage) you get a stand-alone solution for the flexible storage of workpieces with a backup time of up to 16 hours for your assembly line, packaging or processing machine, for example during the night shift, to expand your capacities or to compensate for staff shortages. The integrated cobot (collaborating robot) UR5e enables it to take over various handling tasks after convienient adjustment of the parameters. The LiFo storage system takes over the loading and unloading of your equipment, component testing, various measuring tasks or several assembly steps. By using a servo gripper, the LiFo storage system handles your vulnerable parts (for example glass, ceramics) very gently. The LiFo storage system has an OPC UA interface. With its convenient transport option, the LiFo storage system can be used flexibly in your production. You can position the LiFo storage system using the integrated transport rollers. For larger distances, holders for industrial trucks are incorporated. Workpieces are picked up in the task-specific modified workpiece carrier (in the standard version with a pick-up area of 250 x 400 mm and a max. total weight of 40 kg/WT).
Manufacturer:mkf
Overview
With the LiFo storage system (feeder with storage) you get a stand-alone solution for the flexible storage of workpieces with a backup time of up to 16 hours for your assembly line, packaging or processing machine, for example during the night shift, to expand your capacities or to compensate for staff shortages. The integrated cobot (collaborating robot) UR5e enables it to take over various handling tasks after convienient adjustment of the parameters. The LiFo storage system takes over the loading and unloading of your equipment, component testing, various measuring tasks or several assembly steps. By using a servo gripper, the LiFo storage system handles your vulnerable parts (for example glass, ceramics) very gently. The LiFo storage system has an OPC UA interface. With its convenient transport option, the LiFo storage system can be used flexibly in your production. You can position the LiFo storage system using the integrated transport rollers. For larger distances, holders for industrial trucks are incorporated. Workpieces are picked up in the task-specific modified workpiece carrier (in the standard version with a pick-up area of 250 x 400 mm and a max. total weight of 40 kg/WT).
- Placement of the LiFo storage system at the place of use (e.g. in front of an assembly plant)
- Selecting or creating an appropriate recipe
- Check properties
- Starting the automatic mode of the LiFo storage system
Specifications
Software required: Polyscope
Dependencies: CEE 16 A, RCD Typ B
Certifications & standard: Certifications & standards are in the documentation
dimensions: Dimensions (W x D x H): approx. 1500 x 1500 x 2400 mm
What's in the box? LiFo Storage System
Base for mounting work piece fixture/holder
Device the URCap and the robotprogram to operate the LiFo Speicher
License type : One-time purchase, after sales service if required
Features
- Flexible in use
- Stand alone solution for various tasks (feeding, handling, loading and unloading, measuring, testing, assembly)
- Fits to the Cobot UR5e

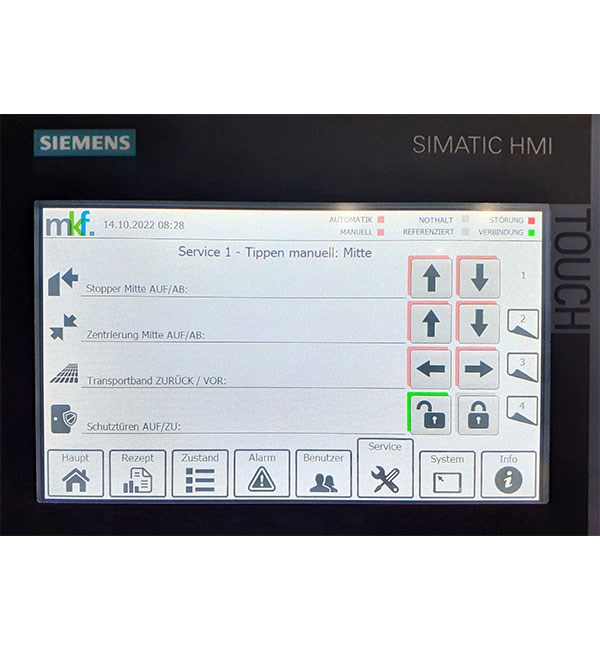

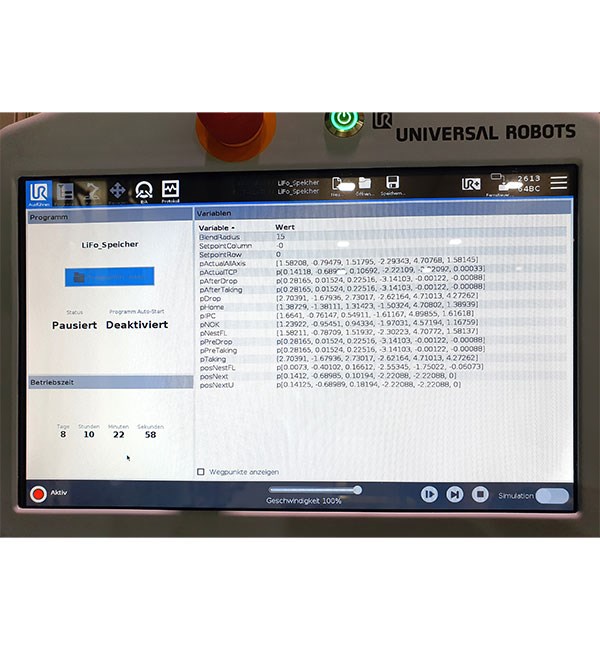

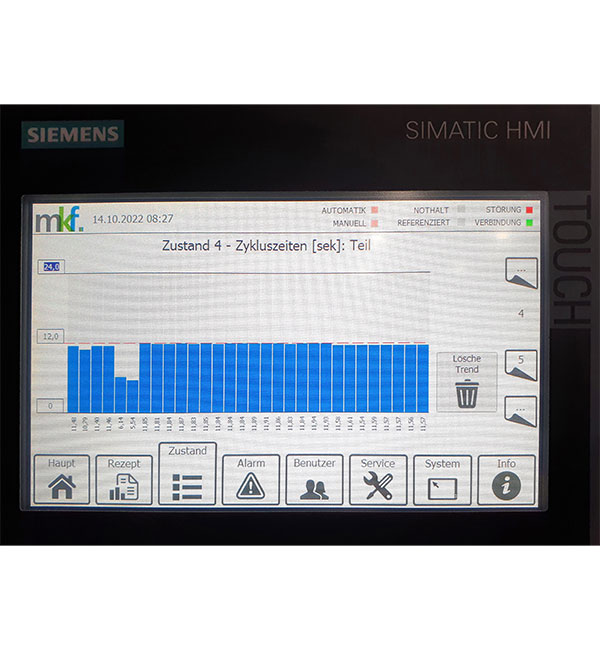

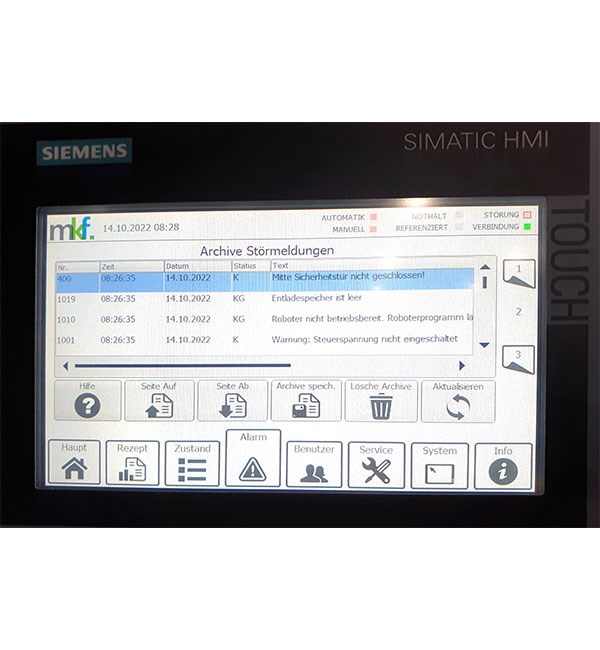

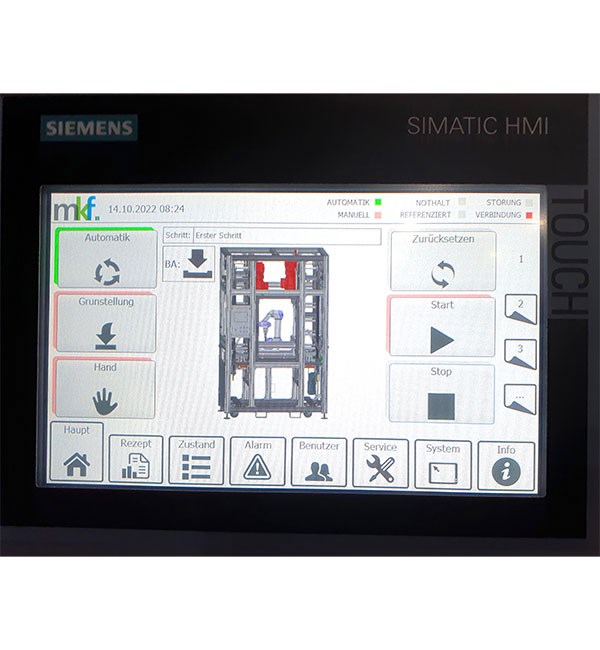

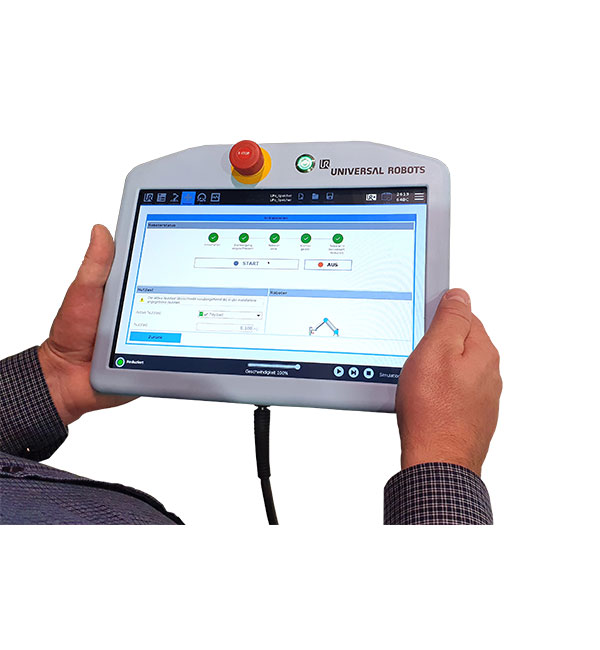

- Easy control via UR5e operator panel and touch panel

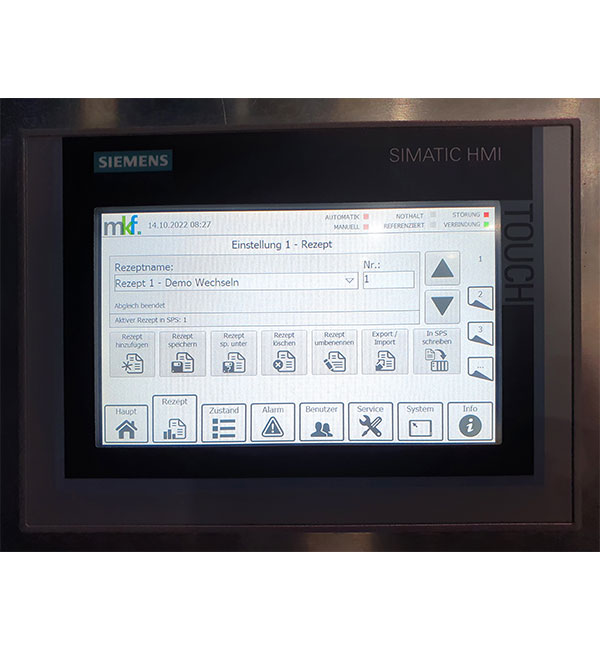

- Recipe management for handling different parts and assemblies, Easy editing of parameters through user-oriented GUI
- Integrated transport wheels for convenient positioning of LiFo storage system at various locations
- OPC UA interface
Compatibility
- UR5e
Availability
- Austria
- Germany
