EMI Gripper Kit - SXT

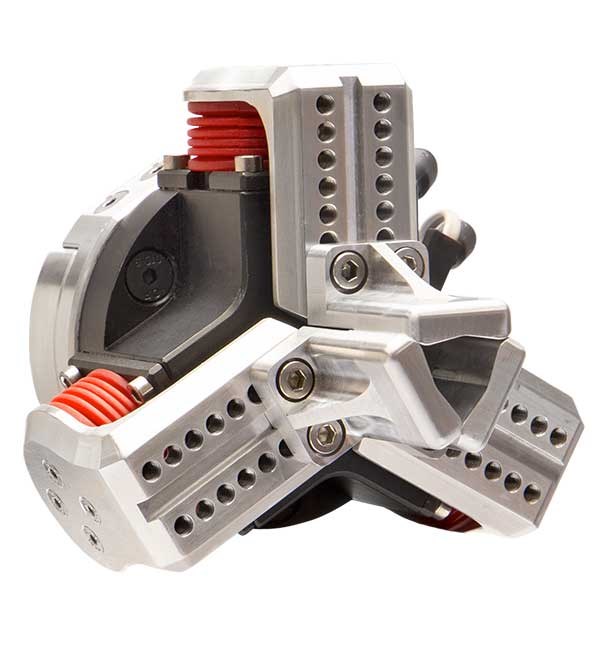

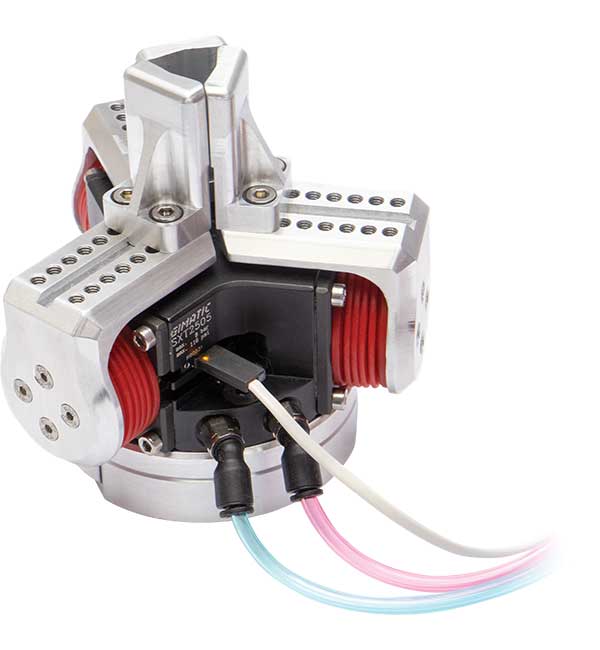

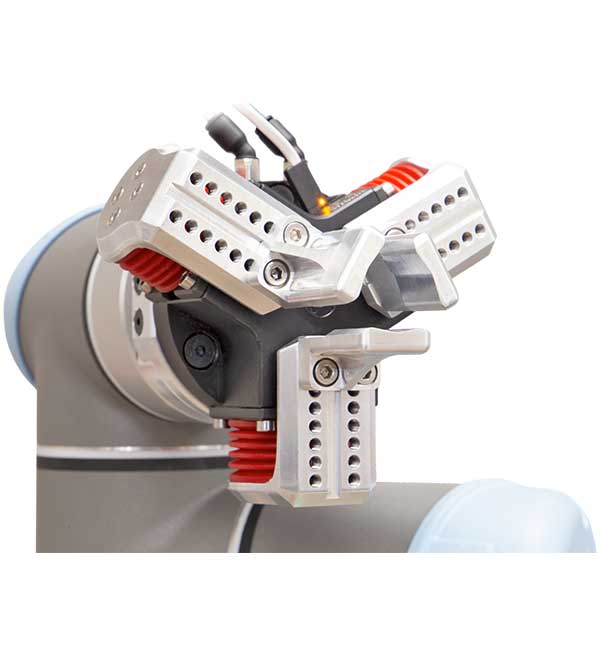

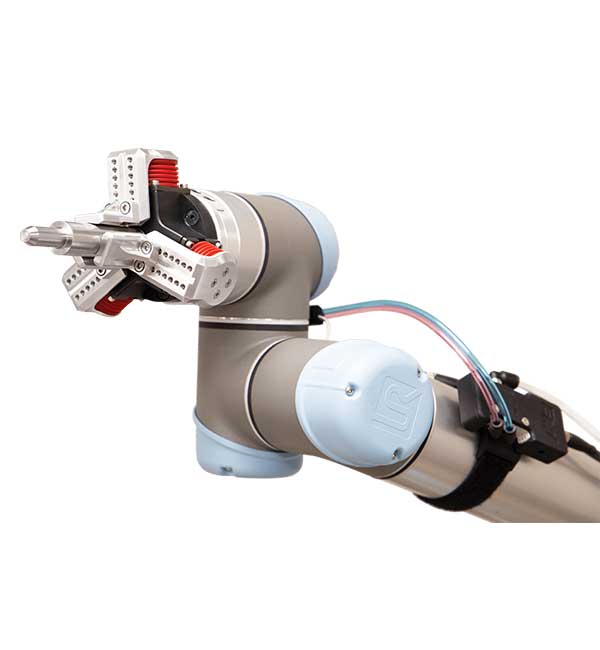

The SXT gripper kit by EMI uses a concentric, powerful 3-jaw gripper ideal for machine tending and general handling of cylindrical workpieces. Made out of high-quality machined components with an IP67 protection class, the SXT Gripper is ideal for a variety of industrial applications.
This versatile kit can be adapted to other SXT Gripper sizes with various strokes and gripping force upon request.
Three parallel, adjustable gripper jaws.
Double acting with 5/2 solenoid valve and cable management clamps.
Includes 1 magnetic sensor for open/close position detection.
How does it work?

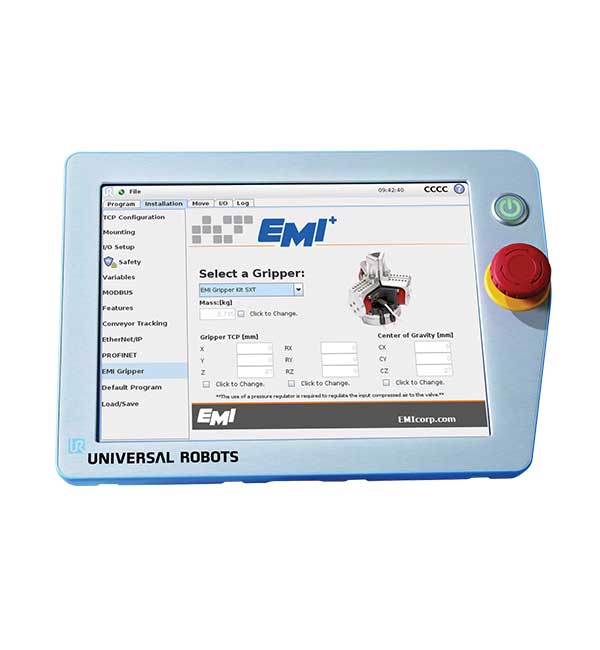

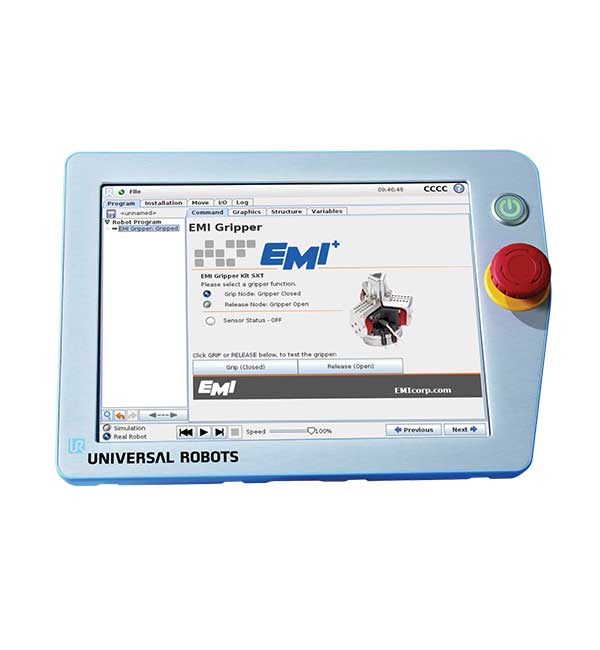

EMI’s pre-assembled SXT Gripper Kit is easy to set-up, operate and maintain. The included URCap makes the installation and programming simple and intuitive for all users. Simply connect your 6mm compressed air line, connect your 4-wire cable to the controller box, install EMI’s URCap on your UR3, UR5 or UR10 and your Pneumatic SXT Gripper Kit is ready to go.
DependenciesRequires compressed air
Certifications and standardsIP67
DimensionsØ108 mm x 99 mm Tall
Weight: 0.825 kg
What's in the box?SXT2505 Gripper Assembly
5/2 Solenoid Valve kit
Cable Management Kit
USB drive with URCap
License typeNo license needed.
