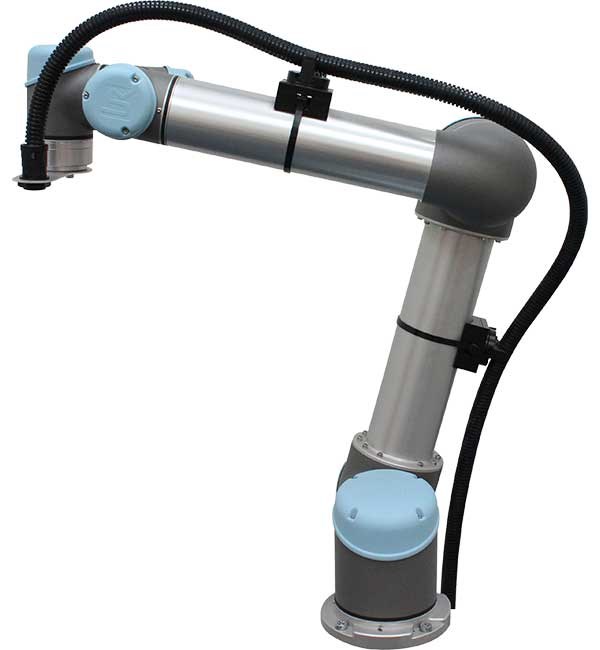

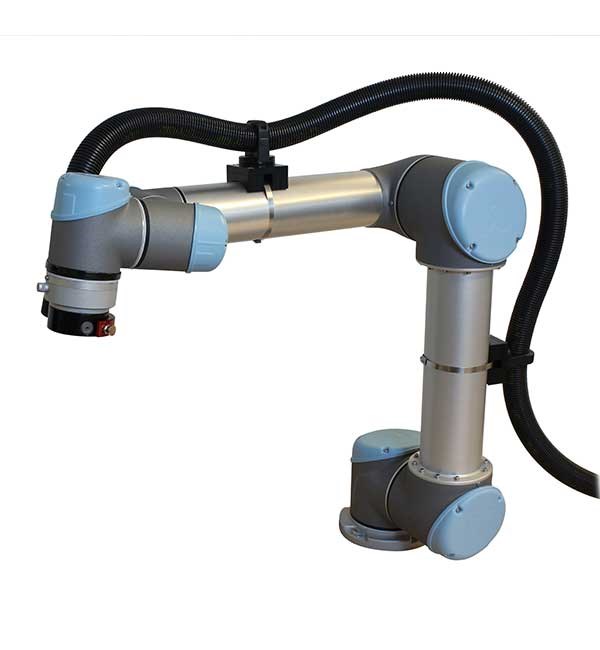

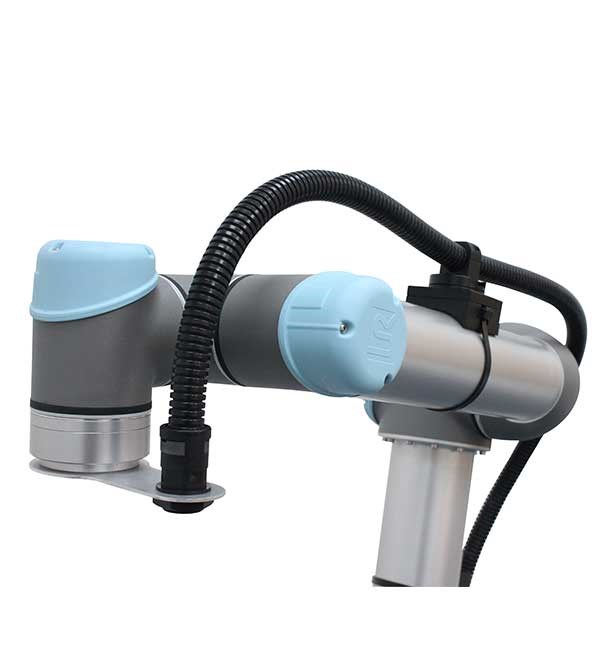

BN Uni-Kit for UR5 & UR10
BN UNI-KIT Cable management system developed especially to fit Universal Robots robots system. The system is easy to operate and protects cables and hoses against wear. Fits UR 5 & UR 10 and is available in different diameters depending on size of cables or hoses. Visit our webshop www.bn-robolab.com for more information.
- Built-in Swivel system eliminates load on hoses and cables = Increased life
- Easy and quick installation with BN UNI-KIT
- Easy modification of system
- Maintenance free
- Material eliminate load on Pneumatic tubing
- Optimize your robot installation – Low weight – reduces impact on Universal Robot UR 5 & 10
- Wide range of accessories
How does it work?

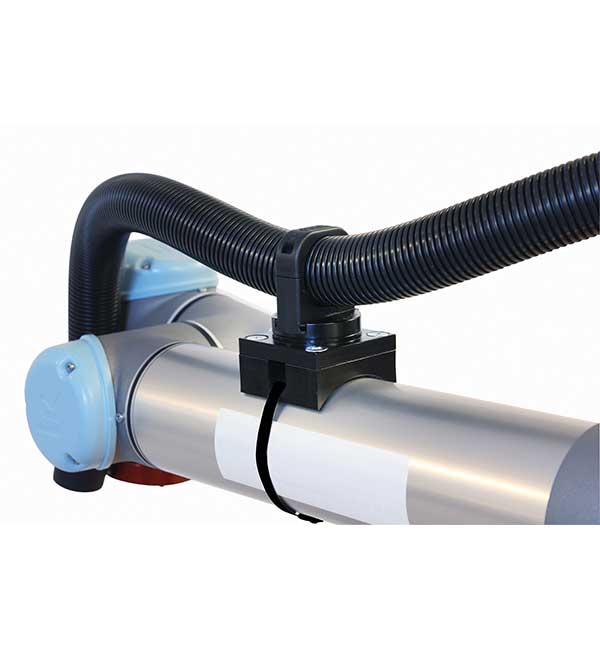

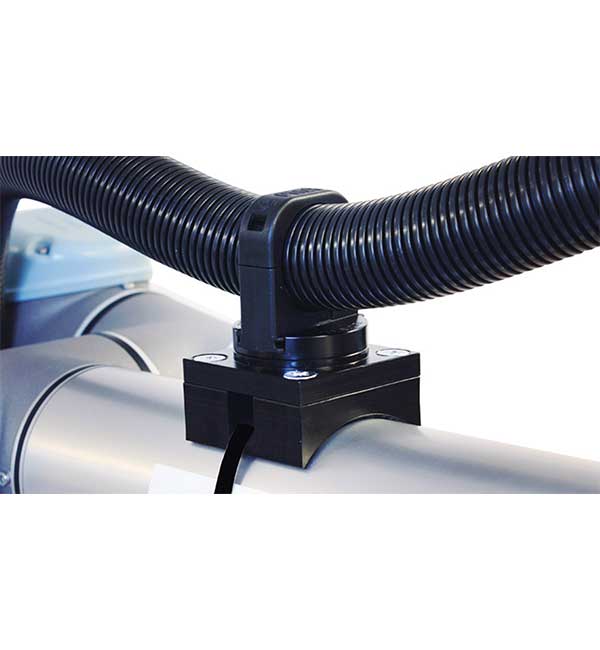

Place the holders on the rotary console - easy mounting with strip band.
Open the holder and place the hose in the special modified holders.

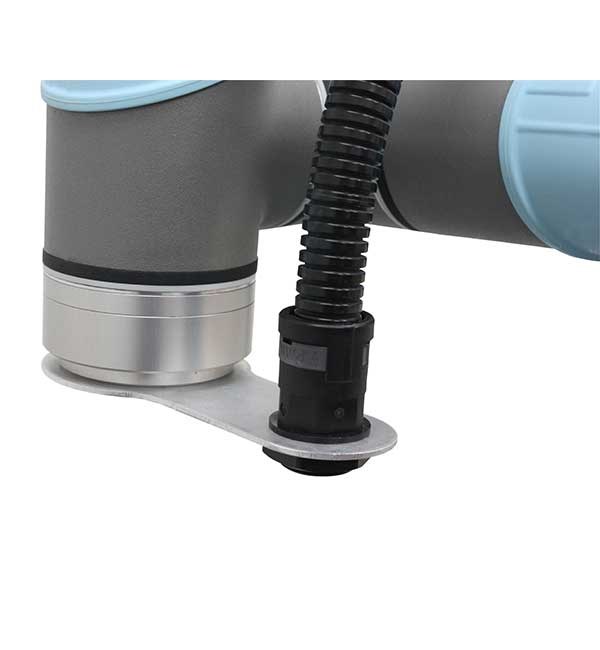

Certifications and standardsThe conduit and fitting meets the IP 66 rating ( IP 68/69k possible )
Article no. for UR5 NW hose inside Dia
BN UNI-KIT UR5-12 12 mm
BN UNI-KIT UR5-17 17 mm
BN UNI-KIT UR5-23 23 mm
BN UNI-KIT UR5-29 29 mm
BN UNI-KIT UR5-36 36 mm
BN UNI-KIT UR5-48 48 mm
Article no. for UR10 NW hose inside Dia
BN UNI-KIT UR10-17 17 mm
BN UNI-KIT UR10-23 23 mm
BN UNI-KIT UR10-29 29 mm
BN UNI-KIT UR10-36 36 mm
BN UNI-KIT UR10-48 48 mm
What's in the boxConduit, holders, swirvel and fitting.
