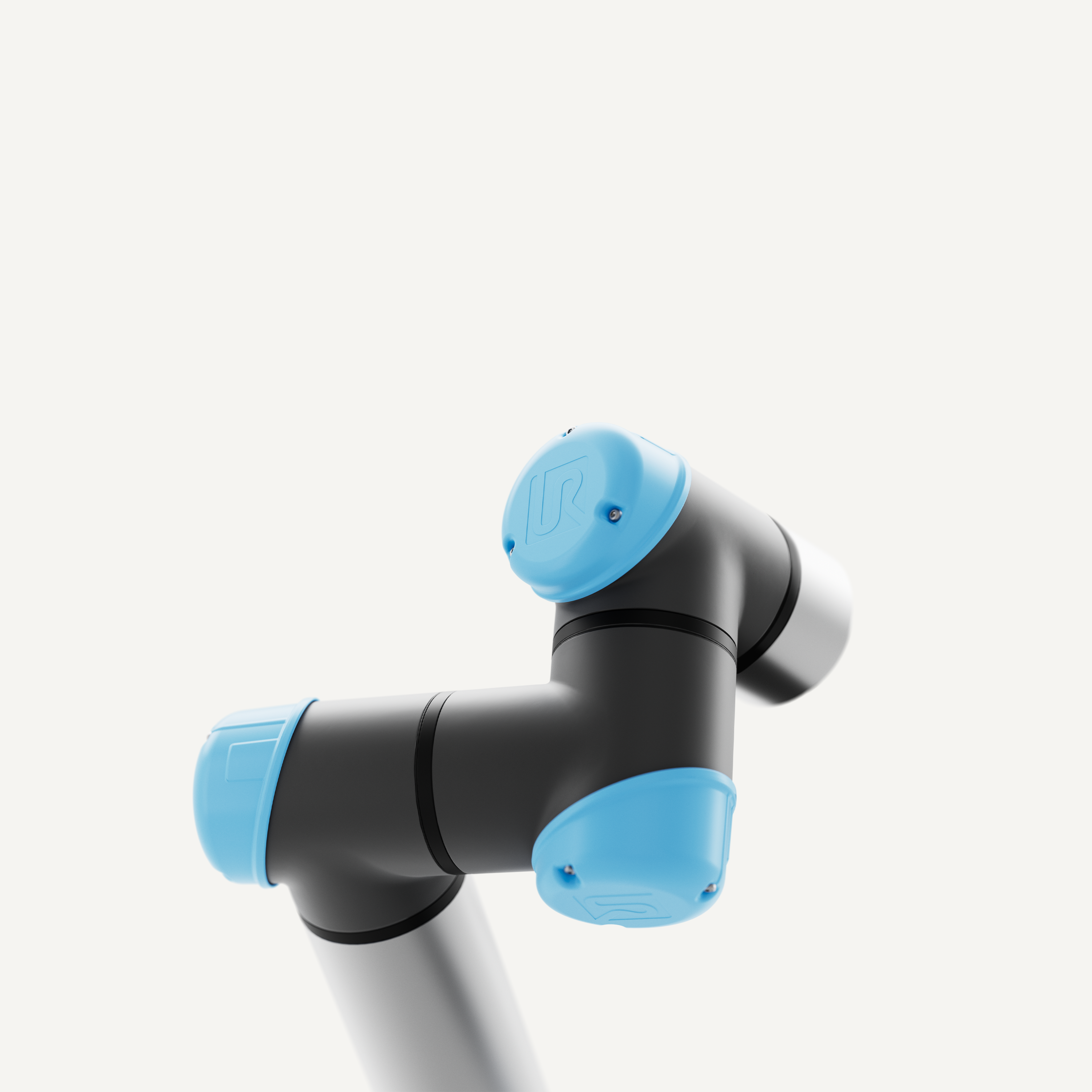

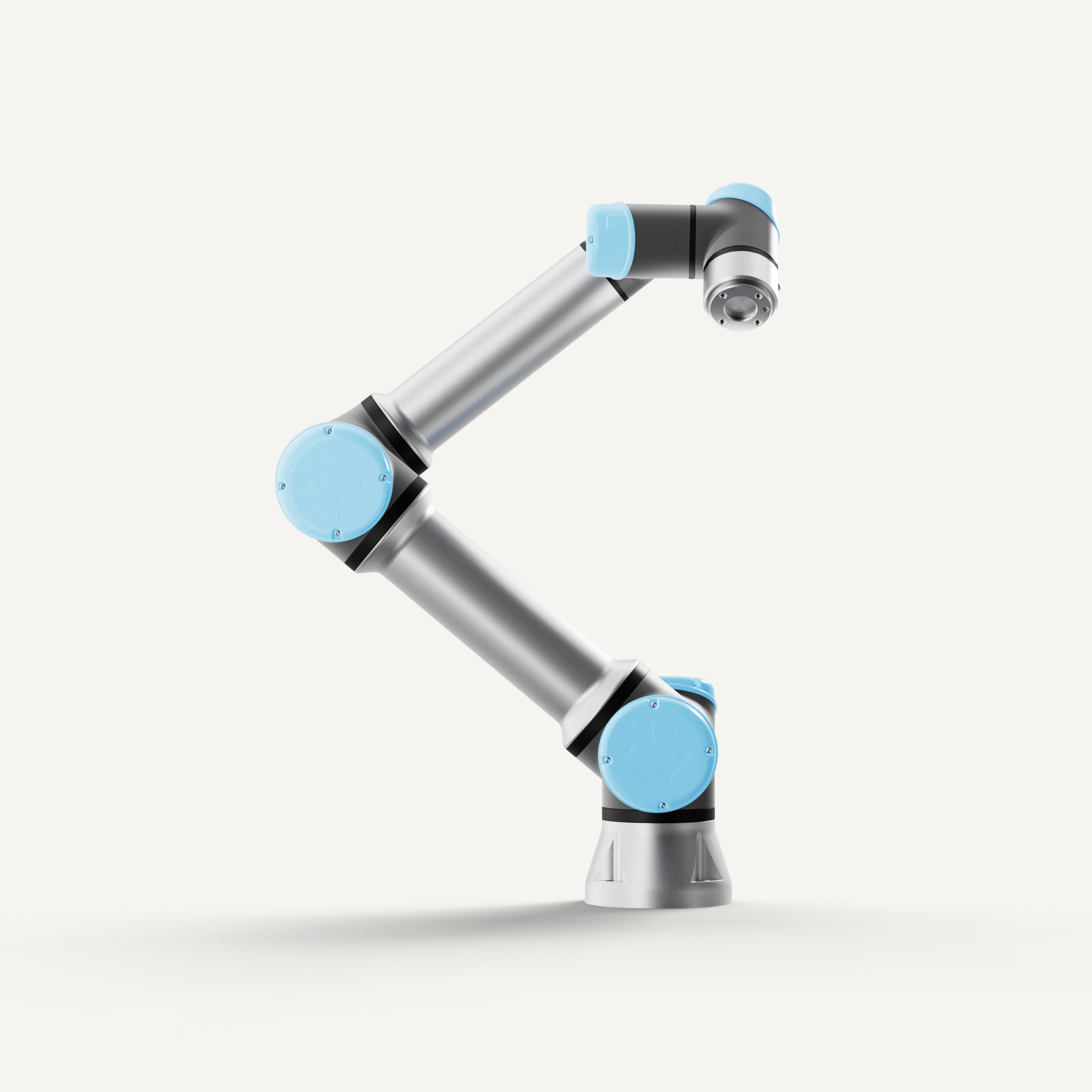

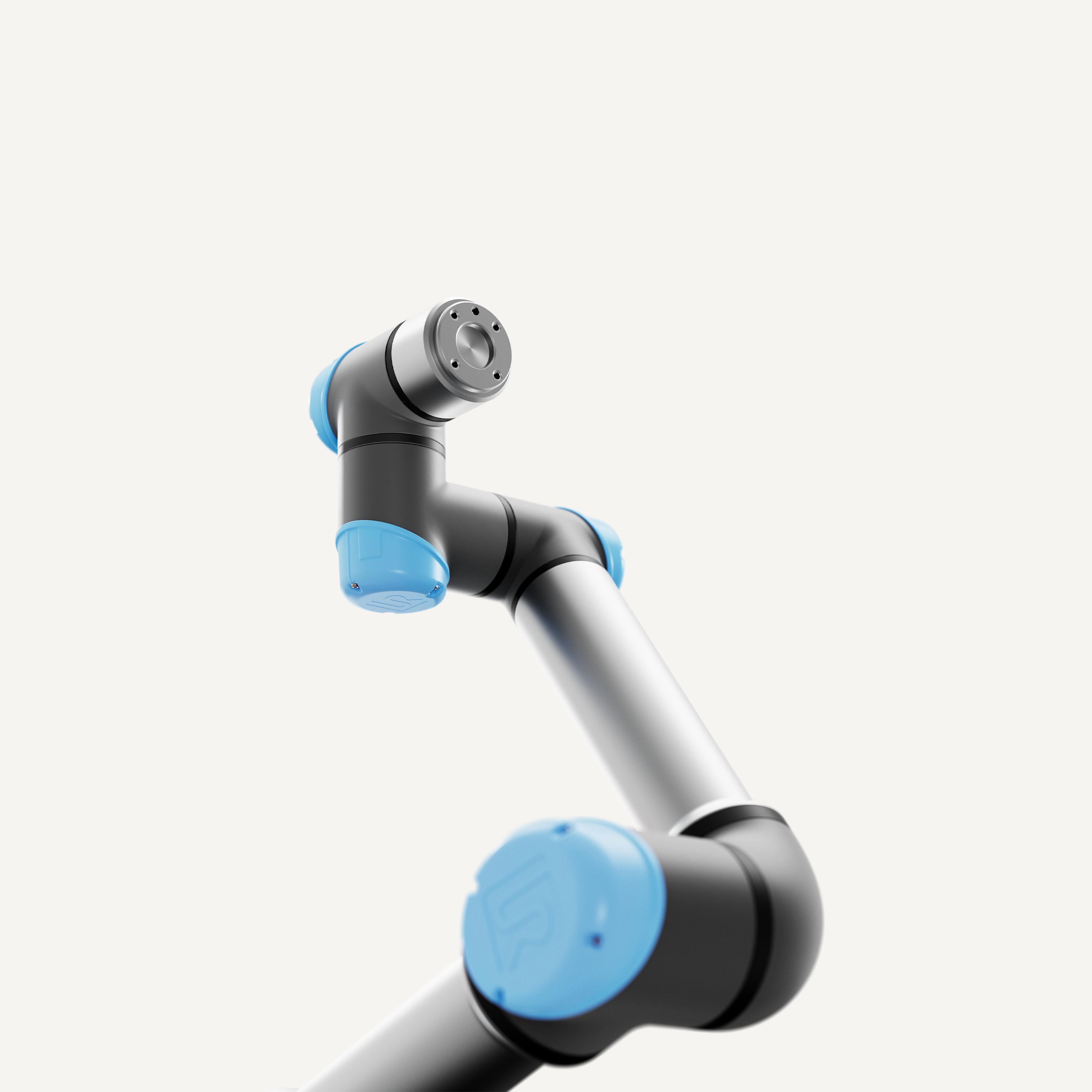

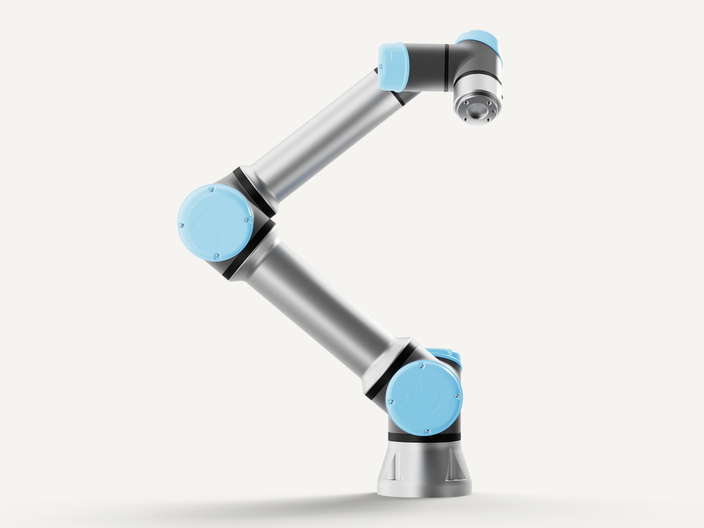

UR7e
7 kg payload robot with 850 mm reach
The UR7e is built for medium-duty flexibility, adapting to production lines of any size or industry. Precision-focused motion keeps output consistent without expanding the footprint.
- Maximum Payload
- 7.5 kg (16 lbs)
- Reach
- 850 mm (33.5 in)
- Max TCP speed
- 4 m/s
- Weight
- 20.6 kg (45.4 lbs)
- Footprint
- ⌀ 151 mm (5.9 in)
- Repeatability
- ±0.03 mm
Tool Connector
Integrated M8 8-pin tool connector delivers power, I/O, and communication directly at the flange – reducing cabling, simplifying integration, and enabling smarter end-effectors. M8, 8-pin female connector; EN ISO-9409-1-50-4-M6; 12 V or 24 V power supply at the tool; [2] Digital I/Os, configured as sinking or sourcing (NPN / PNP); [2] Analog inputs for sensors or [1] RS-485 communication; Safety ready architecture. Electrical Specifications – UR7e Tool Connector.
UR7e industries
Electronics manufacturing
Manages delicate, small-part tasks with high repeatability – perfect for assembly, testing, and quality inspection.
Lab automation
Precise handling for sample transfer and assembly workflows; compact size fits benchtop environments and shared co-working spaces.
Education & research
Compact, safe, and easy to program – ideal for teaching automation fundamentals in classrooms and space-limited labs.
Metal fabrication & machining
Adds tabletop automation to tight spaces with minimal setup; small footprint suits crowded machining cells and tight workbenches.
