Injection Molding Machine Interface (IMMI)

zoom
zoom
zoom
zoom
zoom

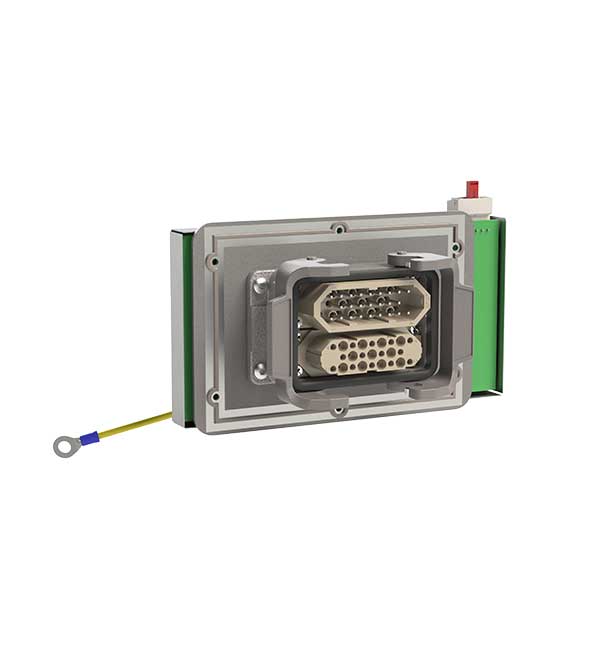

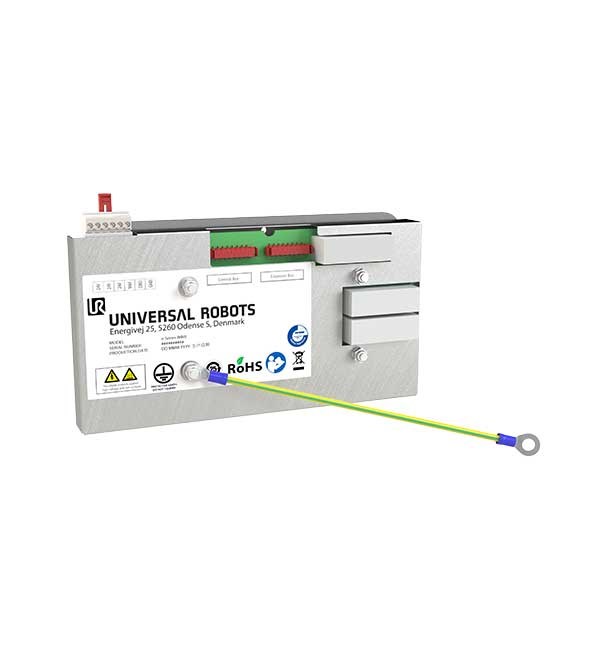

The e-Series Injection Molding Machine Interface (IMMI) option provides standardized connectivity between an e-Series robot and injection molding machinery. The IMMI is a separately orderable option for all e-Series robots and supports both EUROMAP 67 and SPI AN-146.

Read full description
Request Information
Add to Project Collect the products you need for your automation solution in one or multiple projects. Visit your project page for the full overview.
Website
Features

Supports EUROMAP 67 and SPI AN-146. Fully integrated to the Universal Robot Controller cabinet.





How does it work?

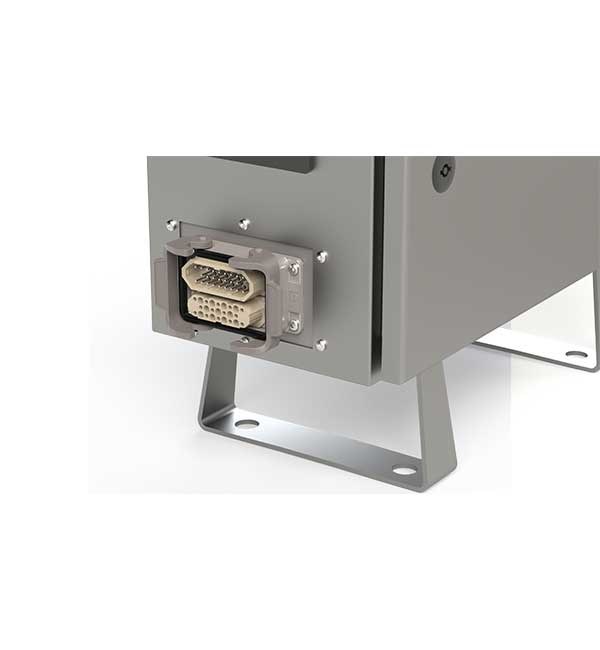

Leverages the e-Series Control Box expansion port for easy mounting and cable management.

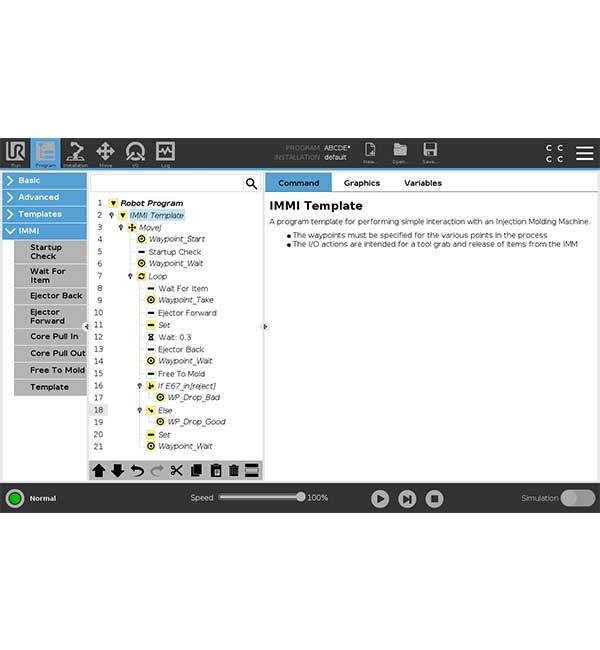

A Polyscope IMMI programming template is provided for easy deployment.

Applications
Machine tending
Robot Compatibility
UR3e
UR5e
UR10e
UR16e
Available globally

Software version requiredPolyscope 5.7

DependenciesThe e-Series IMMI recommended for purchase with a new robot system, OR is compatible with the following e-Series robot serial numbers, and higher:
UR3e     20205300377
UR5e     20205500828
UR10e   20205000796
UR16e   20205600055

Certifications and standardsTÜV,  ISO 13849-1, EUROMAP 67, SPI-AN 146
ISO 13849-1

Dimensionse-Series IMMI Module: 183 mm x 118 mm x 73 mm (7.2 in x 4.7 in x 2.9 in )
e-Series IMMI Cable: Length- 6m (19.7 ft)
Packaging: 566 x 380 x 181mm (22.3 in x 15 in x 7 in)

What's in the boxIMMI Module, IMMI Cable, Installation Guide

License typeFree with purchase of hardware module. This URCap is built into Polyscope and does not require a download.
