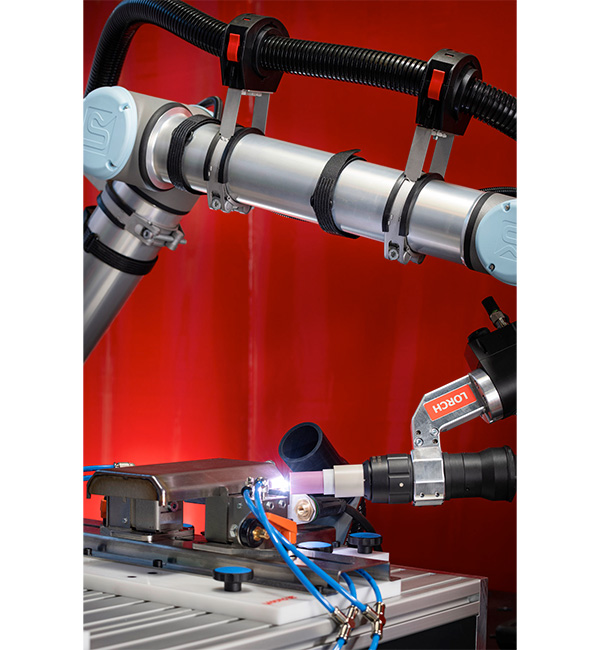

Cobot Welding Package UR10e - TIG
The Lorch Cobot Welding Package is a complete package that allows you to automate your everyday welding tasks. This TIG automation solution is fast, flexible and easy to use. The package includes high-quality robot technology, innovative welding technology from Lorch, intuitive Lorch Cobotronic software and a comprehensive service offer with individual training and support - even after the initial start-up.
With this Cobot welding solutions, you increase your competitiveness and benefit from high-quality and visually superior weld seams that are welded 100 % spatter-free on a wide range of materials.
The Lorch Cobot Welding Solutions enable an easy entry into welding automation for small and medium-sized companies that want to take the step towards Industry 4.0.
- Free drive function for easy operation
- Multifunction flange for easy handling
- Safety first - Safety concept consisting of laser monitoring and function buttons to protect the operator
- Safety through CE certification
- Digital wire feeder for welding with wire
- Precise ignition properties - perfectly suited welding equipment for automation
- Special welding processes for maximum efficiency
Simple initial start-up: plug and weld. Lorch employees or approved sales partners take care of the installation of the system and the training of your employees directly on site. CE approval is also issued at the same time. The programming of the power source and robot is carried out via the teach box with touch screen or via the multifunction flange.
After all parameters have been set, the welding program is started by pressing the start button on the teach panel or on the welding table. The robot runs the programmed steps and the welding system welds the workpieces. As soon as the welding program is finished, the welded parts are removed. New parts can be inserted and the robot starts again.
SOFTWARE REQUIRED:Polyscope 5.12.x
DimensionsWe ship everything together on 2 euro-pallets
dependenciesThe system need 32A - CEE Plug and Fuse and depending on the application and size the place in the production which is necessary also for the documentation of the CE Certificate.
certifications & standardCE, Welding Power Source: EN60974-1

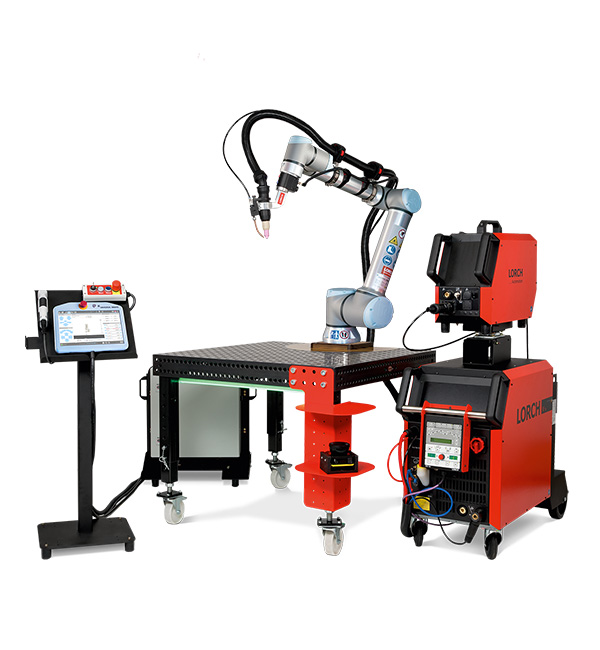

What's in the box?Welding package with Cobot UR10e (with 1 year manufacturer warranty), V30 AC/DC, LTR 350 HPT torch system, multifunction flange, full feature cobotronic.
TIG welding power source
Cold wire feeder package
Complete torch system incl. 4,5m hose package
Multi-functional flange for operating and programming directly at the cobot arm
Digital data documentation and analysis, incl. LCG 2.1 Gateway Hardware
Collaborative saftey over laser scanner for CE compliance
License type:One-Time purchase, Lorch Connect after 12 months a possible annual subscription
- Integration Services
- Feasibility Check
- Risk Assessment
