Method 1: Manual Connection

Description

Use this method when the robots are already connected to a local area network.

Connecting the robots to a Local Area Network (LAN) can interfere with other devices sharing these IP addresses.

  • Do not connect the robot to a LAN. Connect the two robots directly to eachother.

Connection between the two networks can break down, causing the calibration screen to change.

  • Follow the on-screen instruction to resolve the network conflict and restart the calibration process.
Connecting the Manual network (Method 1)

Define the network connection types as listed in the following table:

Network connection type Definition
Master The main robot in the calibration process. Uses a single cable.
Slave The subordinate robot in the calibration process.
Manual A Master robot is selected and a Slave robot selected by a user supplied IP-address.

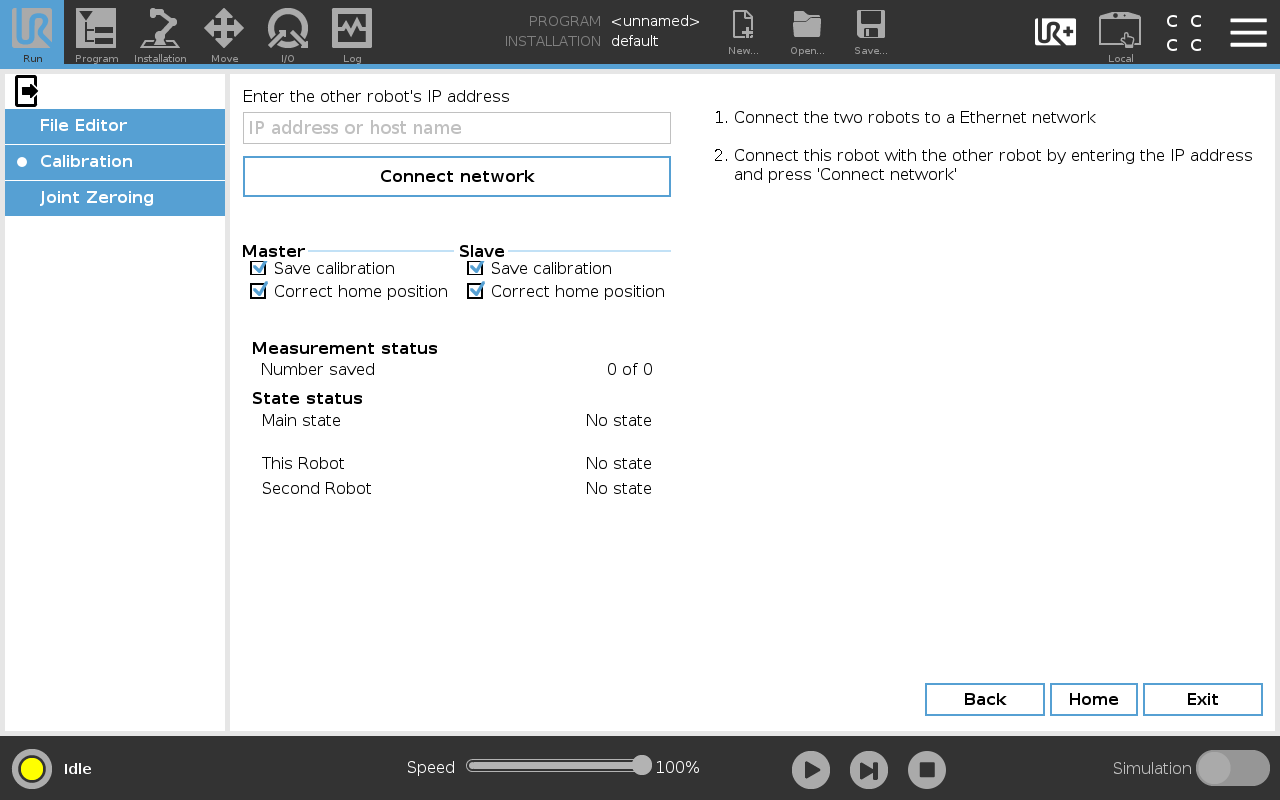

To connect the Manual network

  1. In the Header, hold down Run to access Expert Mode.

  2. Enter password and tap OK

  3. Under Kinematics calibration, select Dual Robot Calibration.

  1. Choose the Master robot and the Slave robot:

    1. On the Master robot, tap Master.

    2. On the Slave robot, tap Slave.

  2. On the Master robot tap the IP address field and enter the IP address or the host name of the Slave robot.

  3. Tap Connect network to establish the network connection.
