Mill Automation System

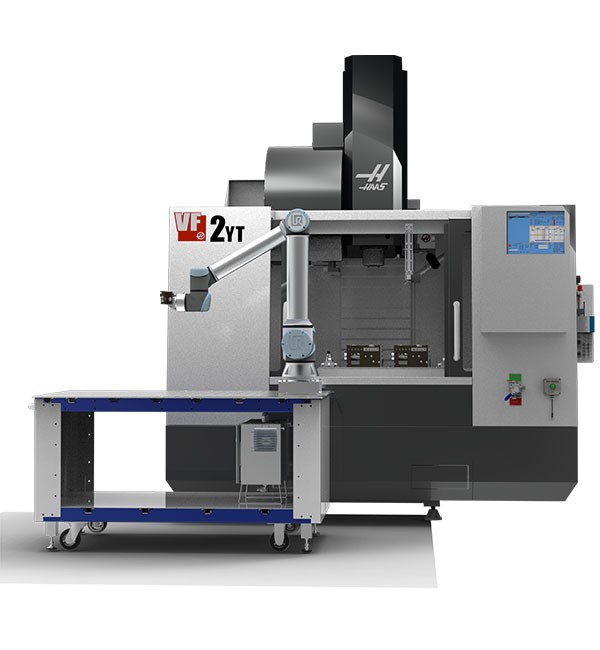

The VersaBuilt CNC Mill Automation System for Universal Robots makes high mix automation easy and flexible. Combined with a UR10e robot from Universal Robots, the Mill Automation System has everything needed to successfully automate a CNC mill.
All components of the system are pre-assembled and designed to work together. Starting with basic hand tools, the Mill Automation System can be installed and processing parts in just one day.
-No programming required
-Remote diagnostics and support via private VPN
-Quick easy installation

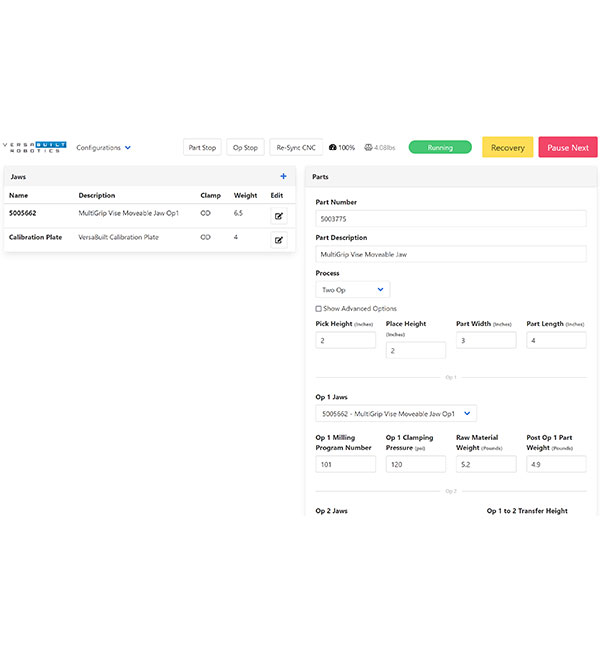

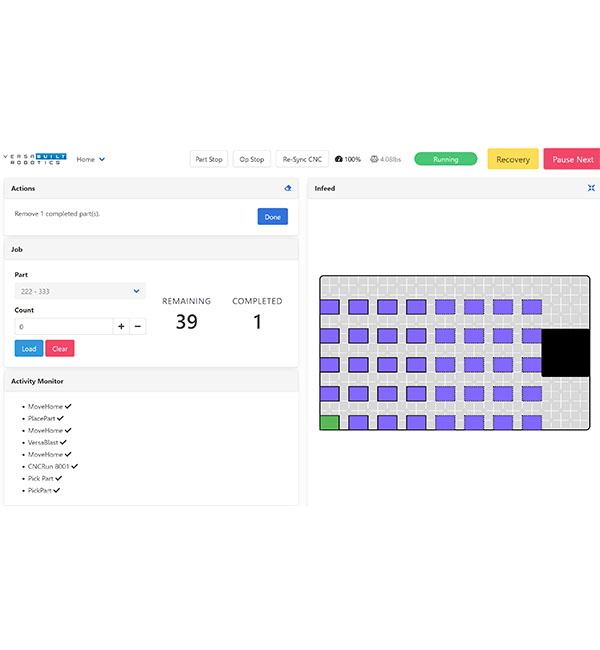

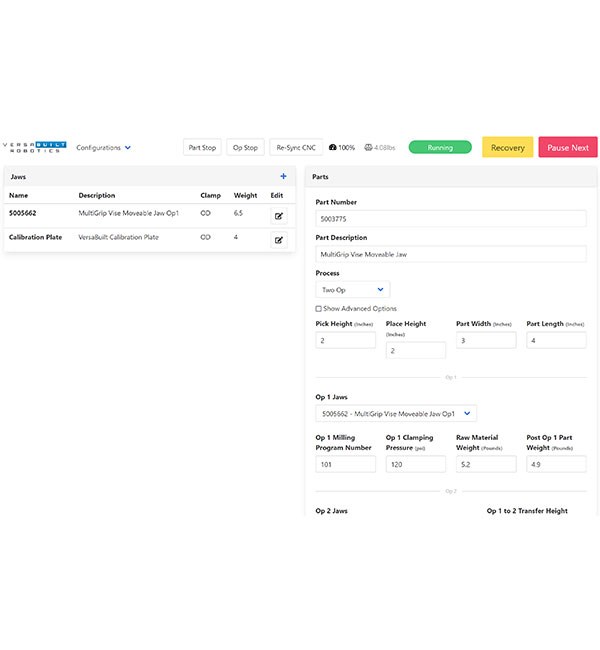

Configuring new parts for automation has never been easier. The Mill Automation System includes the VersaBuilt System Controller (VSC). The VSC allows a machinist to configure a new part in just a few minutes. Using a web-based form, the machinist inputs part configuration parameters. Once the part configuration is saved, the CNC operator can select a saved part configuration and the VSC shows the operator exactly where to load material onto the infeed. Press cycle start and the system starts processing.
Automating high-mix, low-volume production has been solved with VersaBuilt’s MultiGrip technology. MultiGrip allows machinists to quickly introduce new parts to the system for multi-operation processing. The MultiGrip Gripper, 2 MultiGrip vises and a starter kit of MultiGrip jaws are included with the system.
Software version requiredUR e-Series needs Polyscope 5.6+
Dependencies120 psi Compressed Air, 120VAC and an Ethernet connection
DimensionsWith Robot: L: 62" W: 38" H: 60" ~700lbs
Without: L: 62" W: 38" H: 42" ~500lbs
What's in the box?

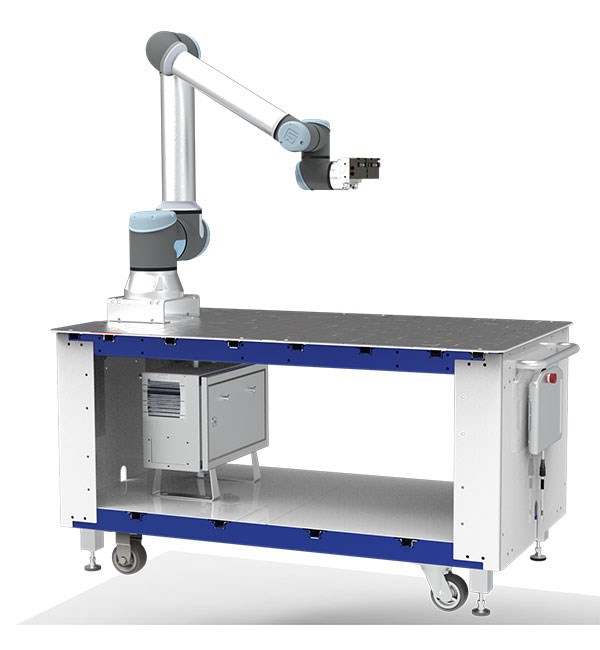

- VersaCart 1300
- MultiGrip Gripper

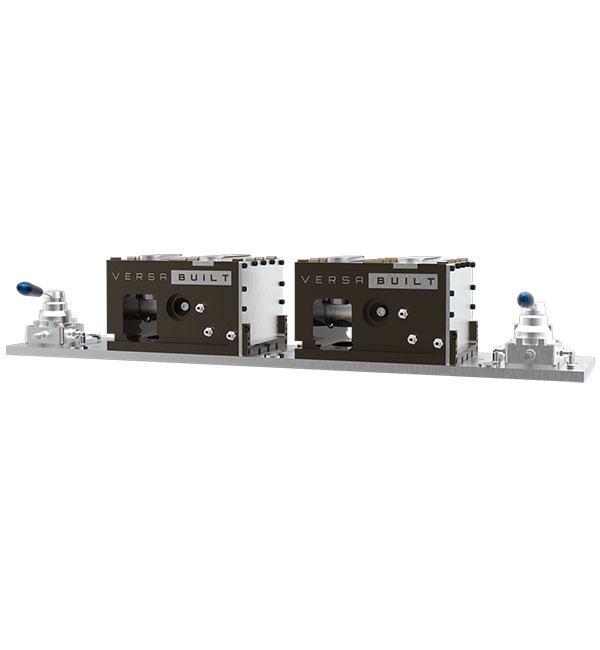

- 2x MultiGrip Vises

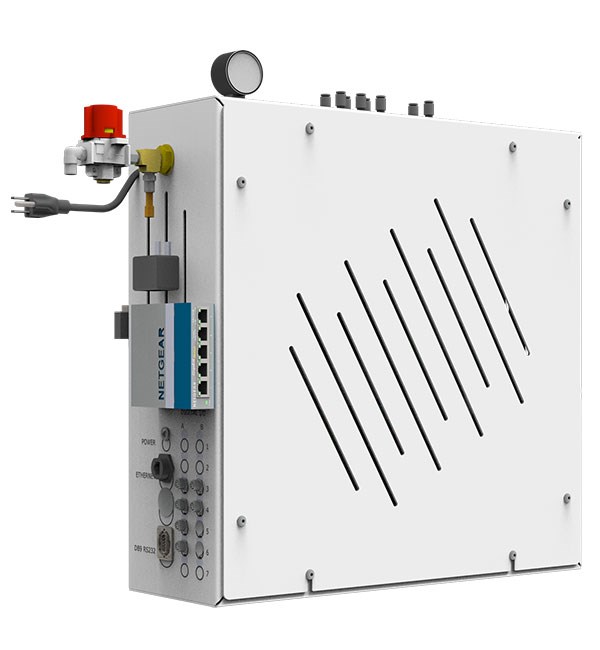

- VersaBuilt System Controller
- MultiGrip Jaw starter kit
- All pneumatic valving and air lines
License typeOne-time purchase
