Lathe Automation System

zoom
Solution
zoom
Solution
zoom
Solution
zoom
Solution
zoom
Solution

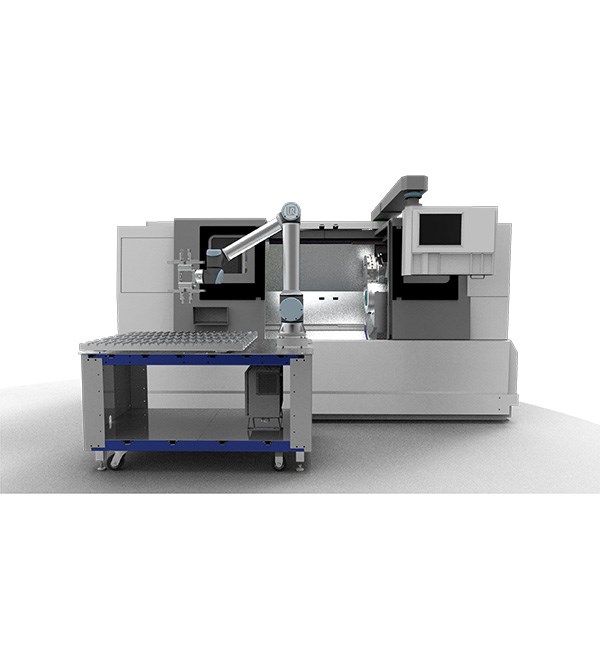

The Lathe Automation System is a complete pre-programmed and pre-integrated automation solution that allows new parts to be introduced to the automation system without a third-party integrator.

Read full description
Request Information
Website
Add to Project Collect the products you need for your automation solution in one or multiple projects. Visit your project page for the full overview. Go to my projects
Features

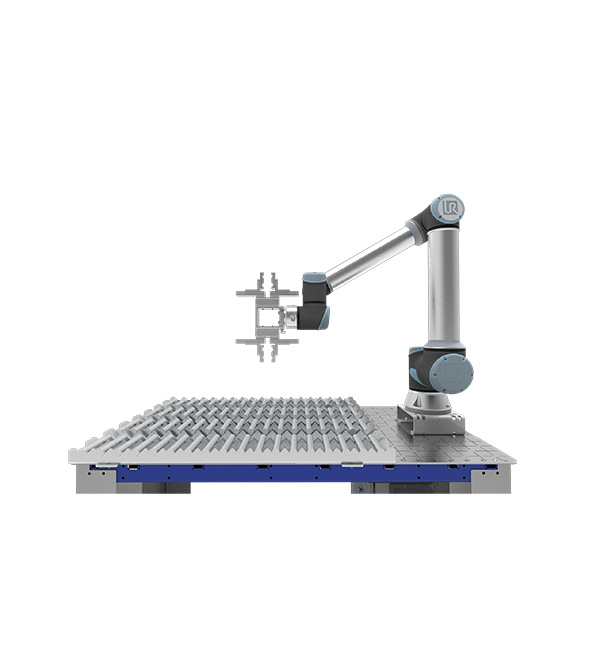

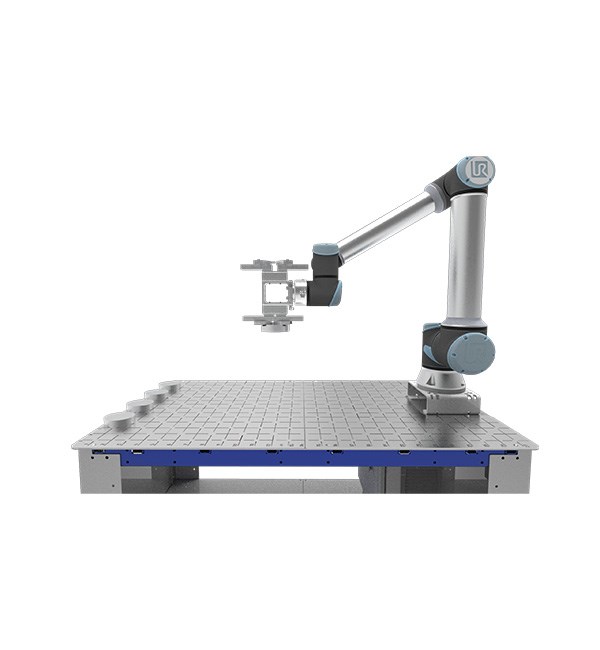

  • VersaCart Robot Cart with Visual Infeed System

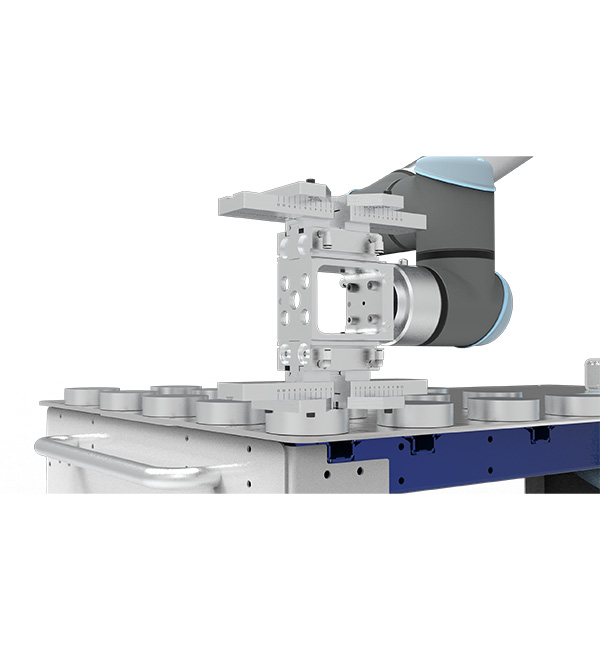

  • DuoGripper
  • VersaBuilt System Controller
  • All pneumatic valving and air lines
  • One-on-one training for operators and machinists
  • Detailed Instructions and online videos
  • VersaBuilt Support Team to ensure your success

How does it work?

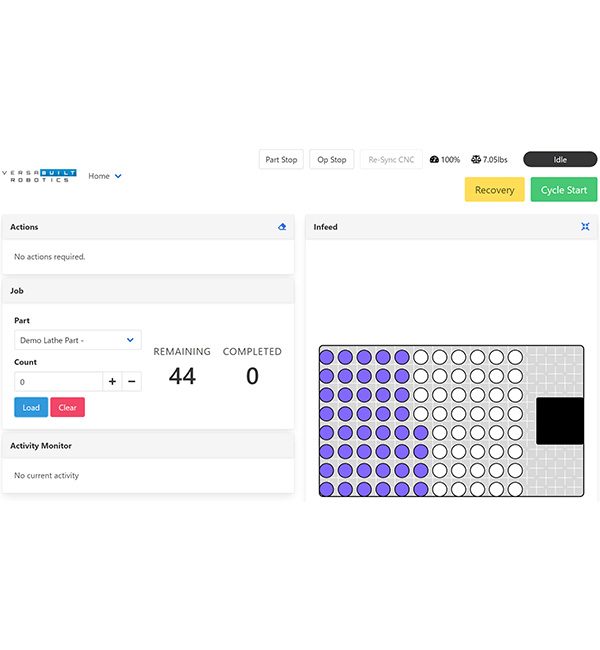

The Lathe Automation System includes the VSC, VersaBuilt’s CNC machine tending specific controller. The VSC software is parametric.

Using a web based form, the machinist inputs part configuration parameters. Once the part configuration is saved, the CNC operator can select a saved part configuration and the VSC will show the operator exactly where to load material on the VersaCart and to load the appropriate Op1 and Op2 jaws into the respective vises.

Applications
Machine tending
Robot Compatibility
UR10e
Available in
  • Canada
  • USA

Software version requiredUR e-Series needs Polyscope 5.10+

DependenciesCompressed Air

DimensionsWith Robot: L: 62" W: 38" H: 60" ~700lbs
Without: L: 62" W: 38" H: 42" ~500lbs

What's in the box?

  • VersaCart
  • DuoGripper
  • VSC
  • All tubing, cabling, hardware needed to complete the system

License typeOne-time purchase
