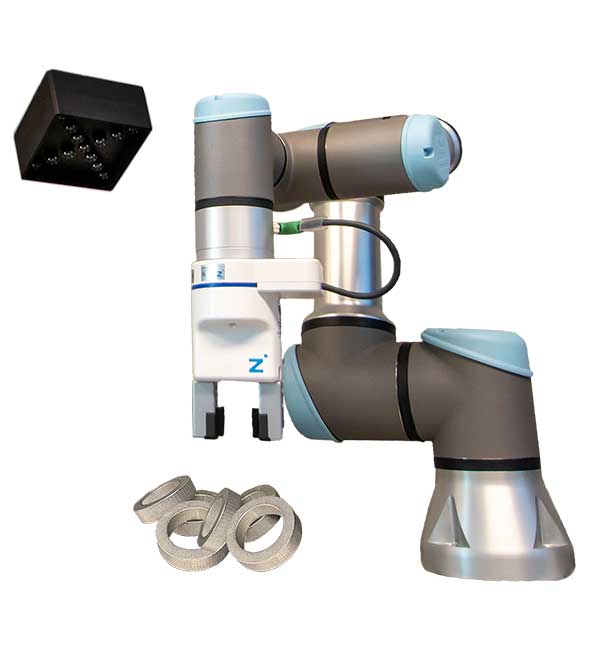

LumiScan BinPick is a 3D vision solution consisting of a compact sensor and software for your bin picking automation.
The system allows fast and easy object handling – even for shiny or metallic surfaces and fibre composites. Its unique sensor reduces gloss as well as occlusions. With its intuitive UI, LumiScan Bin Pick can be easily set up and expanded.
Available systems include the options S, M, L for every box size.
- Reliably pick glossy and metal objects as well as fibre composites
- Less occlusions due to multi-camera approach
- High depth of field
- Passive system sending collision-free path points (calculated from the entire visible space) to robot without delay
- Easy setup and operation: no expert knowledge needed
- Expandable system: add new CAD-models of gripper and objects later
- One system consisting of hardware and software
- Available in sizes S, M, L for every box and pile

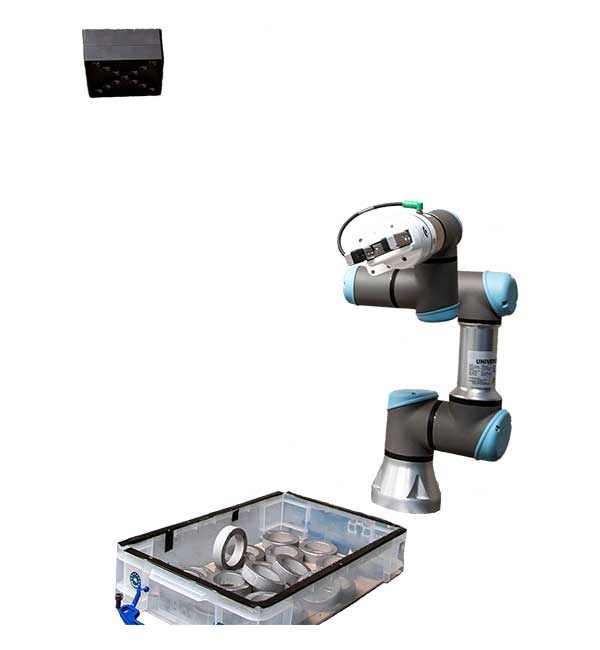

Based on detection of CAD-models, LumiScan BinPick unites the compact 3D light field sensor LumiScanX as well as the intuitive LumiScan Object Handling software. The system detects and localizes objects in any box or pile. It then senses collision-free path points to a connected UR-Cobot with zero downtimes.

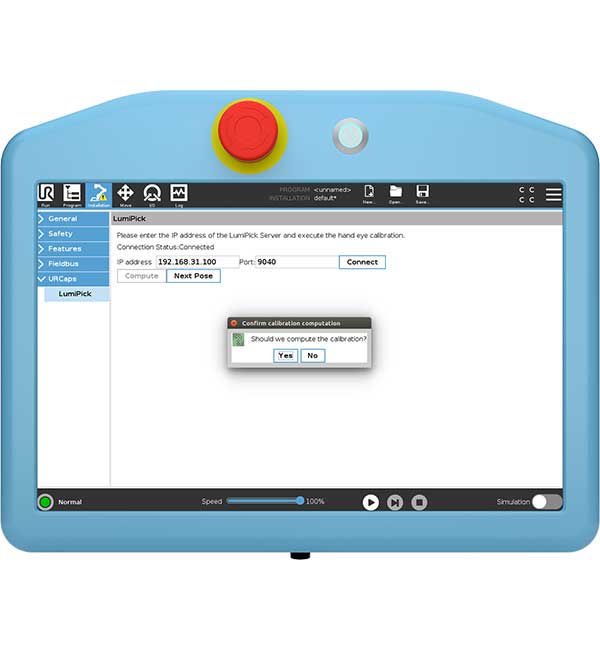

The sensor LumiScanX can be installed and calibrated in a matter of minutes. For the CAD-based LumiScan Object Handling software, the same applies – depending on the number of objects, grippers and gripping points defined. The intuitive and guiding software can therefore be set up in under 10 minutes.

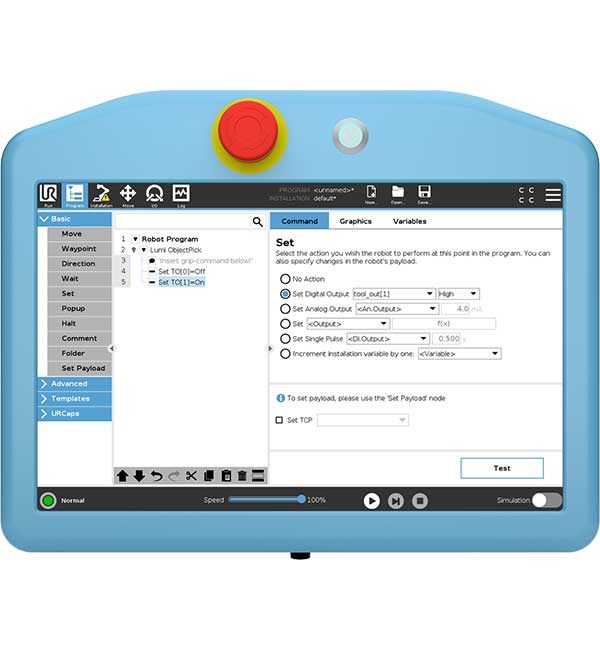

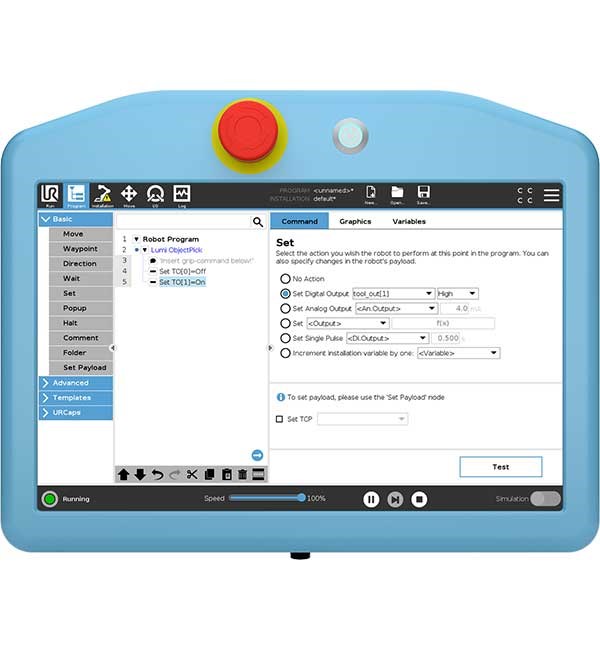

URCap is part of the delivery, so all new IOFirebug inputs and outputs are available to your robotic application.
- Czech Republic
Includes a urcap pluginYes, LumiPick 1.2
software version requiredUR Polyscope 5.10 or newer

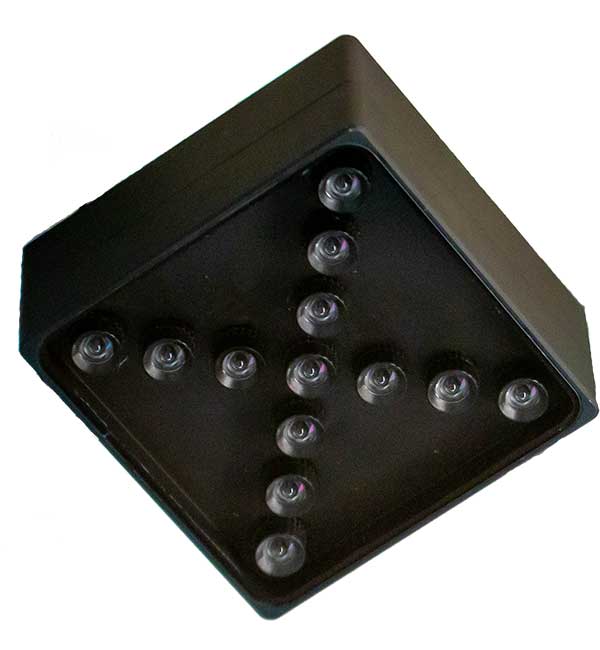

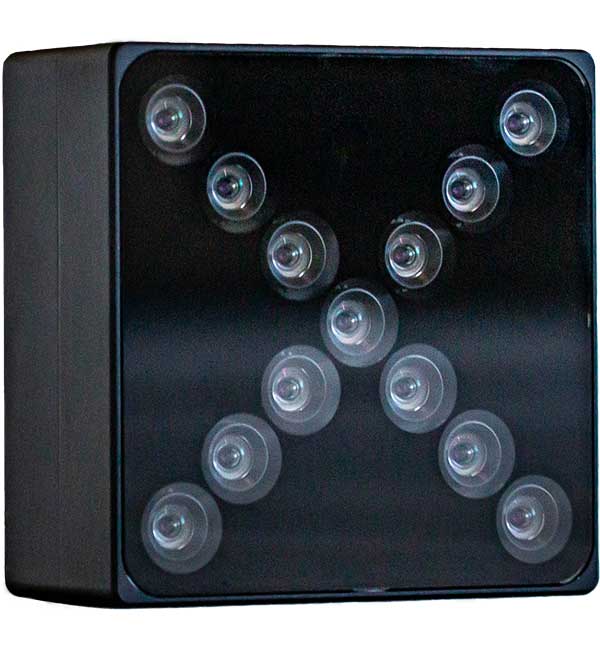

3D light field-sensor LumiScanX (included)
AMD Ryzen 5 or Intel Core i5 2.4 GHz or newer, 16 GB RAM, HDD or SSD with min. 5 GB free memory, Nvidia GeForce GTX1050 or newer, Gigabit Ethernet card with at least 2 ports (Intel Pro 1000 or comparable recommended)
Win10, Nvidia driver Ver. 450.36.06 (CUDA 11.0) or newer), Baumer filter driver (bgapi 2.10.1 or newer), Halcon Runtime Ver. 18.11 or newer, CodeMeter Runtime Ver.7.0, Microsoft Visual C++ Redistributable for Visual Studio 2015, 2017 and 2019
certifications and standardsCE, IP-54
dimensionsDimensions LumiScanX: 112x112x56 mm, 737g
Dimensions Vision Controller: 600x550x300 mm
What's in the box?1x LumiScanX 3D-sensor
1x Vision Controller (Rack-PC)
1x Ethernet cable (M12-RJ45)
1x Power- & I/O-cable (M12)
1x Power supply unit or GigE PoE power injector (if applicable)
1x Calibration plate incl. Mounting device
1x LumiScan Object Handling software incl. licence for one PC
1x Halcon licence
1x WiBu USB dongle
1x LumiScan Object Handling manual
License typeOne-time purchase
