ATI MC-10 Manual Tool Changer

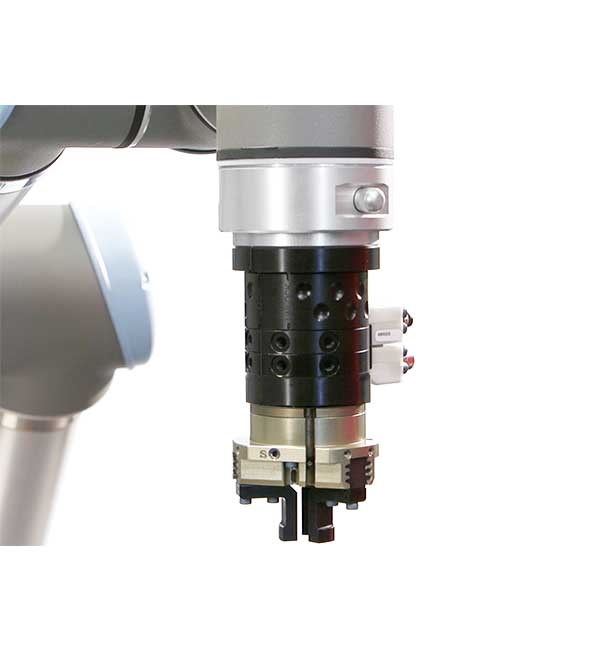

ATI Industrial Automation’s MC-10 Manual Tool Changer provides a cost-effective solution for quickly changing tools by hand. Its compact, yet robust design, is optimized for collaborative robot applications and is a perfect fit for all UR robot models.

Manufacturer:ATI Industrial Automation

Website

Request information Add to My Solutions

Overview Specifications Features Compatibility

Overview

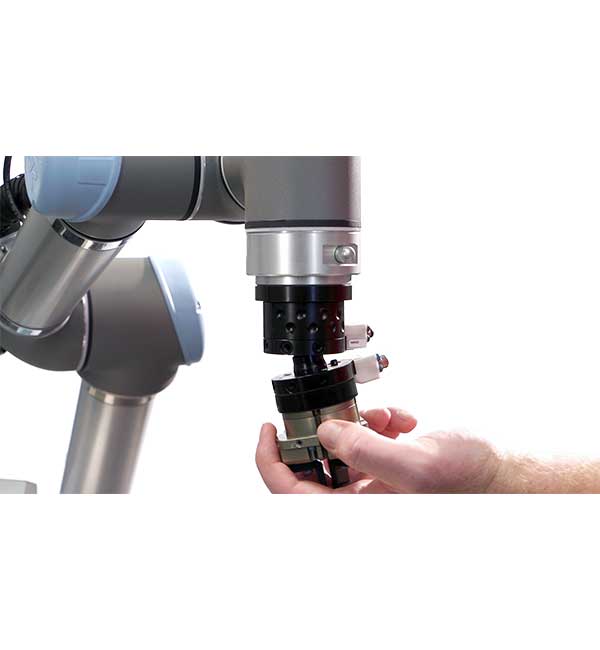

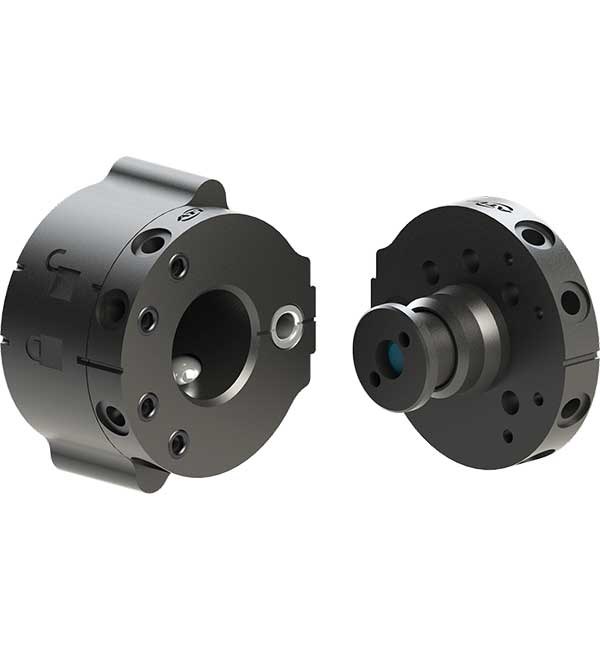

The MC-10 Manual Tool Changer utilizes a manually-actuated twist-collar locking mechanism for coupling end-effectors to a UR robot arm. The user brings the Master (robot) and Tool (end-effector) sides together and applies a twisting motion until feeling a "click." This tactile feedback, along with the alignment of visual icons, indicates successful locking.
