Assembling Clamp Connection
| Clamp assembly |
The assembly is done in reverse of the disassembly. However, a few things must be noted before assembly is begun. • Always replace the flexible flat black ring with a new one to maintain the IP classification.

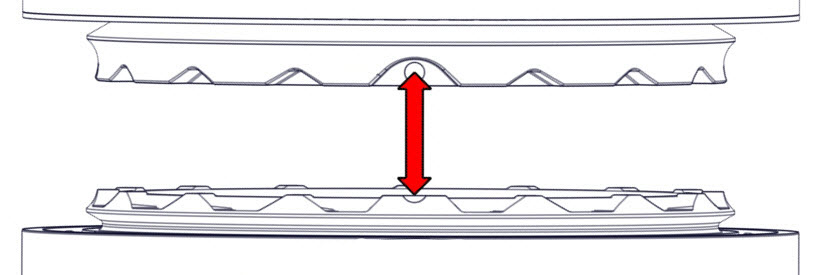

• Replace the foam seal on the clamps, if damaged, to maintain the IP classification. • Replace the wear rings if extensive wear or damage is shown. • The dots must be aligned; otherwise, the connection cannot be made.
• Joints should be assembled in a vertical position to ensure proper mating between the joints.
|
|

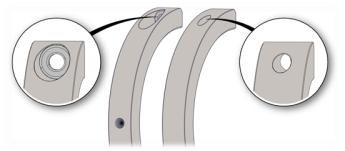

• Ensure the screws are inserted in the correct clamp. • Apply only to earlier version of brackets where one side has a circular marker.
When tightening the clamps, it must be done in steps. Do not exceed recommended torque:
|
