Tool Drawings

Description

Two calibration mounts are available.

  • Purchase number: 185500

  • Purchase number: 200977

The calibration kit (185500) includes a smaller calibration horse and can be used with the following robots:

All e-Series robots.



The calibration kit (200977) includes a larger calibration horse and can be used with the following robots:

UR10e, UR16e, and UR Series robots.

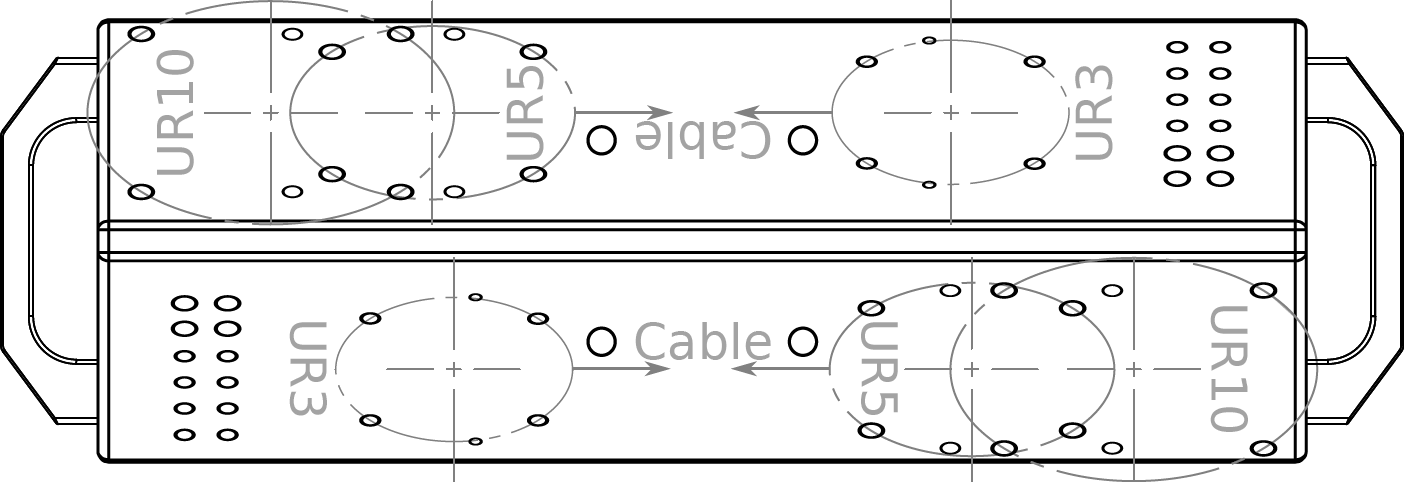

Calibration Horse (185500)
Only e-Series

The UR3e and the UR10e robot arms are mounted in different positions.

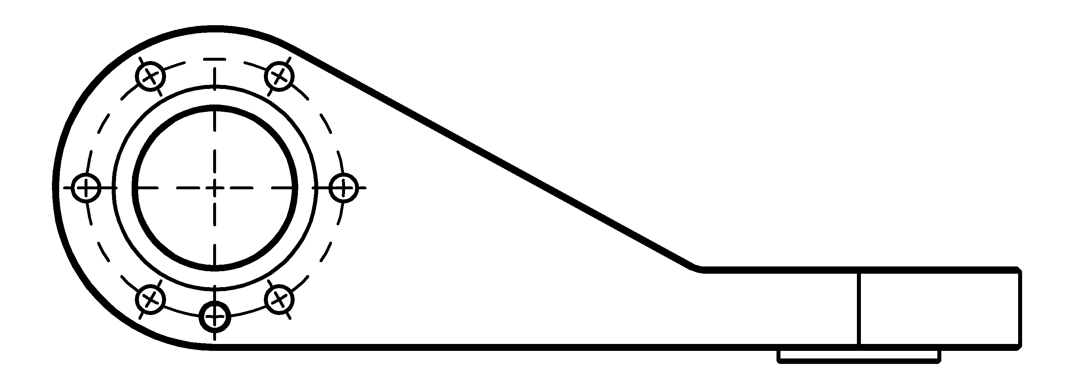

Calibration Connector (185500)
Only e-Series

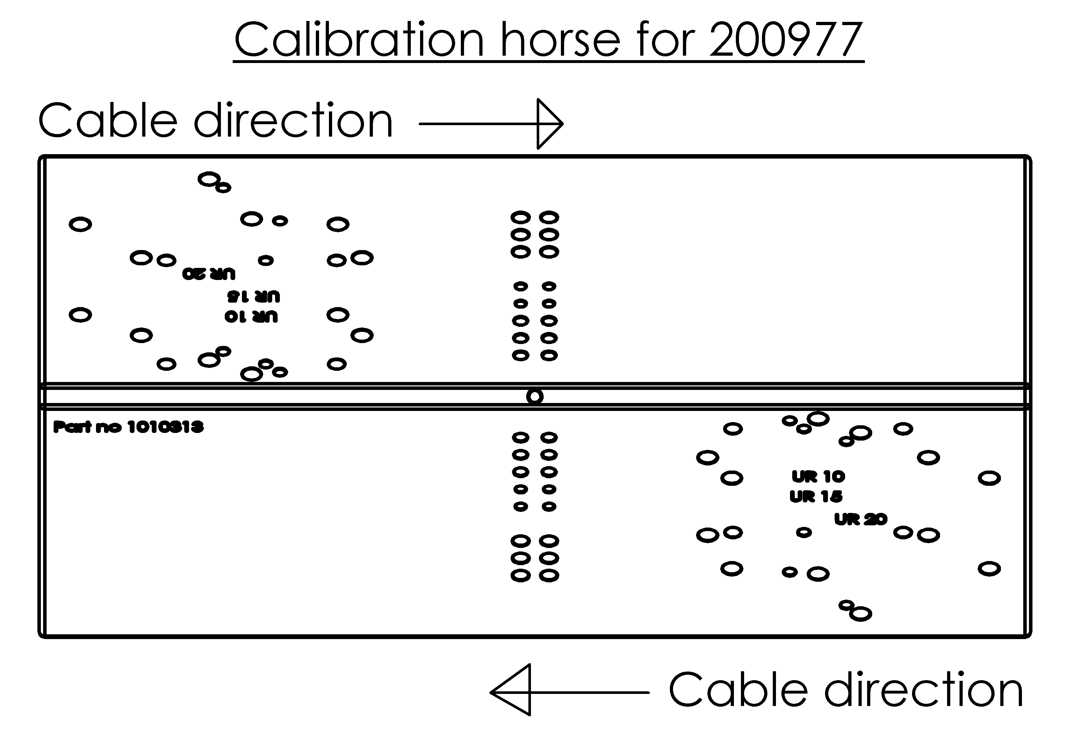

Calibration Horse (200977)
UR10e, UR16e and UR Series

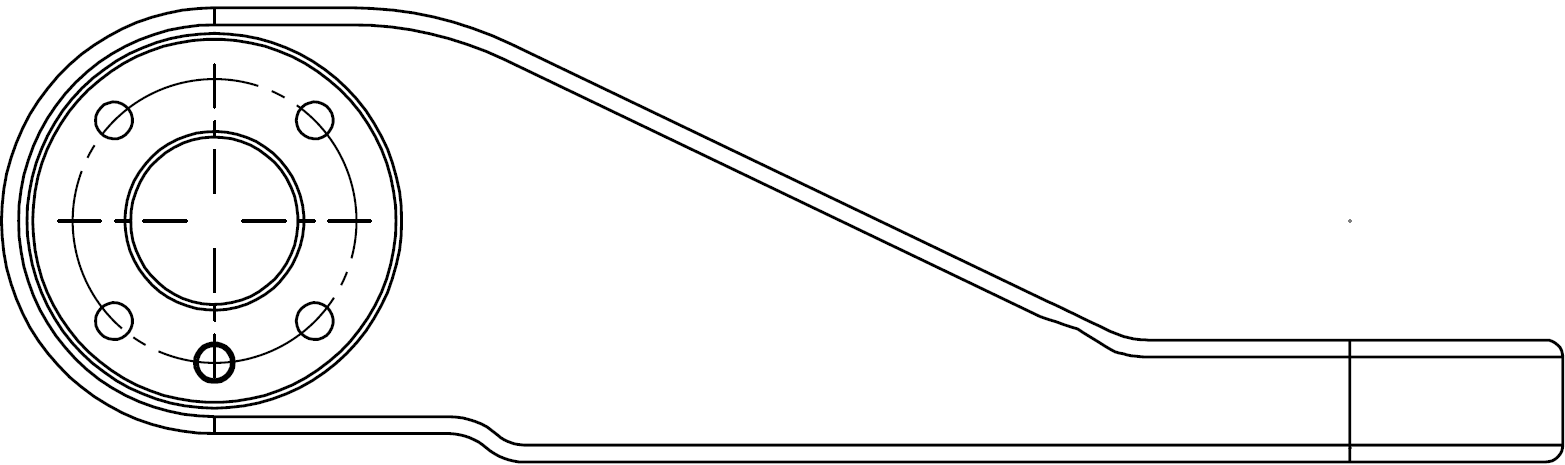

Calibration Connector (200977)
UR10e, UR16e and UR Series
