THG Automation TIG Solution

THG Automation has released one of the most advanced robotic TIG welding packages in the US, combining the collaborative capabilities of Universal Robots with the industry-leading capabilities of Fronius welding systems. The system is an out-of-the-box solution for companies that need a quick easy path to automation in welding production. Systems typically ship in 4-6 weeks. Production welding can start in as little as a day, once powered up. Aimed towards advanced production welding of all major hard and soft alloys in food-grade, aerospace, transportation, medical and defense industries. The solution consists of a Fronius Magic Wave 300 AMP AC/DC TIG Power Source with Push or Push-Pull Wire Feeder for autogenous or wire feed applications. Contact us via the button below.

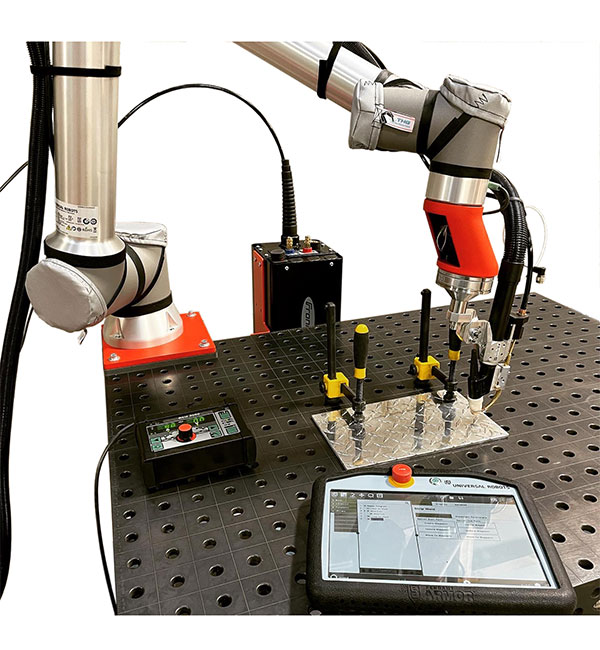

THG Automation Universal Robots and Fronius integrated collaborative welding solution is designed to put in production the day you receive it. The system is self-contained when it arrives. Once you supply power, gas, and wire, you can start teaching your weld paths with our wizard-like interface. Our easy to use interface is intuitive and walks you through the process of getting your parts in production quickly. Our top of the line Siegmund weld table with a standard hole pattern and clamp kit makes mounting parts and tooling quick. Clamp your part directly to the table or build your own tooling to suit. Once you're happy with the welding process, repeat the welding process by simply pressing the start button. You're now in full production with your parts.

Software version required

Polyscope 5.12 or above

Dependencies

End user is responsible for:
Power - 120/240 volt single phase (robot) and 200 to 575 volt 3 phase (Welder) depending on options
Consumables - shield gas and welding wire

Dimensions

• Table Dimensions 36"" Deep X 48"" Wide X 37"" Tall
• Overall dimensions 48"" Deep X 48"" Wide X 90"" Tall at hose pack balancer
• Weight approx. 850 LBS depending on options

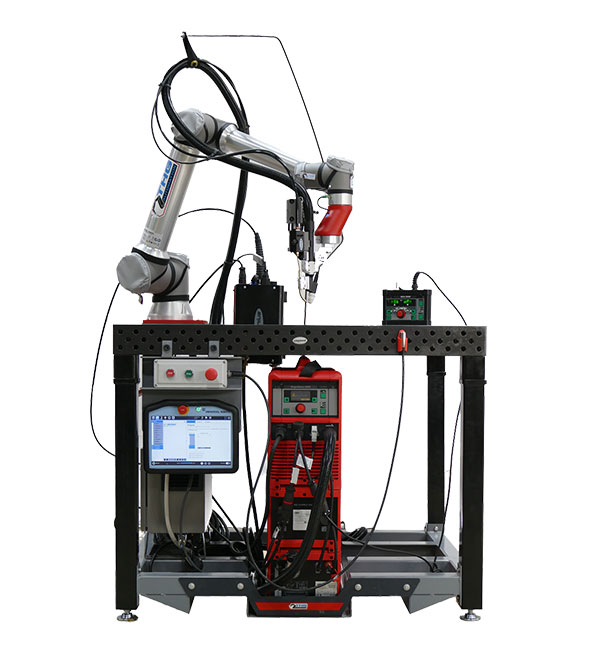

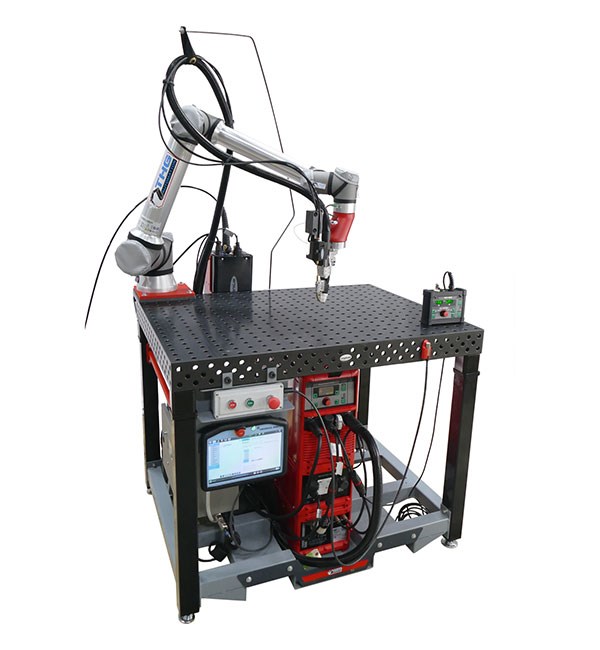

What's in the box?

• UR10e robot arm
• Fronius Magic Wave 300 amp AC/DC TIG powersource with push or push pull wire feeder
• Top of the line modular 3' x 4' Siegmund Welding table
• 34 piece clamp kit set
• Protective robot environmental kit
• Welding table includes a customized base designed to be compatible with pallet jacks and fork lifts.

License type

One time purchase

Included TIG welding processes:

• DC positive or negative
• AC for aluminum
• Pulse with synced wire feeding

With the following system features

• “Z” Axis Tracking
• Easy Strip weld function

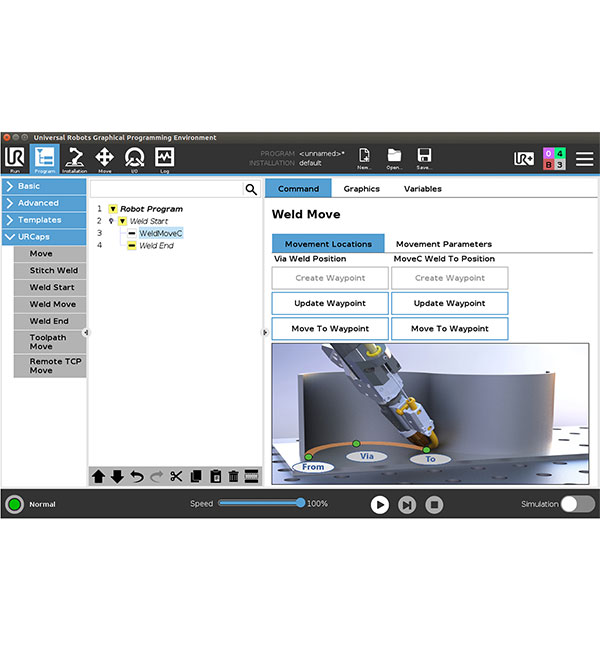

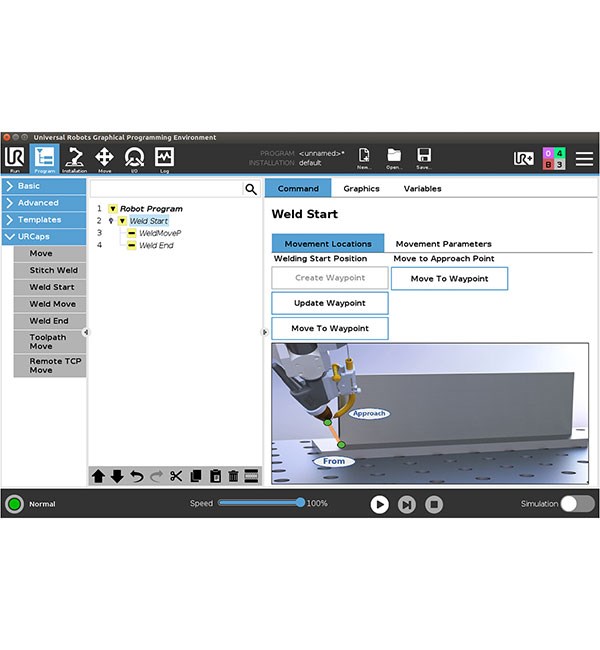

• Wizard like interface for creating welding programs
• Weave options including weave angle, pitch, and width
• Metric or Imperial units
• Simulation button for on-demand weld simulation
• Robot environmental kit for protection from weld spatter
• Pendant Armor for increased pendant protection

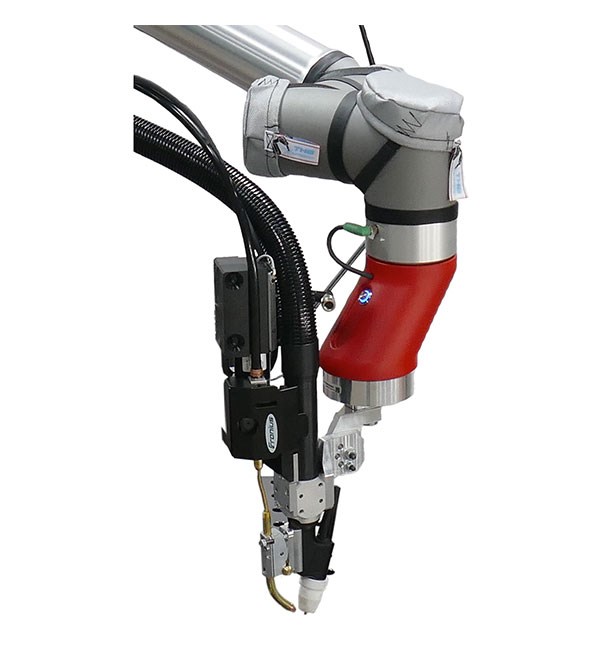

• Freedrive button at the weld torch
• Starter kit of welding consumables
• Fronius tool kit
• Free software upgrades for a year, including future options
• Easy to use programming interface
• World-class welding processes for perfect welds
• Storage for 255 welding jobs
• Wire spool holder for convenient weld wire placement
• Modular mobile welding table setup
• 3 to 4 week lead time

• UR10e
• UR12e
