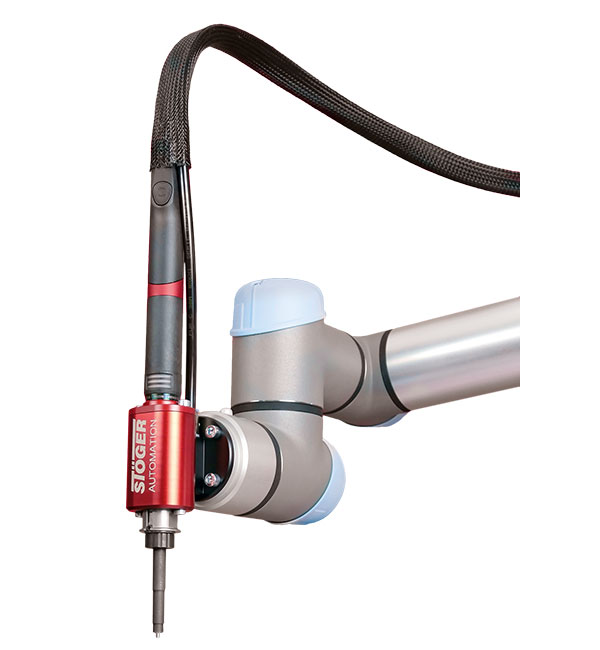

Automatic Screwdriving System SPATZ

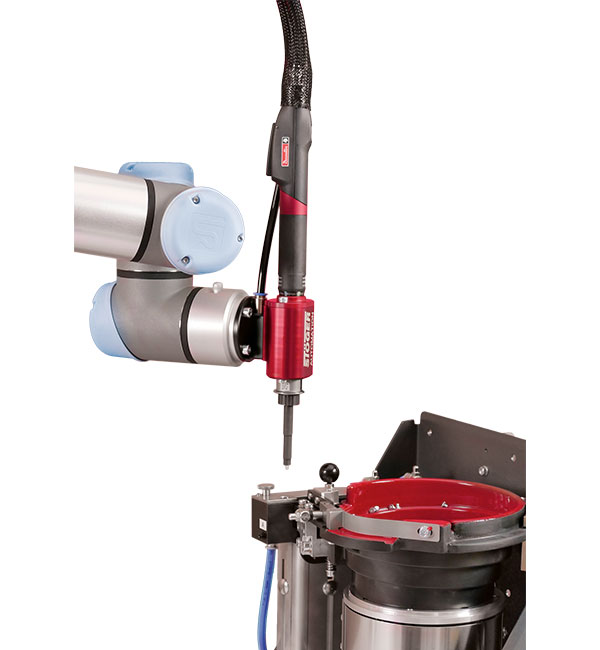

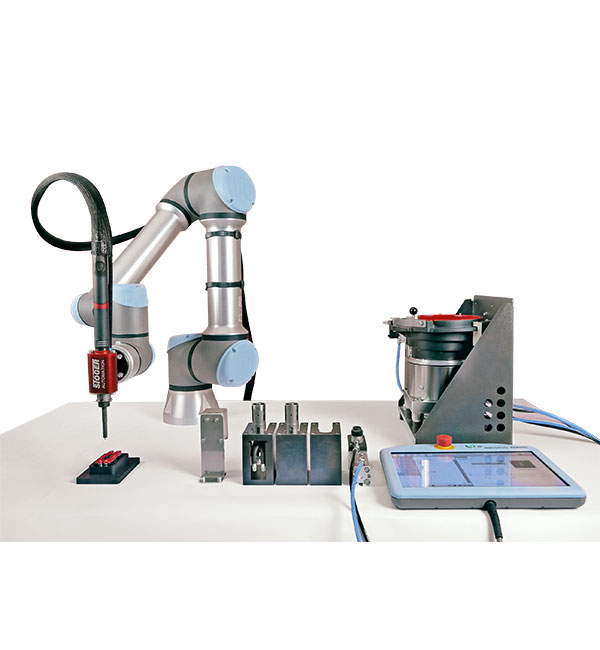

The SPATZ is a screw driving robot with automatic tool change and automatic feeding of the fasteners via a Pick&Place system. Fasteners of different geometries can be screwed with the SPATZ. This is possible by the modular design and use of various screw driving tools and grippers. Further applications can be adapted at any time. The fasteners are fed via Pick&Place. Depending on the variant, the feed unit has an internal or an external supply unit. The program structure is already provided by the SPATZ cap, only the respective positions still have to be taught, which reduces the commissioning time to a minimum.
• Modular system
• Flexible system layout
• Up to 15 screw driving programs possible at the same time
• Various tools adaptable
• Multiple work steps can be carried out with one system
• Simple system expansion
• Encoder checks whether the correct tool is taken (optional)

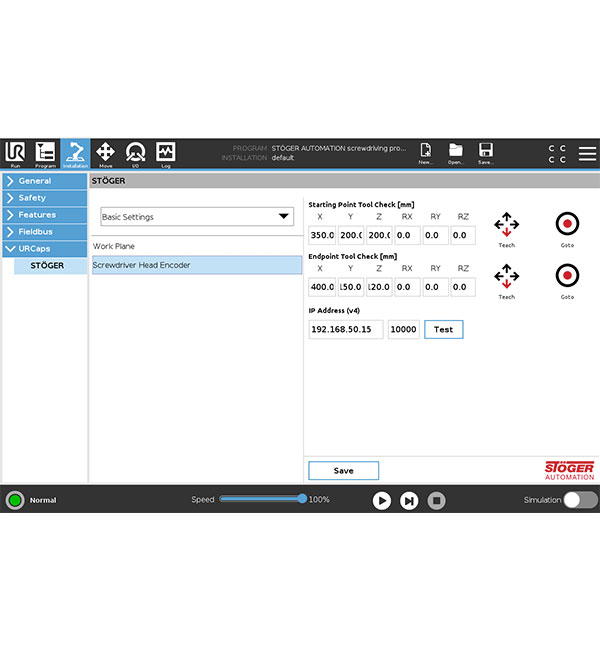

• Simple program changes to the robot through certified software UR-Cap (when using an UR e-series robot)
• Integrated automatic sequence control

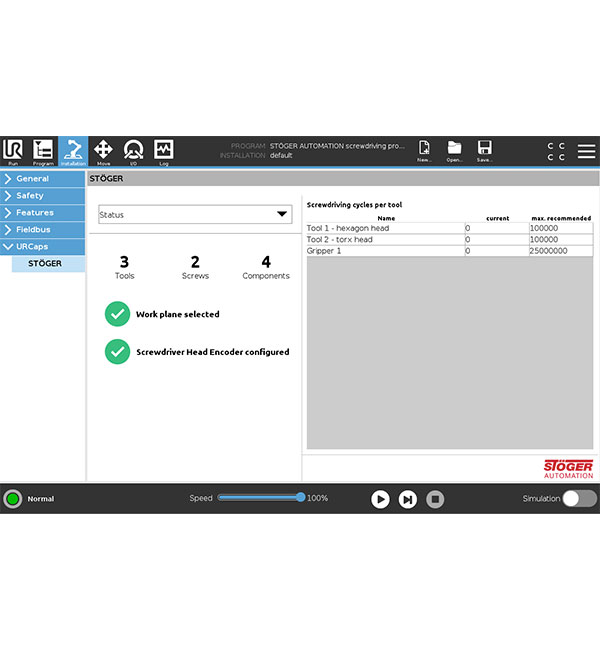

• Quality assurance through documentation of the screw driving results

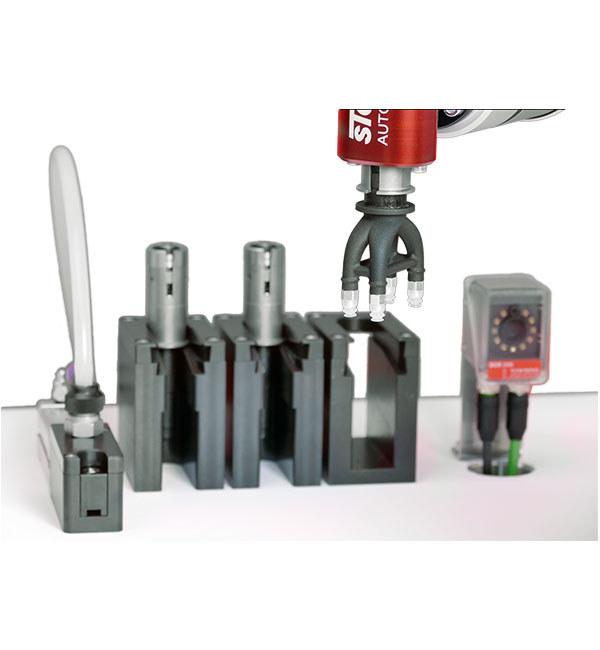

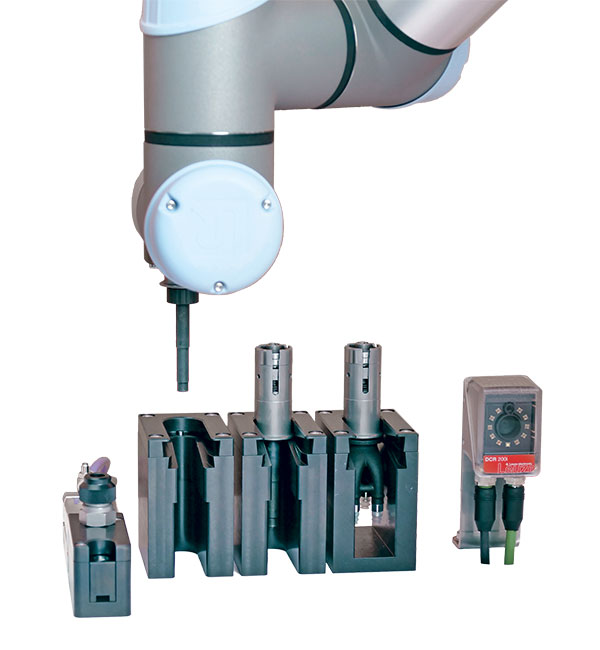

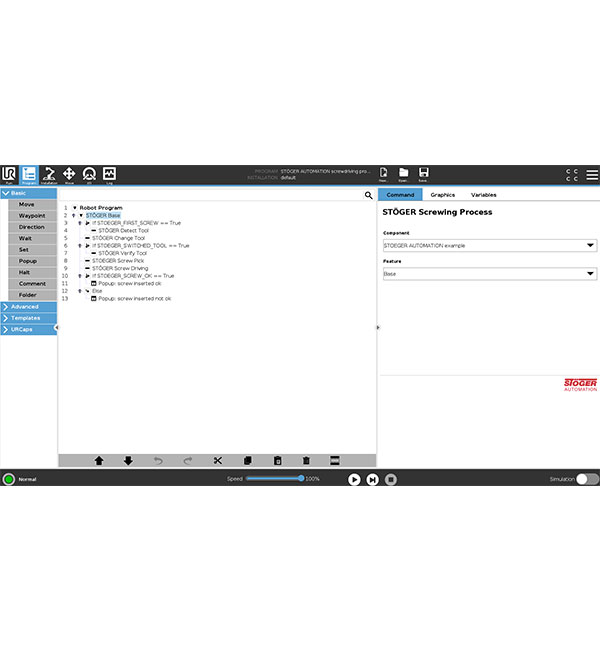

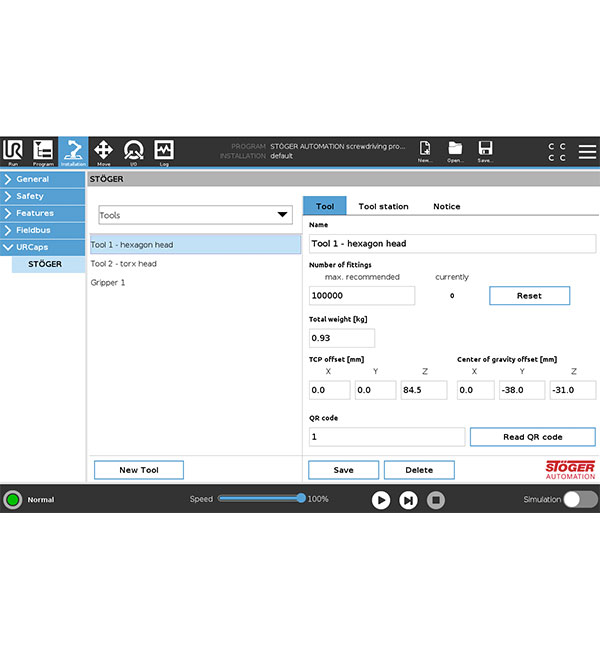

The SPATZ is very flexible due to the separation of tool holder and tool. It can be used for the screwing of one screw type as well as for the screwing of different screw geometries. The modular design also allows grippers to be adapted. This means that apart from simple screw driving applications even extensive scenarios are conceivable, such as gripping components, setting balls or pins, screwing one or more components with different fasteners. With the help of the SPATZ-Cap, the user can program the motion sequences of the robot very easily and time-efficiently, since only the respective positions have to be taught. The tools are stored in tool stations. An optional reading unit can be used to check whether the correct tool has been picked up. If incorrect tools are detected, system stops and an error message is issued. The connectors are fed via a Pick&Place system. An internal supply unit is included as standard. Optionally, an external supply unit can be used if, for example, space is limited at the screw driving location. In addition, the external supply unit helps to reduce the cycle time, as empty runs can be shortened.
- China Mainland
- Czech Republic
- Hong Kong
- New Zealand
- Saudi Arabia
- South Korea
- Sri Lanka
- United Arab Emirates
- United Kingdom
Software version requiredSoftware Version 5.4+
DependenciesCompressed air 5-6 bar, power supply 230V.
Certifications and standardsThe machine will be delivered with a declaration of incorporation acc. to EC Machinery Directive 2006/42/EG.
What's in the box?Screw driving unit, feed unit, tool changer, tool, accessories.
License typeOne-time purchase.
