SmoothTool Welding Package

zoom
zoom
zoom
zoom
zoom
zoom
zoom
zoom
zoom

Robotic welding made easy!
SmoothTool is a user-friendly cobot welding package, designed for all kinds of welding tasks. With a program structure that ensures high flexibility, it is very easy to add weaving patterns, offset items or stitch weld. The software is compatible with both CB and e-series, and all features are working for both robot types. SmoothTool does even have a 3D visualization of the actual path, so you can easily verify your welding path before welding.

The SmoothTool welding software offers full integration with several robotic welding power sources from leading brands like Fronius, ESAB and Kemppi. Furthermore, SmoothTool offers integration with all other power sources, manual or robotic, through Digital I/O or Callback function.



Read full description
Request Information
Add to Project Collect the products you need for your automation solution in one or multiple projects. Visit your project page for the full overview.
Website
Features

The Smoothtool Welding software comes with a range of welding features, designed for all kinds of welding tasks.

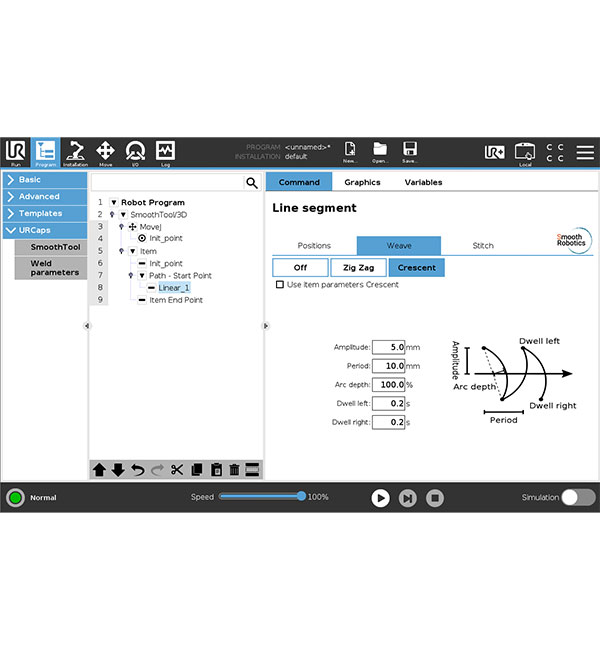

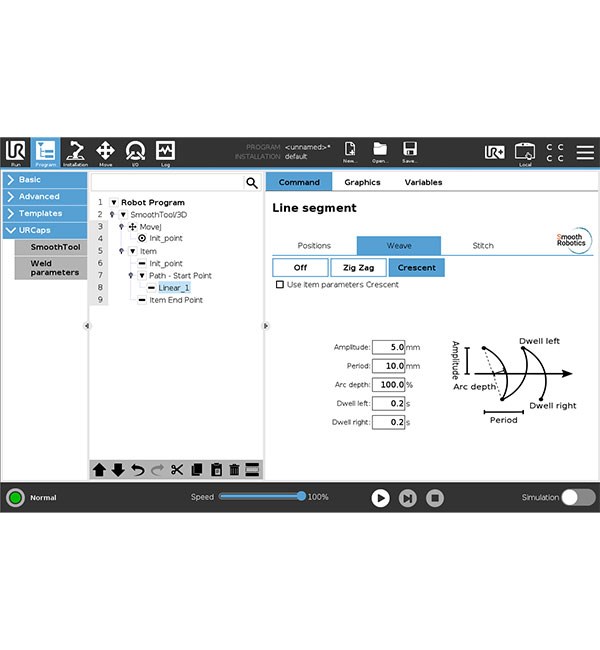

Weaving (Linear and circular)
- Works on both CB and e-series
- Set and adjust the amplitude, frequency and dwell time for the optimal welding result.

Offset
- Copy and offset items in X, Y, Z direction or manually move the robot to a desired offset position
- Ensures the best weld each time

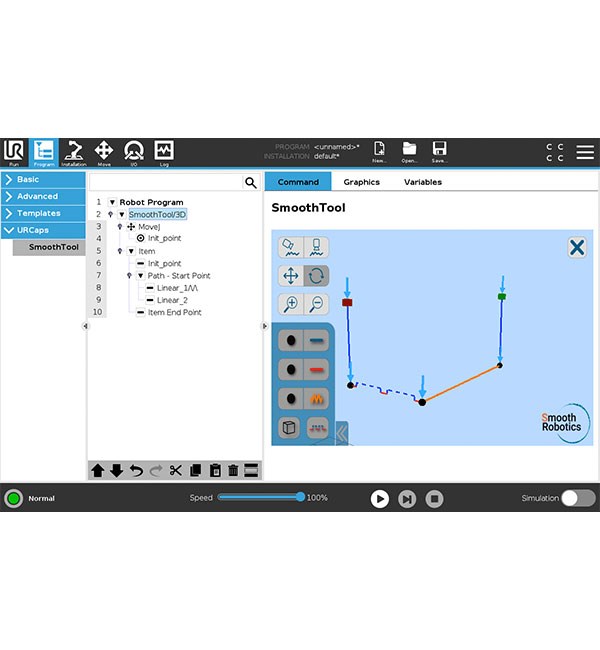

3D visualization
- Visualize your welding path before pressing start
- Toggle between relevant path information in the 3D viewer

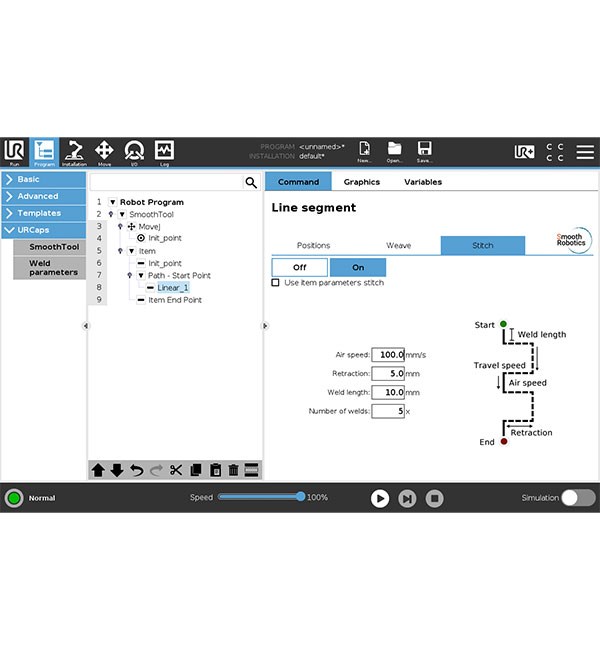

Stitch welding
- Control your stitch weld with parameters e.g., retraction, weld length, airspeed, number of welds.

Additional features of the SmoothTool Software
- Quick and easy installation
- User friendly software
- Short training period
- High flexibility
- Quality improvement
- Increased efficiency

How does it work?

The SmoothTool welding package is an add-on that enables the Universal Robot with welding functionality.

Applications
Welding
Product Categories
Connectivity
Robot Compatibility
UR3
UR3e
UR5
UR5e
UR10
UR10e
UR16e
Available in
  • Australia
  • Austria
  • Belgium
  • Bulgarian
  • Canada
  • China Mainland
  • Croatia
  • Czech Republic
  • Denmark
  • Finland
  • France
  • Germany
  • Greece
  • Hong Kong
  • Hungary
  • Iceland
  • India
  • Ireland
  • Israel
  • Italy
  • Japan
  • Luxembourg
  • Macau
  • Malaysia
  • Malta
  • Netherlands
  • Norway
  • Oman
  • Poland
  • Portugal
  • Qatar
  • Romania
  • Saudi Arabia
  • Singapore
  • Slovakia
  • Slovenia
  • South Korea
  • Spain
  • Sweden
  • Switzerland
  • Taiwan
  • Turkey
  • United Arab Emirates
  • United Kingdom
  • United Kingdom
  • USA

Include a URCAp Plugin
Yes: SmoothTool 1.3

Software version required:• CB-series: Polyscope version 3.8 or higher.
• E-series: Polyscope version 5.2 or higher.

dependenciesNone

dimensionsProduct box dimensions: 170 x 110 x 80mm

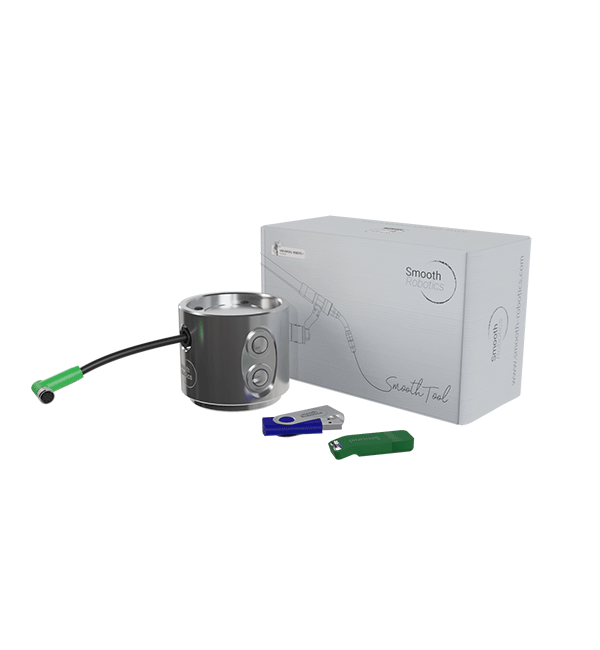

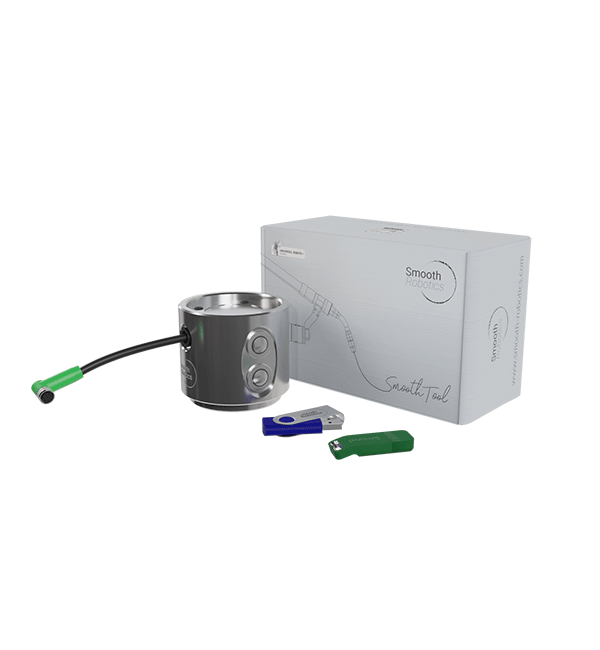

What's in the box?• Software USB key (URCap & user manual)
• Programming flange
• License USB dongle
• Installation guide

License typeOne-time purchase incl. 1-year maintenance and new updates, renewal costs extra
