3D - Smart Assistant for efficient cooperation
A real collaborative interaction between human and cobot is now possible!
Smart Robots assists and supports human operators by creating a more productive, comfortable and sustainable workplace for smart factories.

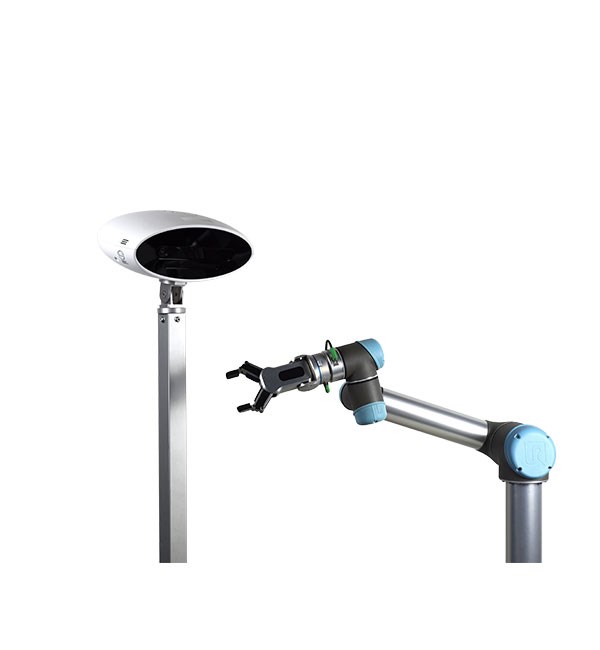

With its cutting-edge technology, the Smart Robots device uses 3D vision to detect the operator hands and recognizes movements in real time. It can verify correctness of human actions, and provide feedback to the operator reducing errors and training time.
In addition, the product enables the cobot to cooperate with humans as a smart co-worker. With easy-to-use features the product can schedule and synchronize in real-time robot operations, depending on human actions, and receive on demand commands with simple hand gestures, all while keeping the operator safe by avoiding cobot collisions.
Robotic actions are adapted in real-time to human actions, in order to efficiently integrate manual and automatic activities.
Based on the operator and his hands entrance in specific work areas, Smart Robots understands the operators actions and the sequence of work and can determine what task the cobot(s) should do next.
Operator motions and actions are tracked in 3D and compared with the correct sequence of operations, providing guidance in real-time and feedback in case of errors, to reduce scrap and rework costs.
Human Collision Avoidance
The system detects human movements (body, arms, hands) and human-robot distance in real-time, and it slows down or halts the robot to prevent a collision from occurring.
The robot can be controlled without the need of a physical interface; the operator can directly interact with the robot to change robot tasks and ask for specific operations.
Recognize presence and position of objects in the work-area (feature to be customized on customer need).
- Productivity: human and robot working together on the same objects in a single station are productive as much as two operator stations.
- Quality and efficiency: increase quality of repetitive actions and prevention of human errors in real-time.
- Flexibility and reconfigurability: fast configuration and easy programming, allows stations to be modified with little effort and low-investment tooling.
- Improve operator ergonomics.
- No specialized worker is needed to use the robot, thanks to intuitive and adaptive human-robot interface.
Make your own collaborative application!
It is easy in just four steps:
1. Fast and easy installation

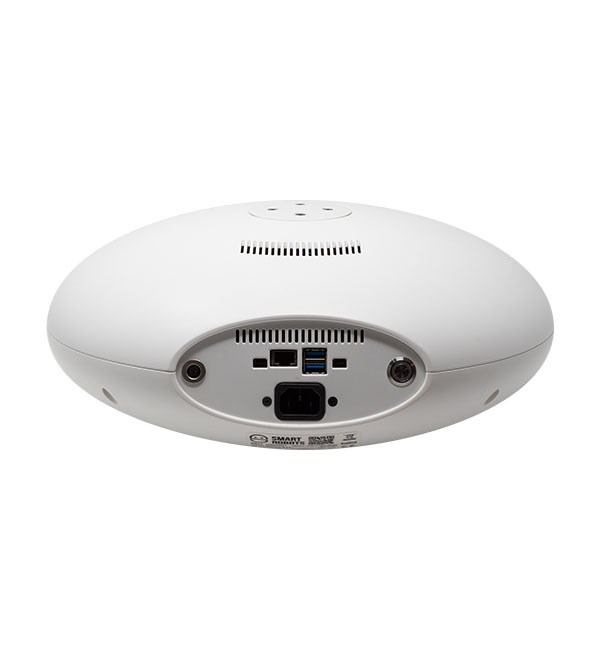

Fix the product to standard aluminium profile structures with the supplied articulated support; connect it to household power supply, to the robot controller with ethernet cable and to a common monitor.
2. Autocalibration of the sensor
Direct the field of view of the sensor to the working area, place the QRcode, enter its coordinates and sensor autocalibration is done.
3. Intuitive and rapid configuration

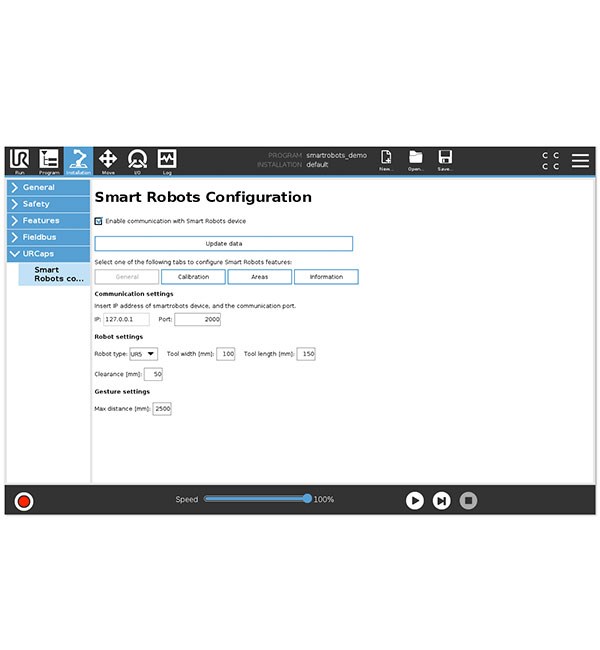

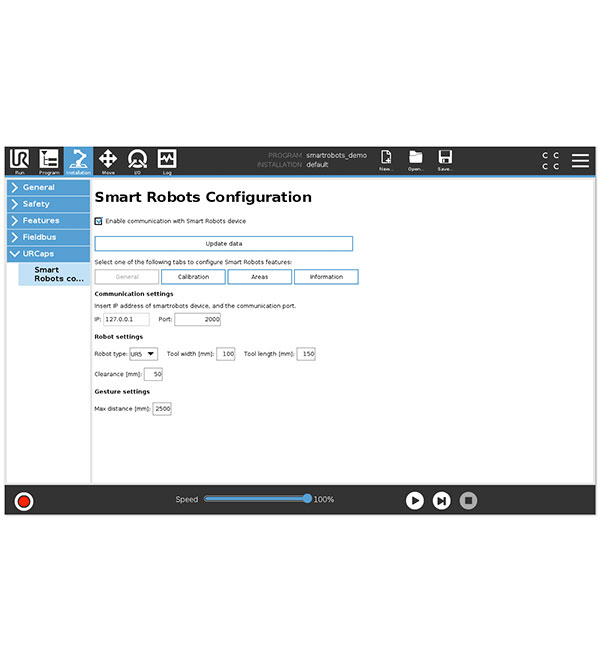

Define in UR robot configuration panel the areas and human actions to be monitored by the product.
4. UR robot programming

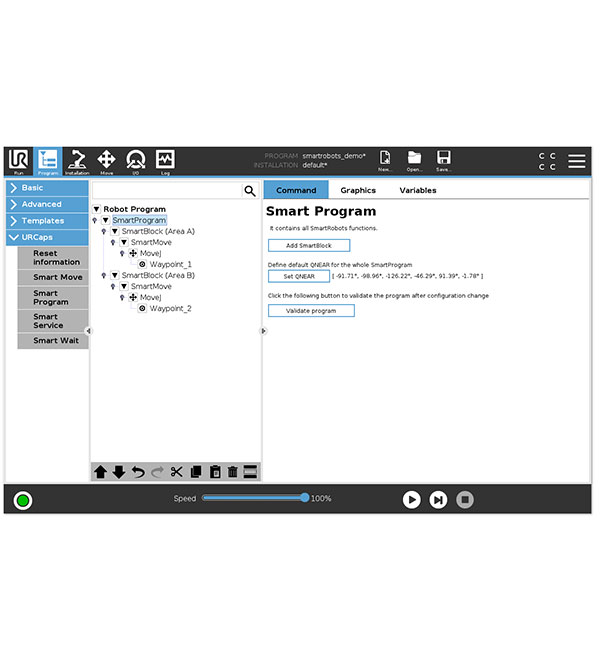

In your UR robot program insert Smart Robots functionalities provided with URcap file. Robot tasks are written in dependence of human actions, with simple if-else-while structures.
Start working efficiently!
Software version requiredPolyscope 3.5+ is required to use the latest URCap plugin.
Certifications and standardsThe product is in conformity with the following directives:
according to which the product is CE marked.
DimensionsThe product is a all-in-one device with the following dimensions:
What's in the box?SRv1 product
Two coloured bracelets (used to improve hands tracking)
QRcode Marker (for sensor calibration)
Power cable VDE/C13 220-240V CA 50 Hz;
HDMI-MiniDisplay Cable for HDMI monitor connection.
Interface plate and articulated joint (2DoF: pitch and yaw) 45x45 (with screws)
License typeOne-time purchase
Free URCap software
Free URCap updates
