360° Gluing – Integration Kit
Are you looking to use Universal Robots for a gluing process? Then you’ve found the right partner.

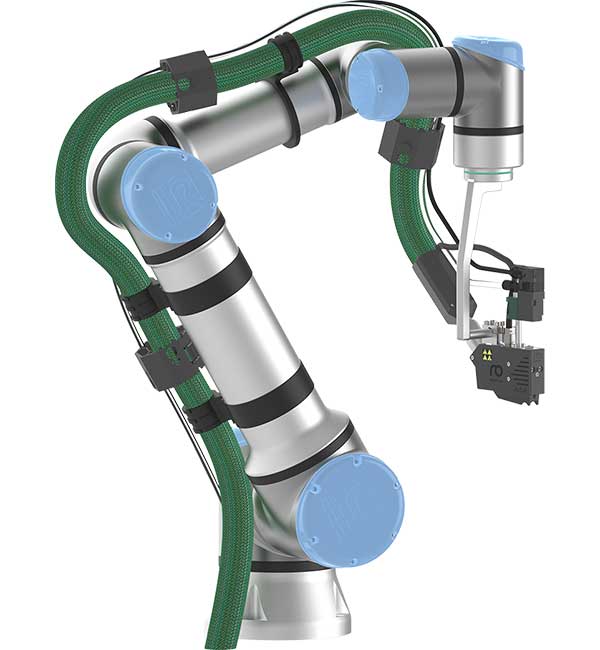

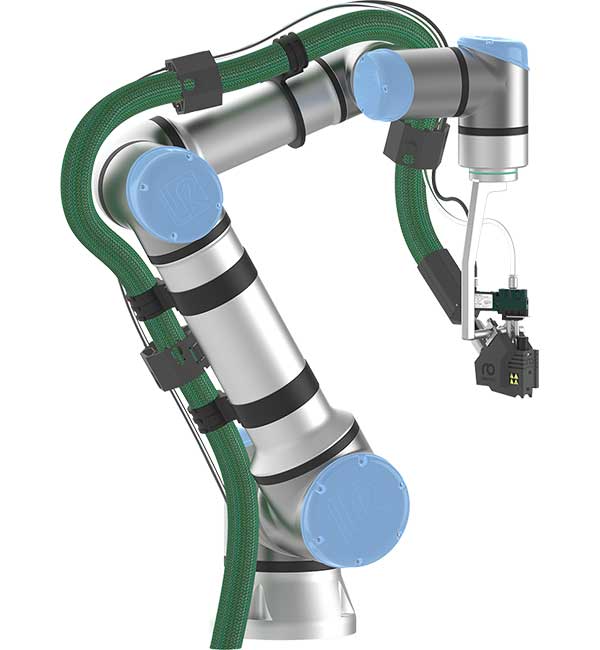

Robatech offers you the special UR+ Integration Kit. It connects the cobots with Robatech adhesive application systems in a simple and reliable manner. The integration kit includes a holder for the application head and attachments for the heating hose on the robot arm. With the GlueBot software, the glue application process can be easily programmed. Settings for the heating hose, the application head and the melter can also be made easily using the cobot touch pad. The system status is always visible and clearly visualized on the touch pad.

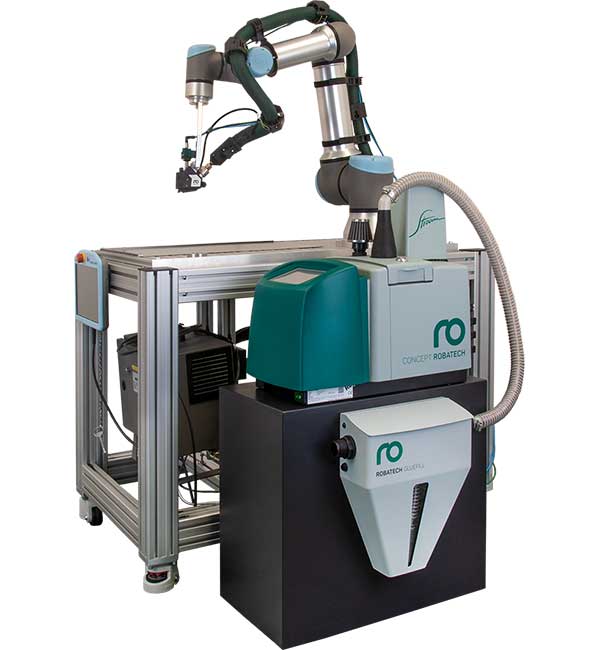

As a global expert in adhesive application systems, Robatech offers versatile system solutions for processing thermoplastic and reactive hot melt and dispersion adhesives. The modular systems consist of an adhesive melter or feeding unit, hose and application head. The optional RobaFeed 3 automatic filling system for melters ensures operator safety and extends the glue granulate refill intervals. The special UR+ Integration Kit was developed and certified for the perfect interaction of cobots and Robatech adhesive application systems.
Gluing processes are very versatile. Robatech adhesive application solutions are too. Would you like to learn more? Contact your local Robatech representative.
- Easy installation
- Easy control of the adhesive application process thanks to the GlueBot software

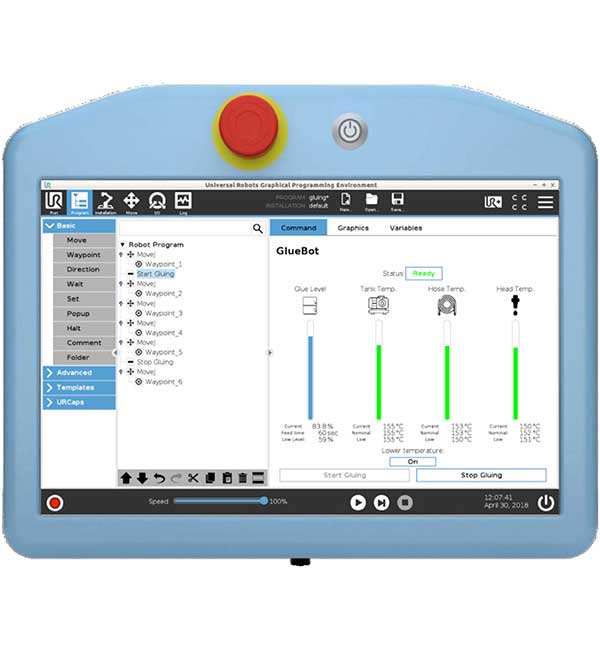

- Central and user-friendly operation via the cobot touch pad
- Tailored to customer requirements thanks to modular system design
- Safe, reliable and repeatable adhesive application
- Global sales and service network for fast, competent support
COMPONENTS FOR ADHESIVE APPLICATION
Concept Stream adhesive melter:
- Processes thermoplastic hot melt adhesives in granular form
- Tankless with Melt-on-Demand technology
- Ready for operation in 16 minutes
- Melting capacity from 9 - 15 kg/h with minimum space requirement
- Optional adhesive measuring system for consumption monitoring
SX Diamond/ SX Longlife application head (other application heads available on request)
- Precise dot and bead application
- Long service life
- Integrated adhesive filter
- Small installation dimensions
- Various designs (single and multiple application heads)
Rotary unions for heating hoses:
- Safe protection against torsion
- Increased service life of the heating hoses
Software version requiredCB3- Polyscope 3.9+
e-Series- Polyscope 5.3+
DependenciesCompressed air at 6 bars of pressure
What's in the box?Robatech Adhesive Application System, UR+Glue Connection Kit, GlueBot Software
License typeOne-time purchase, includes Gluebot URCap. Gluebot is also sold separately.
