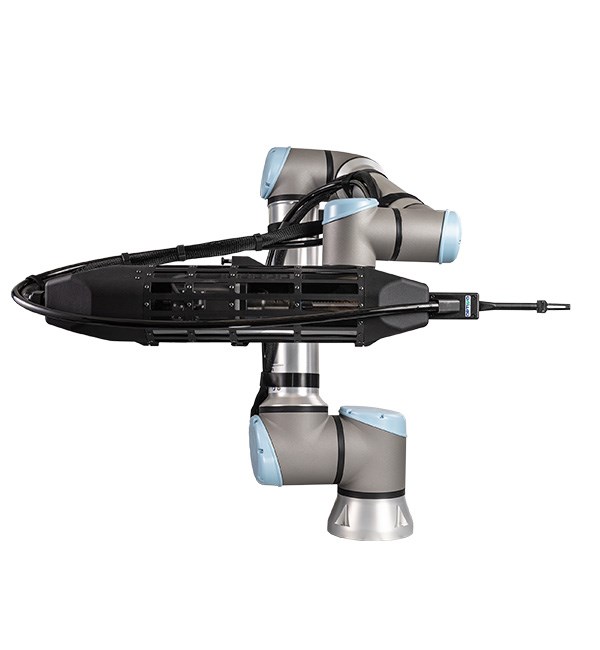

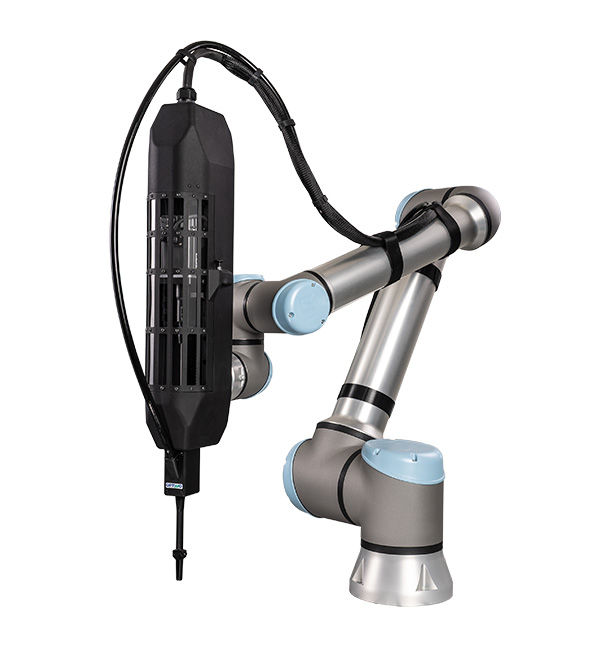

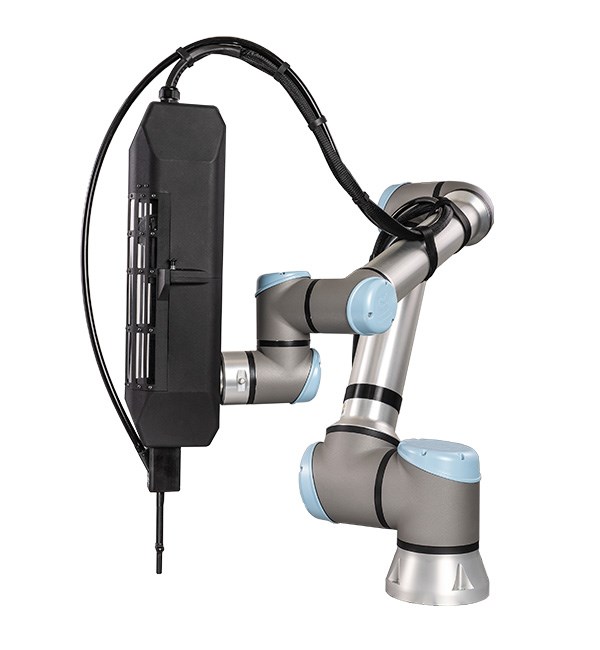

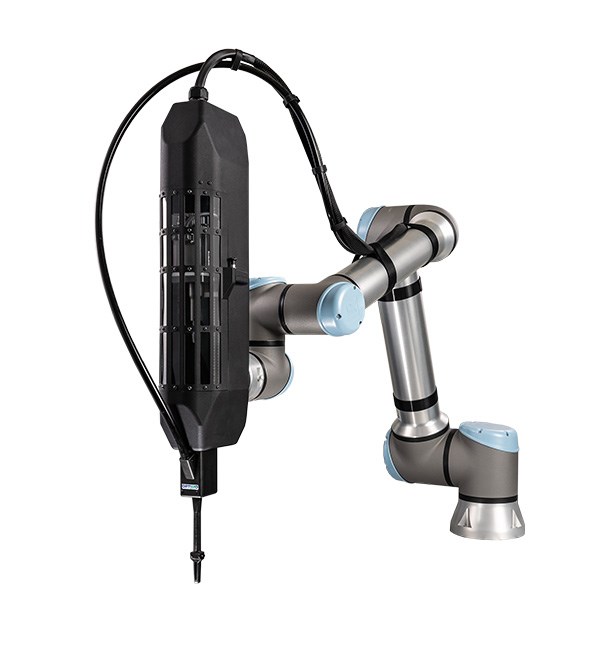

OPTIMO Screwdriving System with automatic feeding

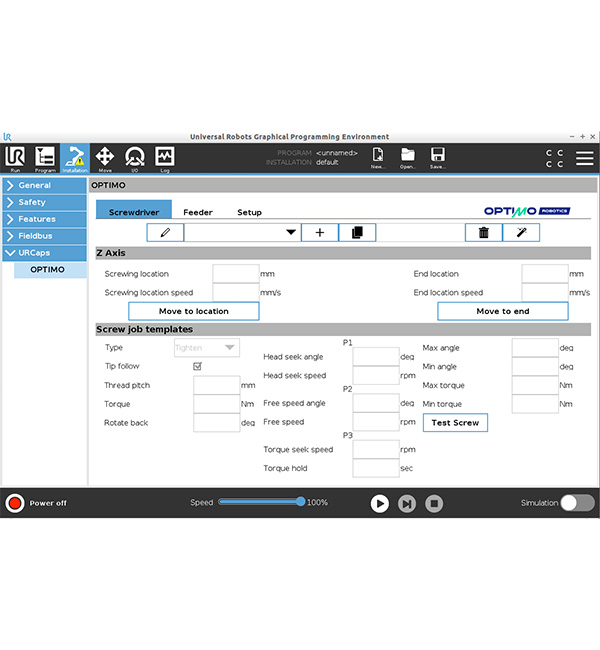

The OPTIMO Robotics screwdriving system consists of a screwdriver, a screw feeder and a screwdriver controller. The system is suitable for various manufacturers – telecommunications, electronics, automotive, plastic part producers, wood industry, furniture producers, etc. The programming of the new screw jobs is done through a graphical user interface. No previous robotics or programming experience is required. Screwing speeds can be set at the beginning, middle and end of screwing.The servo solution allows to program the speeds and torque of the screws very precisely. The force applied to the screw during screwing can be adjusted. The screws can be tightened according to the torque or the fixation depth of the screw. The safety solution, built into the screwdriver tool tip assembly, allows a person to share the work area with a robot. The sensor detects an obstacle in front of the operating screwdriver and the robot stops momentarily.

Screws will be fed to the screwdriver by pneumatic air. The screwdriver has two servo motors built in - the first motor for z-axis movement (UP/DOWN) and the second one for tightening the screw.

Software required:  Polyscope 5.0+

Dependencies: Requires compressed air and electrical power.

dimensions: • Screwdriver
o W: 130mm
o L: 150mm
o H: 765mm

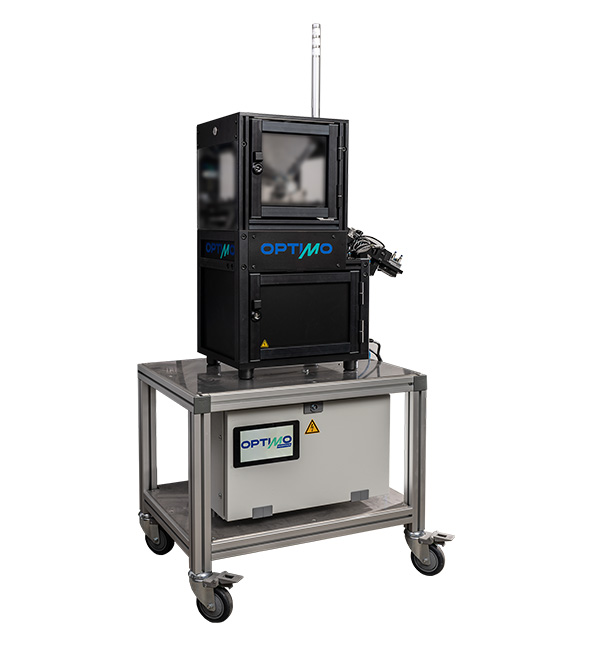

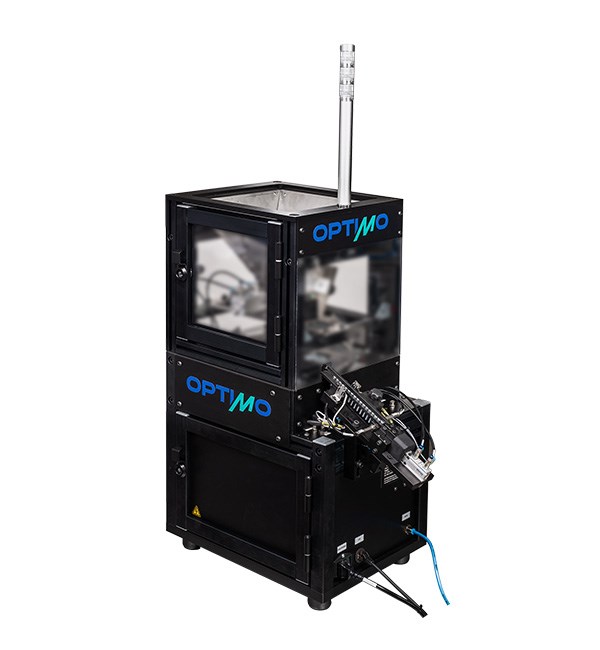

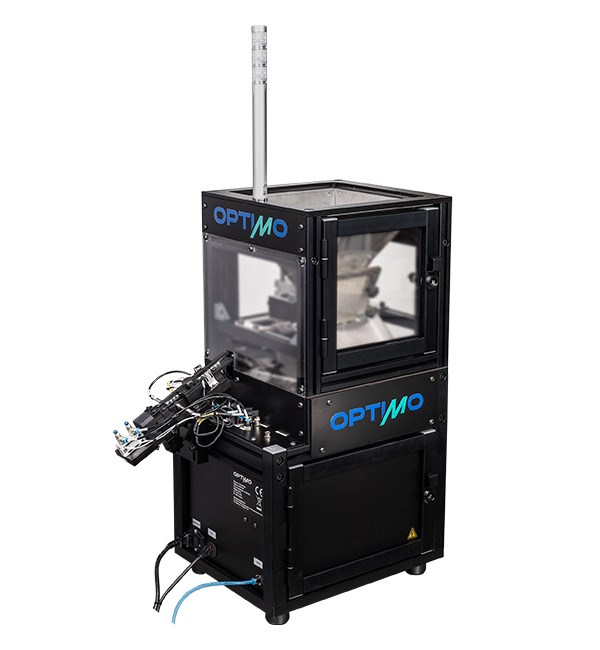

• Feeder
o W: 350mm
o L: 410mm
o H: 740mm
• Control box
o W: 300mm
o L: 500mm
o H: 200mm

Certifications & standard: CE-certified
ESD-safe
Designed in accordance with ISO/TS15006 standard.

What's in the box? OPTIMO Robotics screwdriver
OPTIMO Robotics feeding system
OPTIMO Robotics control box with display
Pelican case
URCAP on USB drive
Screwdriver spare pits

License type : One-time purchase

• Main functions – fastening, re-tightening, un-tightening.
• Automatic feeding for fast cycle times.
• Safety function integrated to screwdriver tool tip assembly for fully collaborative approach.
• Spindle speed: 0 – 5000 p/min
• Torque: 0.05 – 3.6Nm ± 0.05Nm
• Tool up/down movement accuracy: ± 0.1mm
• 360° fastening direction.
• Multi-stage screwing jobs – configurable screwing speeds during the screwing cycle.

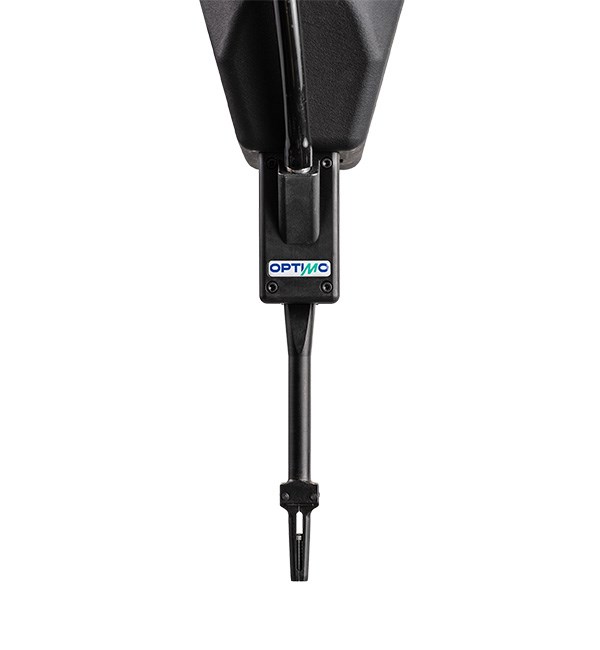

• Compact tool tip assembly – designed to reach tight areas.
• The axial force applied to the screw while screwing can be adjusted. When using forceless screw fastening method, then no axial force is applied to the product or to the robot during screwing (patent pending).

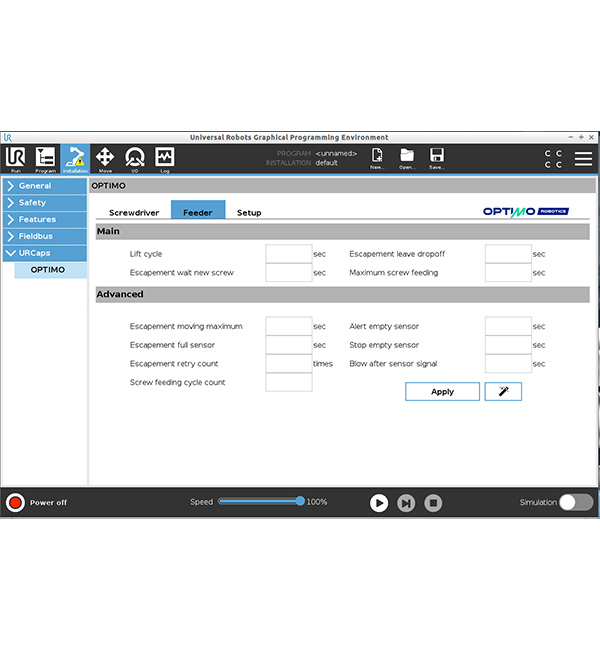

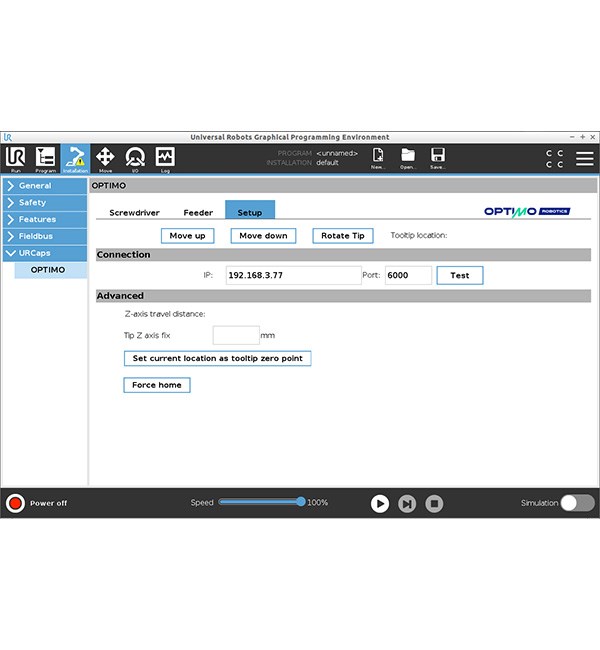

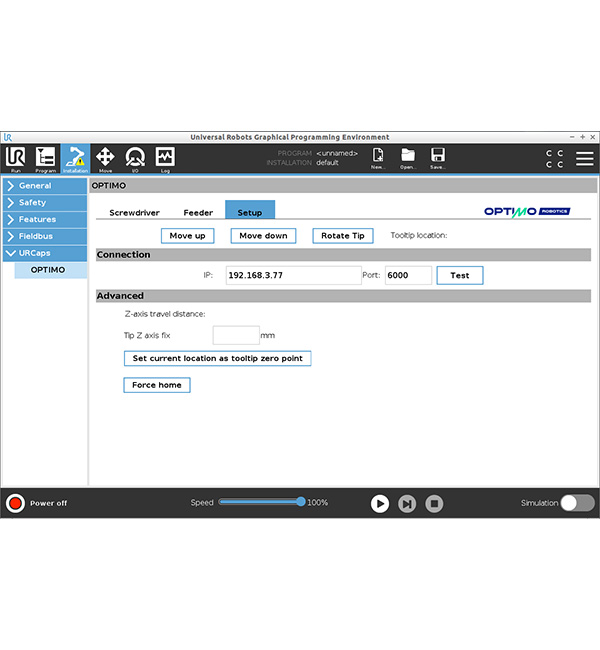

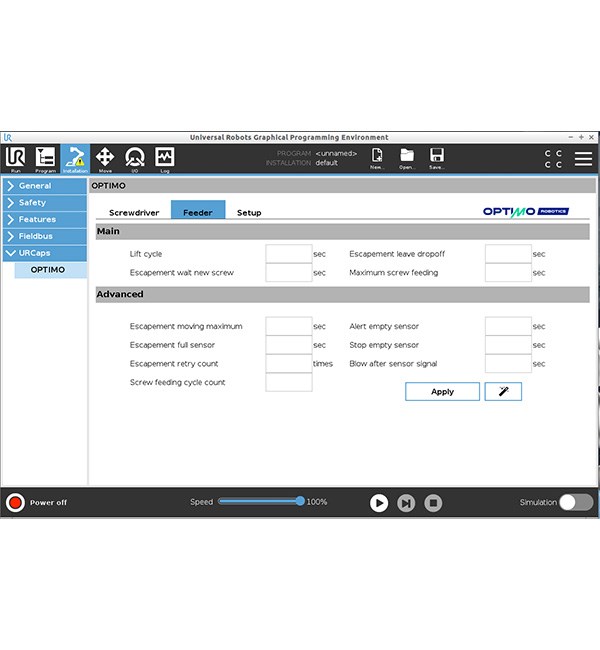

• Full screwdriver and feeder control through URCAP.

• UR5e
• UR10e
• UR12e
• UR16e
