Electric IP66 48V smart sander for industrial robots

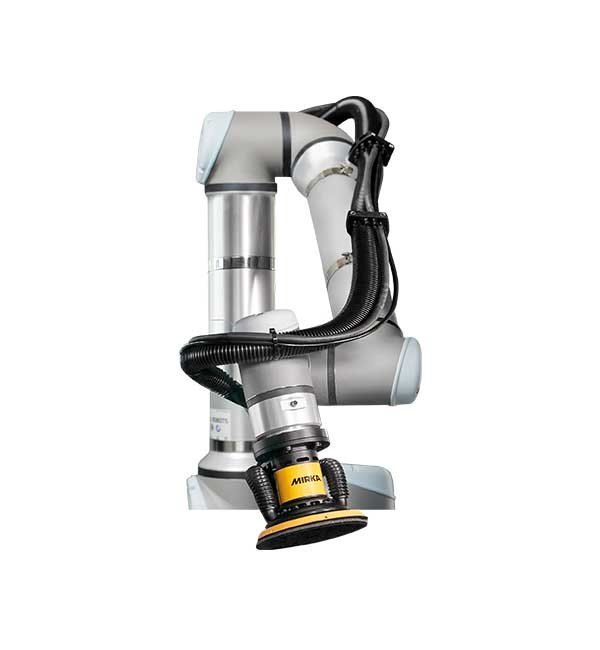

The Mirka® AIROS is a lightweight sanding head that is compatible with most robotic systems and sanding applications in manufacturing. It is the first smart electric sander for industrial robots, engineered to be easy to integrate and to suit the needs of different manufacturing industries. The AIROS is IP66 classified and built for continuous automatic use in both dry and wet sanding applications as it is dust and waterproof.
The Mirka AIROS comes with a standardized ISO 9409-1 flange. As it can be made to fit all mechanical couplings, it fits most industrial robots and it is light enough to suit low payload robot arms. Direct fit without clamping ensures correct tool positioning and sanding angle. With suitable abrasives, the AIROS is compatible with dust-free sanding.
The AIROS features a sturdy design with a robust aluminum housing. The sanding head of the sander is separate from the controller unit, making parts easy to replace and reducing downtime and costs. Two-way control electronics produce monitorable live data and virtually all data interfaces are supported.
• Specially designed for robotic sanding applications
• Compact and sturdy to fit tight areas
• Customized flanges to fit most robot types
• Direct fit to robot arm ensures correct tool positioning
• Easy tool changing
• Constant RPM stabilises the sanding process, gives reproducible quality even under high load

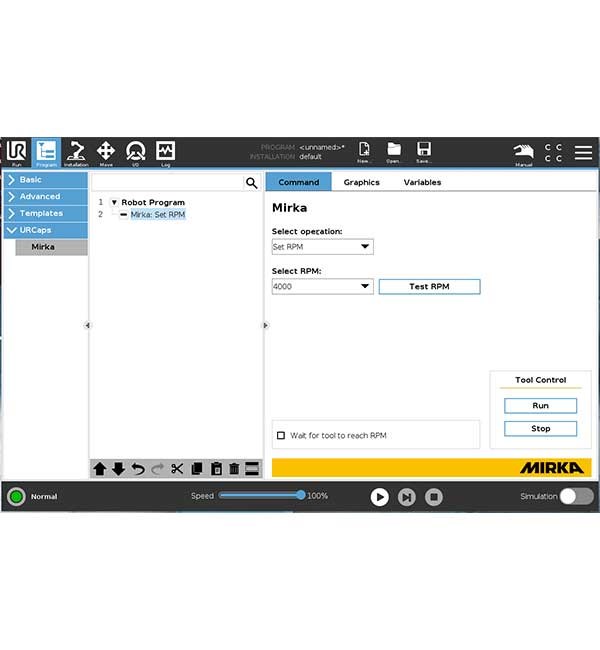

• Configurable RPM management to fit specific requirements
• Two-way control electronics produce monitorable live data
• Electronics separate from sanding head for protection and convenience
• Verifiable data gives full control of the sanding process and further sanding quality adjustments
• Virtually all data interfaces supported
• No lubrication required
• Dust & waterproof
How does it work?
The Mirka® AIROS is designed for completely automated industrial sanding, both dry and wet. It uses multihole papers, sanding discs or net abrasives to produce a consistent and smooth surface in an automated process, supporting dust-free sanding solutions. The brushless motor and separately mounted controller enable precisely configurable rpm management for reproducible sanding quality, keeping rpm constant even under high load. The two-way electronics of the AIROS provide detailed data about the status of the sander, with adjustments possible if necessary. You can rely on the AIROS to provide consistent sanding day or night without worrying about downtime or maintenance.

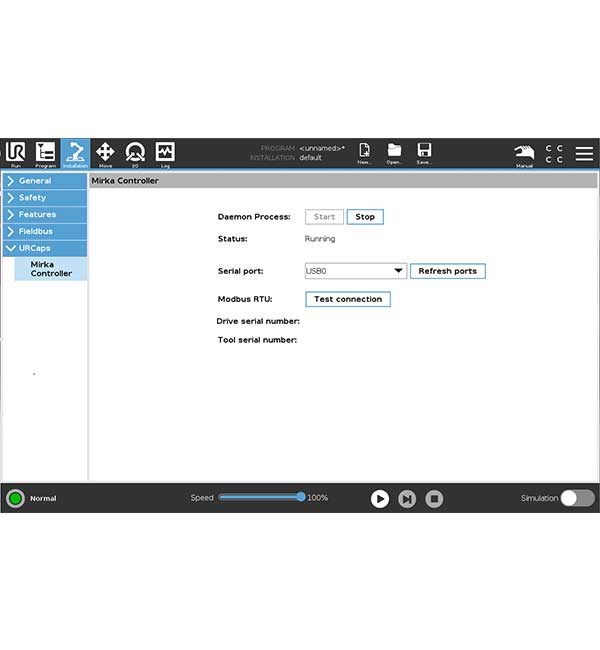

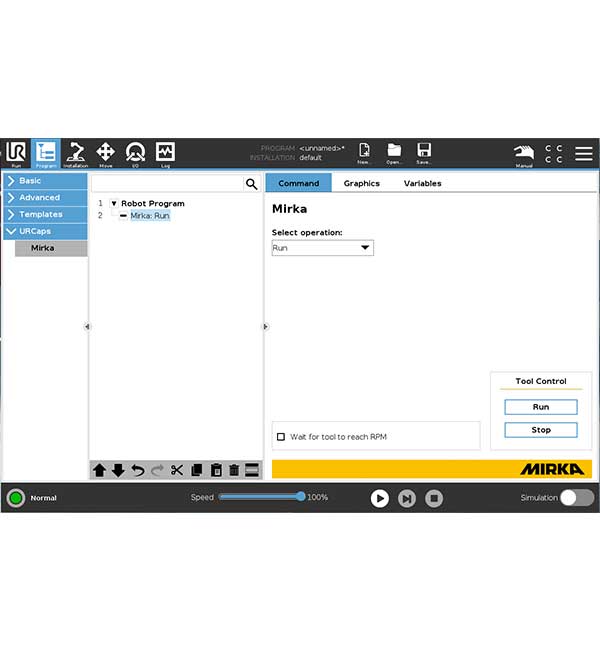

urcap plugin included?

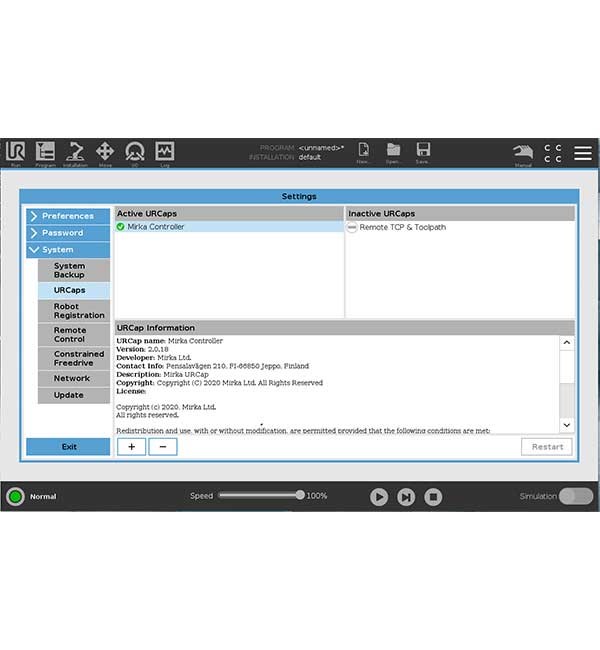

Yes - mirkacontroller-2.0.18.urcap
Software version requiredWe recommend to use SW 5.8.0 or higher.
Certifications and standards
In accordance with the EU Machinery Directive 2006/42/EC, Annex II, sub.B for partly completed machinery.
Power Input (W) 350
Speed (rpm) 4,000-10,000
Orbit (mm) 5
DependenciesElectric power needed to motor drive cabinet
Available pad diameters: 77mm, 125mm, 150mm / 3", 5", 6"

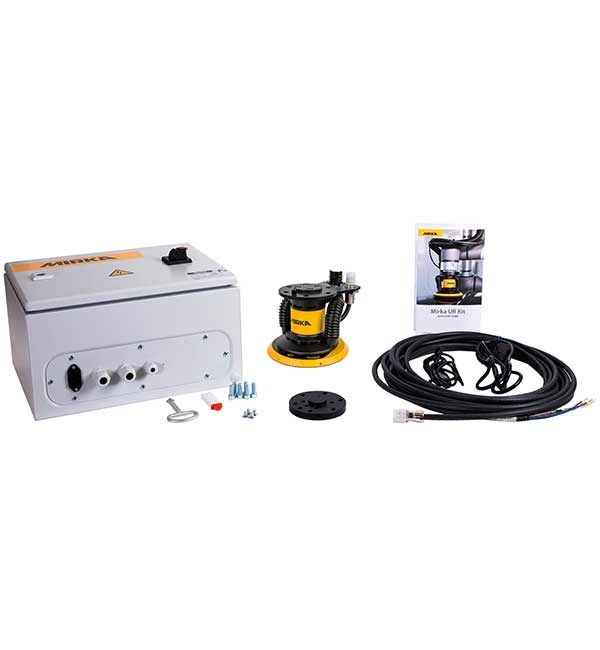

What's in the box?
Contents of the Mirka AIROS kit:
Mirka AIROS head – depending required size, 3”, 5”, 6”
Abrasives + Interface depending on size
Mirka motor drive cabinet Modbus
Mains Cable CE 230V IEC C13
Adapter flange ISO 9409-1-50-4-M6 to 80-6-M8
Cable (Shielded) 10m for robot sanding unit
USB Communications cable RS-485
License typeFree of charge when buying Mirka AIROS
