Gocator® 3D Laser Line Profile Sensors

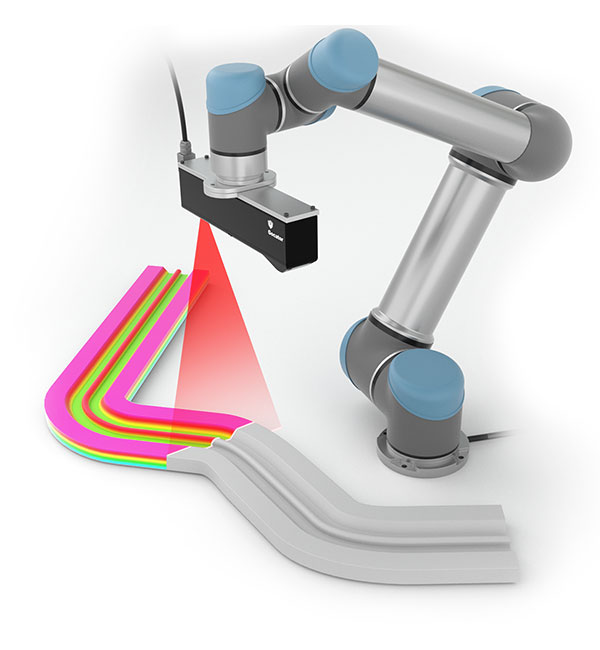

Gocator® Smart 3D Laser Line Profile Sensors paired with UR cobots deliver a smart 3D robot vision solution for applications such as measurement and inspection of elongated targets (e.g., cables, pipes, and conduits); applications that require larger fields of view not covered by Gocator® 3D snapshot sensors (such as large scale bin picking); and a wide range of vision guidance, flexible quality inspection, and smart pick-and-place applications.
Easy UR integration with Gocator® 3D laser profilers allows production engineers to get a complete vision-guided robotic solution up and running with minimal cost and development time.

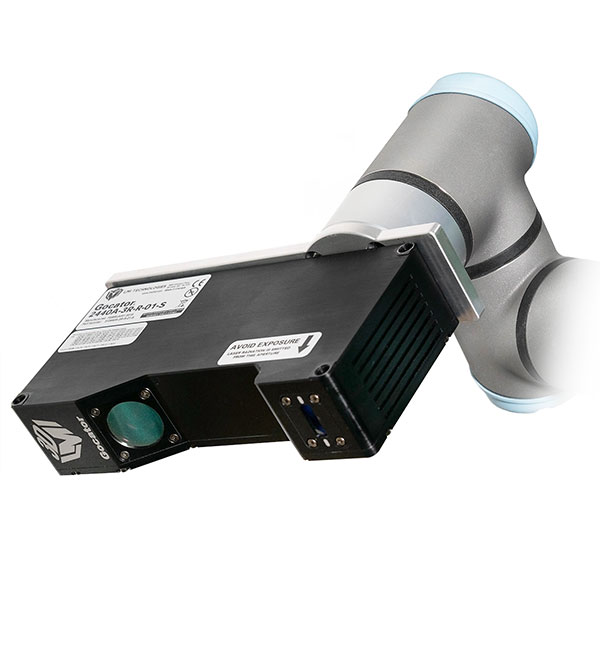

An example of an end user application is a Gocator® 2450 blue laser profiler mounted to a UR+ cobot performing glue bead scanning, measurement, and inspection in inline consumer electronics assembly processes. This set up is implemented at the application-specific level, where the sensor is mounted to the UR robot to inspect the adhesive bead and ensure it is applied within the correct volume tolerance.
Gocator 2450’s blue laser 3D profiling is able to quickly and accurately determine the width, position, height and volume of the applied adhesive. 3D is also contrast-invariant, allowing detection of transparent or translucent glues to generate accurate measurements. In addition, the 2450’s large field of view provides maximum coverage in a single scan.

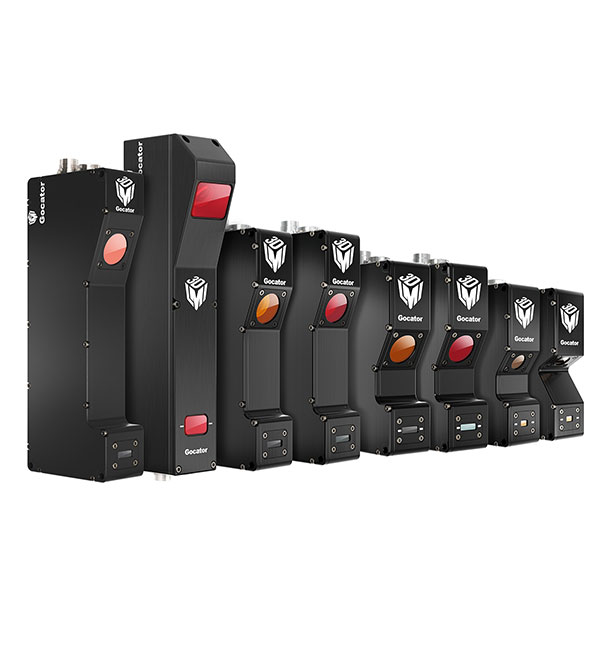

Gocator line profile sensors use a projected laser line to perform high-resolution scanning, measurement and control for automated quality inspection, material optimization, and factory automation applications at inline production speed. These workhorse sensors come in a wide variety of models for ultimate flexbility in your scanning applications.
• Scan speeds up to 10 kHz
• Provides critical 3D shape date for height/depth/volumetric measurement
• Onboard data processing and measurement tools, no 3rd party software required
• Can easily handle a wide variety of surface types including shiny, low contrast, textured etc.
• X resolutions up to 6.7 microns
• Wide range of fields of view from 100 mm up to 2000 mm
• Measurement ranges from 80 mm up 1525 mm
• Includes red laser and blue laser models for optimal performance and maximum flexibility in your scanning applications
How does it work?

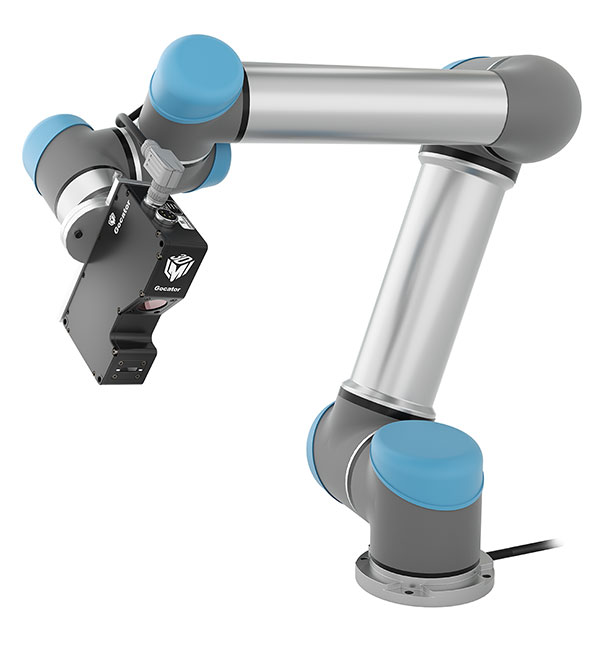

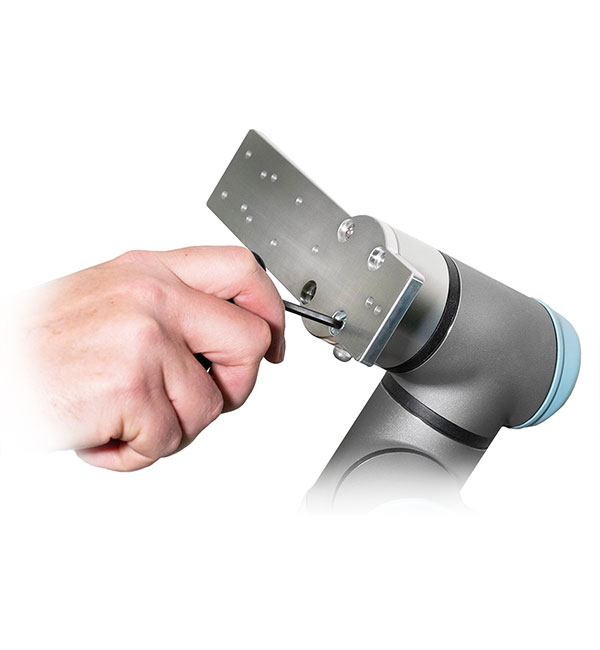

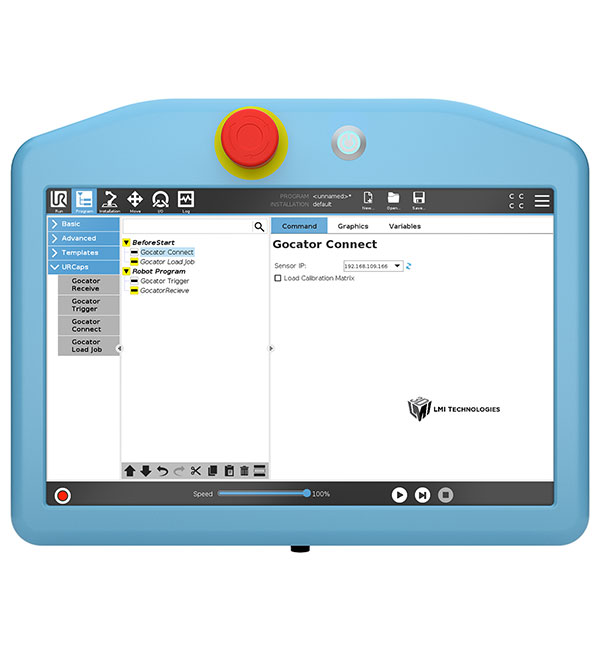

Gocator® 3D laser profilers are easily mounted onto the UR robot flange using a metal plate. You can then connect the sensor to a robot controller or PC application to perform sensor hand-eye calibration (using the Gocator® URCap plugin) and implement your desired robot movement.

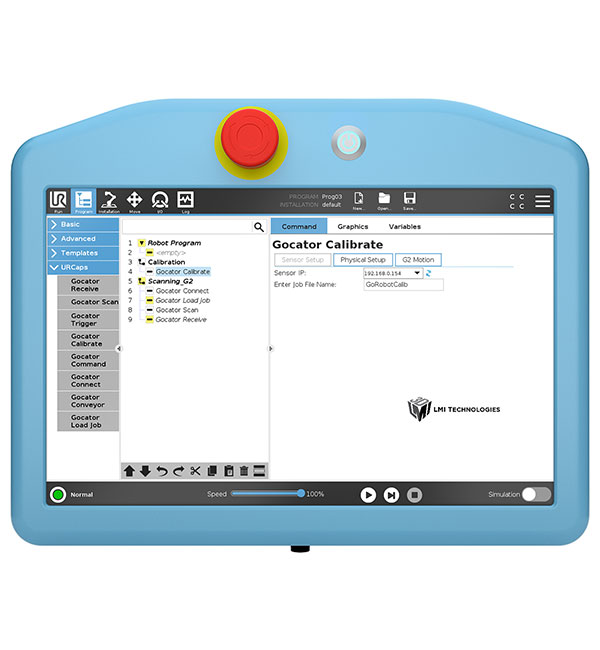

The Gocator® Calibrate node in the URCap automatically performs hand-eye calibration between the sensor and the robot flange. When the node runs, it moves the robot-mounted sensor over the calibration target multiple times to capture scans and return the required poses. After the node has run, the resulting sensor-robot transformation matrix is loaded onto the robot.

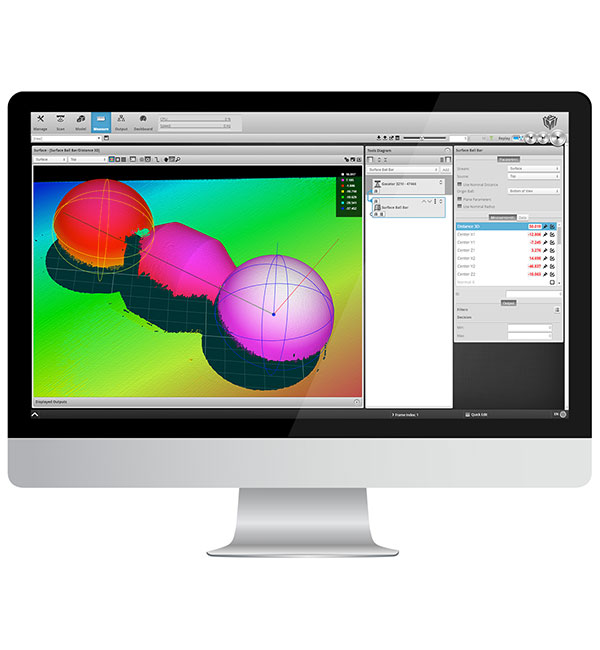

Once hand-eye calibration is complete you can connect to the sensor’s web-interface to load a job, trigger a scan, and return positional measurements in the X, Y, and Z axes.
Includes a URCAP?Yes
CertificationsCE, RoHS, LMI vibration standard
DependenciesGocator firmware 6.1
DimensionsGocator: 2120 35x120x149.5 (mm) (side mount)
Gocator: 2130 49x75x142 (mm) (top mount)
Gocator: 2140 49x75x197 (mm) (top mount)
Gocator: 2150 49x75x272 (mm) (top mount)
Gocator: 2170 49x75x272 (mm) (top mount)
Gocator: 2175 49x75x272 (mm) (top mount)
Gocator: 2180 49x75x272 (mm) (top mount)
Gocator 2320: 35x120x149.5 (mm) (side mount)
Gocator 2330: 49x75x142 (mm) (top mount)
Gocator 2340: 49x75x197 (mm) (top mount)
Gocator 2350: 49x75x272 (mm) (top mount)
Gocator 2370: 49x75x272 (mm) (top mount)
Gocator 2375: 49x75x272 (mm) (top mount)
Gocator 2380: 49x75x272 (mm) (top mount)
Gocator 2410: 44x90x145 (mm)
Gocator 2420: 44x90x145 (mm)
Gocator 2430: 44x90x155 (mm)
Gocator 2440: 44x90x190 (mm)
Gocator 2450: 44x90x240 (mm)
Gocator 2490: 49x85x272 (mm)
Gocator 2510: 46x80x110 (mm)
Gocator 2512: 46x80x110 (mm)
Gocator 2520: 46x80x110 (mm)
Gocator 2522: 46x110x110 (mm)
Gocator 2530: 46x80x110 (mm)
Gocator 2280: 49x75x498 (mm)
What’s in the box?Sensor, Quick Start Guide
License typeTerms and Conditions
