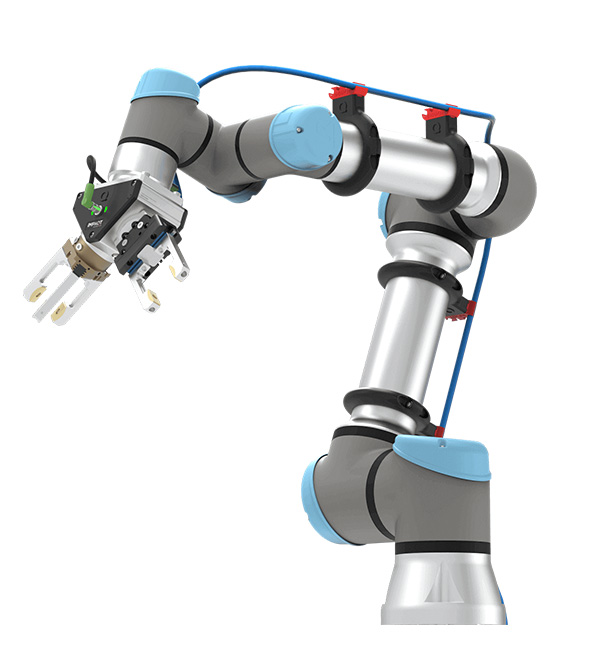

pneumagiQ is an universal pneumatic gripper interface that can plug and play two pneumatic grippers from any brand gripper to the Universal Robot.

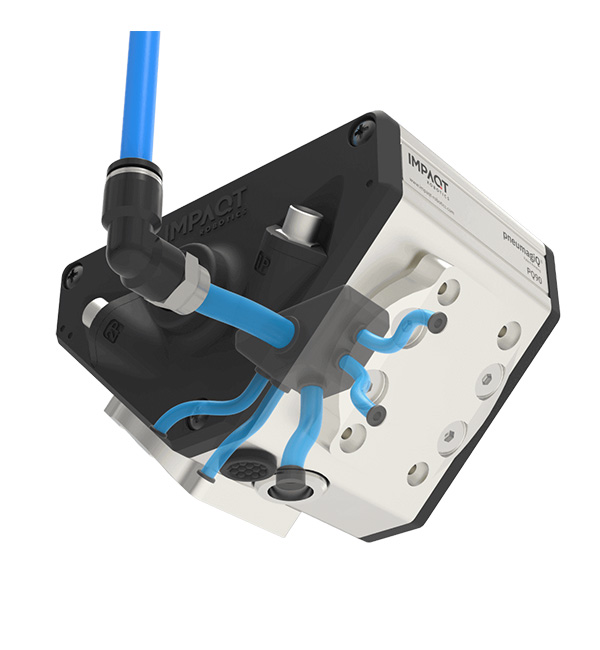

With just one pneumatic tube and tool-port cable, pneumagiQ simplifies the deployment of pneumatic grippers eliminating multiple tubes and wires running across the robot's body.

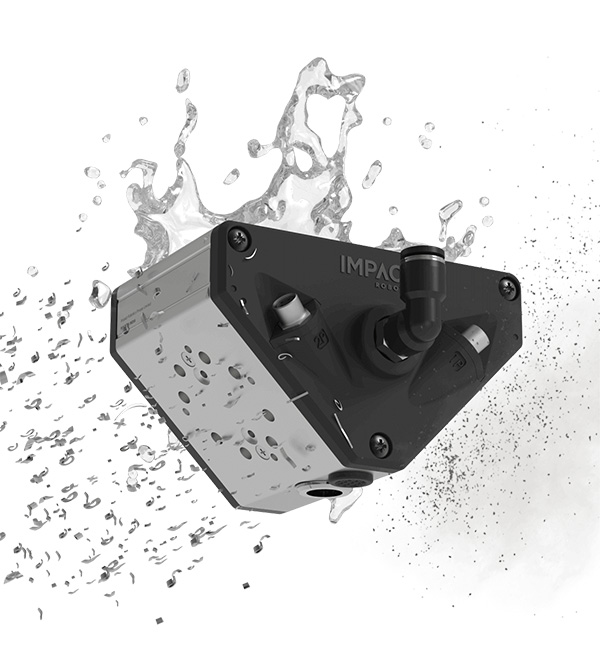

With a built-in air blow-off to clean workpieces, pneumagiQ is ideal for machine tending applications. Thus, integrators can quickly install pneumatic grippers without having to source a plethora of components with a dependency on skilled engineering resources.

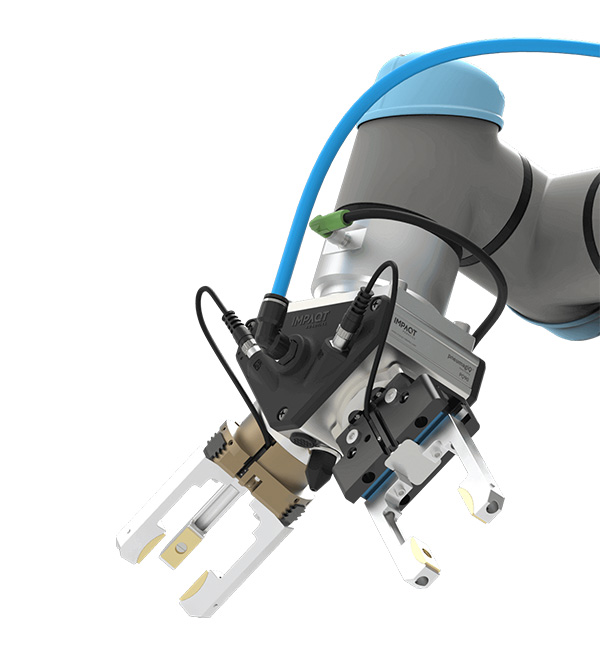

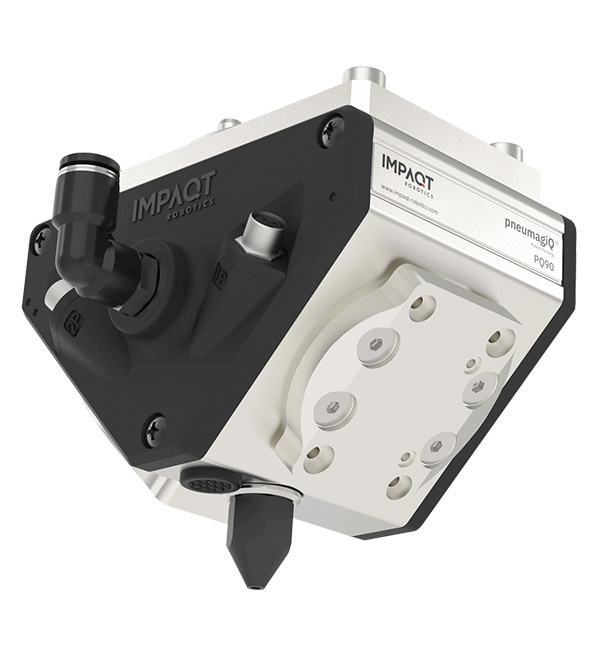

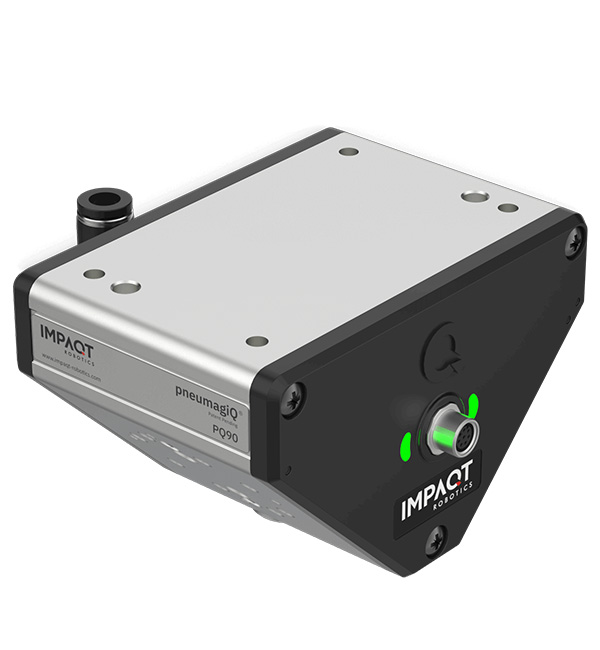

PQ90's minimalistic design mounts the two grippers at a 90° offset and communicates to the robot using Modbus RTU.
- Needs only one compressed air inlet
- Interchangeable gripper mounting
- Hose-free direct connection to pneumatic grippers
- Switchable gripper orientation

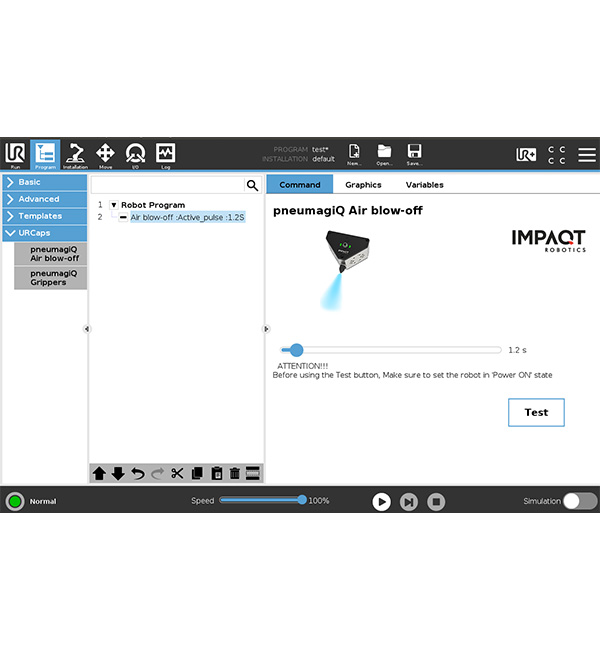

- Integrated air blow-off port
- Sensor connectors
- Built-in Silencer
- Status indicators
- Modbus RTU communication
- Quick response time
pneumagiQ is an universal pneumatic gripper interface. Built on the bedrock of a patent pending technology that controls the flow, direction, and pressure of pneumatic air into a single system, the minimalistic design of pneumagiQ simplifies the multi-tooling of pneumatic grippers. pneumagiQ enables an integrator to quickly install a pneumatic gripper, not having to source a plethora of components with a dependency on skilled engineering resources. With just one pneumatic tube, pneumagiQ simplifies the deployment of a pneumatic gripper eliminating multiple tubes and wires running across the robot's body.
- New Zealand
- Sri Lanka
Software version requiredPolyscope version 3.12.1+ & 5.11.1+
dependenciesA compressed air supply is required. No need for external pneumatic valves.
DimensionsShipment Dimensions: 265 x175 x173 mm
Product Dimensions: 115 x 123 x 75 mm
What's in the box?

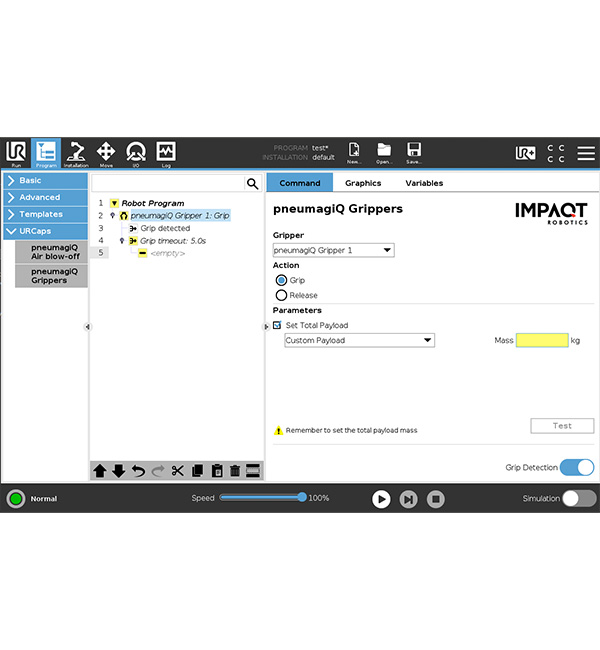

USB Drive with URCap

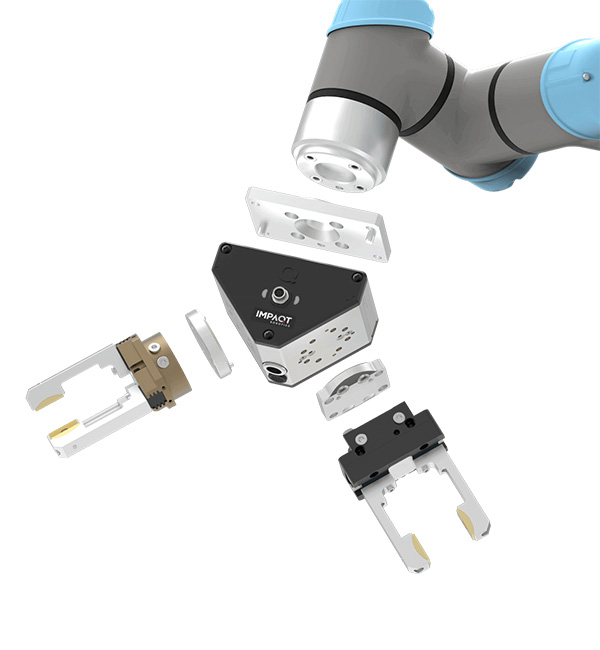

Accessories: Robot Coupler, Gripper Couplers, I/O Cable
License typeOne-time purchase
