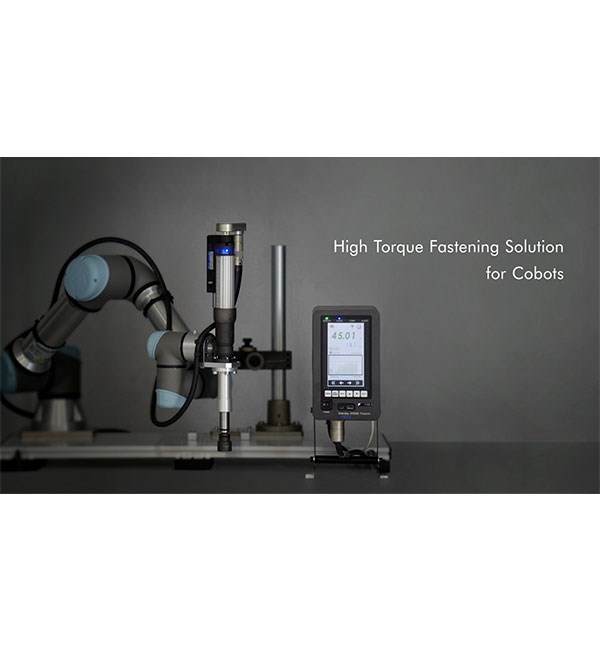

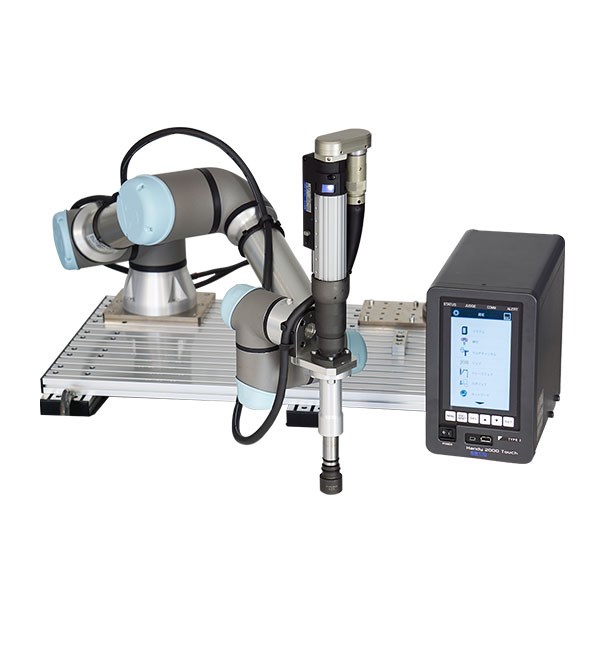

High-Torque Screwdriving Solution

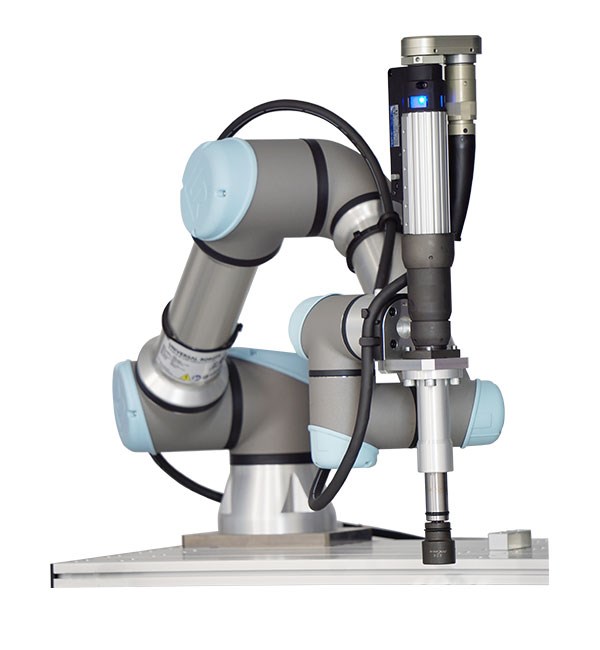

Cobot screwdriving up to 140 N.m (103 ft. lbs) This solution is made possible by combining Cobot with Estic's patented pulse technology, which significantly reduces torque reaction, thus the load to Cobot joints. Every Estic tool is equipped with a transducer and encoder to capture torque and angle data. This mechanism also enables various tightening controls while allowing detections of tightening defects such as cross-thread and floating screws. Looking to automate your High-Torque process? Need more information about Estic High-Torque solution? Contact Estic today!

1. Cobot moves to the pre-taught feed position to pick up the fasteners[1].
2. Cobot moves to the pre-taught tightening position.
3. The tool starts the rundown by applying pulse or intermittent torque.[2]
4. The pulse torque gradually increases and stops when target torque is reached.

[1] For application using bolt feeders The tool can be equipped with a magnetized socket to pick up the fasteners from a pre-taught feed position. Signals such as ""Fastener Present"" from the feeder can be integrated into Estic's controller using discrete IO and configured using URCaps.

[2] Estic Management Software Estic proprietary Management software enables the user to customize target torque and pulse settings to your requirement. The software is included in the starter package.

Software required:

• Polyscope 5.9+
• Estic Fastening 1.0.10.urcap+
• Handy2000 Management Software 8.5.0-E+


DEPENDENCIES:

• 100-230 VAC
• Cross-over LAN cable or Straight LAN cable
• Ethernet switch (For straight LAN cable)

cERTIFICATIONS & STANDARDS: CE

What's in the box?

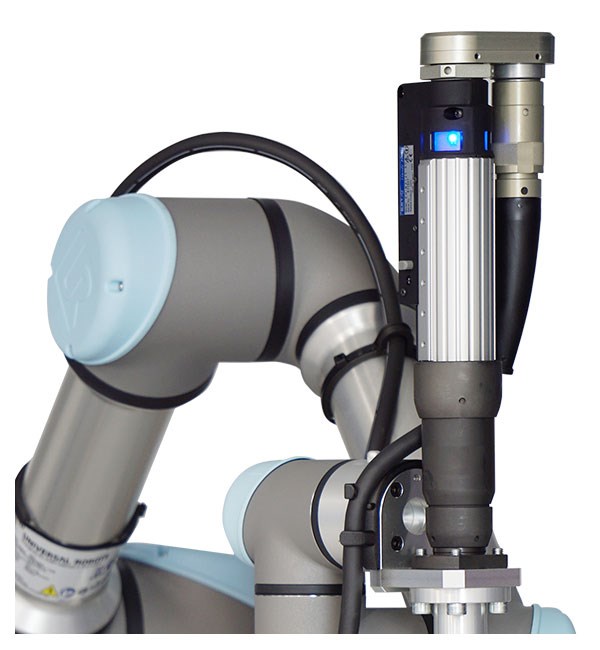

• High Speed Pulse Nutrunner

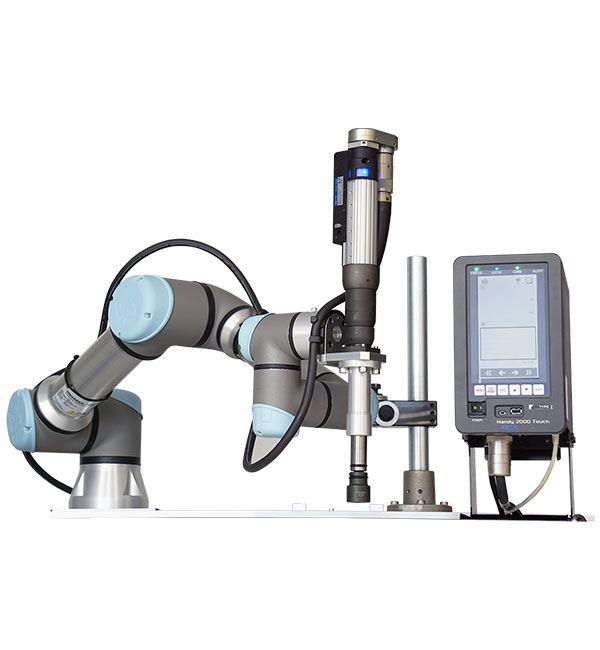

• Handy2000 Touch torque controller
• Tool Cable
• Power Cable

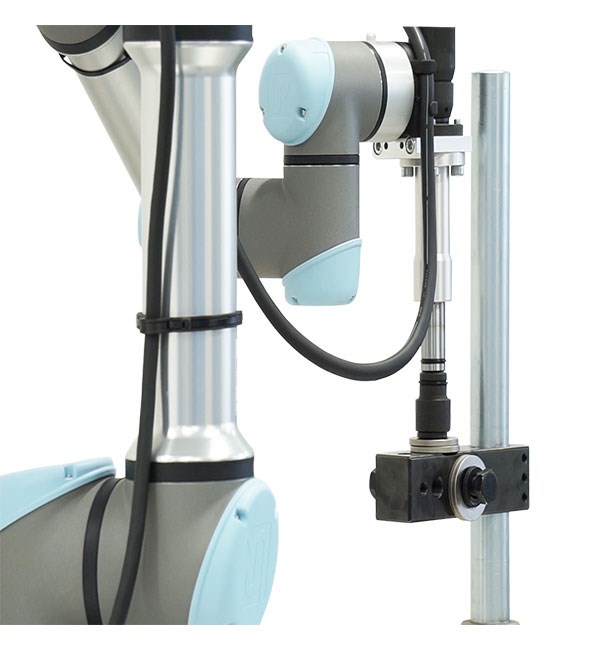

• Tool mounting
• Floating socket
• Mini USB cable

License type : One-time purchase

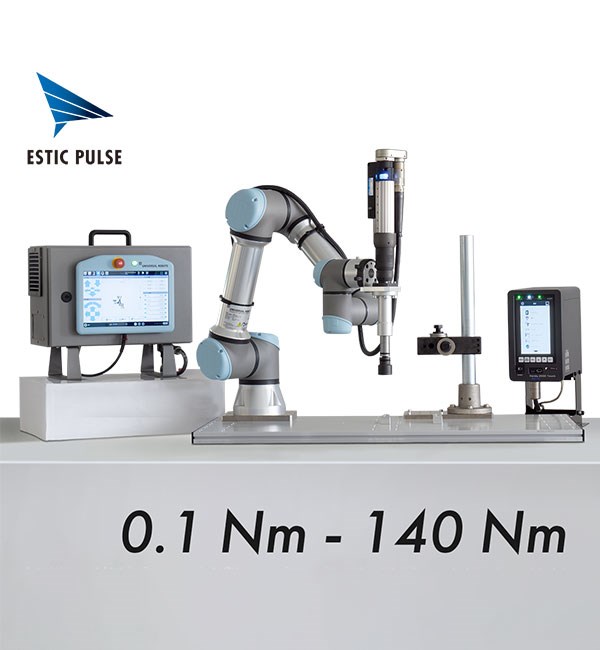

• Wide torque range Applicable for tightening process from 0.1N.m (0.88 in.lbs) to 140 N.m (103 ft.lbs)

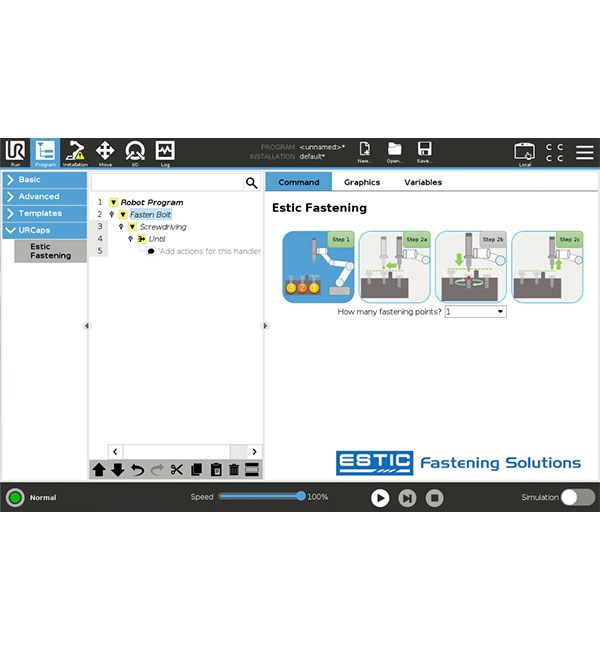

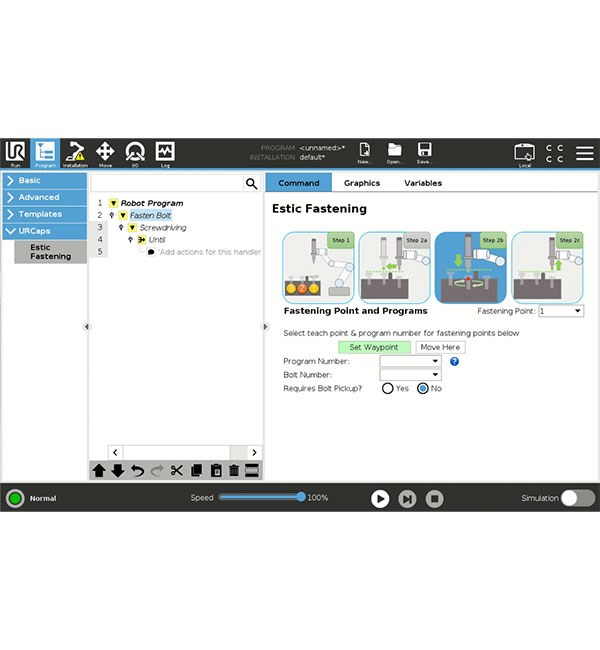

• Easy robot programming Estic URCaps enables users to program Cobot in minutes!

• Customizable tightening strategies Tightening strategies such as Torque-Control, Angle Monitor, and Multi-Stage tightening. Detect defects such as missing parts, cross-thread, and re-hit.

• Up to 250 individual torque programs 250 torque programs ready to be assigned to individual bolts allowing a highly customizable tightening recipe.

• Torque traceability Every tightening data such as torque, angle, and serial number can be output to the PLC or an upper-level system to ensure 100% traceability.

• Bolt-feeder compatible Integrate a 3rd party Bolt feeder into Estic High-Torque system using discrete IO and configure using Estic URCaps.

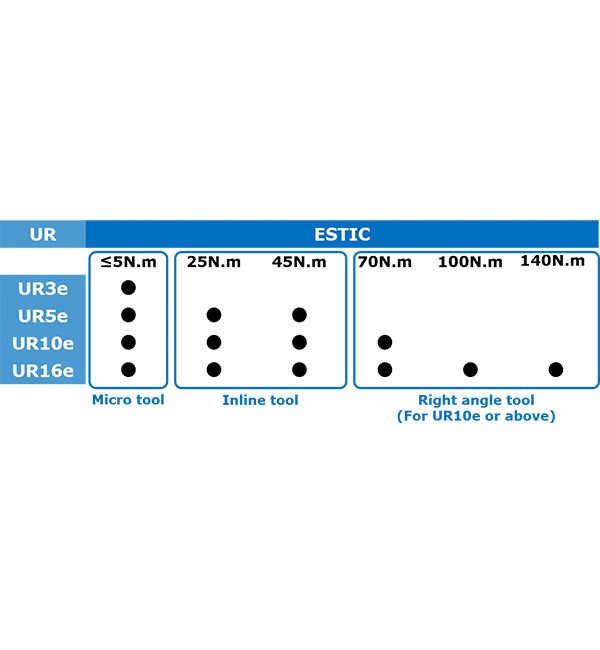

• UR3
• UR3e
• UR5
• UR5e
• UR10
• UR10e
• UR12e
• UR16e
• UR20
