Replacement of Trim Plates Size 2 and 3

The trim plates are attached with a different method than what is used on the e-Series robots.

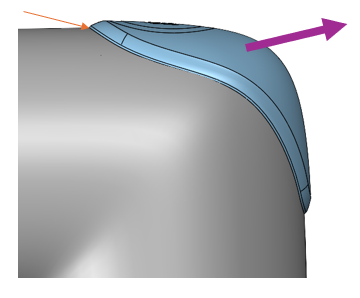

Dismounting Trim Plates

Use a non-scratch tool to lift the cover off the house. Push the cover to compress and lift the cover off the house.

Mounting Trim Plates

To mount size 2 and 3 covers to the house, the four guiding pins need to be pushed into the four holes of the house.	Align the four pins of the cover with the edges of the four holes of the house.	Firmly push the pins into the holes until the cover is fully aligned with the house in each end.
