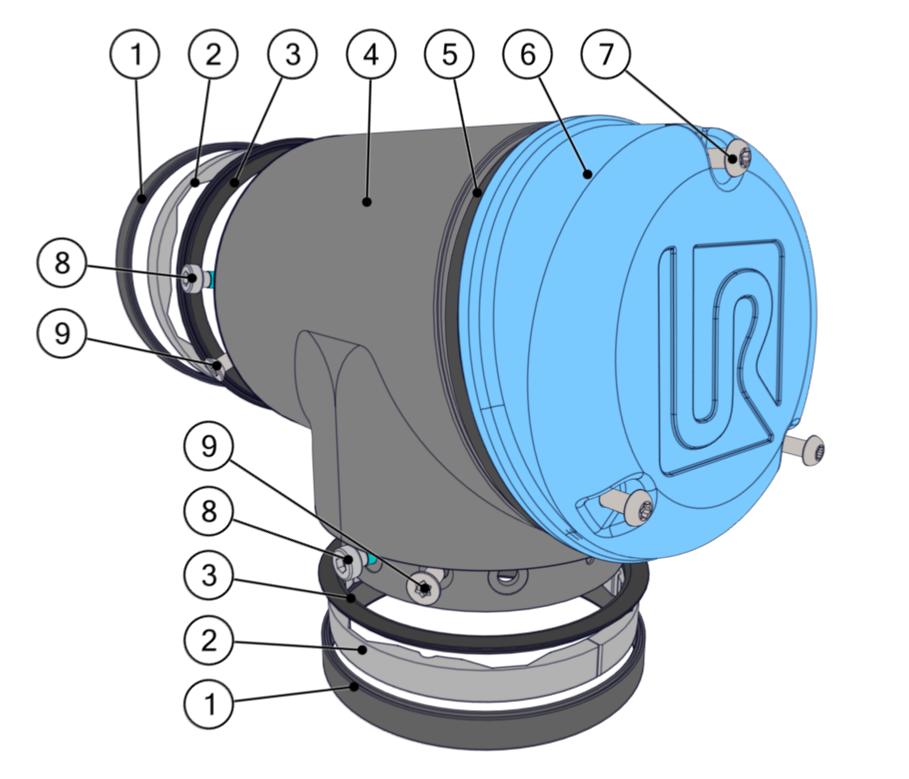

Joint Wrist 1 Size 0 for UR3e – 124001
|
Wrist joint 1 for UR3e – 124001 |
||||
|
NO. |
QTY. |
DESCRIPTION |
PART NUMBER(S) |
PAGE NO. |
|
1 |
2 |
Flat ring for size 0 |
103703 |
|
|
2 |
2 |
Form ring for size 0 |
103703 |
|
|
3 |
2 |
Wear ring for size 0 |
103703 |
|
|
4 |
1 |
Wrist 1, size 0 |
N/A |
N/A |
|
5 |
1 |
O-ring for lid size 0 |
103413 |
|
|
6 |
1 |
Lid size 0 |
103413 |
|
|
7 |
3 |
Screws for lid size 0 |
103413 |
|
|
8 |
12 |
Screws |
N/A |
N/A |
|
9 |
6 |
Screws counter sunk |
N/A |
N/A |
