Sealing set for UR3e – 103703

Return to overview

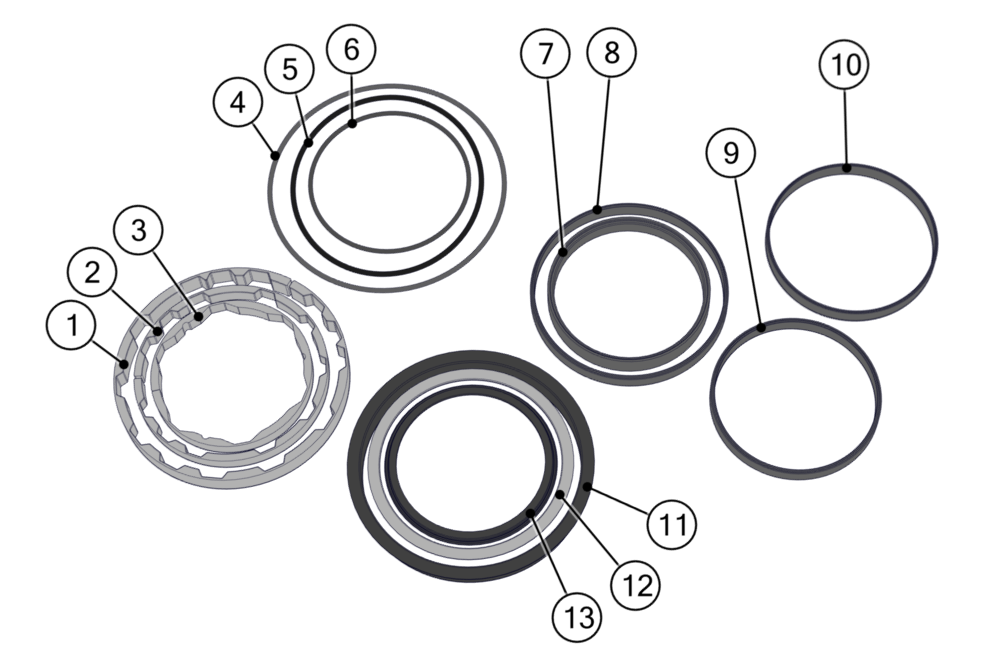

Sealing ring set UR3e – 103703
NO.	QTY.	DESCRIPTION	PART NUMBER(S)	PAGE NO.
1	3	Form-ring for Size 2 joints	103703	N/A
2	2	Form-ring for Size 1 joints	103703	N/A
3	4	Form-ring for size 0 joints	103703	N/A
4	2	O-ring for size 2 lids	103703	N/A
5	1	O-ring for size 1 lids	103703	N/A
6	3	O-ring for size 0 lids	103703	N/A
7	2	Flat ring for lower arm	103703	N/A
8	1	Flat ring for size 1 joints	103703	N/A
9	4	Flat ring for size 0 joints	103703	N/A
10	3	Flat ring for size 2 joints	103703	N/A
11	2	Wear ring for size 2 joints	103703	N/A
12	1	Wear ring for size 1 joints	103703	N/A
13	3	Wear ring for size 0 joints	103703	N/A
