Tool with Force/Torque sensor for UR3e – 124083
|

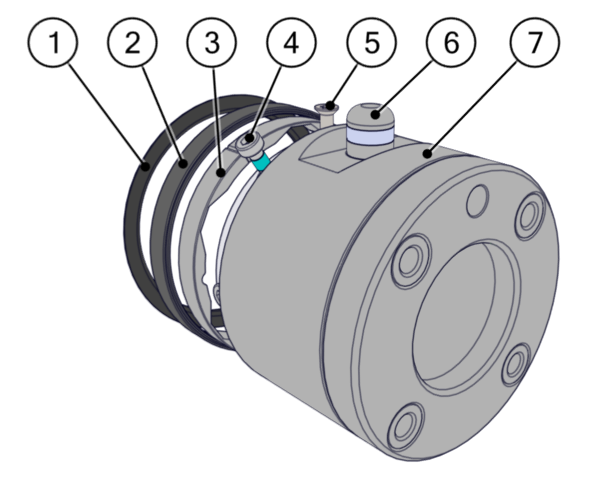

Tool mount with Force/Torque sensor for UR3e – 124083 |
||||
|
NO. |
QTY. |
DESCRIPTION |
PART NUMBER(S) |
PAGE NO. |
|
1 |
1 |
Wear ring |
103703 |
|
|
2 |
1 |
Flat ring |
103703 |
|
|
3 |
1 |
Form ring |
103703 |
|
|
4 |
6 |
Screw |
N/A |
N/A |
|
5 |
3 |
Screw counter sunk |
N/A |
N/A |
|
6 |
1 |
Tool connector lid |
131095 |
|
|
7 |
1 |
Tool mount with Force/Torque sensor |
124083 |
N/A |
