Cable Strain Relief Bracket
The bracket provides cable strain relief when the Teach Pendant is in use, under normal operation.
OEM Control Box AC
|
|

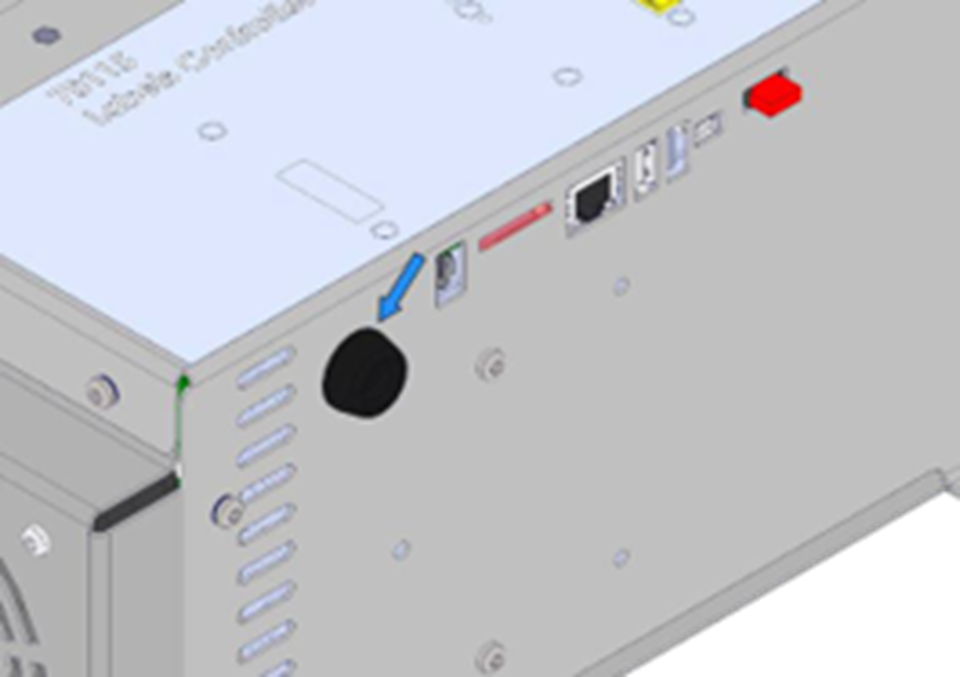

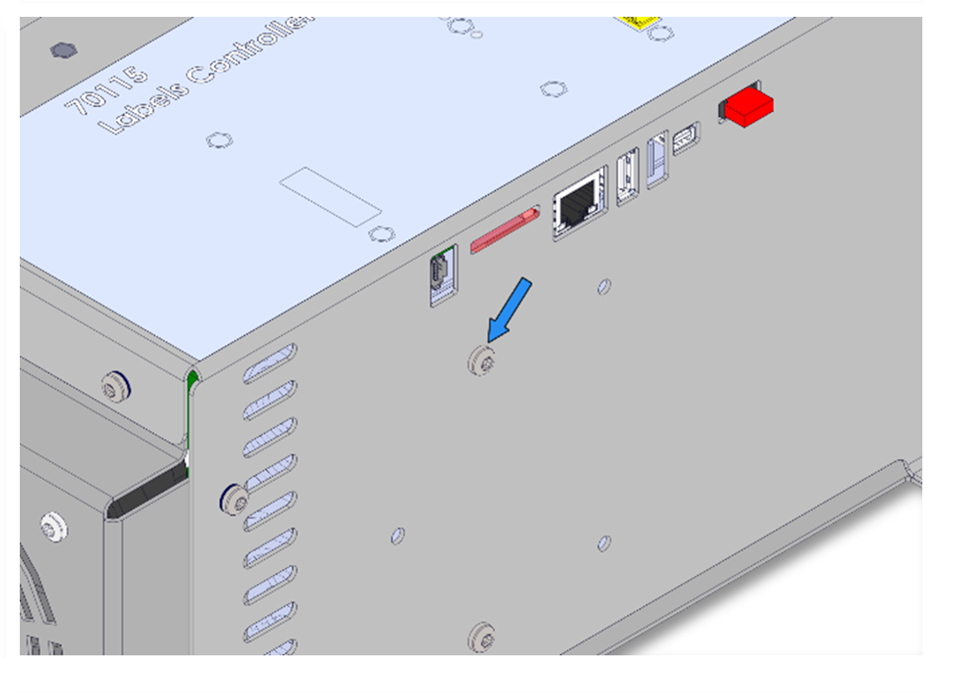

| 1. Remove grommet | 2. Remove screw |
|
|

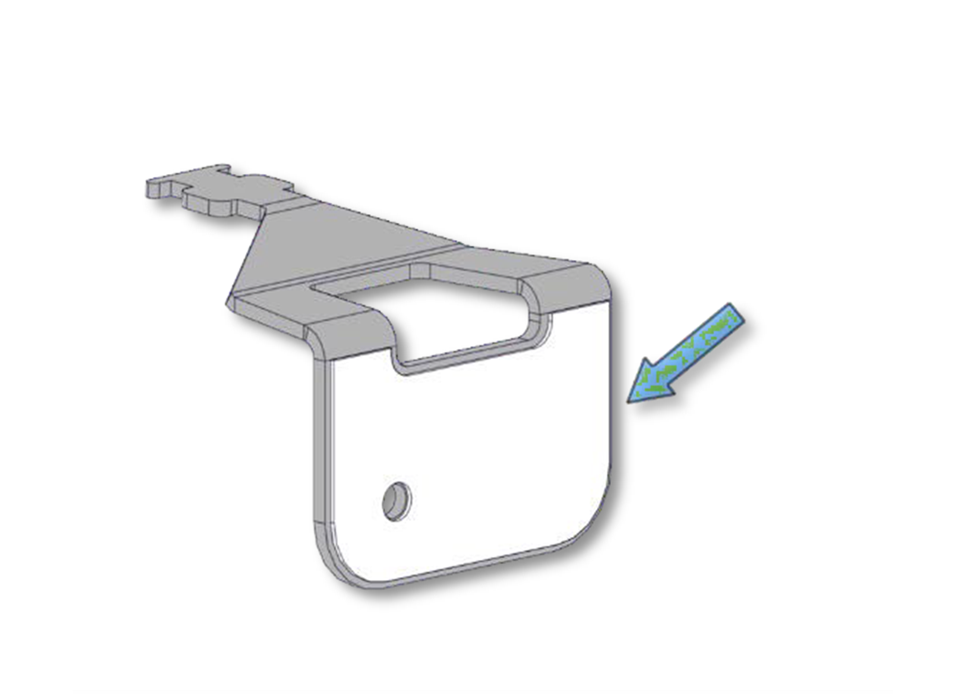

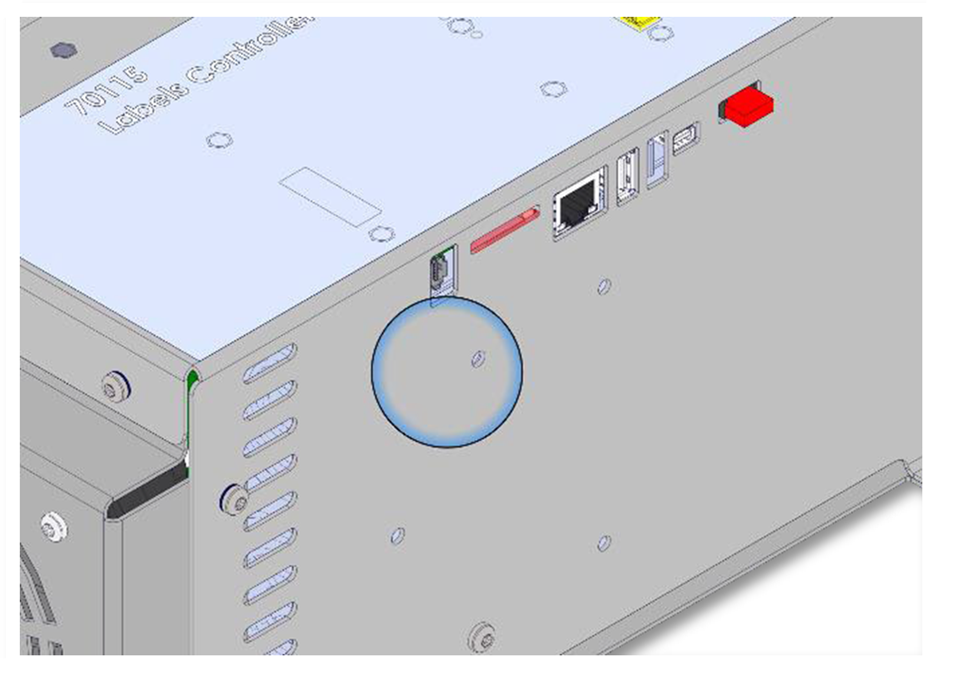

| 3. Clean area with alcohol solution and allow the alcohol to evaporate. | 4. Remove protective film from adhesive patch |
|
|

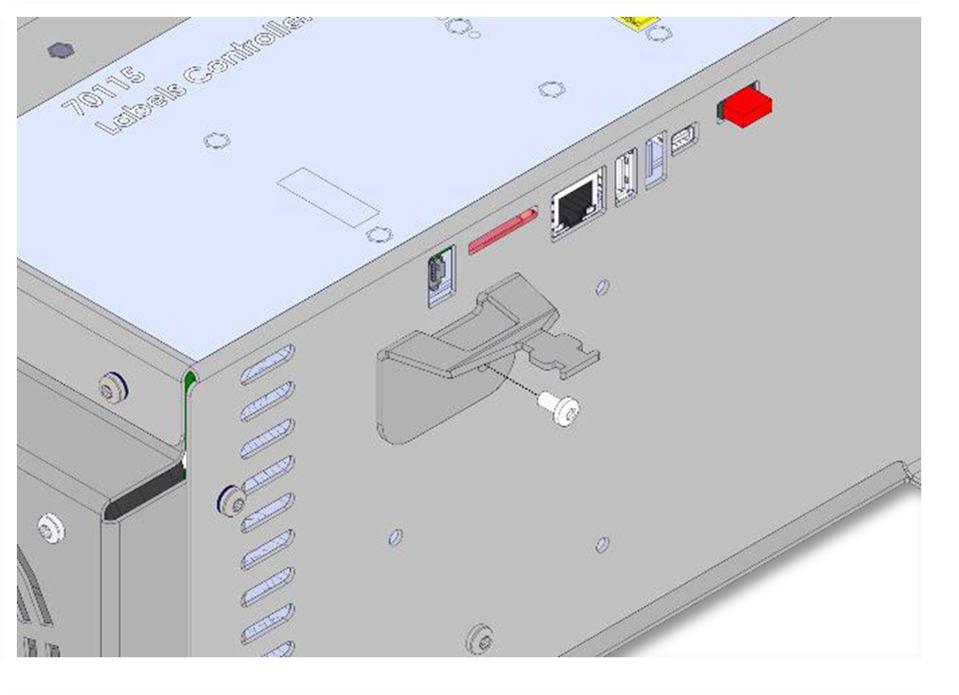

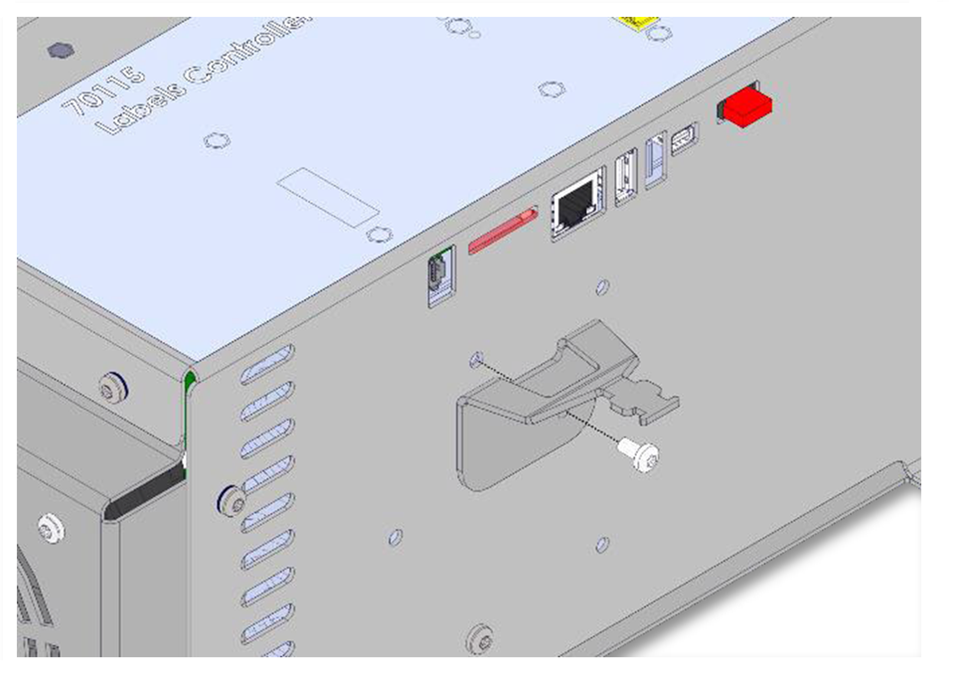

| 5. Align the bracket using the included screw | 6. Tighten the included screw (Torque 1Nm) |
|
|

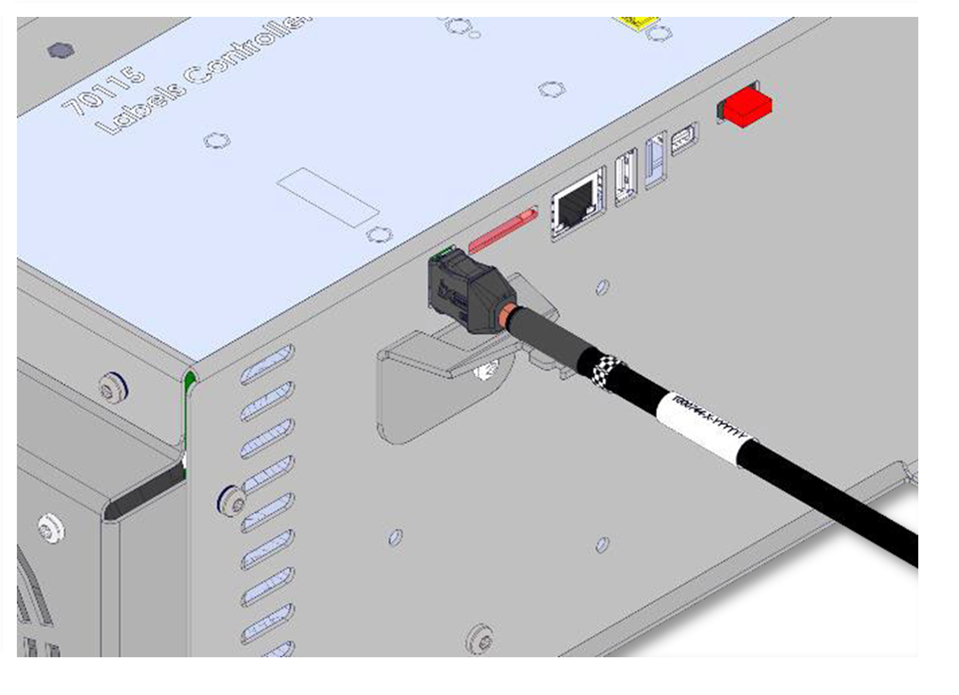

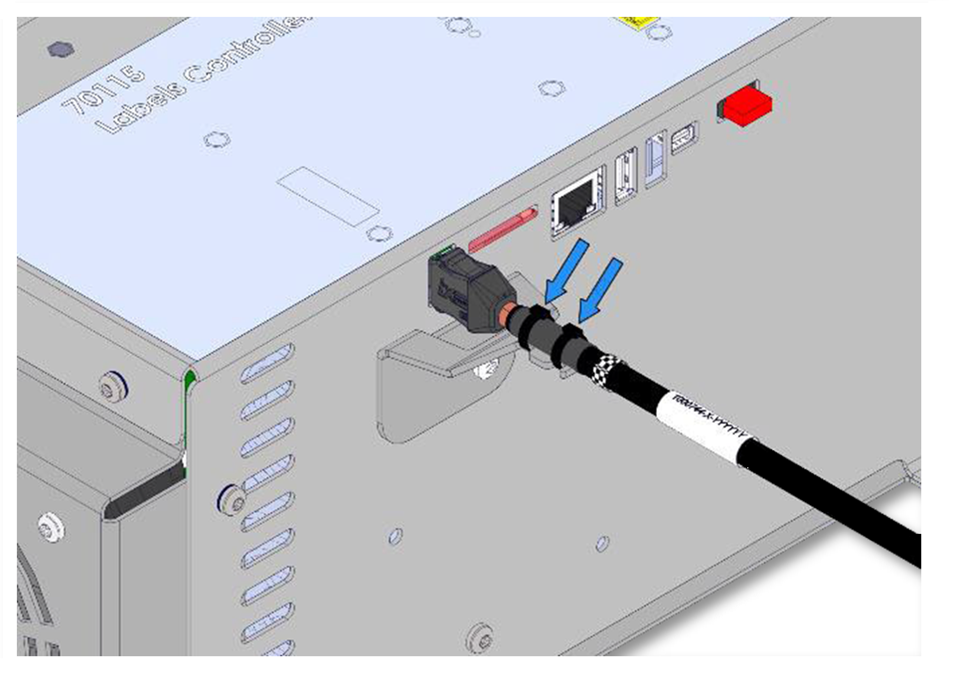

| 7. Connect TP cable | 8. Secure the TP cable with the included zip ties |
OEM Control Box DC
To install and use the cable strain relief bracket
|
|

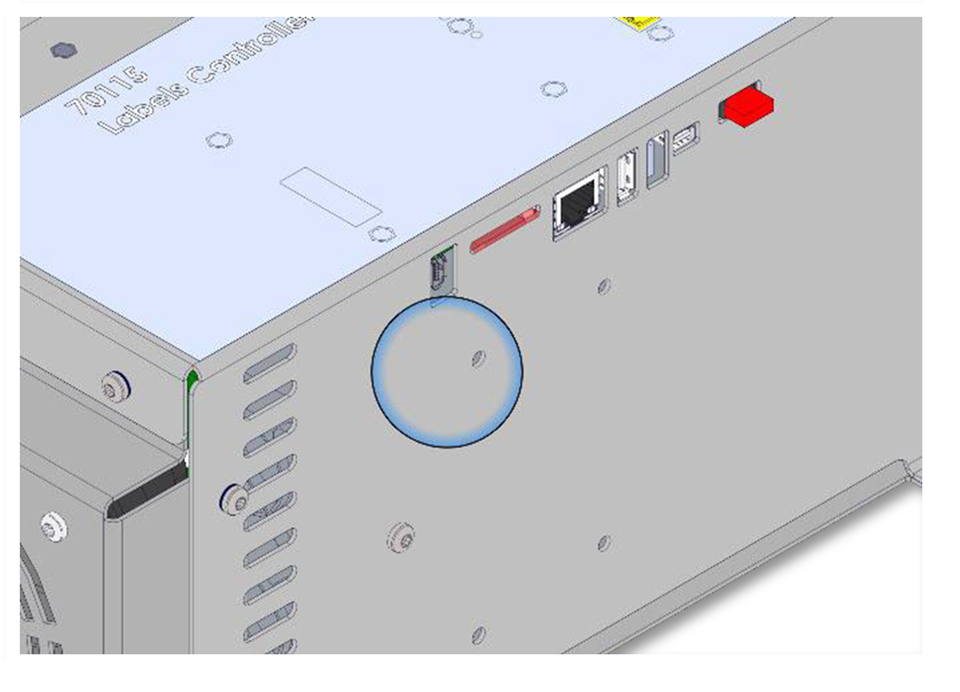

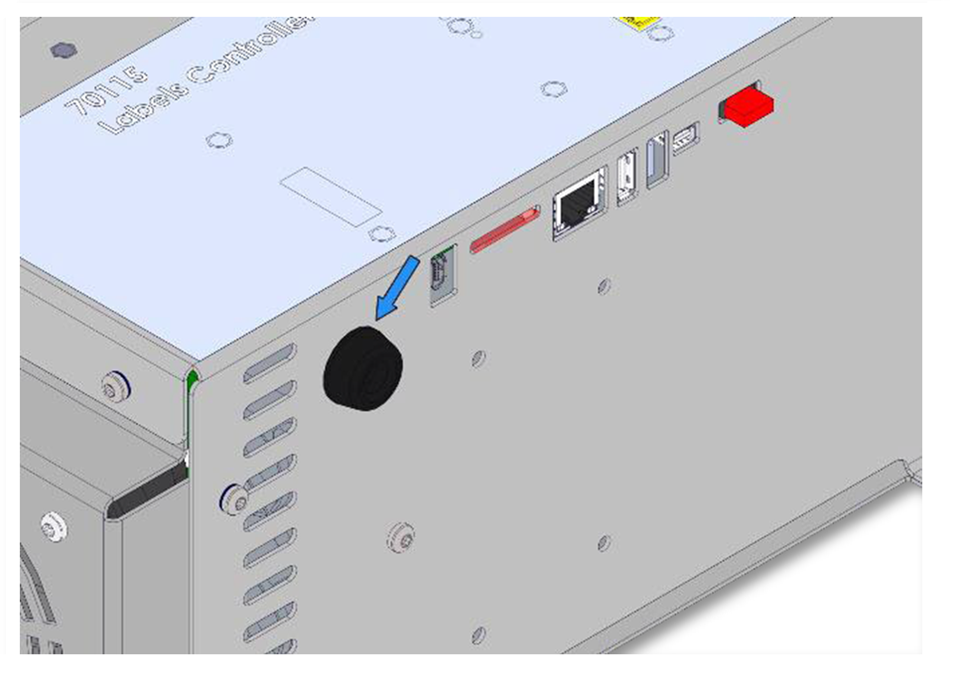

| 1. Remove grommet | 2. Clean area with alcohol solution and allow the alcohol to evaporate. |
|
|

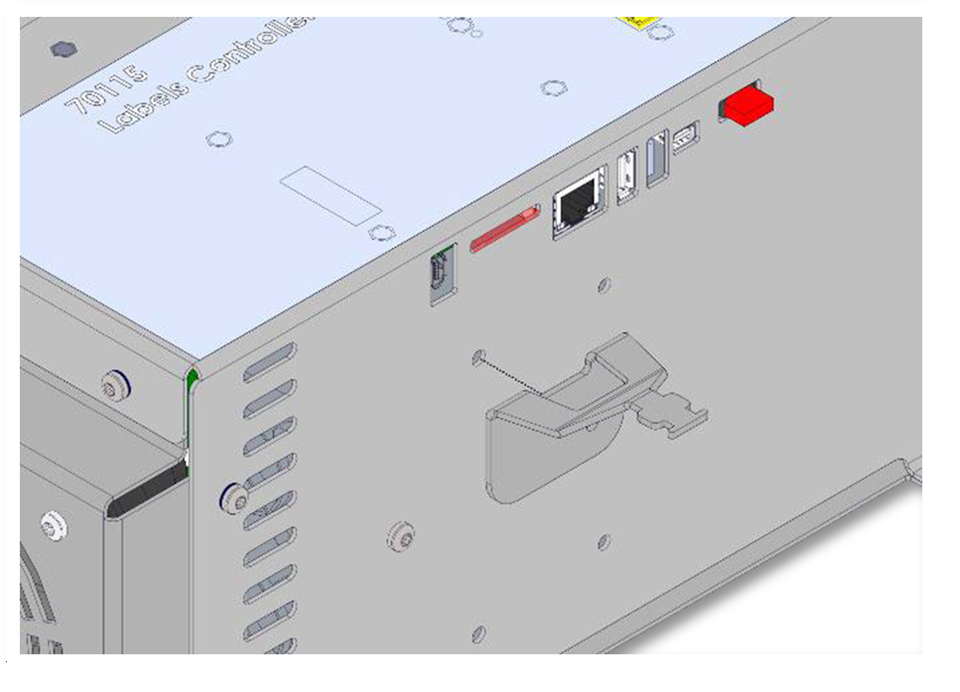

| 3. Remove protective film from adhesive patch | 4. Align the bracket using the screw hole |
|
|

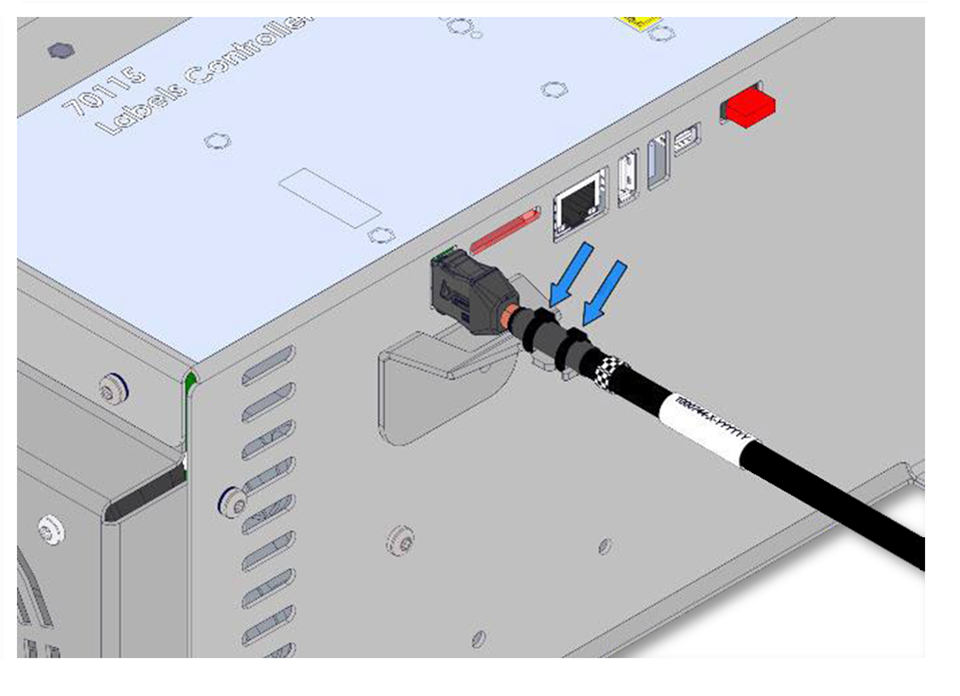

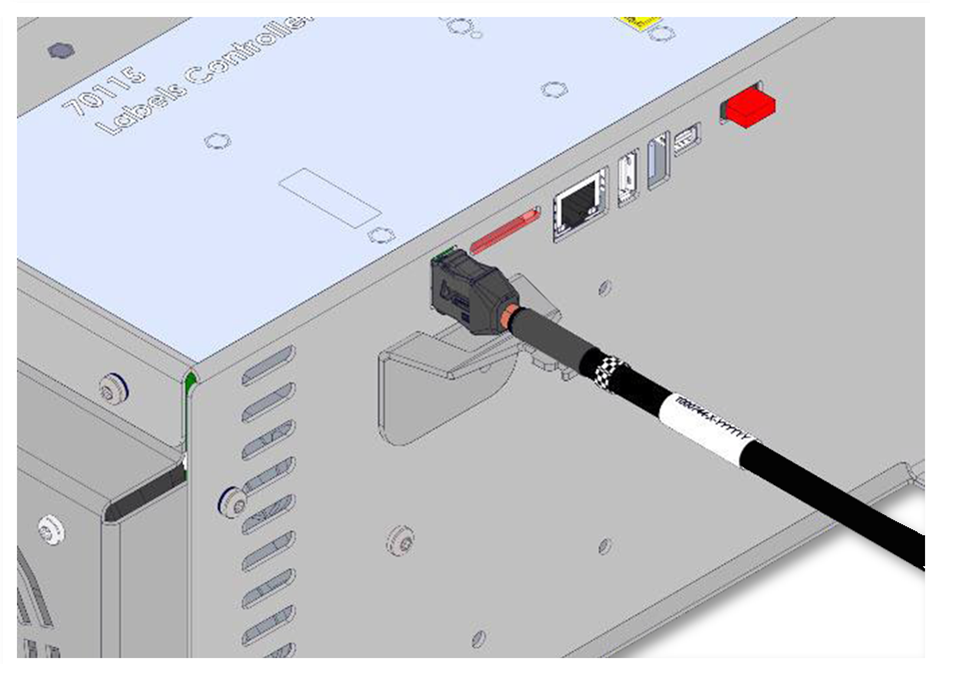

| 5. Connect TP cable | 6. Secure the TP cable with the included zip ties |
