CoBo-Stack

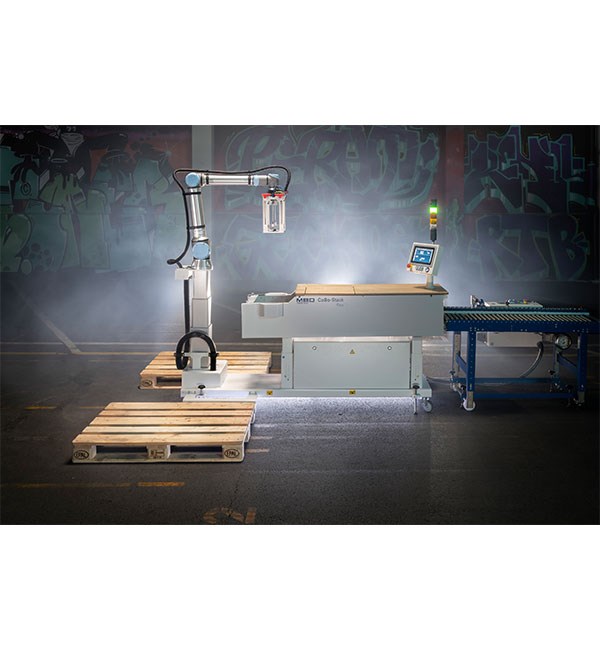

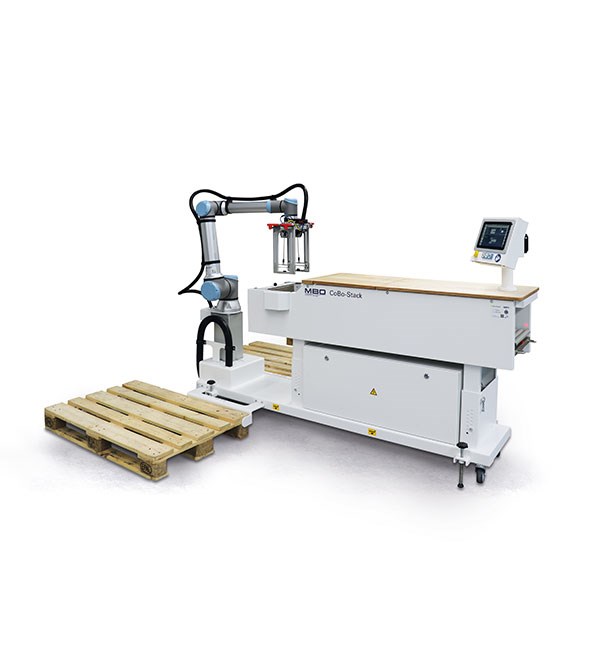

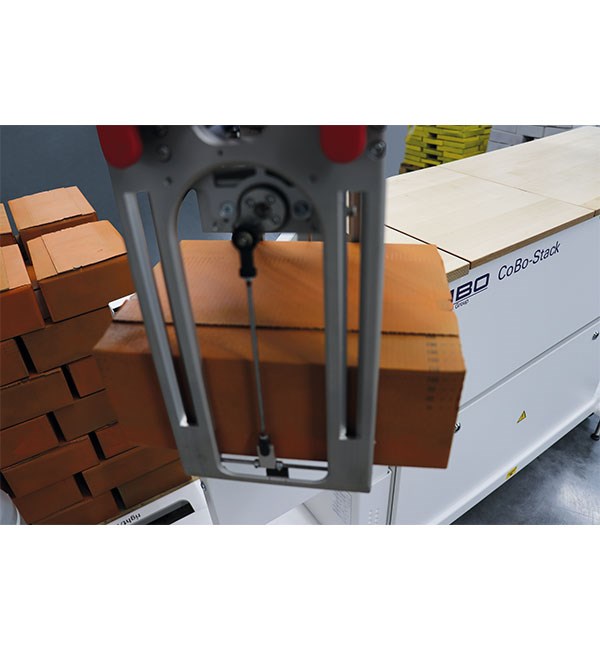

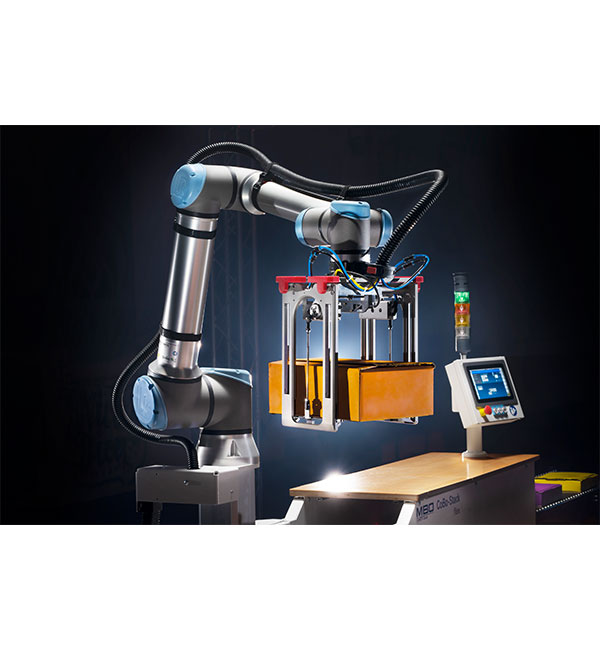

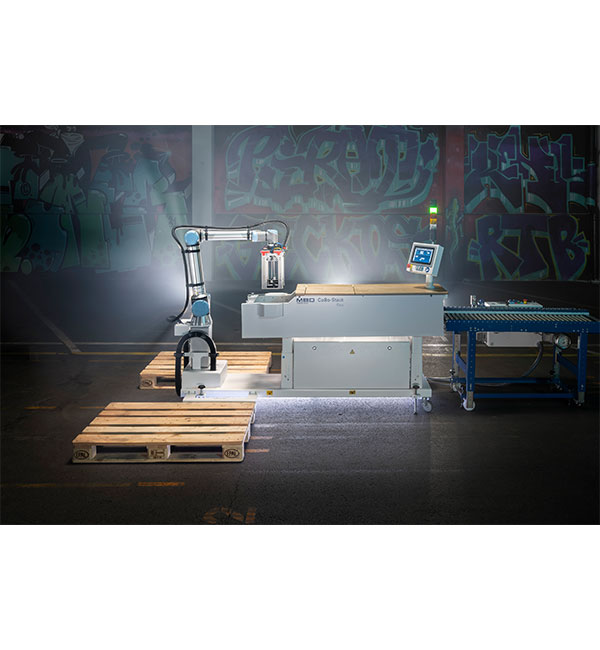

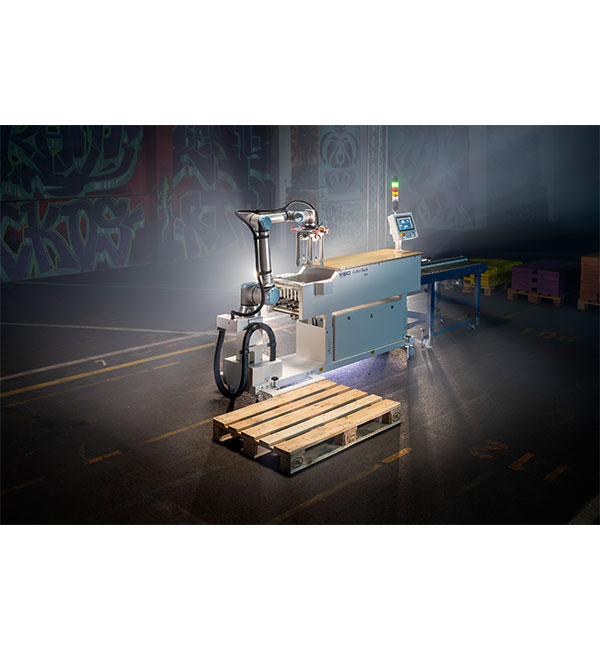

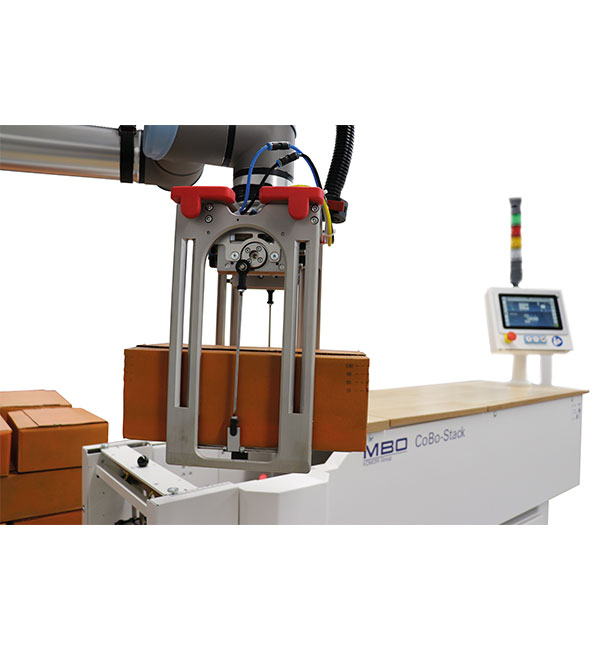

The CoBo-Stack is a versatile palletizing solution. It can stack anything from paper to packets of various sizes and heights. The CoBo-Stack does the unpopular monotonic tasks for you, hence gives you or your employees the freedom to focus on more important parts of production. Through its dual pallet design the CoBo Stack is able to run continuously 24/7. The CoBo-Stack has proven its value with a wide range of happy customers. MBO delivers the CoBo-Stack ready for use. Plug it into a normal socket and with a short briefing it´s ready to go. The unique patented gripper lets you stack a wide range of products. Our intelligent software allows for over 30 different palletizing layouts, to give you all the layouts you’re used to. Through its mobile design on four wheels, it can easily be put where needed, and is ready to start a new job in less than five minutes.

Plug and play. The CoBo-Stack is set up by a service employee. After a short training session, your employees can operate and adjust the machine independently. A safety fence is not necessary.

After entering the selected gripper, the package size (HxWxD) and the dimensions of the pallet, you can start. Place one or two pallets correctly, press play and let the first package retract. The CoBo-Stack will palletise up to your selected height.

You can decide for yourself whether a pallet that has been started should continue to be filled, whether you start on the right or left side or whether you have a double pallet.

All in all, everything is controlled via a self-explanatory HMI. A traffic light system shows the operator whether the pallets need to be changed.

Software required:  Polyscope

dimensions: 260x130x190cm - 500kg

Certifications & standards: CE, ANSI

Dependencies: compressed air 300l/min at 6bar (??? Angebotsblatt), 100-240V +- 10%, einphasig NPE

What's in the box? Pallet height max. 900 mm
Service Router for RAS Remote Access Software
1 year maintenance by MBO technician
Extended pallet height to 1.400 mm
CoBo-Stack alignment to the right or to the left side
Navigator-Control - CoBo-Stack (additional)
Electric interface to Non-MBO machines (additional)
Special equipment for increased payload
WLAN module

License type : One-time purchase

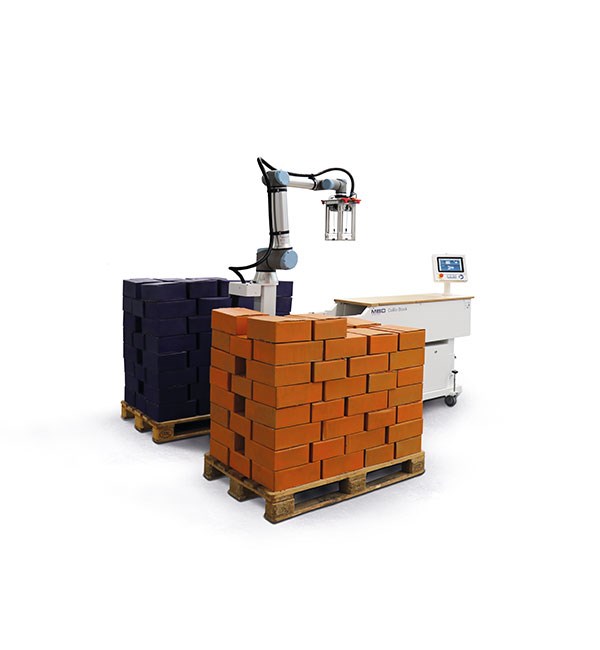

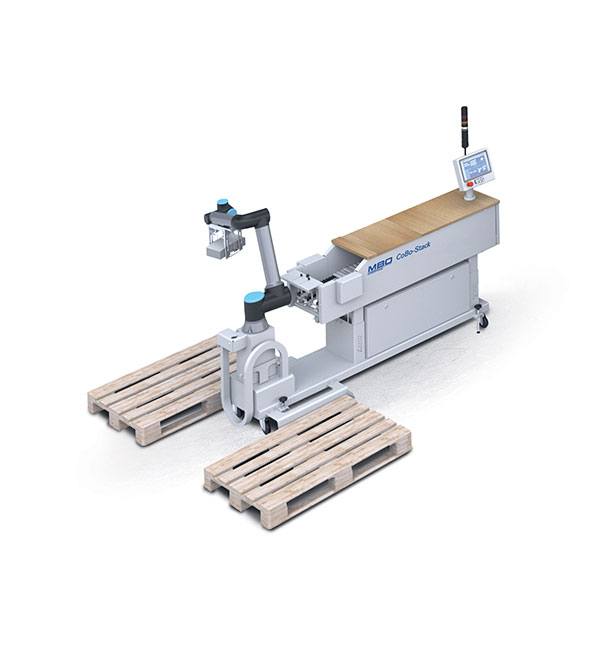

• Two pallet spaces possible; this allows one pallet to be prepared whilst the other is being loaded.
• Optical and acoustic signals for indicating different operating states.
• RAS router included; access permission from customer is mandatory.
• With double stream production, it is possible to deposit on the left-hand and right-hand pallets alternately.
• ADDITIONAL Features: Camera from below for depositing two different signatures on the left / right, for example in double stream production

• UR10e
• UR12e
