Replacing the Teach Pendant: Standard TP

This section describes how to remove and replace a Standard Teach Pendant. For information on how to replace a Standard Teach Pendant with a 3PE Teach Pendant, see Replacing the 3PE Teach Pendant.

When the Teach Pendant is replaced, test the E-stop button function.

更换示教盒可能导致系统在启动时报告故障。

  • 始终为示教盒类型选择正确的配置。

To remove:

  1. 关闭控制箱的电源，并从电源上拔下市电电缆。

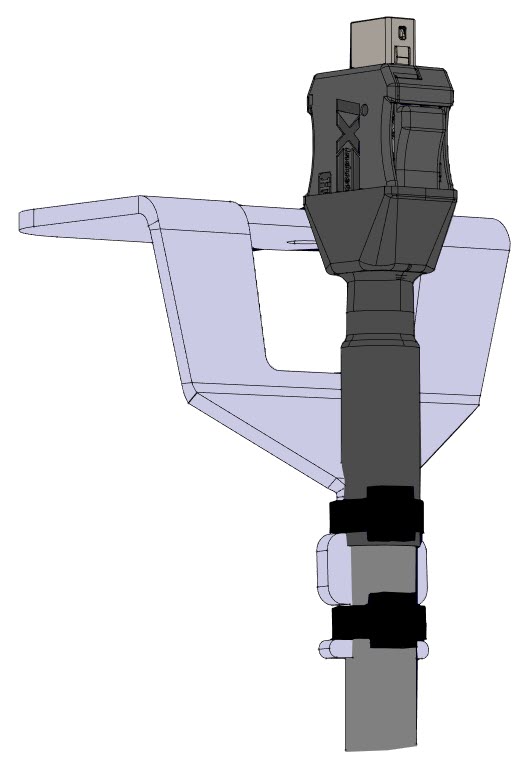

  2. 拆除并丢弃用于固定示教盒线缆的两条扎线带。

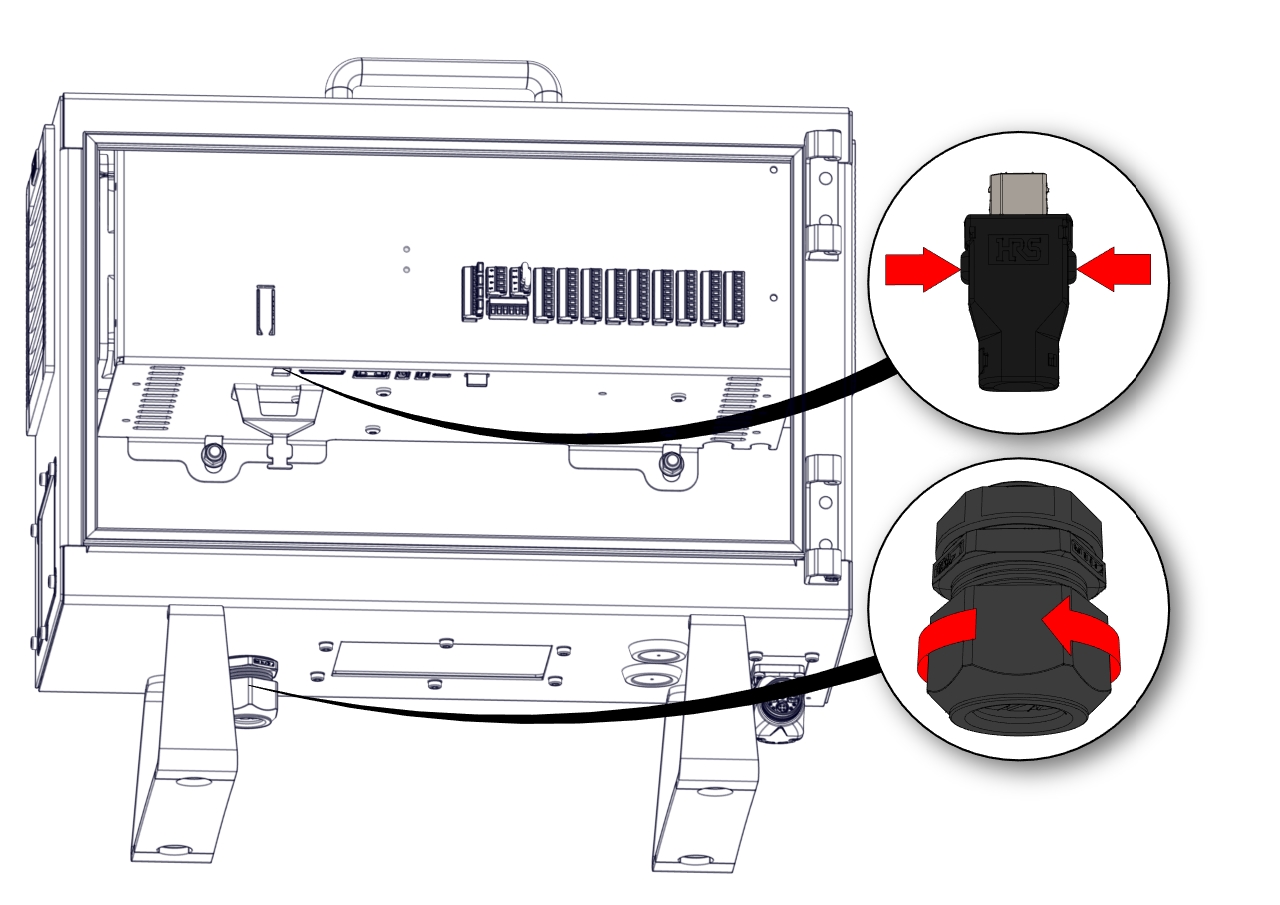

  3. Press in the clips on both sides of the Teach Pendant plug, as illustrated below, and pull down to disconnect from the Teach Pendant port.

  4. 完全打开/松开控制箱底部的塑料索环，拆除示教盒插头和线缆。

  5. 轻轻拆除示教盒线缆和示教盒。

To replace:

  1. Place the Teach Pendant plug and cable in through the bottom of the Control Box and fully close/tighten the plastic grommet.

  2. 将示教盒插头推入示教盒端口以连接。

  3. 使用两条新的扎线带固定示教盒线缆。

  4. Connect the main power cable to the power source and power on the Control Box.
