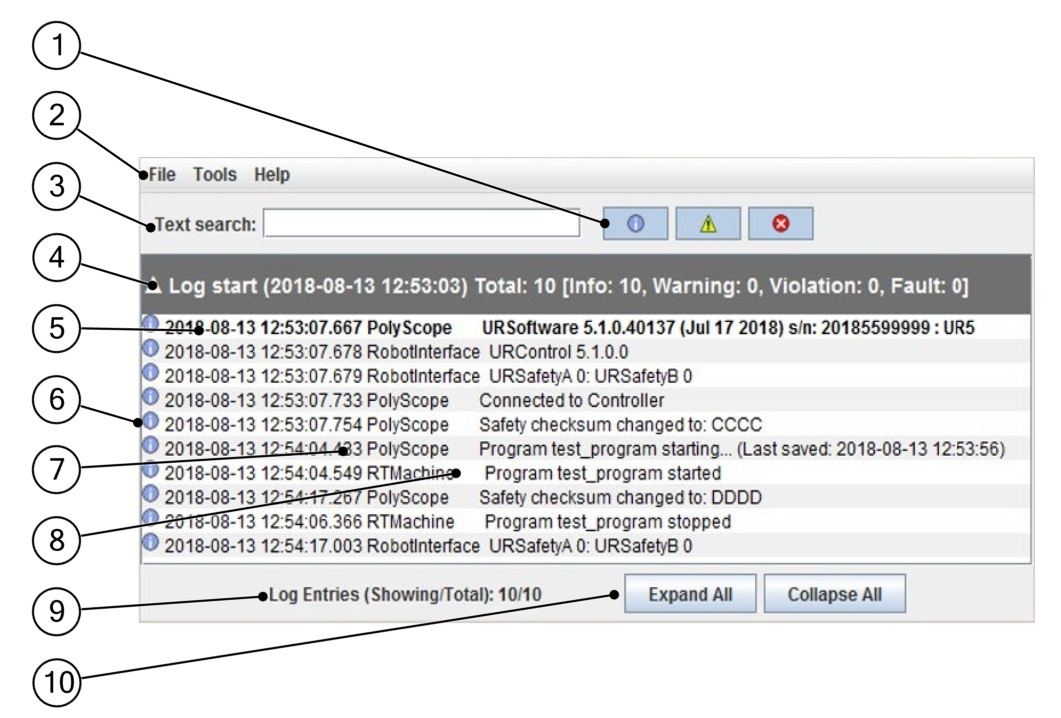

Support Log Reader (SLR)

Open log files with the Universal Robots Support Log Reader (SLR).

Go to www.universal-robots.com/support to download the Support Log Reader

1. Filter;
   Select what filter to activate
   Info filter:
   Warning filter:
   Error filter:
2. Tool bar;
   Load log files, export error codes, change language
3. Text search;
   Type error code or text
4. Log start Info bar*;
   Created every time the robot is powered on.
5. Highlighted text;
   When tapped, gives more detailed Information.
6. PolyScope time
7. Reporter;
   Where the info is reported from ”safety, PolyScope, etc.”
8. Message;
   Text with the Cxxxx refers to the error codes.
9. Log Entries;
   Shown and total
10. Expand or collapse all Info bars (point 4)
