Your Product

Product

The Base-mounted Range Extender, 40m is an accessory used to extend the cable length between robot and controller. It includes a 40-meter cable (power and communication) and active signal repeaters - one at the robot end and the other at the controller end - for reliable performance over long distances. It is designed for OEM controllers in Welding applications where longer separation between robot and controller is required.



The Base-mounted Range Extender, 40m is compatible with UR3e, UR5e, and UR7e.

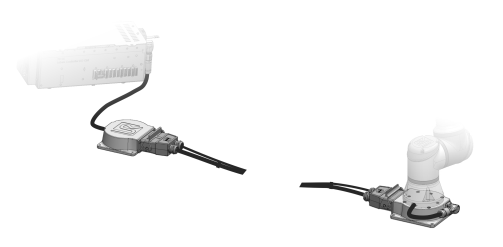

The Base-Mounted Range Extender consists of the following components:

  1. Range Extender Cable, 40 meter.

  2. Range Extender Box, Robot Base (with mounting holes and connector for robot arm).

  3. Range Extender Box, CB (without mounting holes, and with flange cable to connect with Control box).

  4. Set of screws for mounting UR3e. See Assembly for specifications and torque.

  5. Set of screws for mounting UR5e and UR7e. See Assembly for specifications and torque.

  6. User Manual

This manual describes all of the components. This manual should also be used, if you have purchased any one part as a single component.
