Shoulder joint Size 4 for UR10e/UR16e –124041
*The Joint Size 4 can be used for J0 and J1 of your UR10e/UR16e. Specify the desired joint position when ordering this spare part (J0 = base, J1 = shoulder).
|

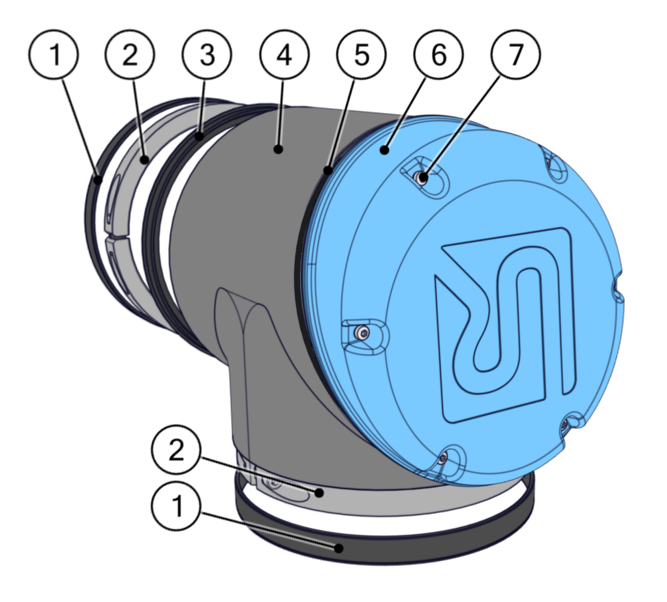

Shoulder joint for UR10e/UR16e –124041 |
||||
|
NO. |
QTY. |
DESCRIPTION |
PART NUMBER(S) |
PAGE NO. |
|
1 |
2 |
Flat ring for size 4 |
103700 |
|
|
2 |
2 |
Bracket connection incl. bolts and seals size 4 |
N/A |
N/A |
|
3 |
1 |
Wear ring size 4 |
103700 |
|
|
4 |
1 |
Shoulder, size 4 |
N/A |
N/A |
|
5 |
1 |
O-ring for lid size 4 |
103410 |
|
|
6 |
1 |
Lid size 4 |
103410 |
|
|
7 |
6 |
Screws for lid size 4 |
103410 |
|
