Elbow joint Size 3 for UR10e/UR16e –124031
Using size 3 joints manufactured before November 12, 2020, as a replacement for any UR10e size 3 elbow joint (either UR10e with 12,5kg max. payload or UR10e with 10kg max. payload) may damage the housing.
If you hold any spare part joint size 3 from previously to 12 November 2020, only use it for replacements of UR5e robots’ joints.
Under no circumstances use joints from robots previously to 12 November 2020 as replacements to UR10e size 3 elbow joint. Size 3 joints from previously to: Serial Number: 20205001663. Date: 12 November 2020. Must only be used as spare parts for UR5e robots.
|

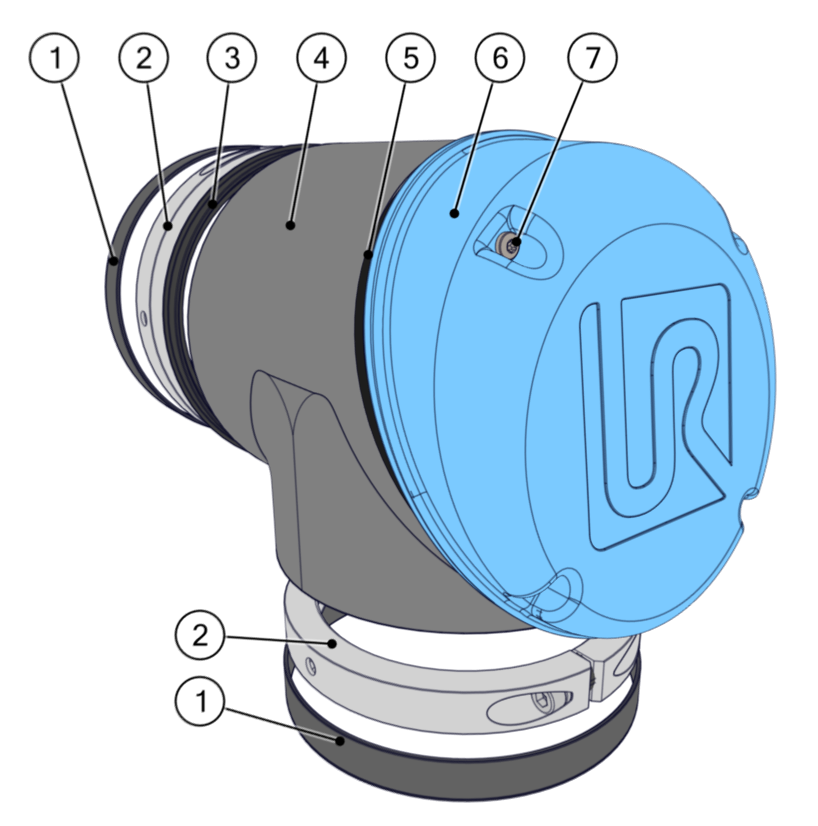

Elbow joint for UR10e/UR16e –124031 |
||||
|
NO. |
QTY. |
DESCRIPTION |
PART NUMBER(S) |
PAGE NO. |
|
1 |
2 |
Flat ring for size 3 |
103700 |
|
|
2 |
2 |
Bracket connection incl. bolts and seals size 1 |
N/A |
N/A |
|
3 |
1 |
Wear ring size 3 |
103700 |
|
|
4 |
1 |
Elbow, size 3 |
N/A |
N/A |
|
5 |
1 |
O-ring for lid size 3 |
103410 |
|
|
6 |
1 |
Lid size 3 |
103410 |
|
|
7 |
3 |
Screws for lid size 3 |
103410 |
|
