Product description
| Description |

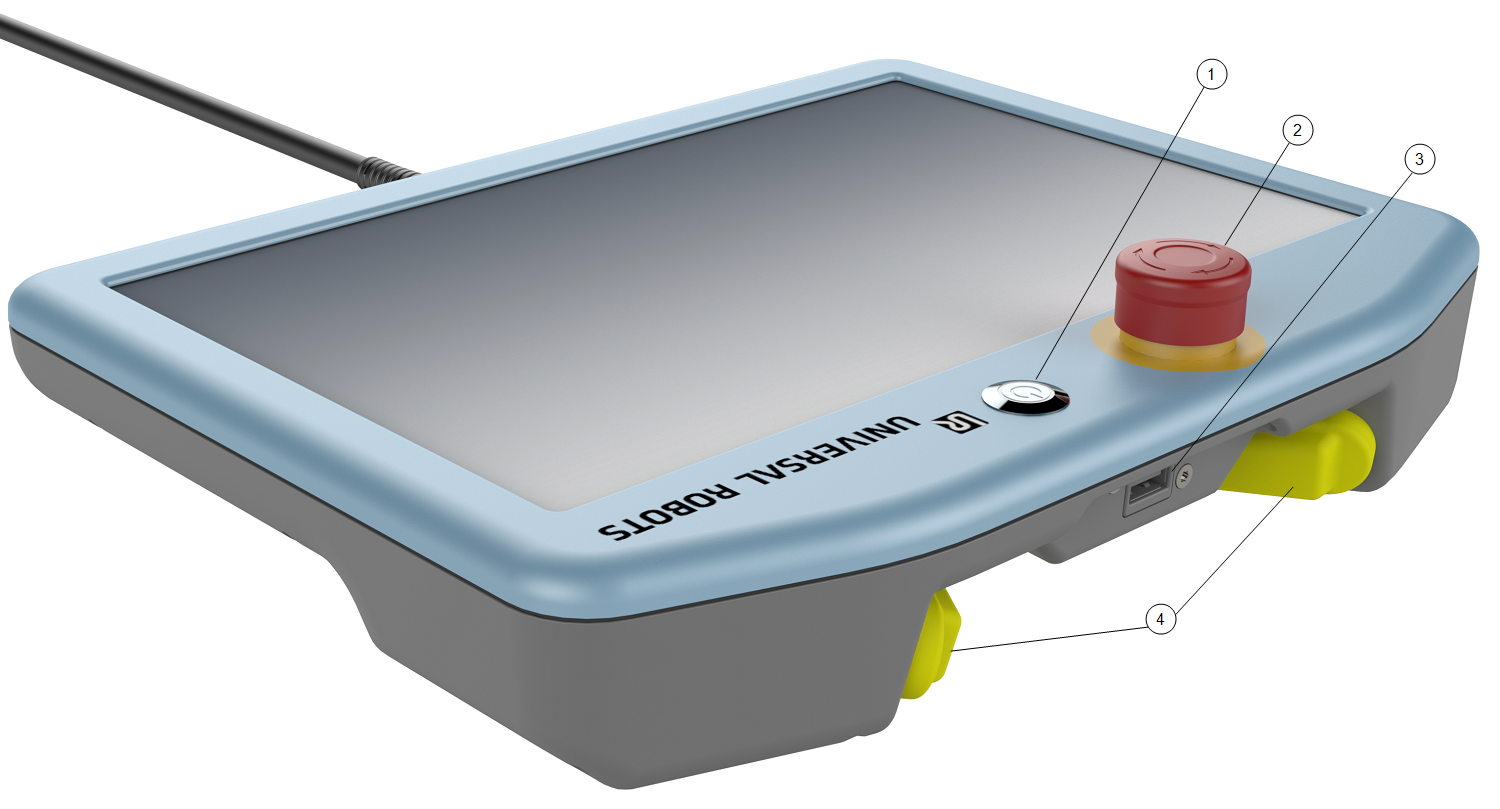

The Teach Pendant with 3-Position Enabling Device is a Universal Robots Teach Pendant with built-in 3-Position Enabling Device functionality. The enabling buttons are on the underside of the Teach Pendant, as illustrated below. You can use wither button, according to your preference. If the 3PE TP is disconnected, an external 3PE device must be connected and confirmed in the Installation.

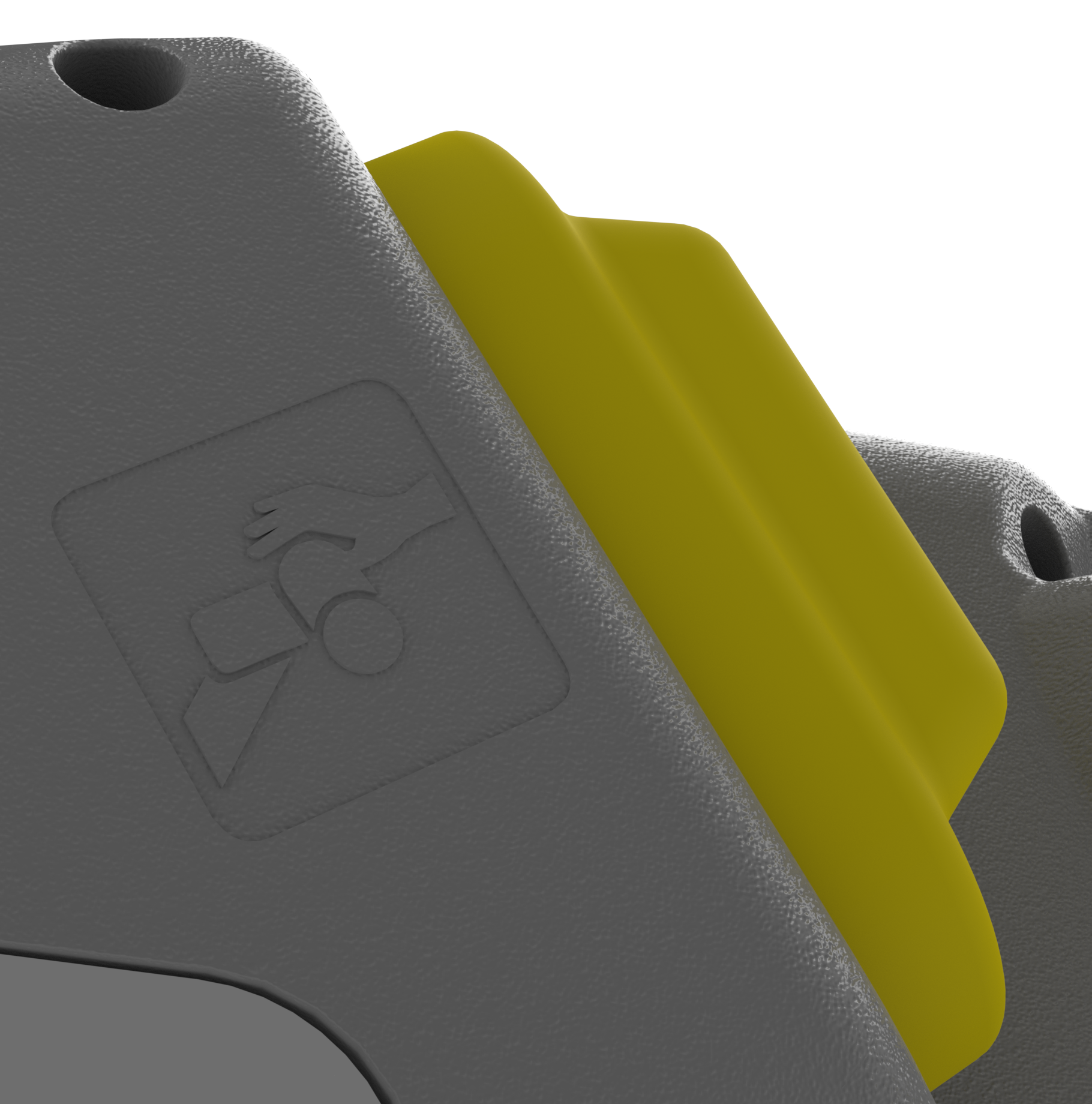

A Freedrive robot symbol is located under each 3PE button, as illustrated below.
|
| Installation Notice |
Failure to install the Teach Pendant with 3-Position Enabling Device properly can result in damage to equipment or property.
|
|
Use of Product |
The Teach Pendant with 3-Position Enabling Device is only certified for use with Universal Robots e-Series control boxes.
|
|
Components |
The Teach Pendant with 3-Position Enabling Device is only certified for use with Universal Robots e-Series control boxes.
|
| Requirements |
The robot system software, using the 3PE Teach Pendant must be newer than V5.8.0 Installing an Teach Pendant with 3-Position Enabling Device in a robot system using software version older than V5.8.0 can result in damage to equipment or property.
|
