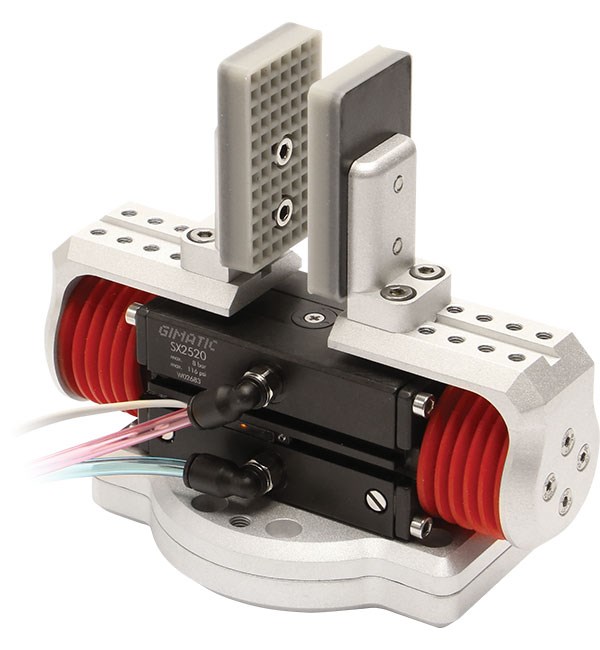

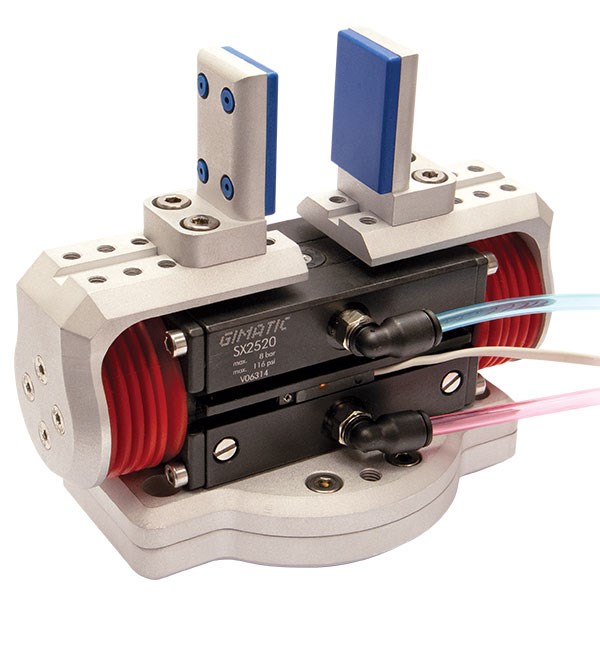

EMI Gripper Kit – SX
- Available in 8 sizes with various strokes and gripping forces.
- Parallel, adjustable gripper jaws.
- Designed for use in harsh environments or clean room applications.
- Double acting with included 5/2 solenoid valve.
- Includes (1) magnetic sensor for part detection.

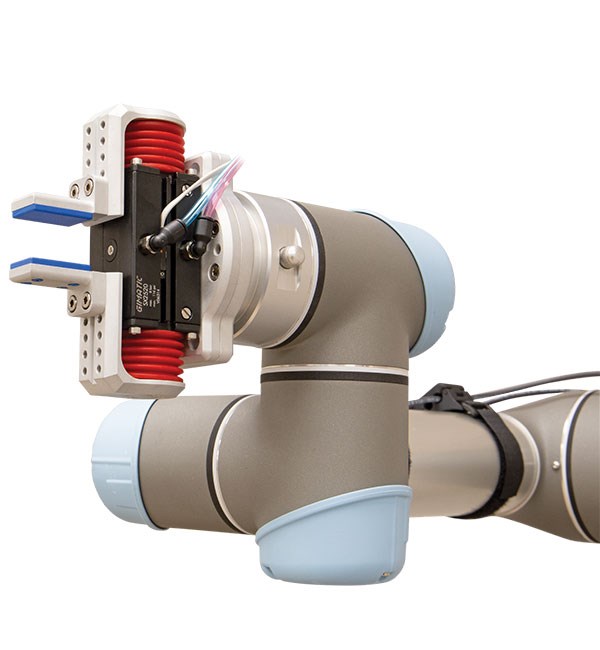

- The included interface plate mounts directly to the UR robot.
- Includes (3) sets of finger pads: Silicone, Rubber, HNBR
(High temperature, non-marking)
How does it work?EMI’s pre-assembled SX Gripper Kit is easy to set-up, operate and maintain. The included URCap makes the installation and programming simple and intuitive for all users. Simply connect your 6mm compressed air line, connect your 4-wire cable to the controller box, install EMI’s URCaps on your UR3, UR5 or UR10 and your Pneumatic SX Gripper Kit with part sensing is ready to go.

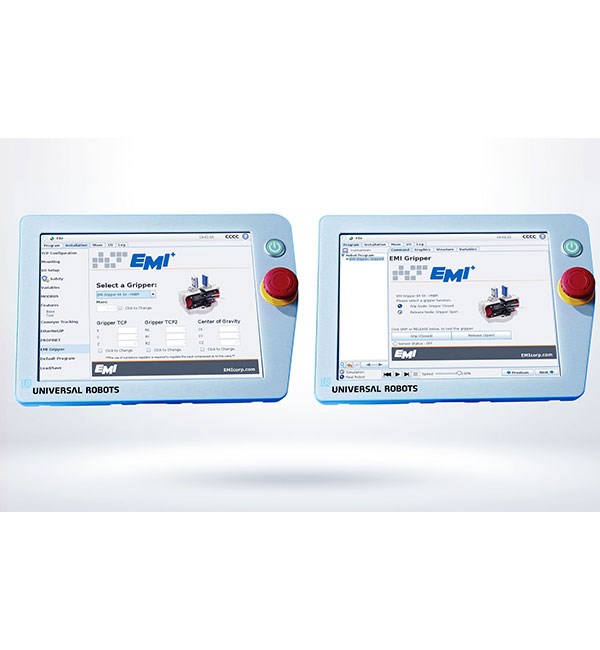

Includes a URCap plugin:
- UR3, UR5, UR10
- UR3e, UR5e, UR10e, UR16e
- CB2, CB3.0, CB3.1
Certifications and standards:
Gripper body is completely sealed with IP67 protection class.
132mm x 75mm x 108mm

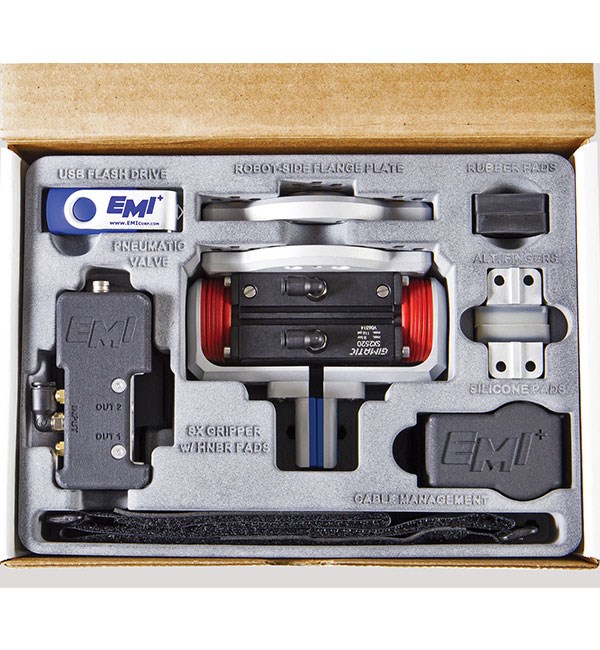

What's in the box?
- Spare finger pads
- Wiring harness
- USB drive
- Solenoid valve
- Tubing clamps with straps
- User manual
- Gripper datasheet.
This products is available in 8 sizes and can be offered with custom fingers. Contact EMI if you need help customizing your SX Gripper Kit for Universal Robots.
