Plasma TEC-X UR
What is PlasmaTEC–X UR?
PlasmaTEC-X UR is an atmospheric plasma surface treatment unit. It is a unit for surface treating different polymers. It can be used in various industries with cleaning, gluing, printing or surface modification. Surface treatment can improve wettability of the material by raising the material’s surface energy and positively affect adhesive characteristics by creating bonding sites. The PlasmaTEC-X is the absolutely smallest, flexible and most compact device on the market. There is easy installation in existing manufacturing lines.
Who is this product for?
The PlasmaTEC-X can be used in various industries. It can be used in the medical, automotive, cable & pipe, cards, foam and board, electronical and films industry. If you have adhesion problems concerning cleaning, gluing, printing or surface modification PlasmaTEC-X is your solution to your problems.
How will it benefit the profitability of the companies who install and use PlasmaTEC-X?
The PlasmaTEC-X is a very reasonable investment cost. There are huge environmental benefits compared to gas treatment, to flame treatment and to chemical treatment. You have lower operational cost compared to traditional treatment methods.
How can your company benefit from this product?
The device is very environmental. You need no specially trained operators and no chemicals or flames are involved in the treatment process.
You can activate the PlasmaTEC-X very fast and turn it off milliseconds. Compared to gas treatment, which you cannot easily turn off.
- Easy to install
- The system must be connected to mains power and compressed air, no adjustment of air or power is necessary.
- Potential free discharge
- Allows treatment of both conductive, non-conductive as well as semi-conductive surfaces.
- High speed production
- High power Plasma Discharge allows for high line speeds.

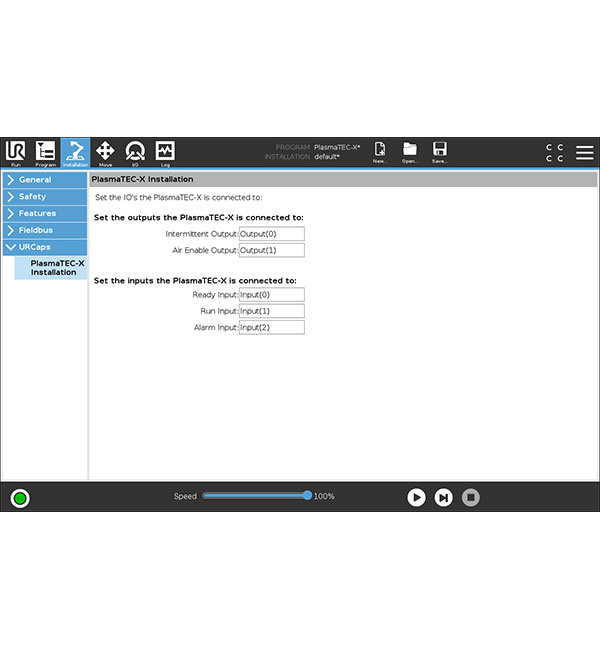

- Digital and analogue control signals
- A large number of various signals are available on a digital interface to control and monitor the Plasma discharge at all times.
- Automatic discharge air regulation AirTEC
- No matter the length of the power/air cable, the generator will adjust automatically to ensure the correct air pressure and flow.

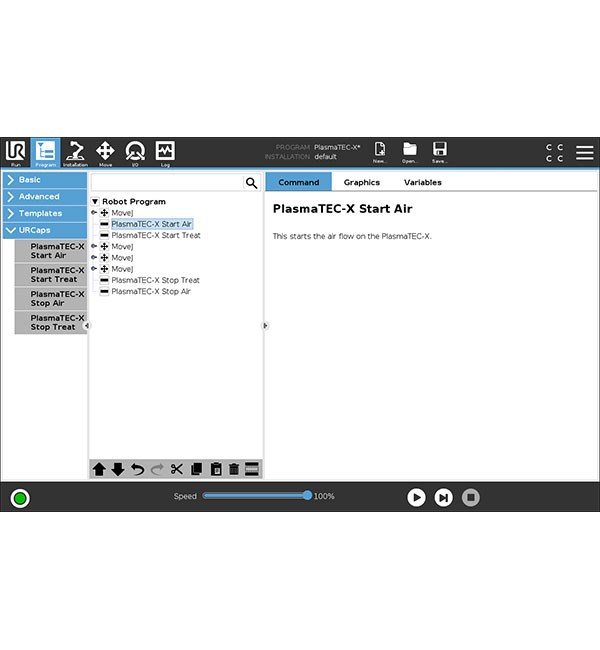

- Standby air flow
- The air flow is controlled electronically which allows for switching the on/off, A minor flow of air is part of stand-by, to avoid dust being attracted to the discharge nozzle.
- Compact and Light weight
- Compact and light weight makes the PlasmaTEC-X easy to integrate in almost any production line
How does it work?
All connections from the PlasmaTEC-X Generator to the discharge nozzle is made through a standard plug, making it very easy to connect and use. Thanks to the DC technology and the AirTEC system no adjustments are necessary in case of cable length changes, furthermore the DC technology offers longer life time on cables as no heat is generated inside cables and hoses

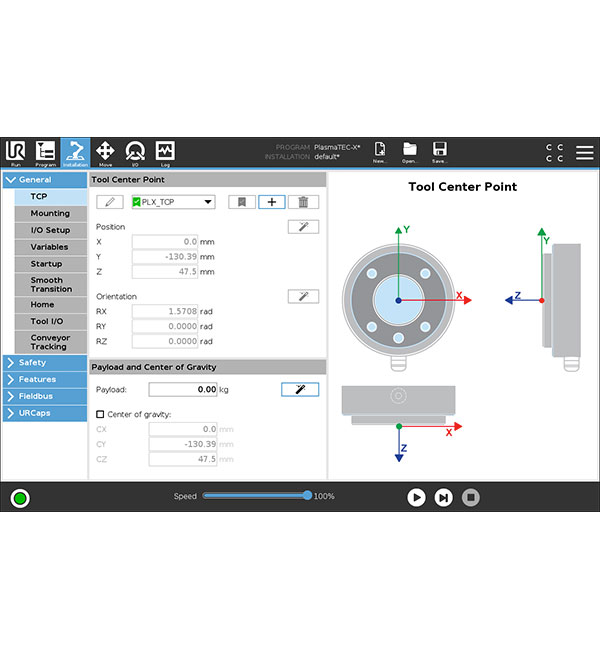

Software version requiredCB-Series: Polyscope version 3.7.2+
e-Series: Polyscope version 5.1.2+
DependenciesCompressed Air, 4-8 bar
Certifications and standardsLow Voltage Directive: EN 61010-1:2010
Safety requirements for electrical equipment for measurement, control, and laboratory use –
Part 1: General requirements.
EMC Directive: EN 61000-6-4:2007
Including Amd.1:2011: Electromagnetic compatibility (EMC) - Part 6-4:
Generic standards - Emission standard for industrial environments.
EMC Directive: EN 61000-3-2:2014
Electromagnetic compatibility (EMC) - Part 3-2: Limits – Limits for harmonic current emissions.
EMC Directive: EN 61000-3-3:2013
Electromagnetic compatibility (EMC) - Part 3-3: Limits - Limitation of voltage changes, voltage fluctuations and flicker.
EMC Directive: EN 61000-6-2:2005
Electromagnetic compatibility (EMC) -- Part 6-2: Generic standards - Immunity for industrial environments.
RoHS Directive: EN 50581:2012
Technical documentation for the assessment of electrical and electronic products with respect to the restriction of hazardous substances
DimensionsPLX Generator HxWxL: 198.0x149.3x470.0 mm.
PLX Nozzle DxL: Ø30x205.8 mm + 2 meter cable.
What's in the box?PLX Generator (OEM),
PLX UR+ Nozzle Alignment Pin,

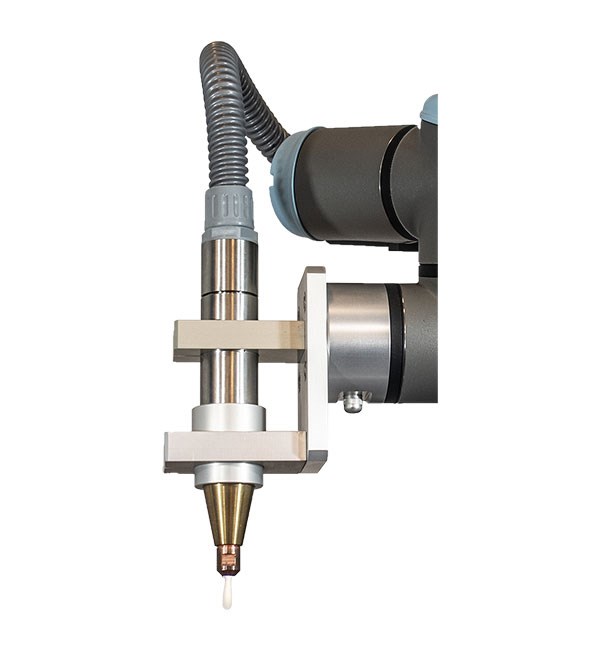

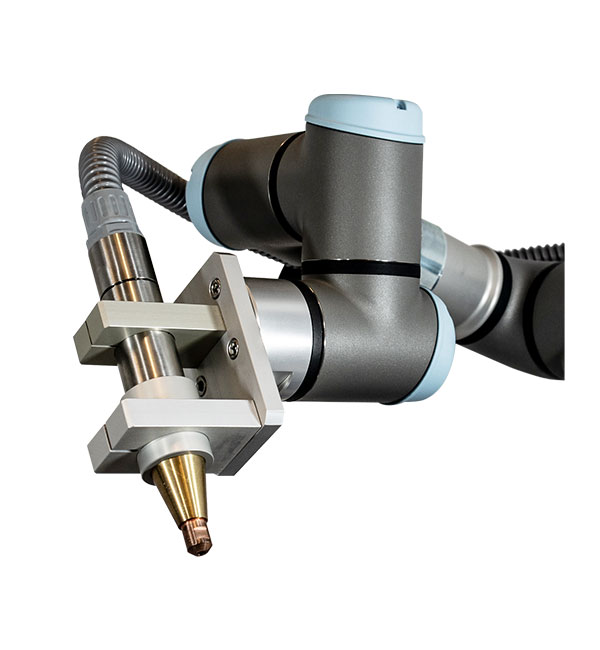

PLX UR+ Nozzle Mount Bracket incl. screws,

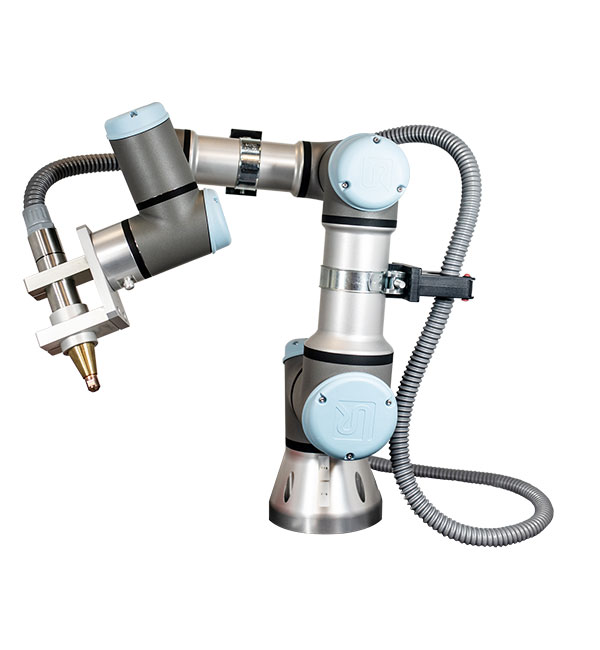

PLX UR+ Cable Management System,
230V Mains Power Cable (6m),
8-pole I/O Cable,
PLX Instructions Manual + Universal Robot Integration Appendix,
USB Flash Drive with URCap
License typeOne-time purchase
