Robotiq Screwdriving Solution
Deploy and master your robotic screwdriving application by adding Robotiq Screwdriving Solution to a cobot. So intuitive, no robotics experience is required. Get a simple, cost-effective automation solution, and say hello to consistent screwdriving around the clock.
Robotiq's flexible solution includes a compact screwdriver, an adaptable screw feeder, and an easy-to-program URCap with force-sensing capabilities that supports your daily production changeovers. But that's not all. When buying from Robotiq, you get access to tools, services, and know-how to help you deploy faster and take control of your automation project.
Compact and lightweight:

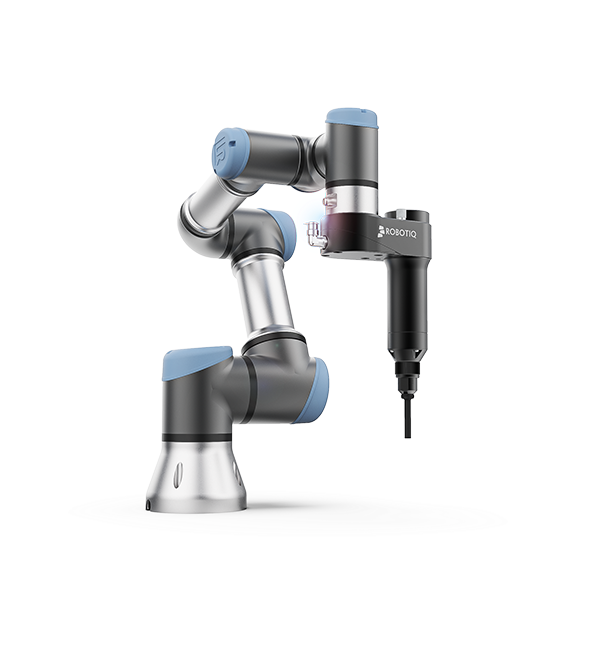

Compatible with a UR3 and designed to reach tight spaces and chamber holes.
Adaptable screw feeder:
Intuitive adjustment in four quick steps, to fit M2.5 to M5 screws with no need to buy extra parts.
5-min production changeovers:
Designed to enable daily production changes on your assembly line.
Vacuum transportation system:
Integrated vacuum system for reliable screw transport with maximal slender reach.
Prevent fastening failure and ensure the correct torque is applied.
Automated communication between all components:

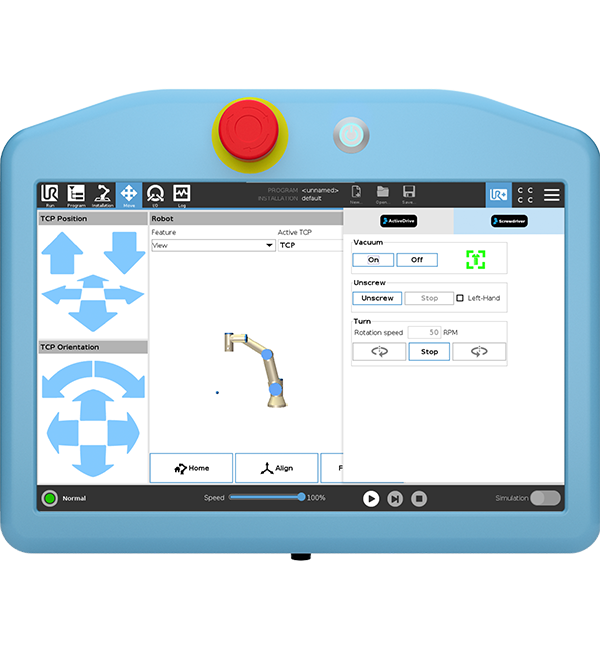

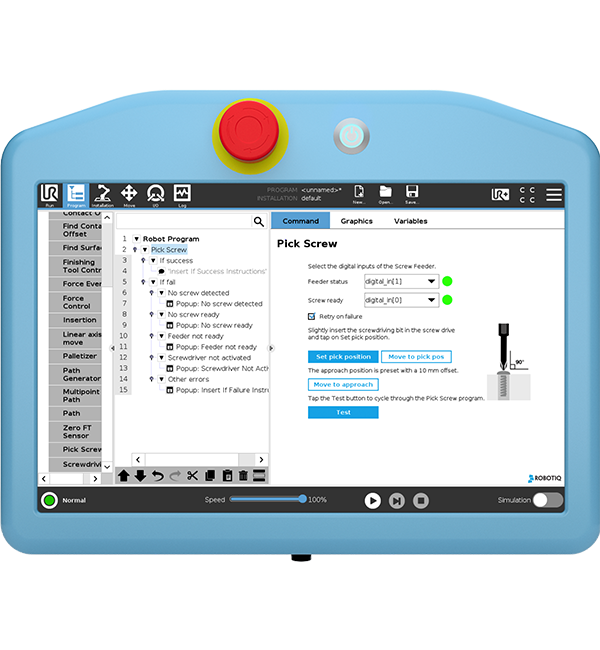

Seamless integration of the screwdriver, screw feeder, robot, and force-sensing technology via one easy-to-program interface (URCap).
How does it work?

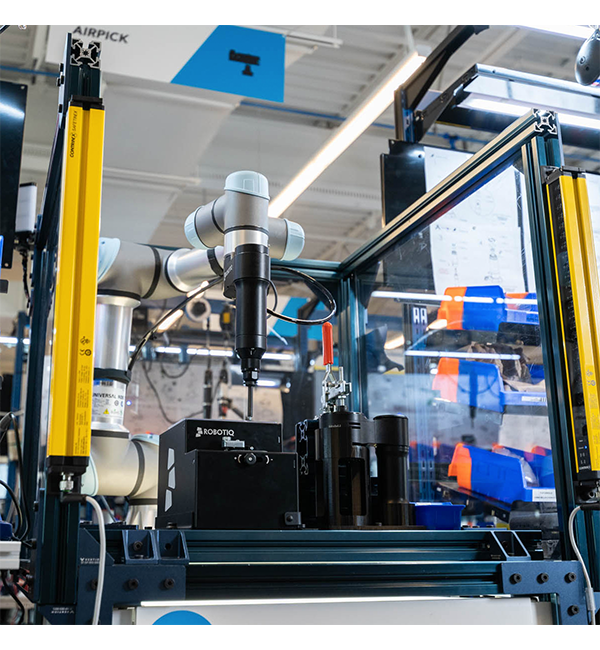

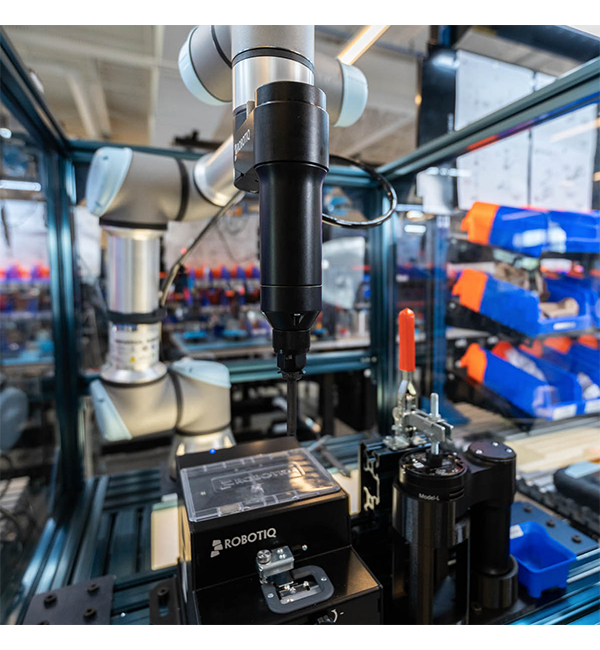

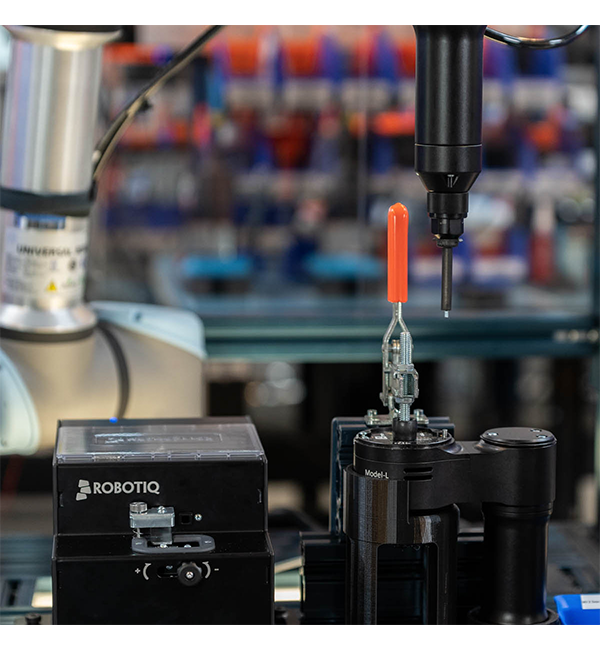

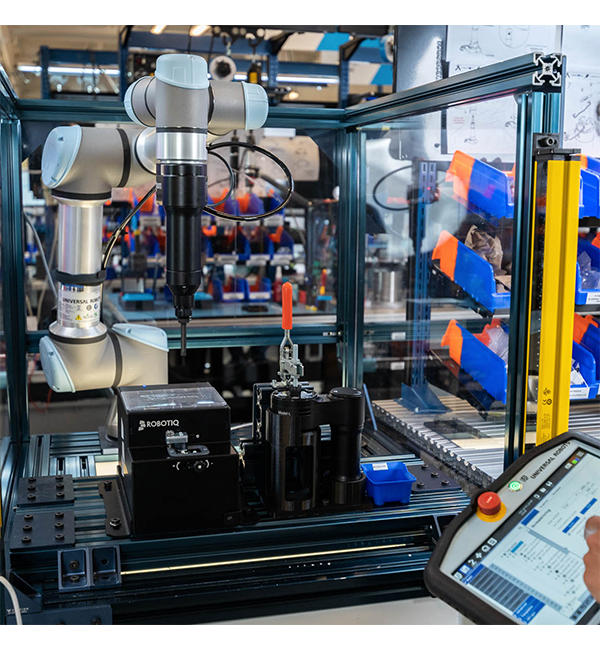

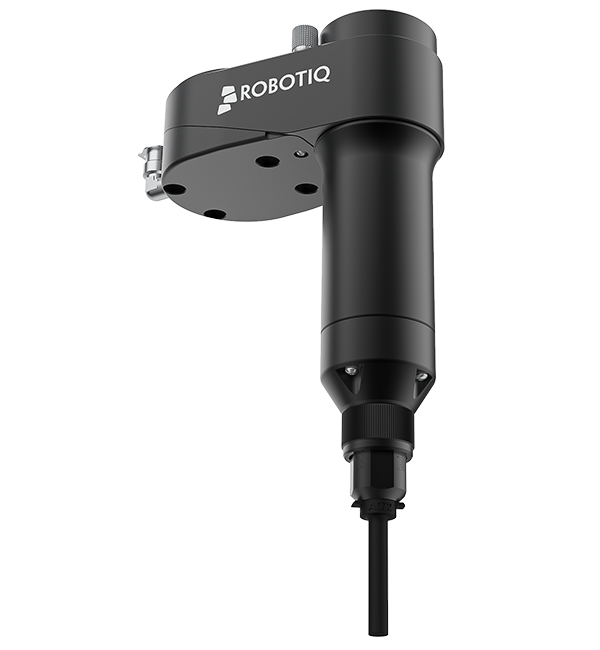

The Robotiq Screwdriving Solution, composed of the Robotiq Screwdriver and Robotiq Screw Feeder, is a robotic peripheral designed for industrial applications. Its design makes it a unique tool for fastening components together autonomously. The Screw Feeder delivers screws individually at a picking area. The Screwdriver then collects them using vacuum technology and proceeds to the actual screwdriving task.
Torque: 1 to 4 Nm
M2.5 to M5
4 mm to 25 mm
Any material (stainless steel, alloy steel, aluminum, brass, plastic, etc.)
Air pressure for vacuum: 100 psi
Bit length to use the vacuum: 3.5 inches
Includes a urcap plugin
Software version requiredFor e-Series: Polyscope 5.9.4 or later
For CB-Series: Polyscope 3.14.3 or later

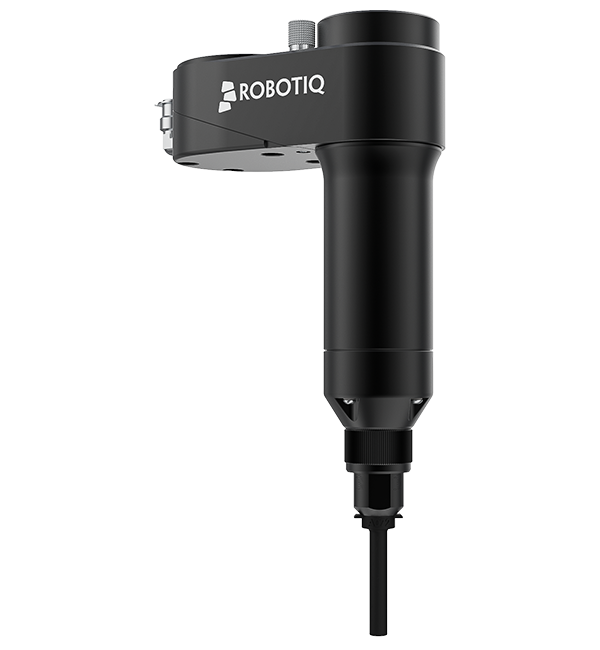

DimensionsSome specifications of the Screwdriving solution:
- Width: 152 mm
- Depth: 57 mm
- Height: 280 mm

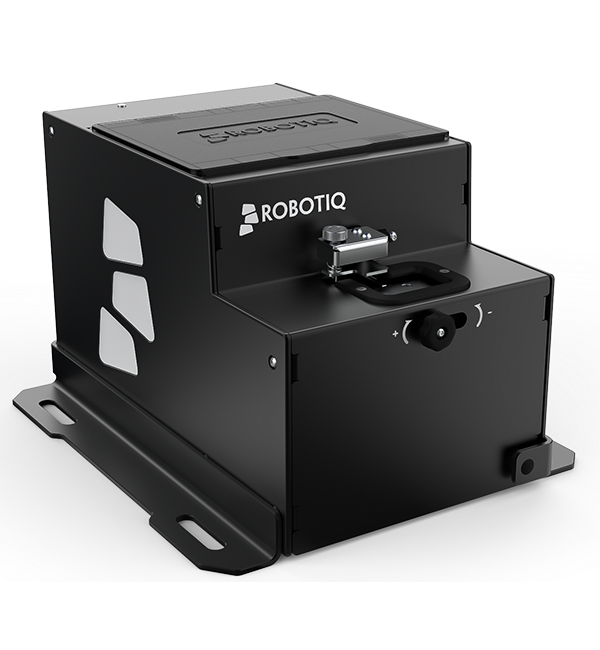

Screw Feeder SF-300
- Width: 157 mm
- Depth: 286 mm
- Height: 171 mm
Certifications and standardsThe Screwdriving solution: the product is considered as partly completed machinery and has been evaluated in accordance with the following harmonized standards:
What's in the box?
- Robotiq Screwdriver
- Robotiq Screw Feeder, power supply, and international adaptor
- Robotiq FT 300-S (if UR CB-Series)
- Screw Feeder mounting brackets
- Screwdriving bits
- Vacuum sleeves
- 10-meter pneumatic hose
- Coupling for connection to robot controller
- RS-485 to USB signal converter
- 10-meter high-flex device cable
- Hardware and tools
- Robotiq Force Copilot license dongle
license typeOne-time purchase.
Free URCap software.
Free Copilot software.
Free URCap updates.
